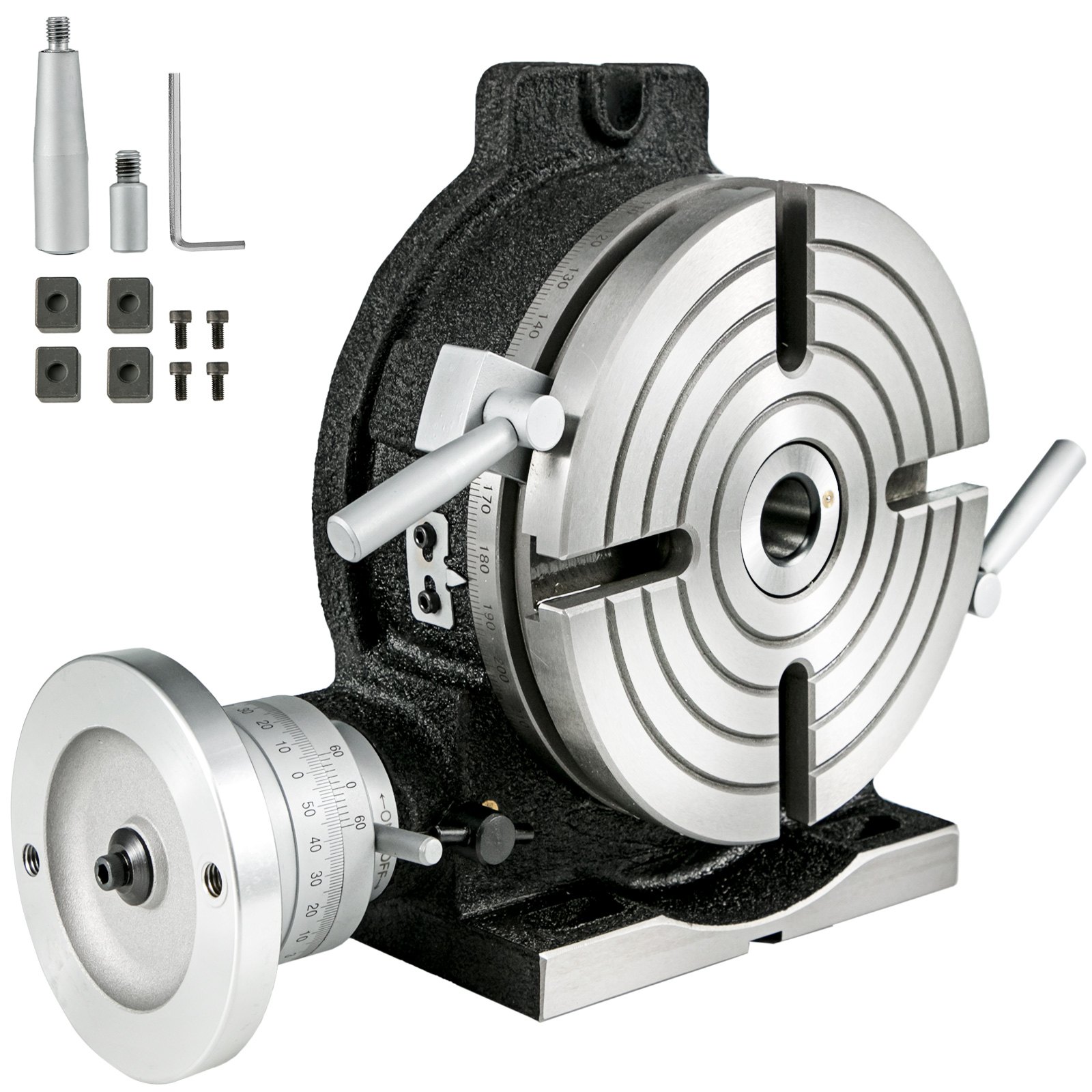

VEVOR rotary table with accessories, featuring precise scale and sturdy design. VEVOR rotary table, silver rotary table wheel with vertical & horizontal design. VEVOR rotary table with ht200 casting for precision machining. close-up of the VEVOR rotary table dials showing detailed measurement markings. close-up of the VEVOR rotary table adjustment handle for easy operation and precision. VEVOR rotary table accessories, including free wrench, adapter, and screws. industrial machines showcasing VEVOR rotary table applications. various models displayed.
GZTHV-80000000001V0

VEVOR Rotary Table 8" Vertical & Horizontal Rotary Table, 8Inch Horizontal Vertical HV8 Precision 3MT Milling Drilling Machine Vernier Reading Milling Drilling Boring for Milling Machine

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive £5.00 off for your first three orders on the App.
Download Now
Exclusive £5.00 off for your first three orders on the App.
Scan the QR code to download

4 Slots

  • No Groove
  • 3 Slots
  • 4 Slots

About this item

  • Remarkable Quality: HT200 Casting is mainly used to cast parts subjected to pressure and vibration on mechanical equipment. Using it as the material, our products are durable, shock-absorbing and heat-resistant.
  • Vertical & Horizontal Design: Our precise rotary table is 8" with 4 slots can be used in both horizontal and vertical positions, meeting two functions and also bringing you convenient as well as efficient milling experience.
  • Excellent Precision: The indexing plate can be graduated 360 Degrees. Resetting dial and hand wheel can be graduated in seconds. The minimum scale is calibrated to 10 seconds with high precision.
  • Convenient to Adjust: The dial is marked with an accurate scale. Just operate the control handle and adjust it to the desired position, which makes it possible to use it easily and conveniently.
  • Multiple Application: Designed to be widely used in milling machine like index boring, milling, circle cutting, spot facing and boring hole and so on. Practical design can meet a variety of workshop work needs.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Rotary Table 8" Vertical & Horizontal Rotary Table, 8Inch Horizontal Vertical HV8 Precision 3MT Milling Drilling Machine Vernier Reading Milling Drilling Boring for Milling Machine
4 Slots
VEVOR rotary table, 8" diameter, ht200 casting in an industrial setting.
VEVOR rotary table with precision scale and included accessories.
8" Vertical & Horizontal Rotary Table
The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on.
Our amazing rotary table is made from HT200 casting with high quality. It has already passed the ISO9001 quality system certification. They are are very popular on the market for their superior performance, excellent design and reasonable cost. They are definitely your best choice!
  • Remarkable Quality
  • Excellent Precision
  • Multiple Application
  • Vertical & Horizontal Design
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

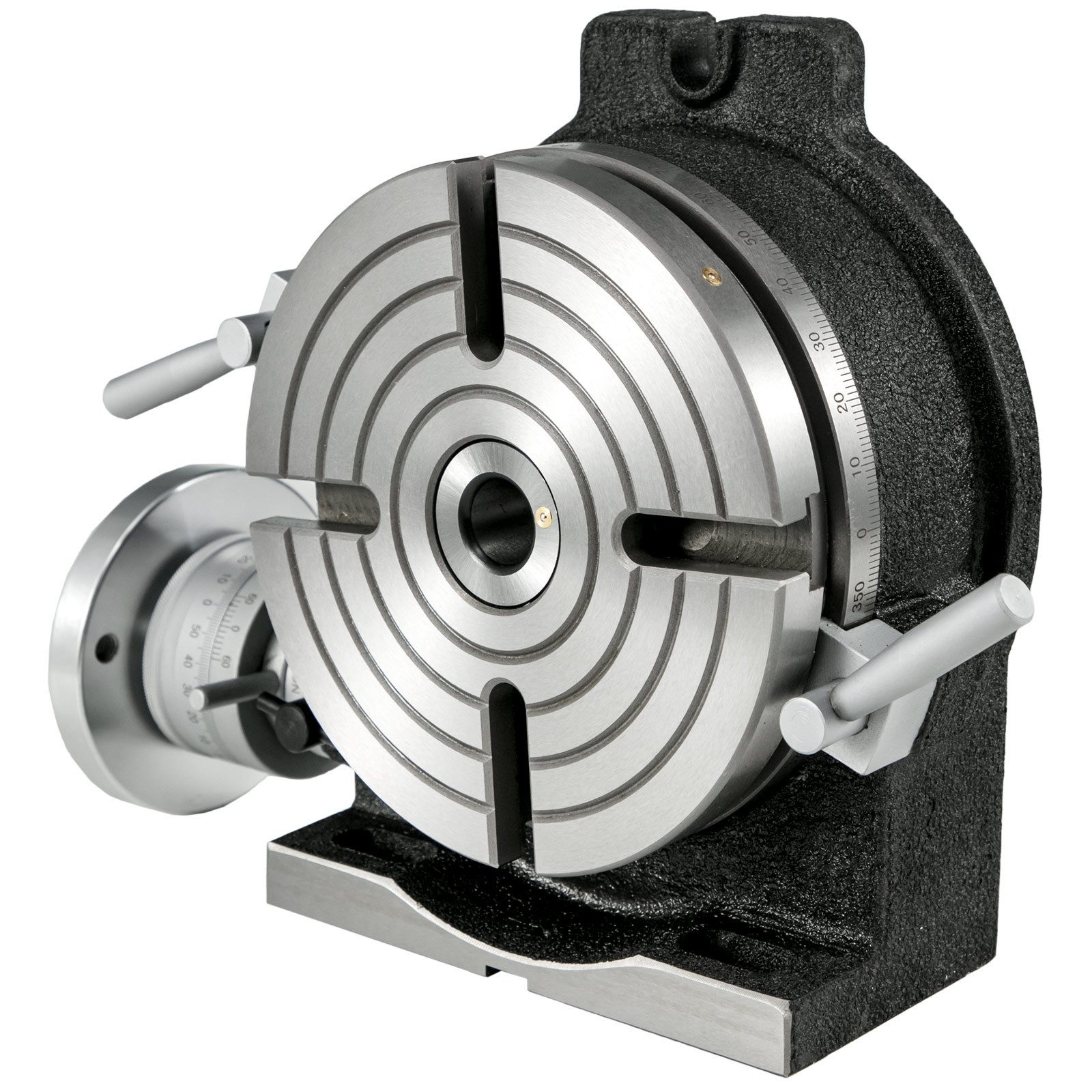

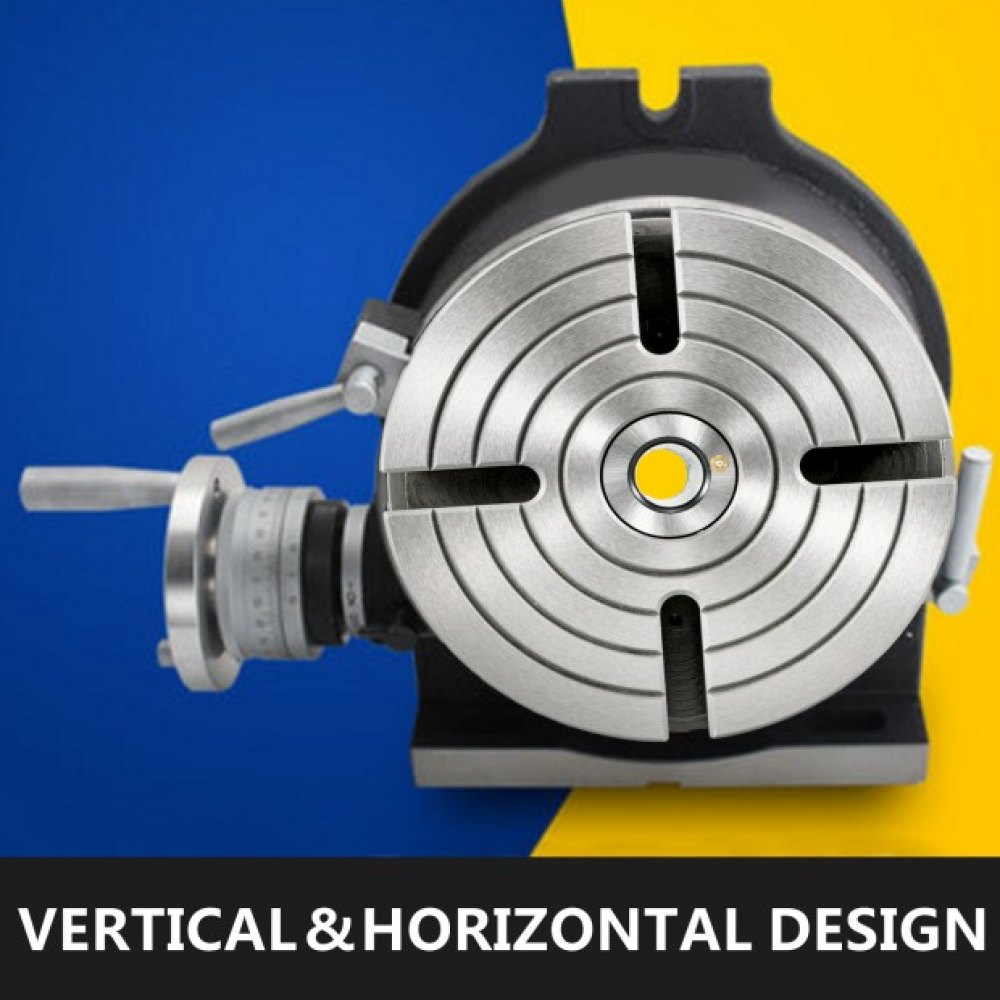

VEVOR rotary table with vertical and horizontal orientation.

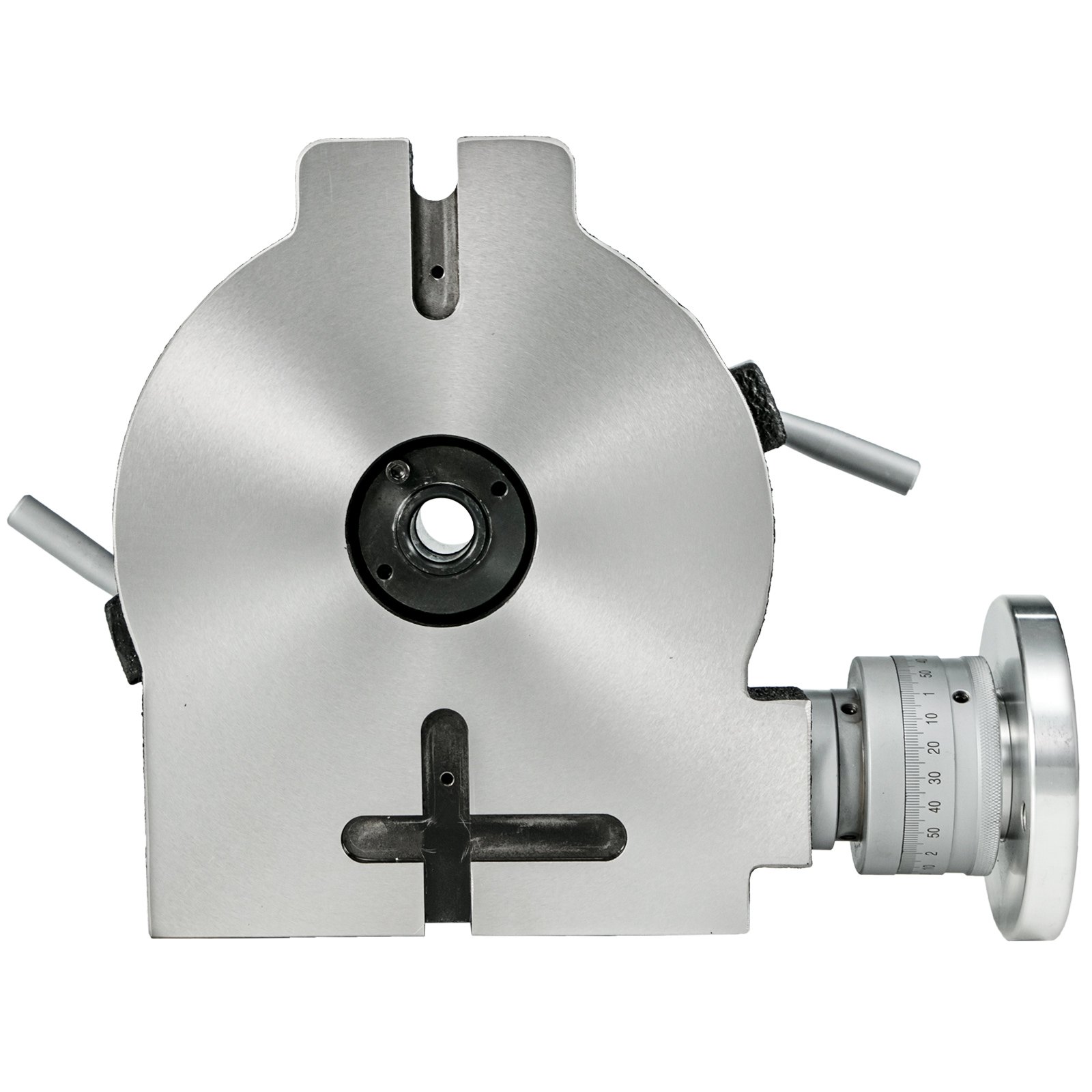

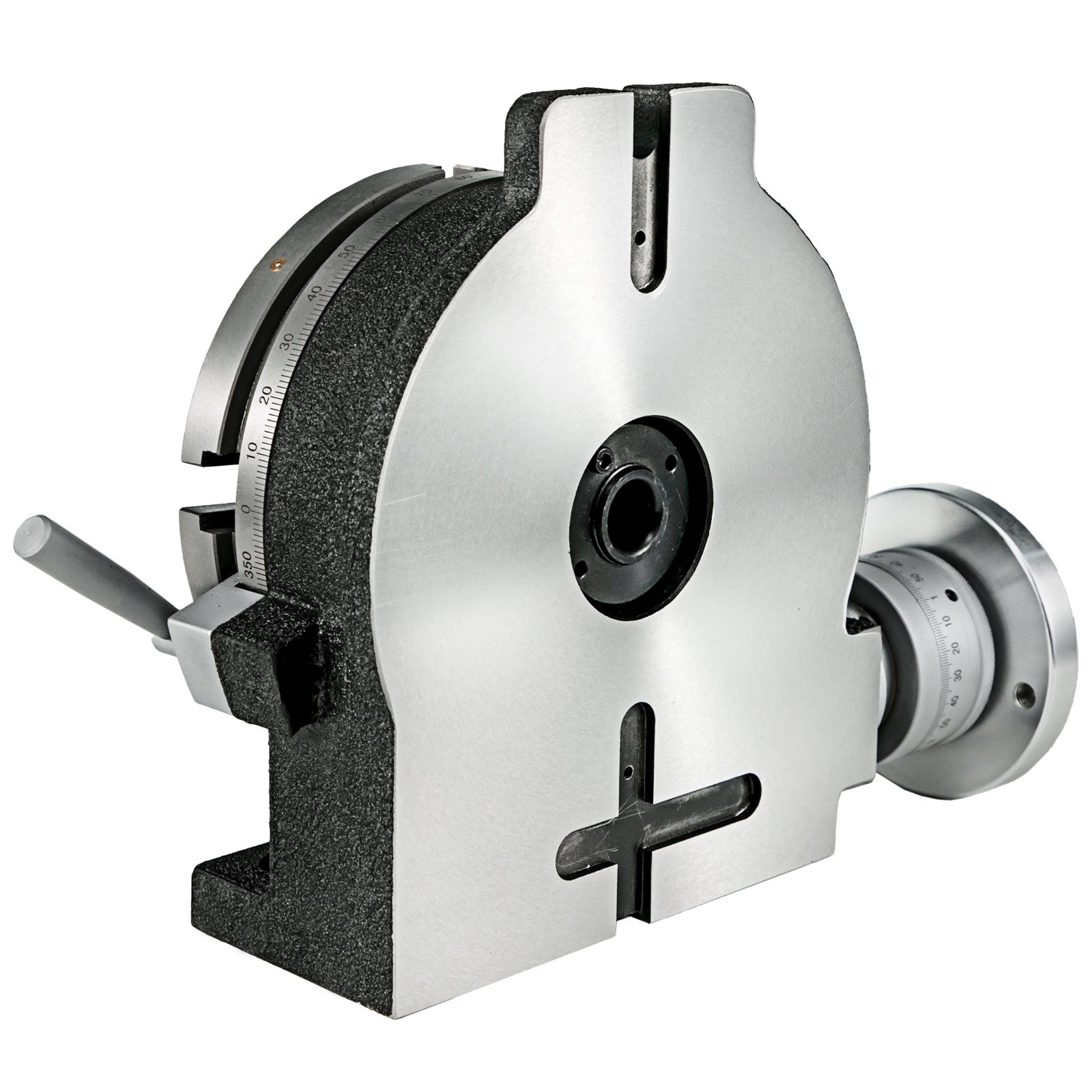

Vertical & Horizontal Design
Our rotary table is both vertical and horizontal with two functions. When the vertical position of the table is used together with the tail part, it is also possible to complete circle cutting, indexing drilling, milling and more complicated work.
ht200 casting components of the VEVOR rotary table showing detailed grooves and slots

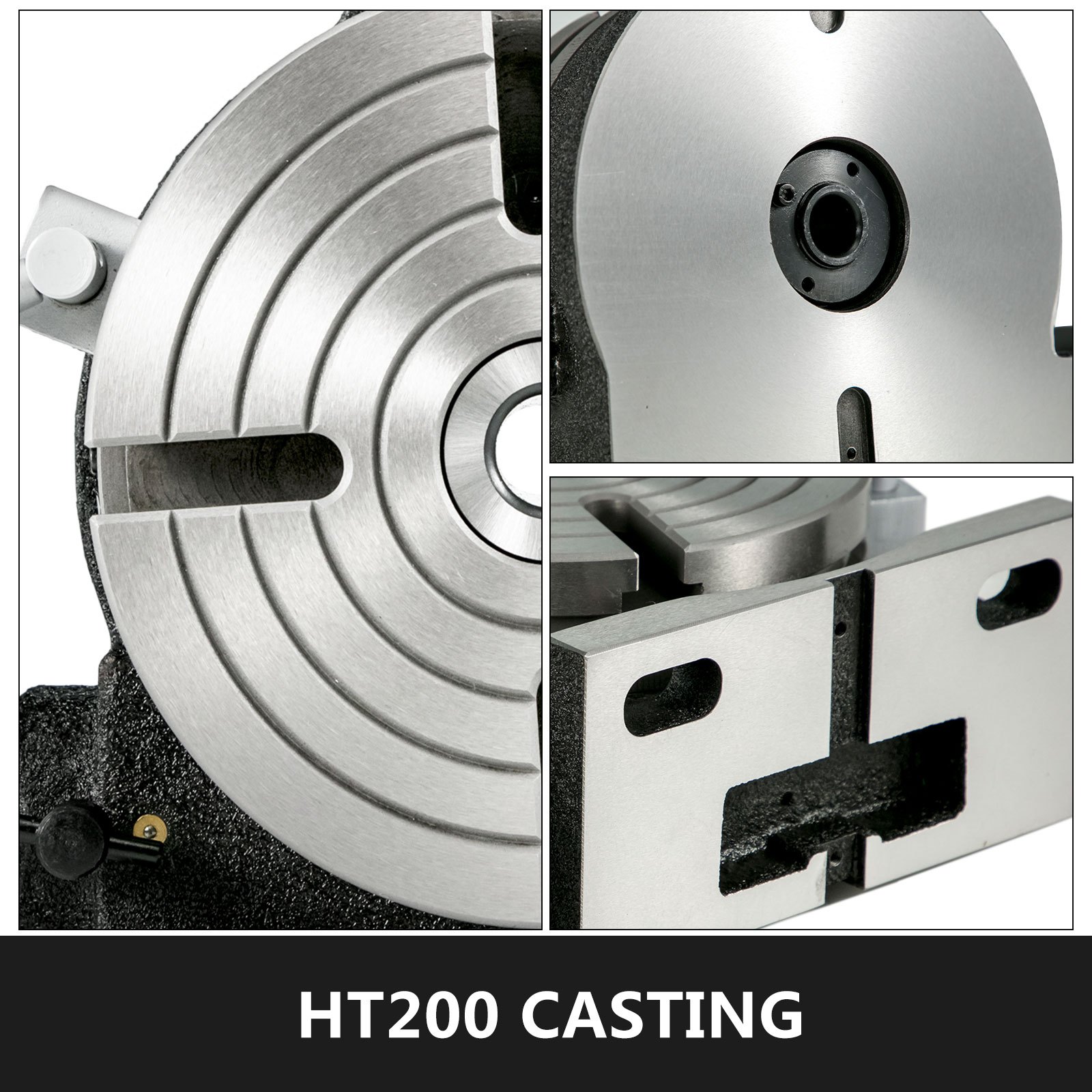

HT200 Casting
HT200 casting has good casting performance, shock absorption performance as well as high strength heat resistance. It ensures the of superior performance the machine and provides you a good sense of use.
precision scales on a VEVOR rotary table, emphasizing excellent measurement accuracy.

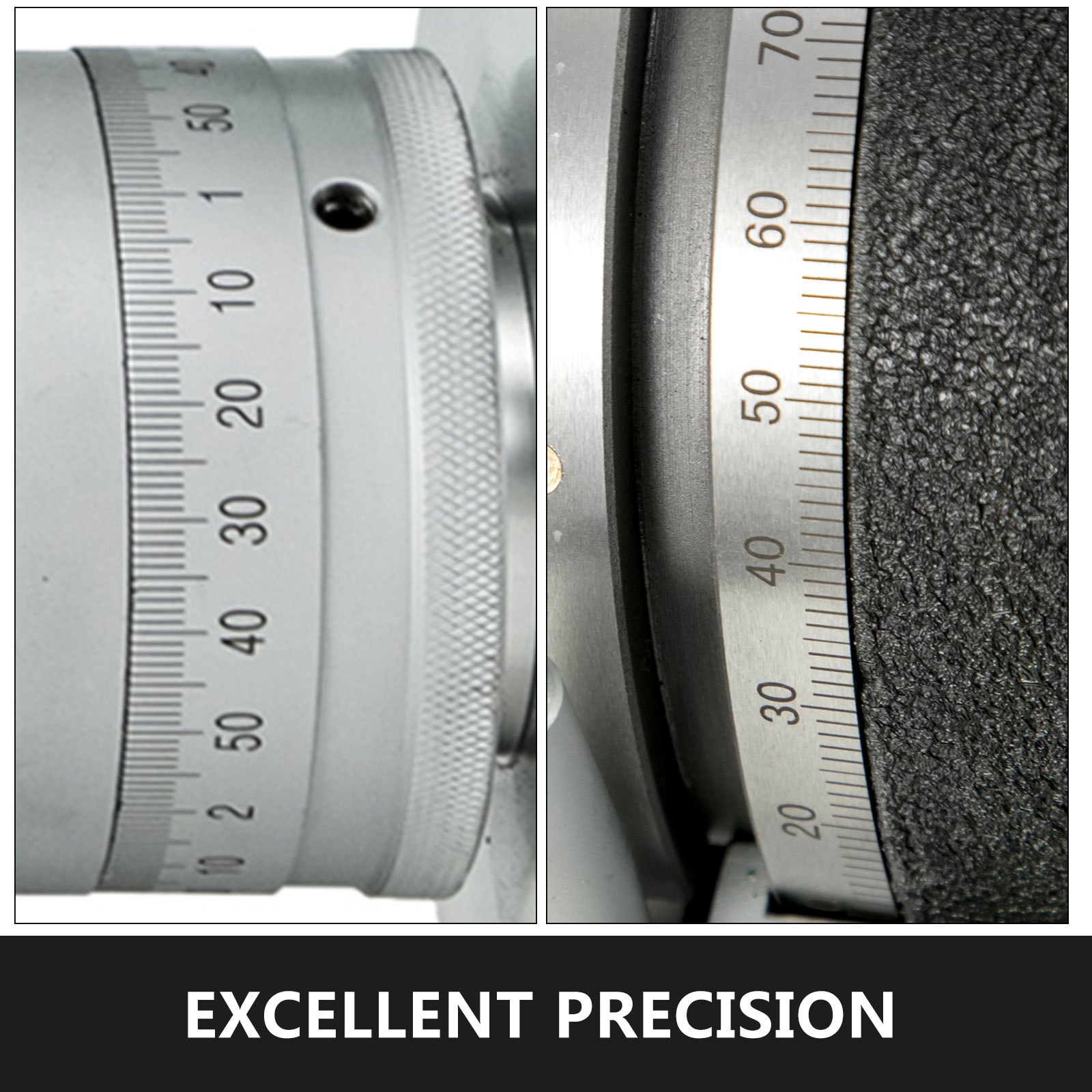

Excellent Precision
The dial is divided into 360 degrees in total. The handle is 4 degrees per revolution. The minimum scale can be accurate to 10 seconds. All of these help you handle more complex and more precise tasks.
handle and adjustment dial close-up of VEVOR rotary table, showcasing easy-to-adjust feature.

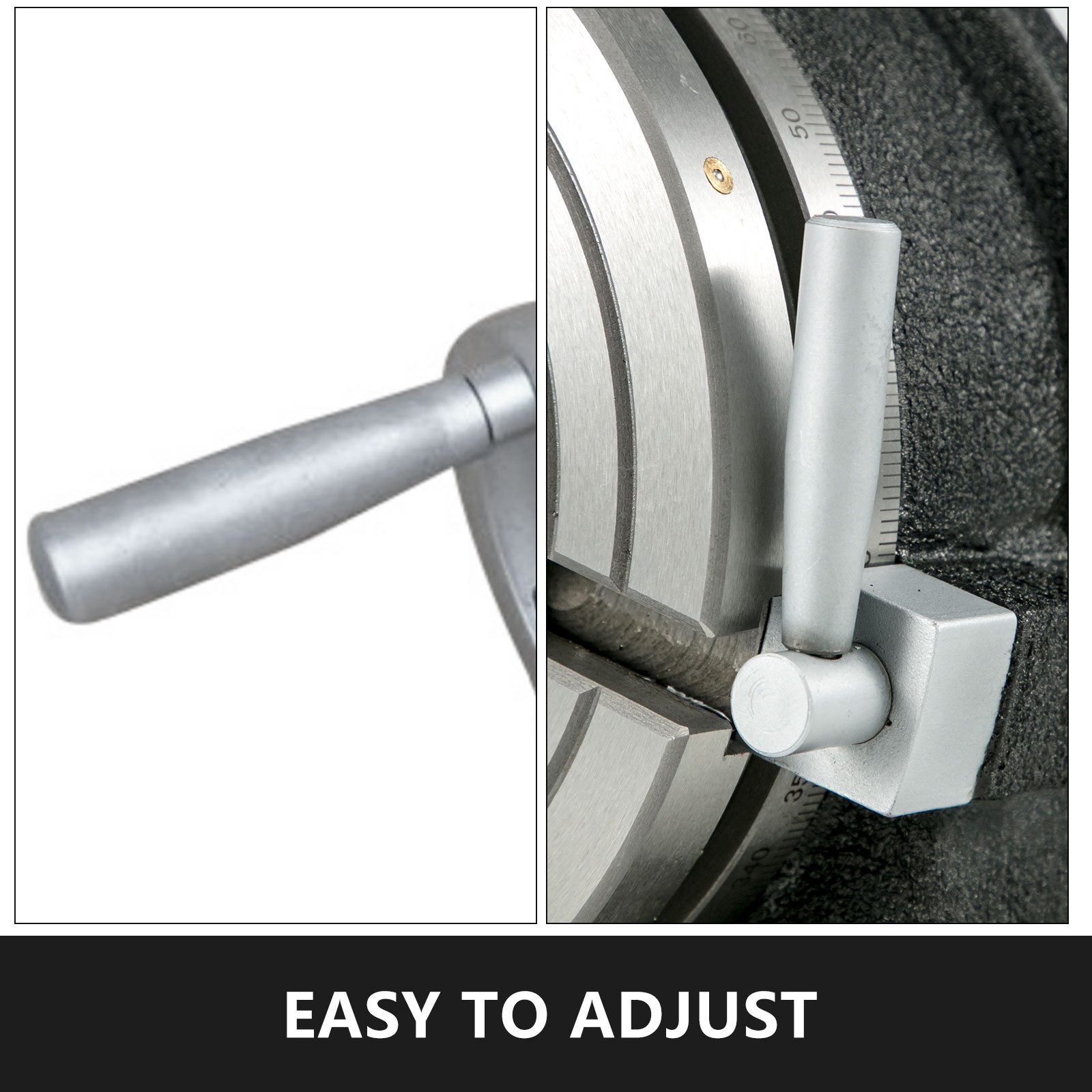

Easy to Adjust
It's not difficult for you to adjust the rotary table milling machine. What you should to do is just adjust the handle to the position where you want. Because the precise scale is marked on the dial.

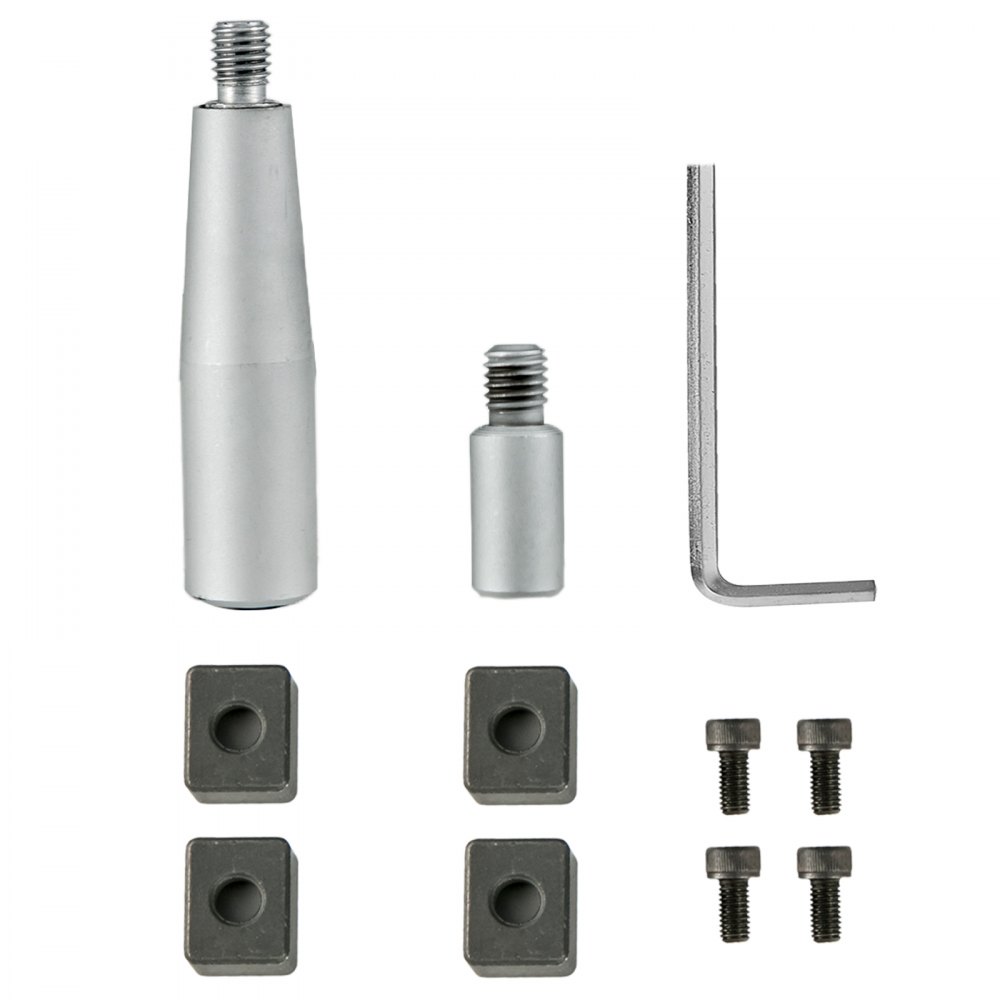

VEVOR rotary table accessories: wrench, screws, and mounting blocks.

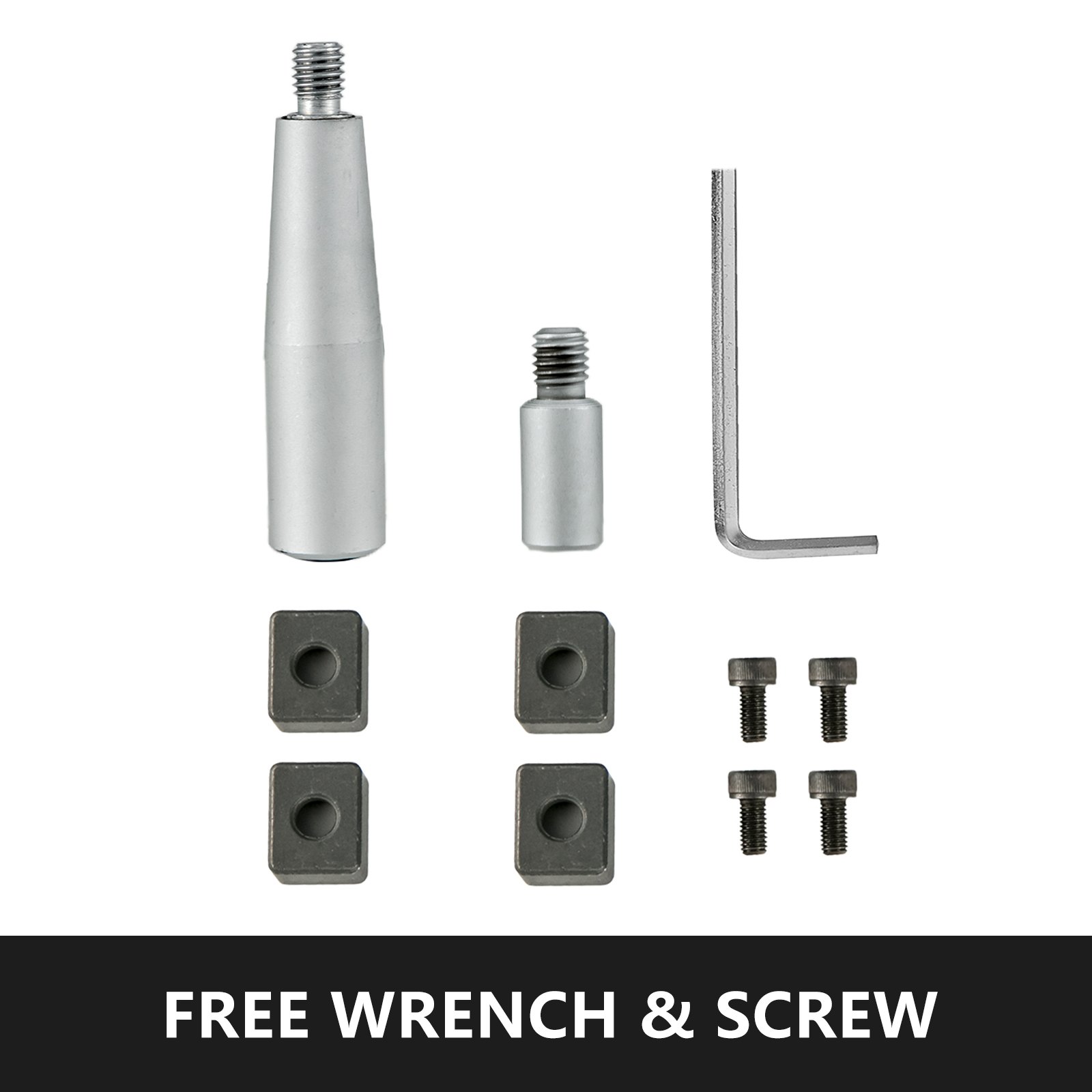

Wrench & Screw
If you purchase our product, we are going to give you a free wrench, 2 positioning keys and screws. When you install the vertical & horizontal rotary table, these accessories will bring you a lot of conveniences.
various machinery applications with a central VEVOR rotary table for precise adjustments.

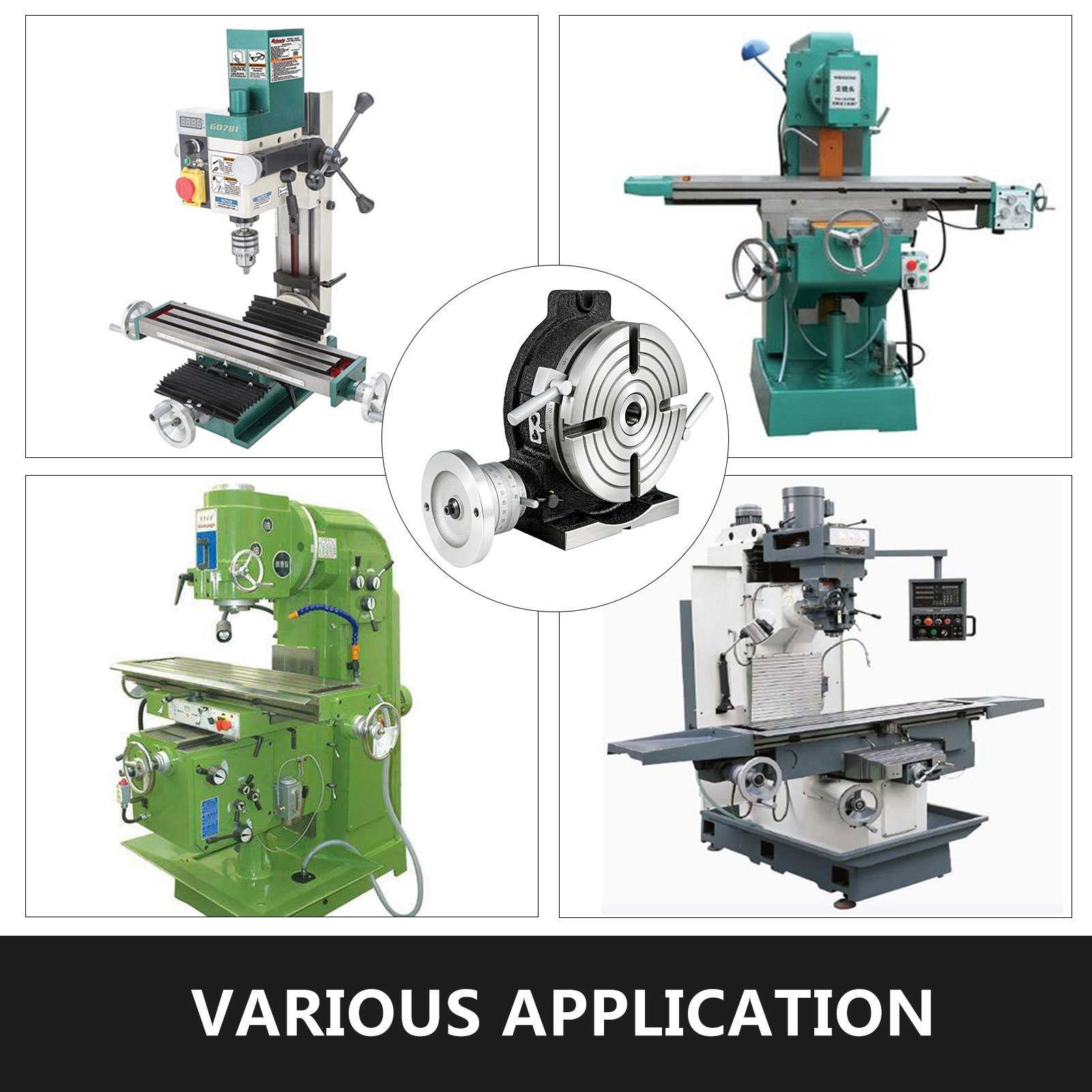

Various Application
This machine is designed for milling, drilling, fixture boring and many common workshop applications. It makes it possible for operators to drill or cut work at exact intervals around a fixed axis in the process of working.

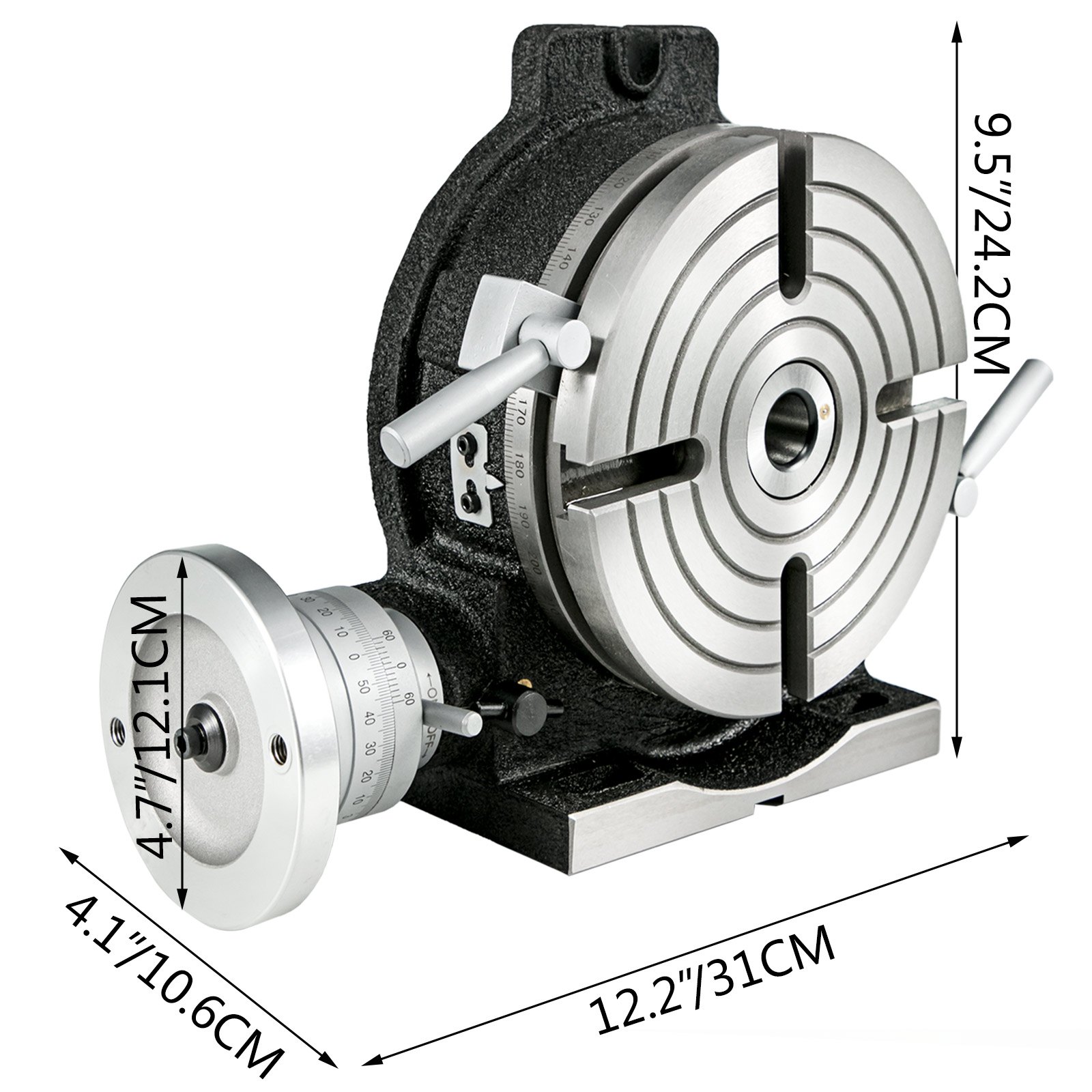

VEVOR rotary table with dimensions labeled: 12.2"x9.5"x4.7".
Specifications
  • Material: HT200 Casting
  • Table Diameter: 8" / 200 mm
  • Center Bore: MT-3
  • Reduction Ratio: 1:90
  • Horizontal Height : 105 mm / 4.13"
  • Vertical Height : 40 mm / 1.57"

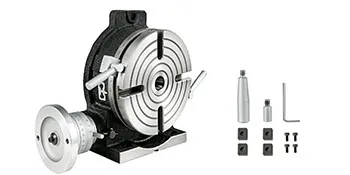

VEVOR rotary table with accessories including bolts, wrench, and centering tools.

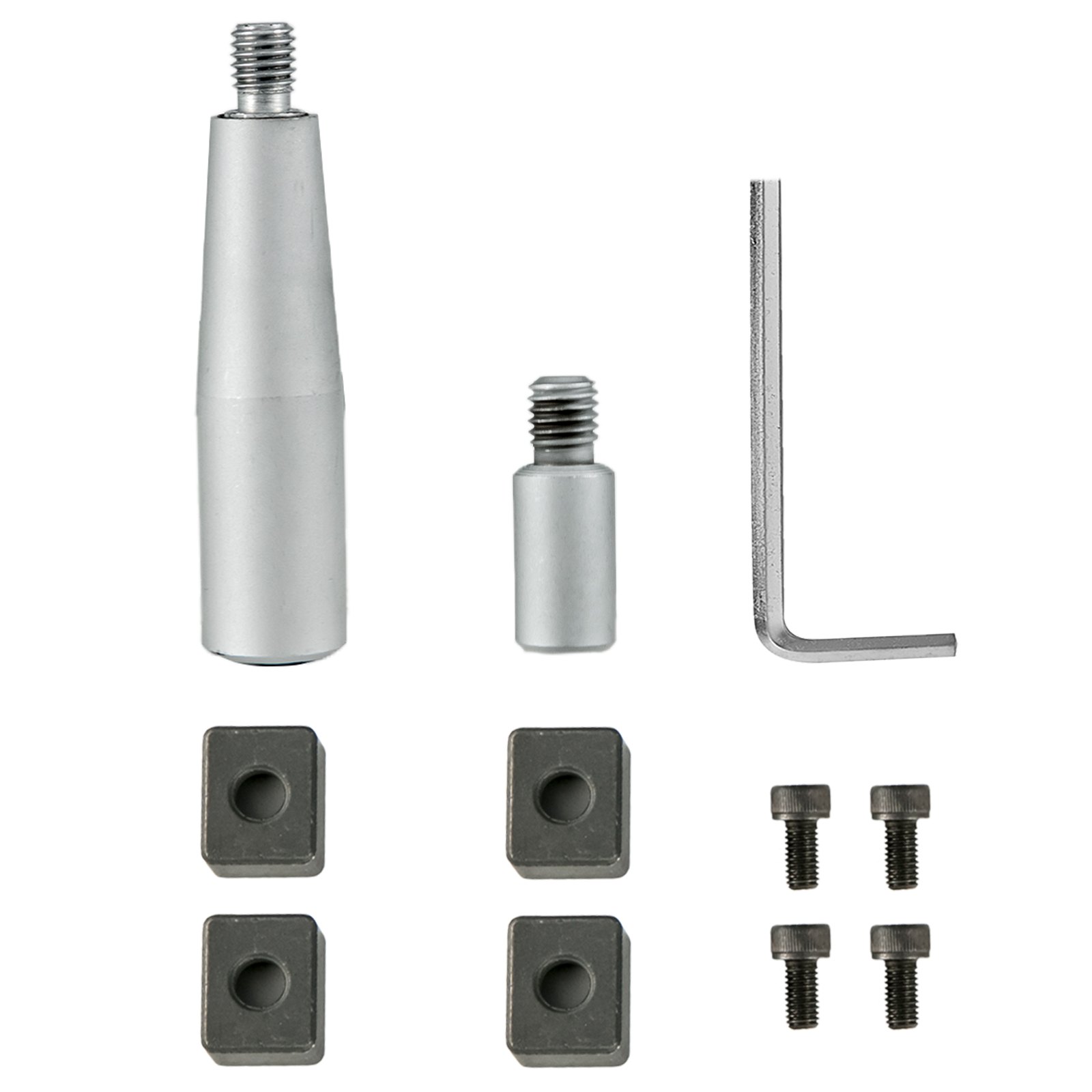

Package Content
  • 1 x Wrench
  • 2 x Positioning Keys
  • 2 x Mounting Screws
  • 1 x Vertical and Horizontal Rotary Working Table
VEVOR rotary table, 8" diameter, ht200 casting in an industrial setting.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR rotary table with precision scale and included accessories.
8" Vertical & Horizontal Rotary Table
The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on.
Our amazing rotary table is made from HT200 casting with high quality. It has already passed the ISO9001 quality system certification. They are are very popular on the market for their superior performance, excellent design and reasonable cost. They are definitely your best choice!
  • Remarkable Quality
  • Excellent Precision
  • Multiple Application
  • Vertical & Horizontal Design
VEVOR rotary table with vertical and horizontal orientation.
Vertical & Horizontal Design
Our rotary table is both vertical and horizontal with two functions. When the vertical position of the table is used together with the tail part, it is also possible to complete circle cutting, indexing drilling, milling and more complicated work.
ht200 casting components of the VEVOR rotary table showing detailed grooves and slots
HT200 Casting
HT200 casting has good casting performance, shock absorption performance as well as high strength heat resistance. It ensures the of superior performance the machine and provides you a good sense of use.
precision scales on a VEVOR rotary table, emphasizing excellent measurement accuracy.
Excellent Precision
The dial is divided into 360 degrees in total. The handle is 4 degrees per revolution. The minimum scale can be accurate to 10 seconds. All of these help you handle more complex and more precise tasks.
handle and adjustment dial close-up of VEVOR rotary table, showcasing easy-to-adjust feature.
Easy to Adjust
It's not difficult for you to adjust the rotary table milling machine. What you should to do is just adjust the handle to the position where you want. Because the precise scale is marked on the dial.
VEVOR rotary table accessories: wrench, screws, and mounting blocks.
Wrench & Screw
If you purchase our product, we are going to give you a free wrench, 2 positioning keys and screws. When you install the vertical & horizontal rotary table, these accessories will bring you a lot of conveniences.
various machinery applications with a central VEVOR rotary table for precise adjustments.
Various Application
This machine is designed for milling, drilling, fixture boring and many common workshop applications. It makes it possible for operators to drill or cut work at exact intervals around a fixed axis in the process of working.
VEVOR rotary table with accessories including bolts, wrench, and centering tools.
Package Content
  • 1 x Wrench
  • 2 x Positioning Keys
  • 2 x Mounting Screws
  • 1 x Vertical and Horizontal Rotary Working Table

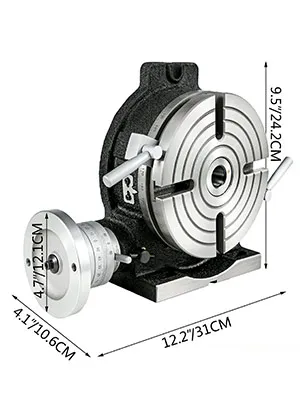

VEVOR rotary table with dimensions labeled: 12.2"x9.5"x4.7".
Specifications
  • Material: HT200 Casting
  • Table Diameter: 8" / 200 mm
  • Center Bore: MT-3
  • Reduction Ratio: 1:90
  • Horizontal Height : 105 mm / 4.13"
  • Vertical Height : 40 mm / 1.57"

Enhance Your Milling Projects — Vertical Rotary Table

Elevate your milling and drilling accuracy with the VEVOR 8-inch horizontal vertical rotary table. It is crafted from durable HT200 casting. This versatile table has a 360-degree indexing plate and a finely calibrated dial. This offers unmatched precision. Whether you're a hobbyist or a professional, this table is ideal. Its easy setup makes it accessible to users of all skill levels. The wide range of applications makes it indispensable for achieving exceptional results in your workshop. You can experience a rotary table built for performance and longevity.


Heat Dissipation for Safety

Safety is important when working with machinery. This 8-inch rotary table boasts high heat dissipation capability. This ensures it performs consistently even under high-stress conditions. The result is equipment that does not wimp on any job; this milling, drilling and boring table stands firm. Its efficient heat dissipation system prevents overheating. This minimizes burn risks and ensures consistent performance even under demanding conditions.


Flexible Build – Maximum Versatility

A flexible table means you can work on different projects with one piece of equipment. This rotary table can be tilted in horizontal and vertical positions. The VEVOR rotary table will give you the flexibility needed for diversified projects.


Be it milling circular shapes or drilling accurate holes, this 8-inch rotary table can be turned to your needs. Hence, an easier and more convenient workflow is guaranteed. This saves you time and effort while ensuring precision in your projects.


Highly Reliable Precision

A precise machine will produce perfect results every time. The VEVOR precision milling machine table has high accuracy ratings. It has a 360-degree indexing plate and a finely resettable dial that ensures it. Thus, it gives precise measurements and accurate results for your projects.


The minimum scale reads down to 10 seconds. So with this rotary table, you are guaranteed to get all the measurements you need for your projects. This ensures that your workpieces meet the highest standards of quality.


Easy to Setup & Adjust

An easy-to-set-up machine means you can get its benefits quickly. Setting up this horizontal vertical rotary table is easy. An accurate scale on the dial and an intuitive control handle allows for adjustments to be easy and quick to make without hassle.


The setup is pre-oiled, which is why it is easy to get things going right away. This design simplicity lets even beginners work wonders with a rotary table the first time around. There is no need for extensive setup or adjustments. You can start using the rotary table immediately.


100% Durability

Durable equipment will last long. This rotary table, made from HT200 casting, is a testament to this. It will surely be a good companion for any serious miller, driller, or borer. The high-grade casting of cast iron in this device offers longevity and brilliant shock resistance. This ensures your rotary table is secure and long-lasting.


This heavy-duty construction and fine craftsmanship will make it a reliable companion in the workshop. It has smooth operation and a sturdy build that holds up pretty well even to regular usage. The fit and finish of this table are exceptionally good. It could be used for both hobbyists, and professional needs.


Wide Range of Applications

One machine should be needed to handle different projects. From index boring to circle cutting, the VEVOR precision milling machine table is highly versatile. It's designed to meet various workshop requirements. Hence, it is suitable for milling, drilling, and boring.


You can use it for everything from optic cuts on slides to fabricating mounts. It has the capacity to do both simple and complex projects. This makes it an ideal and versatile tool for any workshop.


See More

Specification

Material
HT200 Casting
Table Diameter
8" / 200 mm
Center Bore
MT-3
Reduction Ratio
1
Horizontal Height
105 mm / 4.13"
Vertical Height
40 mm / 1.57"
Manual
Download Link
Questions and Answers
1 Questions
Hi, how much does the 8" Rotary table weigh please?
26Kg.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
3 Review(s)
Clear filters
VEVOR Customer VEVOR Customer
Good quality rotary table.
I use this rotary table on my milling machine, the quality is good and represents good value for money.
Yorkshire Lad Yorkshire Lad
Ed The Engineer
A very good well made, high quality product at an excellent price. Bought it to carry out a special vertical milling modification to a cylindrical casting. The exercise was completed with ease using the table in the vertical position, very pleased. It would be helpful if the correct type of tapped tee slot nuts for table clamping were supplied with the unit, also an option for a clamping set would be beneficial and would have saved me the time spent sourcing/obtaining these.
wobbs wobbs
excellent value
ok so it's not the best available but that said you have to consider what you get for your money and that is a perfectly adequate tool for the home workshop. Needed a good clean before use and the odd bit of deburring but hey look at the price
