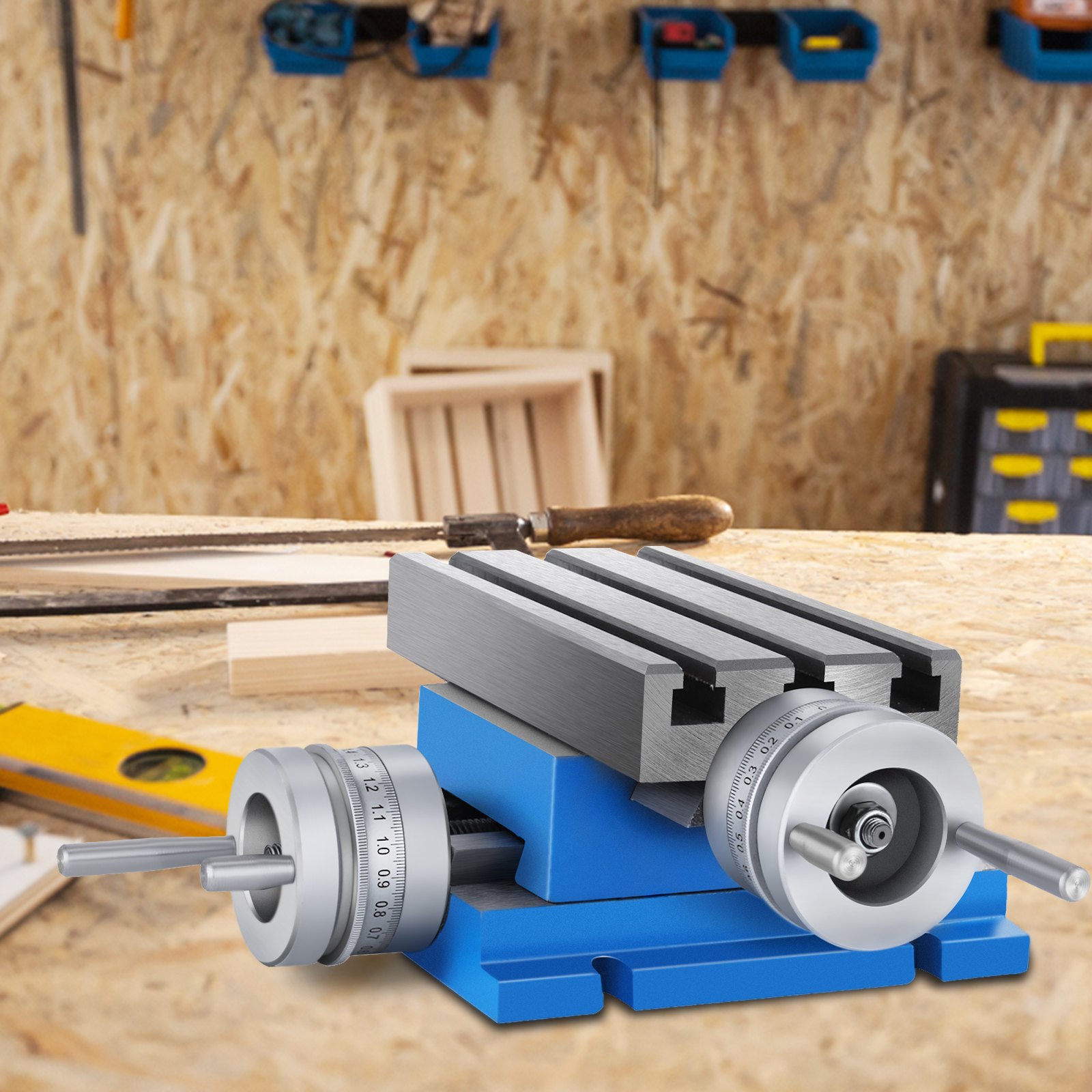

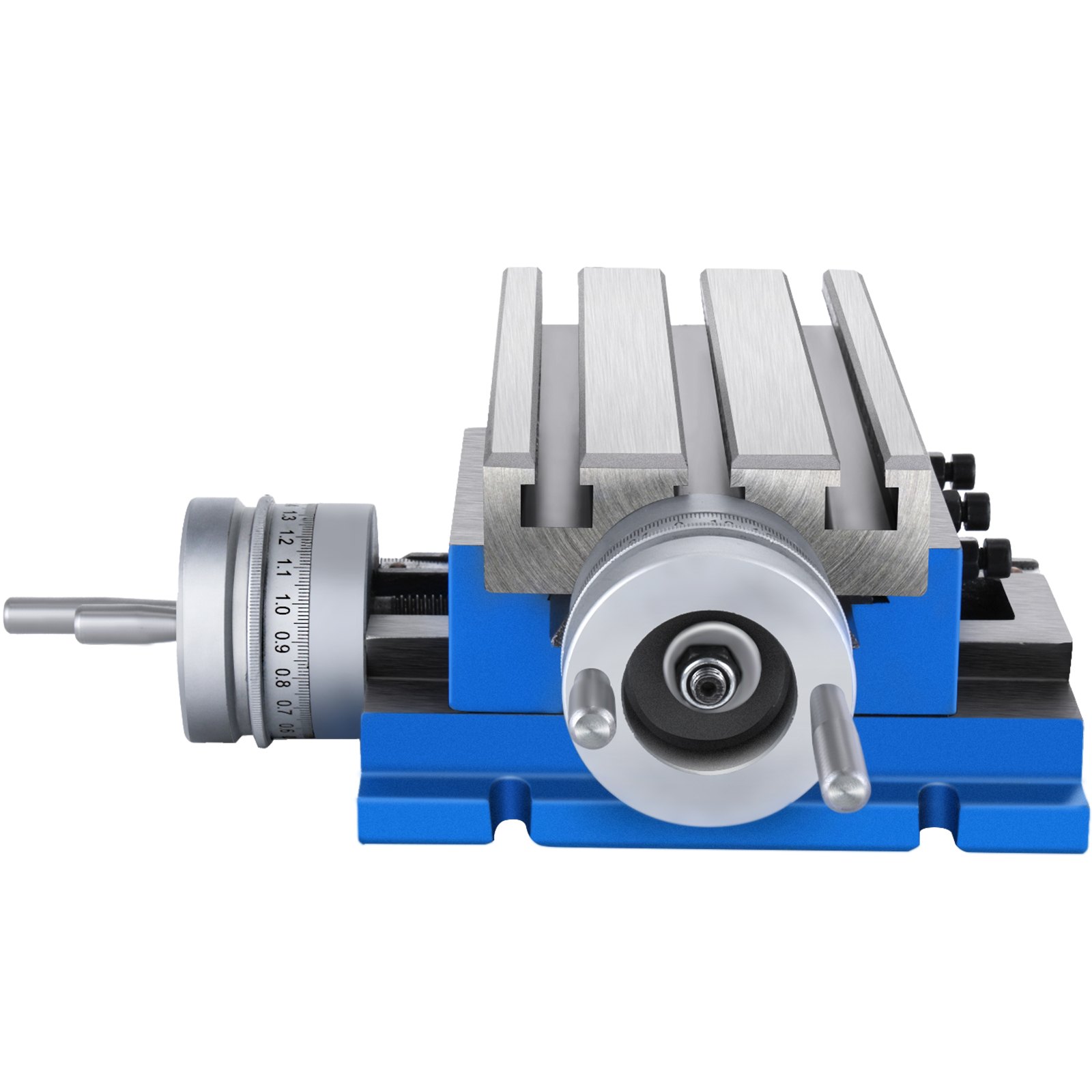

blue VEVOR milling machine work table with adjustable handles and graduated dials. VEVOR milling machine work table with measurements and compatible drill types. hand adjusting VEVOR milling machine work table with ergonomic hand circle and accurate scale. VEVOR milling machine work table with 2-axis movement: forward, backward, right, left. VEVOR milling machine work table with solid cast iron base and wear-resistant features. VEVOR milling machine work table with fixed lock, wide adjustment, and high clamping force. VEVOR milling machine work table dimensions and weight specifications.
MX-75GZT000000001V0

VEVOR Milling Machine Cross Slide Worktable 4''x7.3'' 2 Axis Compound Precision

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive £5.00 off for your first three orders on the App.
Download Now
Exclusive £5.00 off for your first three orders on the App.
Scan the QR code to download

185 x 100 mm

  • 450 x 170 mm
  • 185 x 100 mm

About this item

  • Ergonomics and Accuracy: Solid cranks adopting ergonomic design were easy to handle, which could save you great effort when in work; cranks were designed to vary in length to meet individual demands. Furthermore, they bear a precise scale that helps you in micro adjustment with the precision of about 0.01 mm and make processing parts more accurate.
  • Reinforcement & Reliability: Solidified and widened tabletop(100 mm) together ensure a long service life and steady processing, providing a high-level security for you. Convenient and effort-saving, such a table-board could satisfy various processing needs. On the other hand, this milling working table has three T-shaped grooves that are straight and noticeable. Those grooves give tight and reliable clamping; no need to worry about loosening.
  • Easy to Adjust: The movable table could be slid forward and backwards, leftwards and rightwards according to your needs. The movement could be finished by merely twisting screws. Besides, the internal lead-screw that has been treated with high temperature was really abrasion-resistant.
  • Improved Processing Precision : Sturdy and stable base of milling vise was made of cast iron, whose excellent stability helps to improve processing precision and work efficiency and avoiding latent security hazards.
  • Wide Application: The compound slide milling drilling working table can be used for all types of positioning, milling, drilling, optical viewing, and staging; Ideal for all drill stands, drilling, and milling machines.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Milling Machine Cross Slide Worktable 4''x7.3'' 2 Axis Compound Precision
185 x 100 mm

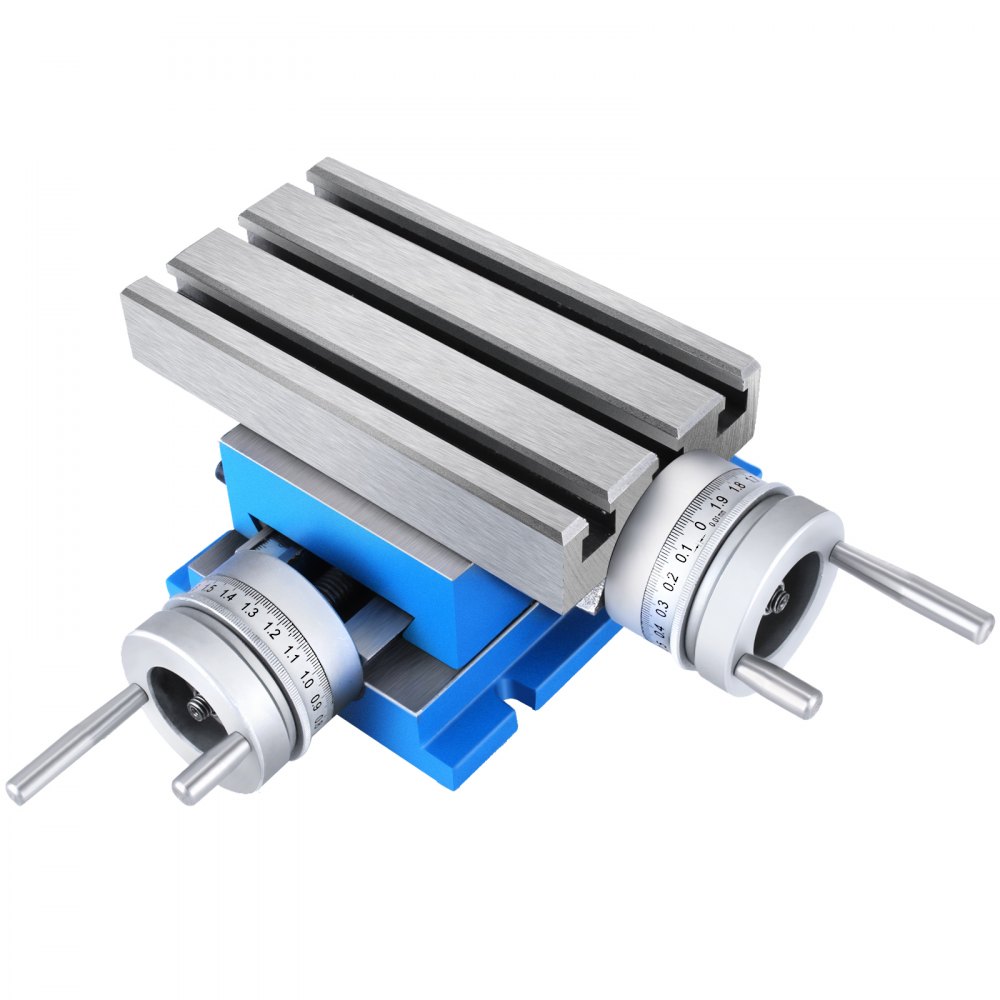

VEVOR milling machine work table with compound drilling slide for precision adjustments.

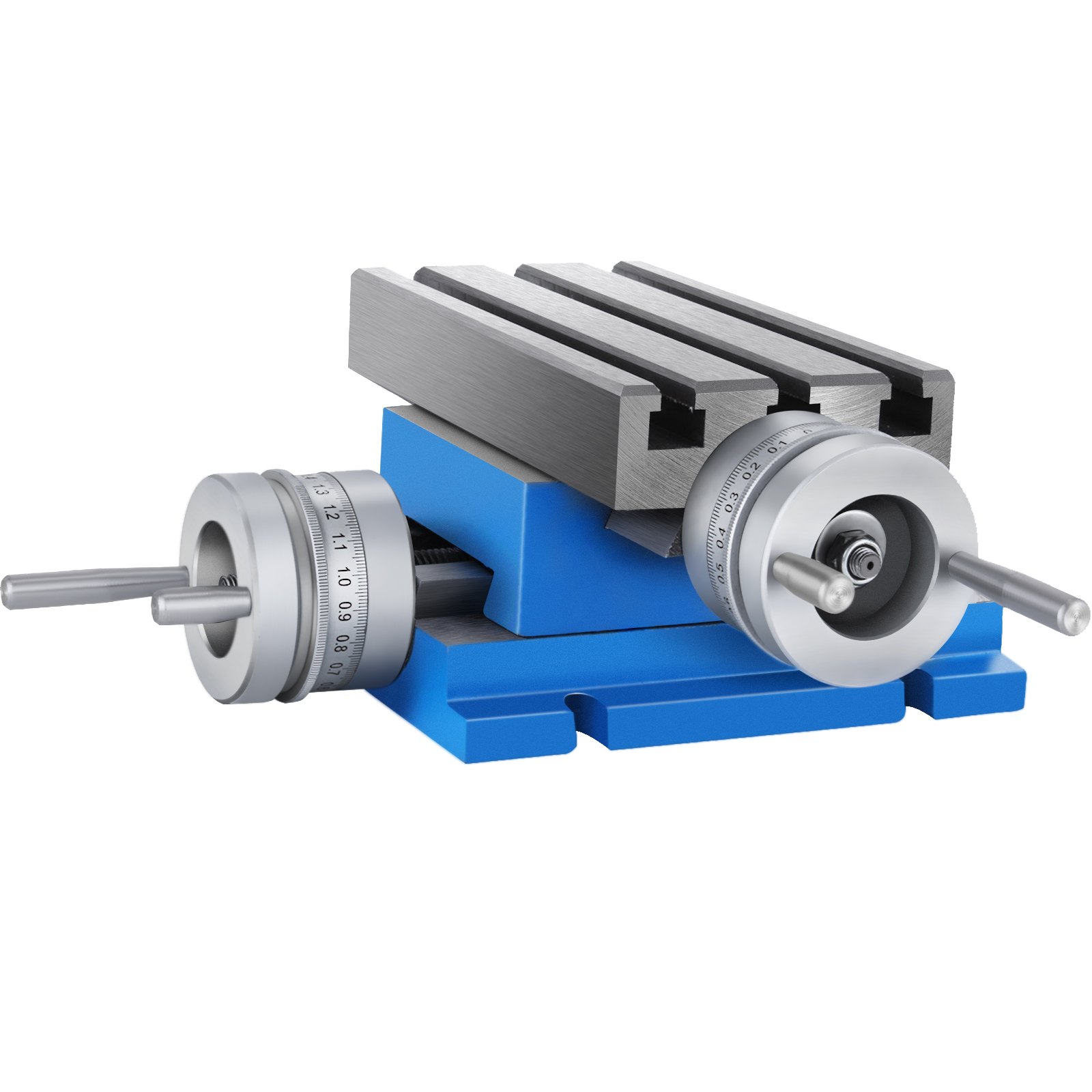

VEVOR milling machine work table with blue base and dual handwheels.
Milling Machine Worktable
This milling machine worktable was suitable for all drill stands, drilling, and milling machines and compatible with all types of positioning, milling, drilling, optical viewing, and staging. Easy-to-use cranks, widened table-board, t-shaped grooves, sliding table, and stable base, all of those make it
  • Ergonomics and Accuracy
  • Reinforcement and Reliability
  • Easy to Adjust
  • Improved Processing Precision
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

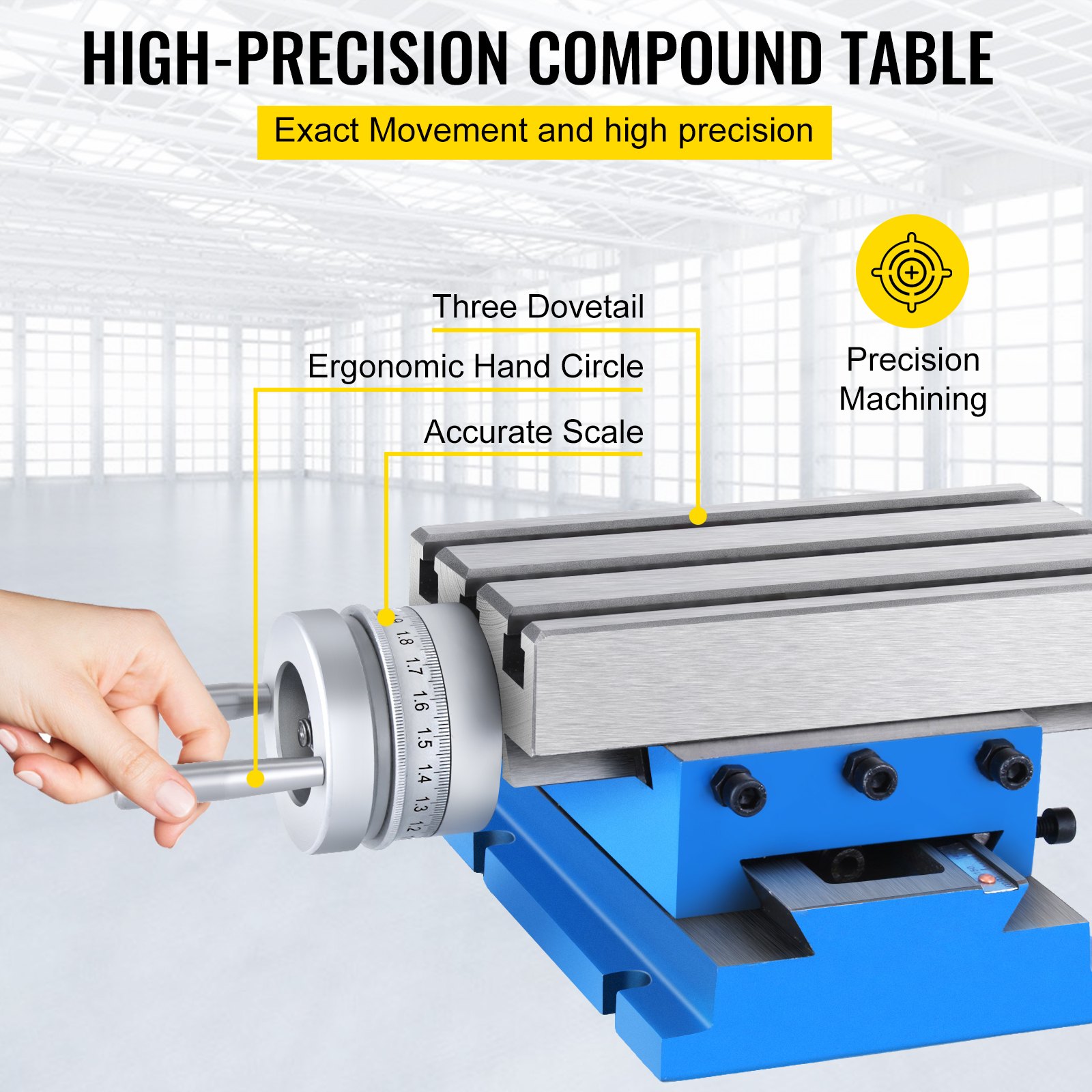

VEVOR milling machine work table with ergonomic cranks design, detailed close-up.
Easy-to-use Cranks
We adopted ergonomics in cranks design in the hope of best improving user experience. Meanwhile, the most precise scale was provided for the most accurate adjustment.
VEVOR milling machine work table, 100 mm solidified and widened tabletop.
Widened Table-board
The table-board was widened to 100mm so as to better meet various forms of processing needs, exempting you from unnecessary misgivings about the compatibility.

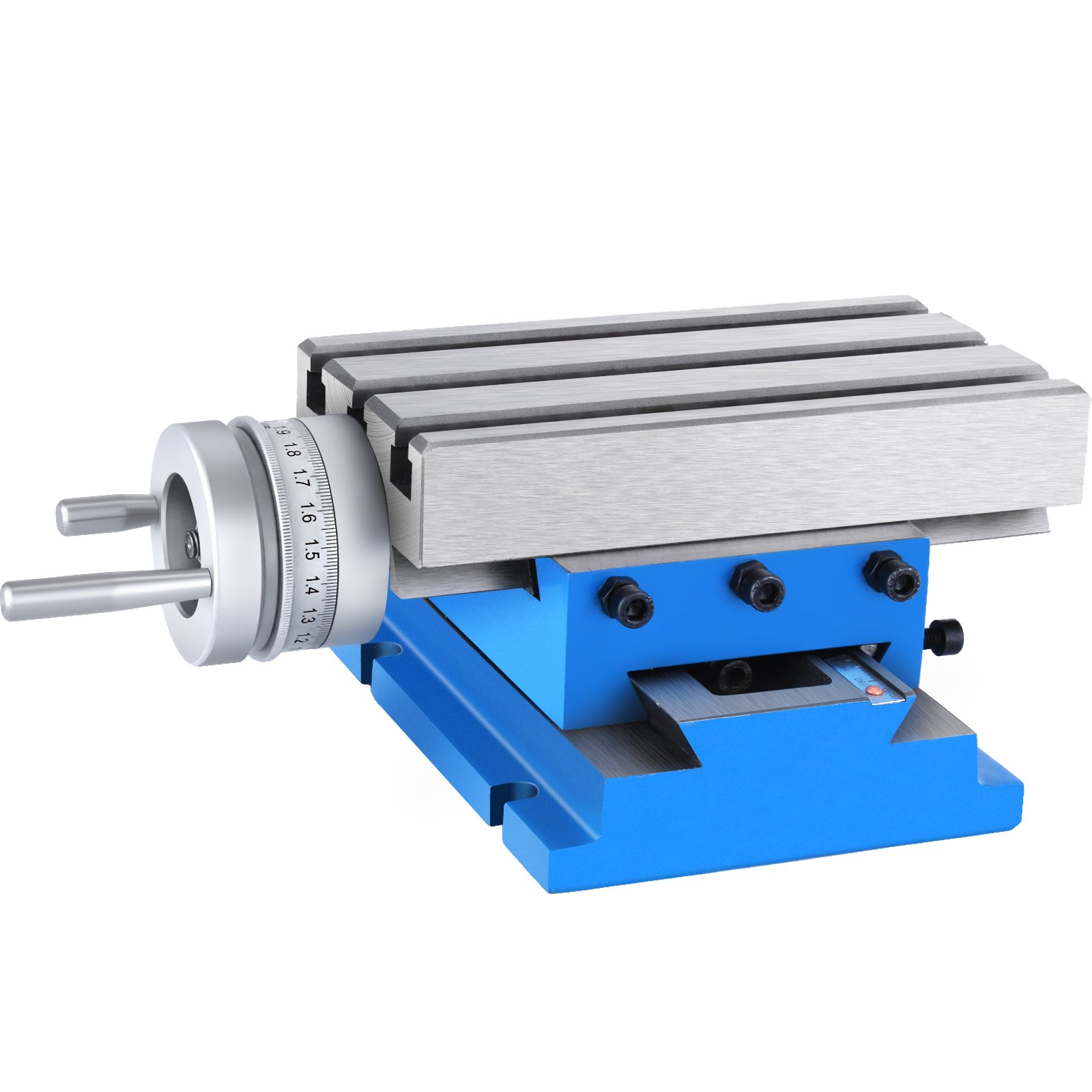

VEVOR milling machine work table features three machined t-slots for precision.
T-Shaped Grooves
The item has three grooves that have a length of 10 mm (2/5 inch) and an interval width of 35 mm (1.3 inch), clamping processed objects tightly.

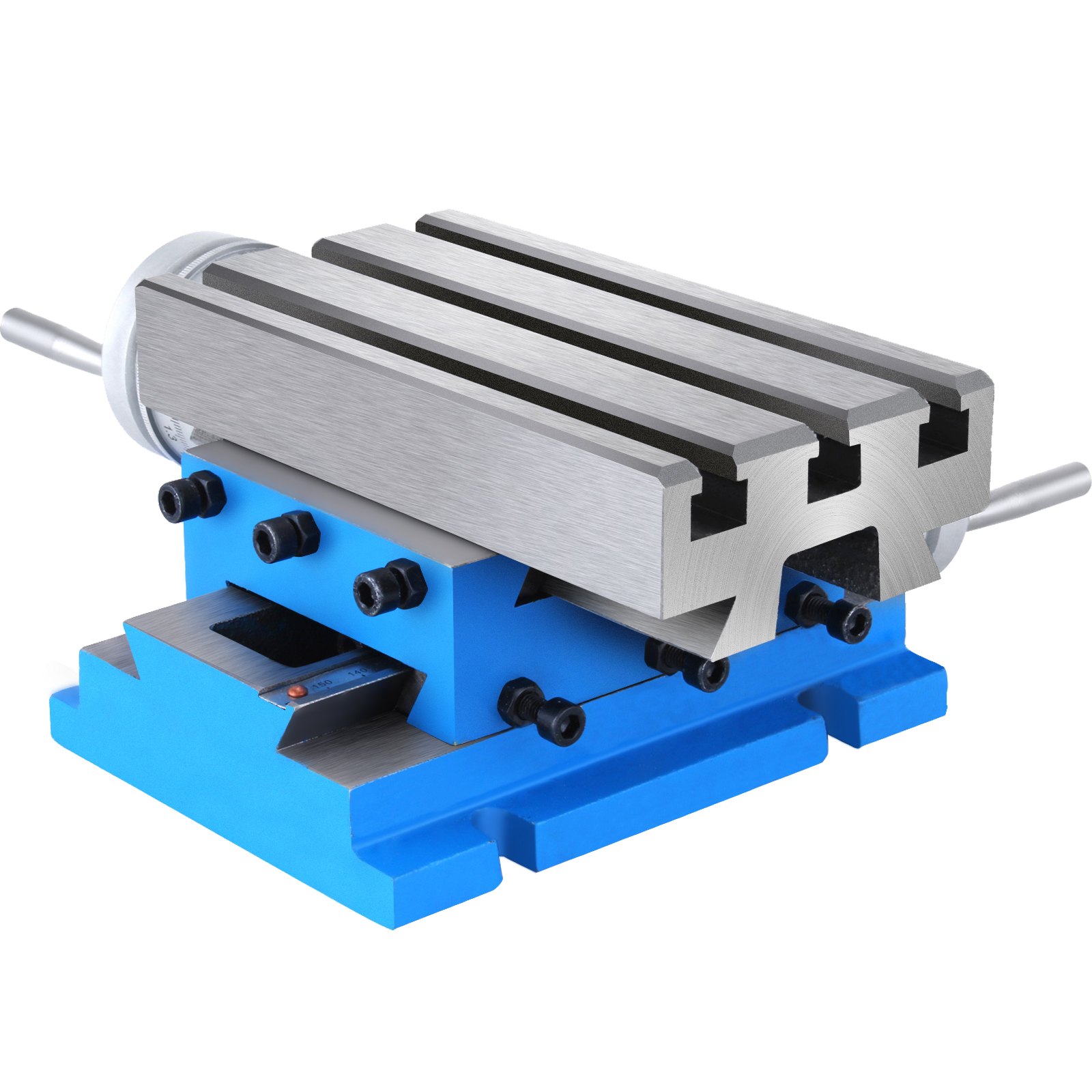

VEVOR milling machine work table with six screws for full range of movement

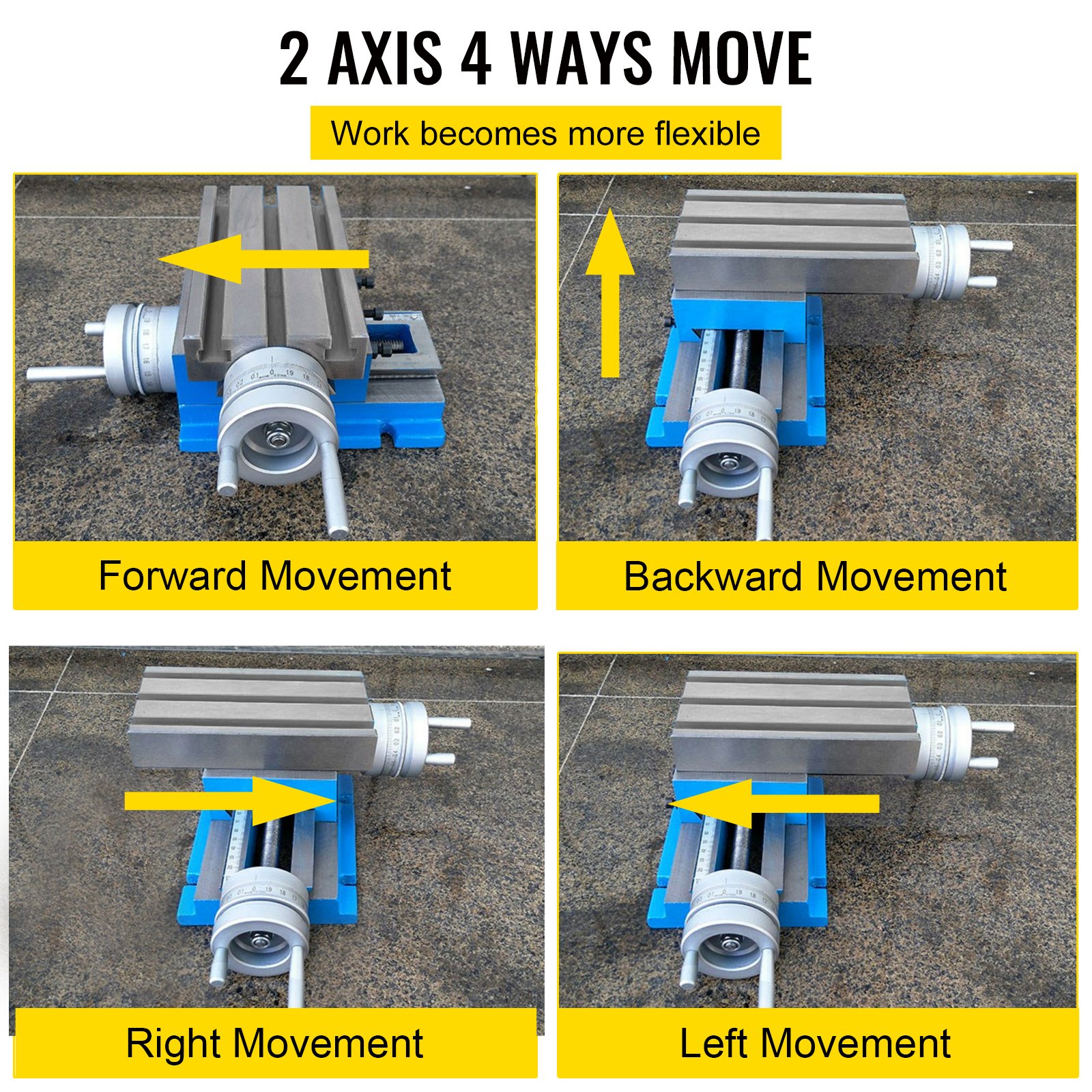

Movement of Sliding Table
The table could be moved in any direction by merely twisting three screws. There are total 6 screws, 3 for forward and backward movement, 3 for leftward and rightward.

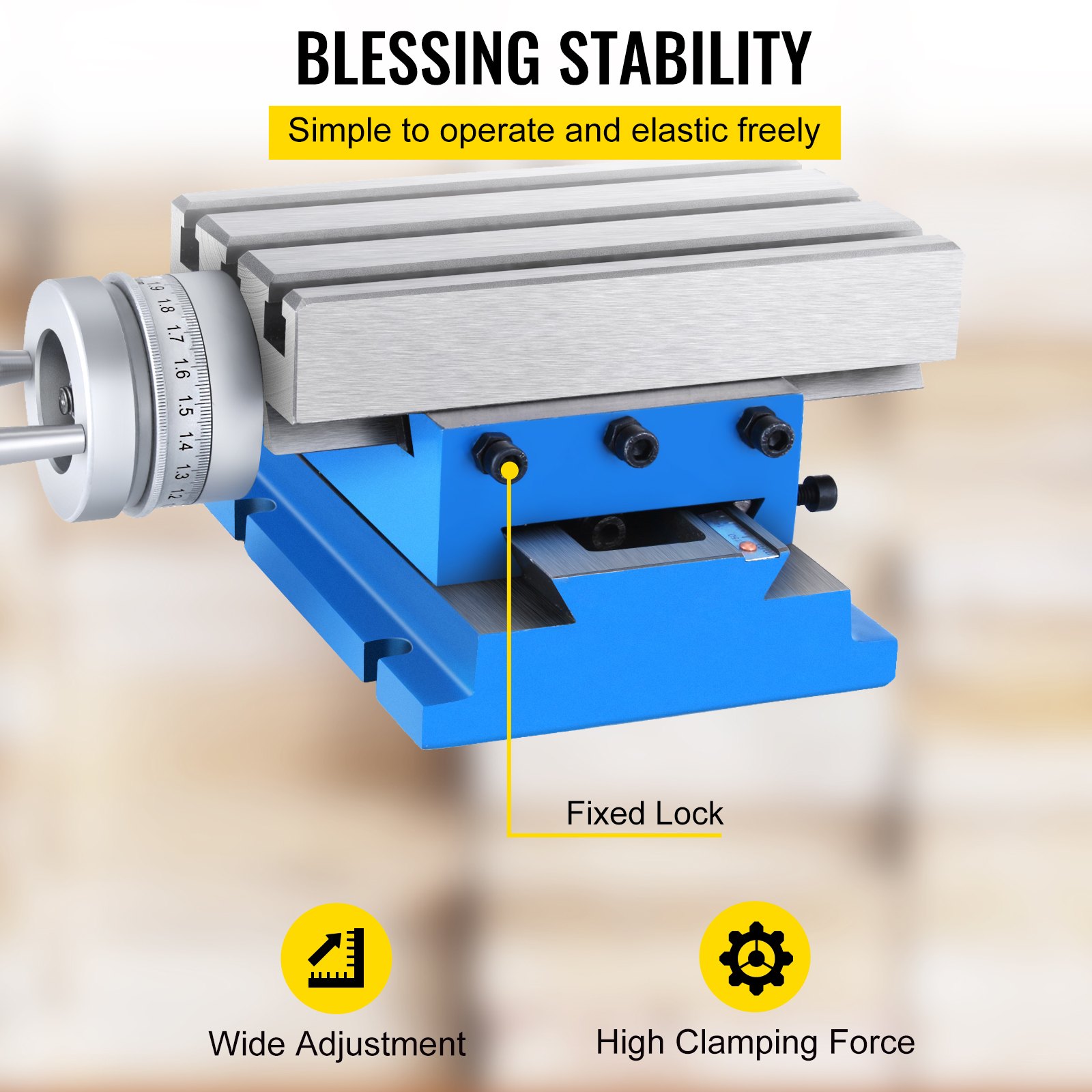

VEVOR milling machine work table, firm with a flat base for no shaking during operation.
Stable Base

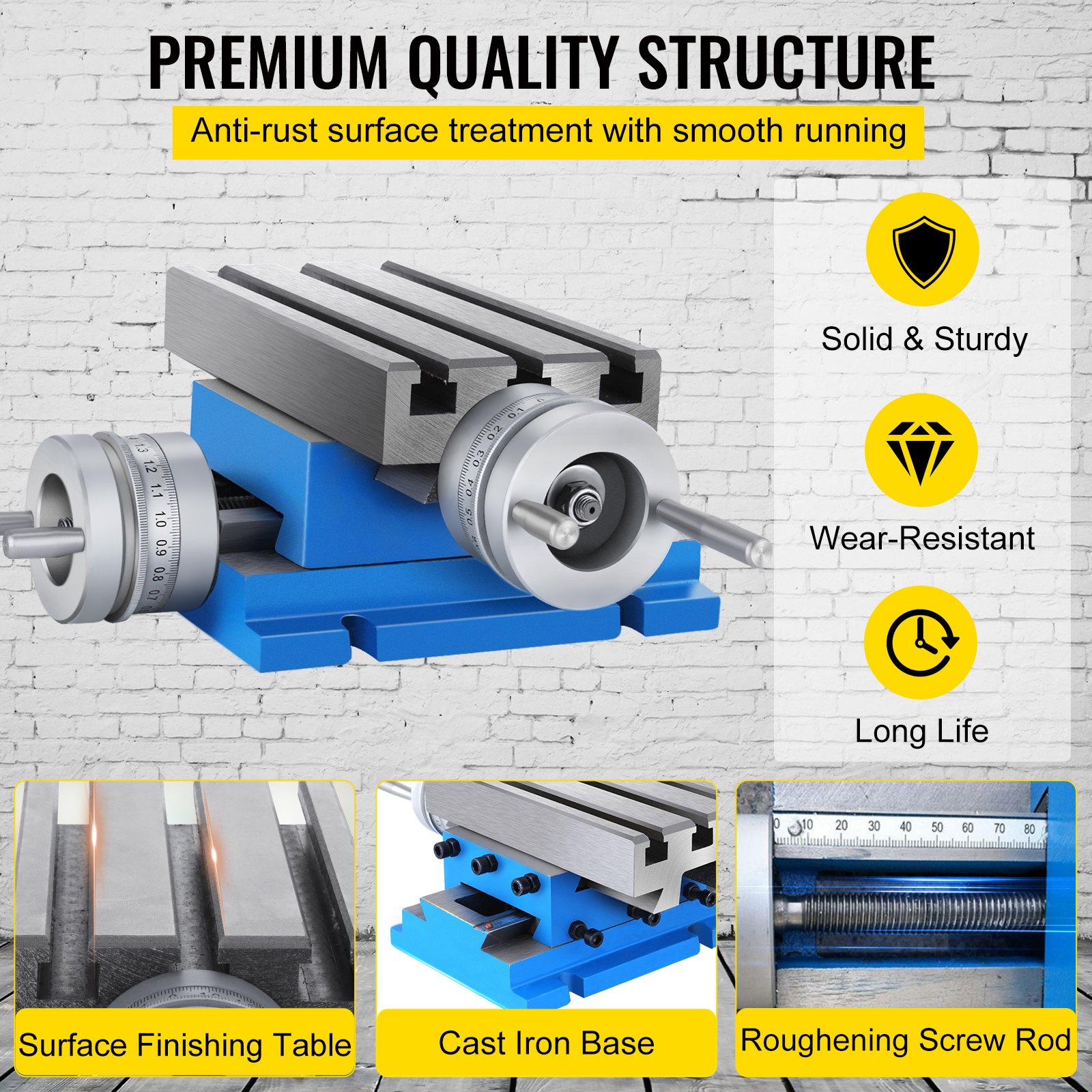

The base of cast iron was solid and robust enough to keep steady in work and make great contributions to boosting processing precision.

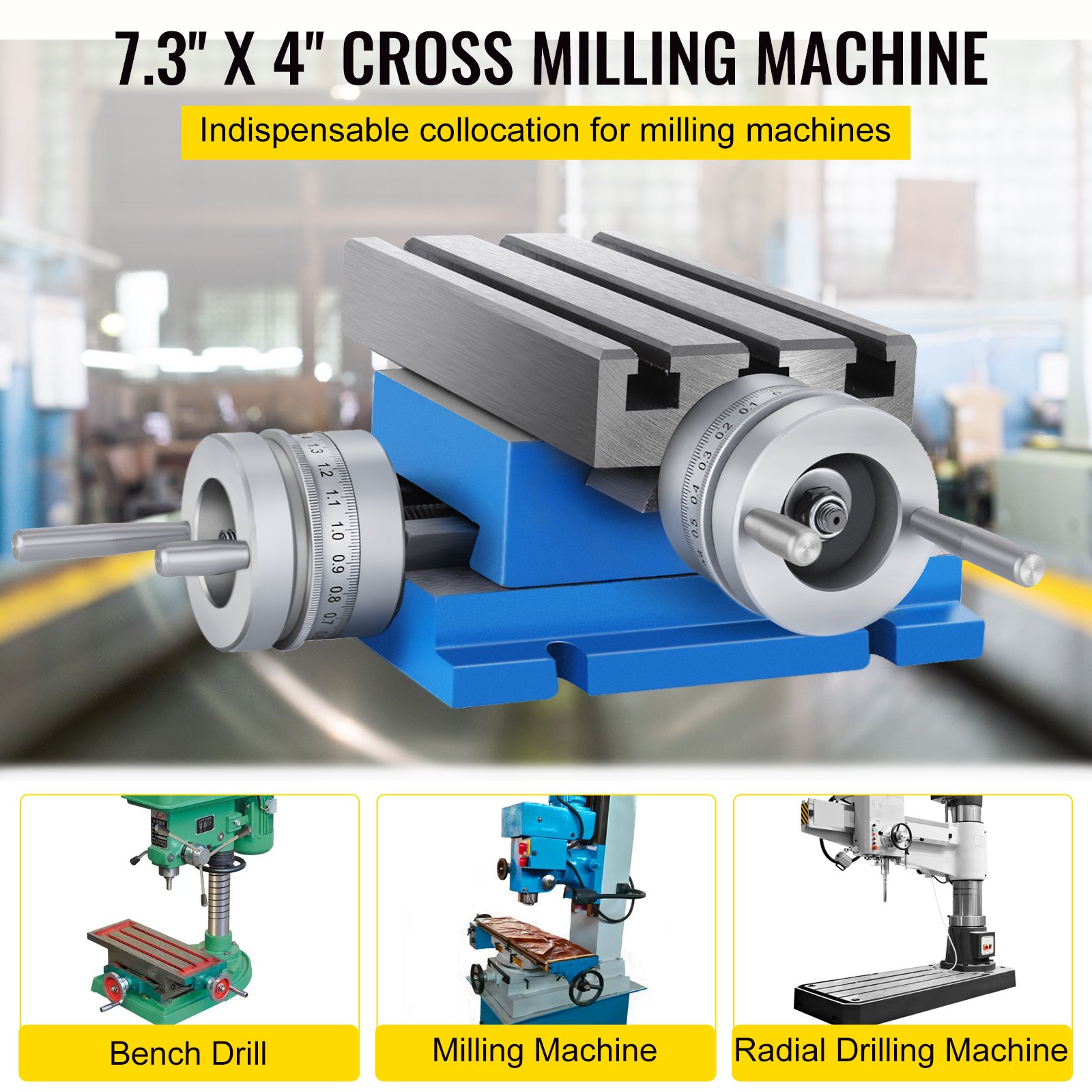

VEVOR milling machine work table for drilling machines, and factories. wide application.
Extensive Uses
Suitable for all drill stands, drilling, and milling machines; compatible with all types of positioning, milling, drilling, optical viewing, and staging.

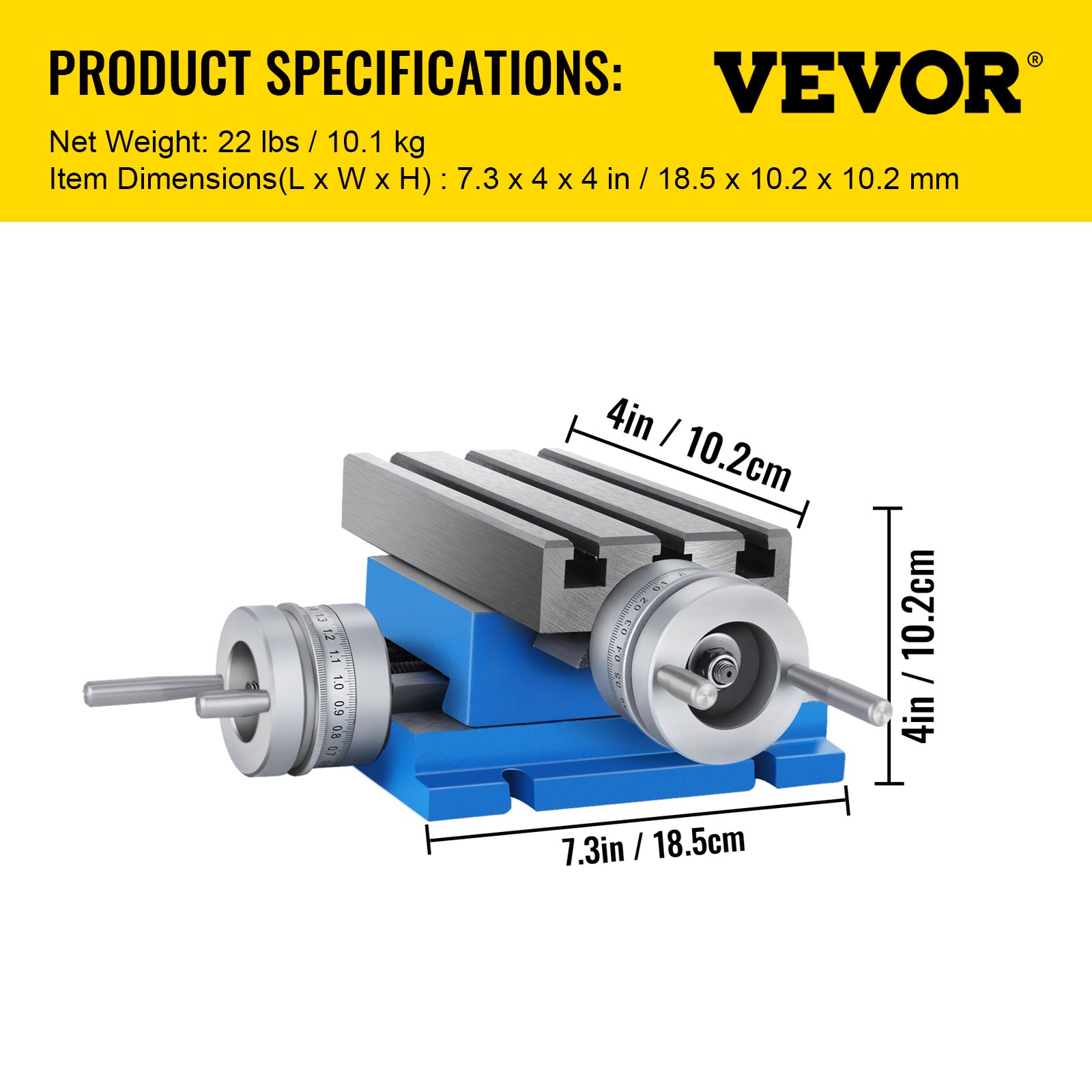

blue VEVOR milling machine work table with measurements marked for precision.
Specifications
  • Working Table: 7.3 x 4 in / 185 x 100 mm
  • Travel Length: 3 in / 80 mm
  • Vertical Travel: 3 in / 75 mm
  • T-Shaped Groove Length: 2/5 in / 10 mm
  • Groove Interval Width: 1.3 in / 33 mm
  • The Spindle Spacing Length: 0.08 in / 2 mm
  • Dial Spacing Length: 0.0004 in / 0.01 mm
  • Working Height: 4 in / 102 mm
  • Maximum Workpiece Weight: 66 lbs / 30 kg
  • Bottom size: 6.7 x 5 in / 170 x 130 mm
  • Net Weight: 22 lbs / 10.1 kg
  • Item Dimensions(L x W x H) : 7.3 x 4 x 4 in / 18.5 x 10 x 10.2 mm
VEVOR milling machine work table with adjustable dual handles on a blue base.
Package Content
  • 1 x MX-75 Multifunction Milling Support Table Worktable
VEVOR milling machine work table with compound drilling slide for precision adjustments.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR milling machine work table with blue base and dual handwheels.
Milling Machine Worktable
This milling machine worktable was suitable for all drill stands, drilling, and milling machines and compatible with all types of positioning, milling, drilling, optical viewing, and staging. Easy-to-use cranks, widened table-board, t-shaped grooves, sliding table, and stable base, all of those make it
  • Ergonomics and Accuracy
  • Reinforcement and Reliability
  • Easy to Adjust
  • Improved Processing Precision
VEVOR milling machine work table with ergonomic cranks design, detailed close-up.
Easy-to-use Cranks
We adopted ergonomics in cranks design in the hope of best improving user experience. Meanwhile, the most precise scale was provided for the most accurate adjustment.
VEVOR milling machine work table, 100 mm solidified and widened tabletop.
Widened Table-board
The table-board was widened to 100mm so as to better meet various forms of processing needs, exempting you from unnecessary misgivings about the compatibility.
VEVOR milling machine work table features three machined t-slots for precision.
T-Shaped Grooves
The item has three grooves that have a length of 10 mm (2/5 inch) and an interval width of 35 mm (1.3 inch), clamping processed objects tightly.
VEVOR milling machine work table with six screws for full range of movement
Movement of Sliding Table
The table could be moved in any direction by merely twisting three screws. There are total 6 screws, 3 for forward and backward movement, 3 for leftward and rightward.
VEVOR milling machine work table, firm with a flat base for no shaking during operation.
Stable Base
The base of cast iron was solid and robust enough to keep steady in work and make great contributions to boosting processing precision.
VEVOR milling machine work table for drilling machines, and factories. wide application.
Extensive Uses
Suitable for all drill stands, drilling, and milling machines; compatible with all types of positioning, milling, drilling, optical viewing, and staging.
VEVOR milling machine work table with adjustable dual handles on a blue base.
Package Content
  • 1 x MX-75 Multifunction Milling Support Table Worktable
blue VEVOR milling machine work table with measurements marked for precision.
Specifications
  • Working Table: 7.3 x 4 in / 185 x 100 mm
  • Travel Length: 3 in / 80 mm
  • Vertical Travel: 3 in / 75 mm
  • T-Shaped Groove Length: 2/5 in / 10 mm
  • Groove Interval Width: 1.3 in / 33 mm
  • The Spindle Spacing Length: 0.08 in / 2 mm
  • Dial Spacing Length: 0.0004 in / 0.01 mm
  • Working Height: 4 in / 102 mm
  • Maximum Workpiece Weight: 66 lbs / 30 kg
  • Bottom size: 6.7 x 5 in / 170 x 130 mm
  • Net Weight: 22 lbs / 10.1 kg
  • Item Dimensions(L x W x H) : 7.3 x 4 x 4 in / 18.5 x 10 x 10.2 mm

Durable Milling Machine Work Table for Precision Projects

What precision projects can one person achieve with the VEVOR milling machine work table? The table is made from heavy-duty cast iron. It's built to last. This table stands out for its robustness and ability to handle up to 66 lbs (64 kg). It’s ideal for both home and professional use. The stable design ensures accuracy during operations. With this table, you can achieve precise movements easily. Heavy construction reduces vibrations, improving stability. It should be a reliable addition to any workshop. These tables help in achieving accurate results consistently.


Easy Assembly and Adjustment for Immediate Use

This worktable can be easily assembled right out of the box. There are minimal modifications needed, making it ready for immediate use. The clear instructions make the process straightforward. These parts fit smoothly, ensuring that there is no problem in setting it up. The table's design allows for quick adjustments. This saves you time and effort. Ease of assembly means you can focus on your project sooner. It has user-friendly features that enhance your experience. They’re designed to be convenient for both beginners and experts.


Smooth and Precise Cross Slide Table Movement

The VEVOR cross slide table provides smooth and precise movements. The well-machined slides provide minimal friction. This allows for accurate positioning of your workpiece. The design reduces backlash, enhancing precision. Smooth movement is ideal for detailed work. You can easily control the movements for better results. This accuracy is important for complex projects. Our table's smooth operation ensures consistent performance. It’ll be perfect for achieving fine details in your works.


Robust and Heavy-Duty Construction with Cast Iron Material

The VEVOR compound milling table is made of high-quality cast iron material. This ensures its durability and long life. The heavy-duty construction can handle tough use. It's designed to withstand heavy loads and constant operation. Cast iron provides excellent stability and strength. So, it’s suitable for both light- and heavy-duty applications. Our robust design ensures minimal wear and tear. It is built to last and provides consistent performance over time.


Versatile Compound Milling Table for Various Applications

This is a valuable addition to any workshop. You can use the compound milling table for drilling, milling, and other precision tasks. The table's adaptability ensures it meets the various needs of different tools. It’s perfect for both hobbyists and professionals alike. Why does the table have multiple setups? The design allows for multiple settings, improving its utility. This versatility makes it incredibly useful.


Excellent Value with Quality to Price Ratio

It is a smart choice for anyone looking to improve their workshop without overspending. The quality-to-price ratio is impressive. You get a dependable, durable table at an affordable price. Features and performance match those of more expensive tables. This makes it a budget-friendly option without losing sight of quality. The table's cost-effectiveness makes access easier for more users. It'll be an irrational choice. If you are looking forward to improving your workshop without overspending, the table is a savvy choice because its value ensures you get the best return on your investment.


Perfect for DIY Metalworking and Home Shop Projects

It's perfect for DIY metalworking and home shop projects. It is made to handle various tasks. So, it’s suitable even for hobbyists. The table has ease of use. This makes it ideal for beginners. Experienced users will appreciate its precision and reliability. The VEVOR precision worktable is great for anyone working on metal or other materials. Our versatile table ensures it meets different project needs. If you have any interest in metalwork, this tool is perfect for you. We recommend that anyone interested in metalworking can get professional results in your home workshop.


See More

Specification

Working Table
7.3 x 4 in / 185 x 100 mm
Travel Length
3 in / 80 mm
Vertical Travel
3 in / 75 mm
T-Shaped Groove Length
2/5 in / 10 mm
Groove Interval Width
1.3 in / 33 mm
The Spindle Spacing Length
0.08 in / 2 mm
Dial Spacing Length
0.0004 in / 0.01 mm
Working Height
4 in / 102 mm
Maximum Workpiece Weight
66 lbs / 30 kg
Bottom size
6.7 x 5 in / 170 x 130 mm
Net Weight
22 lbs / 10.1 kg
Item Dimensions(L x W x H)
7.3 x 4 x 4 in / 18.5 x 10 x 10.2 mm
Questions and Answers
2 Questions
Are the dial markings imperial or metric?
They are imperial.
By vevor
How heavy is the VEVOR Milling Machine Cross Slide Worktable 4''x7.3'' 2 Axis Compound Precision please?
10.1kg.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
16 Review(s)
Clear filters
Milling Machine Table Milling Machine Table
Good, sturdy table.
I bought this small milling worktable to fit on the table of my bench drill. It certainly is a good, heavy, sturdy workable, which is just what I need to do small milling jobs. However, as other reviewers have mentioned, I did need to modify and rectify a few issues. I dismantled the worktable and filed off the burrs, which had been left after this item had been manufactured. There was also some paint overspray on the slides, which I also removed. Also the friction device, which holds the graduated scale in position on the two spindles, turned out to be masking tape! I removed this and have ordered a couple of large wavy washers to make my own friction device. This will need some machining work on the graduated scales, but after that, it should work fine. I also lubricated and adjusted the keys in the slideways, unitl the table was was moving nicely. All in all, a good, solid piece of kit for a great price, albeit needing some fettling to make it even better. I've already used it for a small milling job on aluminium, and the results were great.
Jimbo Jimbo
All Good
Great seller! Fast response, accurate description. A great product at a very good price, delivered quickly. Pleasure doing business with.
Nutcase DIYer Nutcase DIYer
Mr
Good value for money. Not super precision but good enough. Robustly made and rather heavy. [not sure why this review must contain a minimum number of characters].
mfletch mfletch
Good old cast iron
Made of cast iron but needs a complete strip down an excellent clean and deburring lots of sharp edges but once done its usable as a drill table and very light milling.
Alan Wallington Alan Wallington
Mr
Very pleased with this item. Please bear in mind I am not precision engineer, I am a wood worker mainly interested with wood turning. Now and again I have the need for a metal work lathe, but I cannot justify buying one, so I have converted my wood lathe into a metal work lathe. To achieve this I purchased this simple compound table, a tool post and tool holder and a set of metal turning tools. OK, it not a Colchester or any other precise lathe but used very gently it works a treat. Had to rebuild the table of course! Would recommend just adding an m6 nut to the handwheels.
Ann Mackenzie Ann Mackenzie
Not perfect but worth the money.
Good casting but required the end thrust bearings replaced.Easy job. Used to hold a job next to my milling head. Very happy with purchase
BigBertie BigBertie
Mr
What I expected for the price was something that was basically sound but had been shoddily assembled, was probably unusable as delivered but with fettling could be turned into a decent bit of kit. That is exactly what I got! About 5 hours later and it’s pretty good, perfectly sufficient with a drill press and OK for light milling. Non existent quality control resulted in an excellent price. Rough edges, nibs, wobbling, paint overspray on running surfaces, hand wheels incorrectly sized meant that bearings and calibrated wheels didn’t work. Oh, and no grease anywhere so although easier to clean, hardly surprising that everything felt rough. However, cleaning, filing, sanding, deburring, scraping off paint and lubricating worked wonders. The hand wheels needed touching up on the lathe…the tolerances were wrong so rotating parts were either too tight or too loose. I couldn’t have done it without a lathe but it wasn’t difficult work with one and everything now runs smoothly and accurately. The cast iron is quite soft but that makes it easier to tweak. The only thing I’ve yet to do after installing on my drill press is to check the horizontals of the table. I expect it to be out but it should be easy to simply shim it up to get everything square. So if you want to use it out if the box…awful….but if you’re happy and able to put in a few hours setting the thing up properly, you’ll have a decent xy table with no side play and smooth operation for a very good price. Am I happy that I bought it? Yes. Would I recommend it? Yes…with the above provisos. Overall rating ** as received, but ***** after fettling.
MR BRIAN VICKERY MR BRIAN VICKERY
COMPOUND SLIDE MILLING TABLE
VERY GOOD PRODUCT, I WILL BE USING IT FOR SMALL MILLING JOBS.
Oil-less Dave Oil-less Dave
A passable X/Y Table
Many reviews focus on the finish of these tables, in most respects mine was usable out of the box. I stripped it and relieved all sharp edges but found the ways to be adequately ground so just lubricated. Thrust bearings were present and the gib strips adjusted to leave free movement with no play. The only issue was the perfunctory flaky chroming of the hand wheels which I had to clean up!. For the price I was impressed but have yet to affirm the levels on the horizontal plane. Not so critical on drill press but important for milling? Overall a worthwhile purchase.
Simon Simon
Mr
Great value for money, had to adjust the lead screws to take up the backlash but works great. A cheap way of converting a pillar drill into a milling machine.
