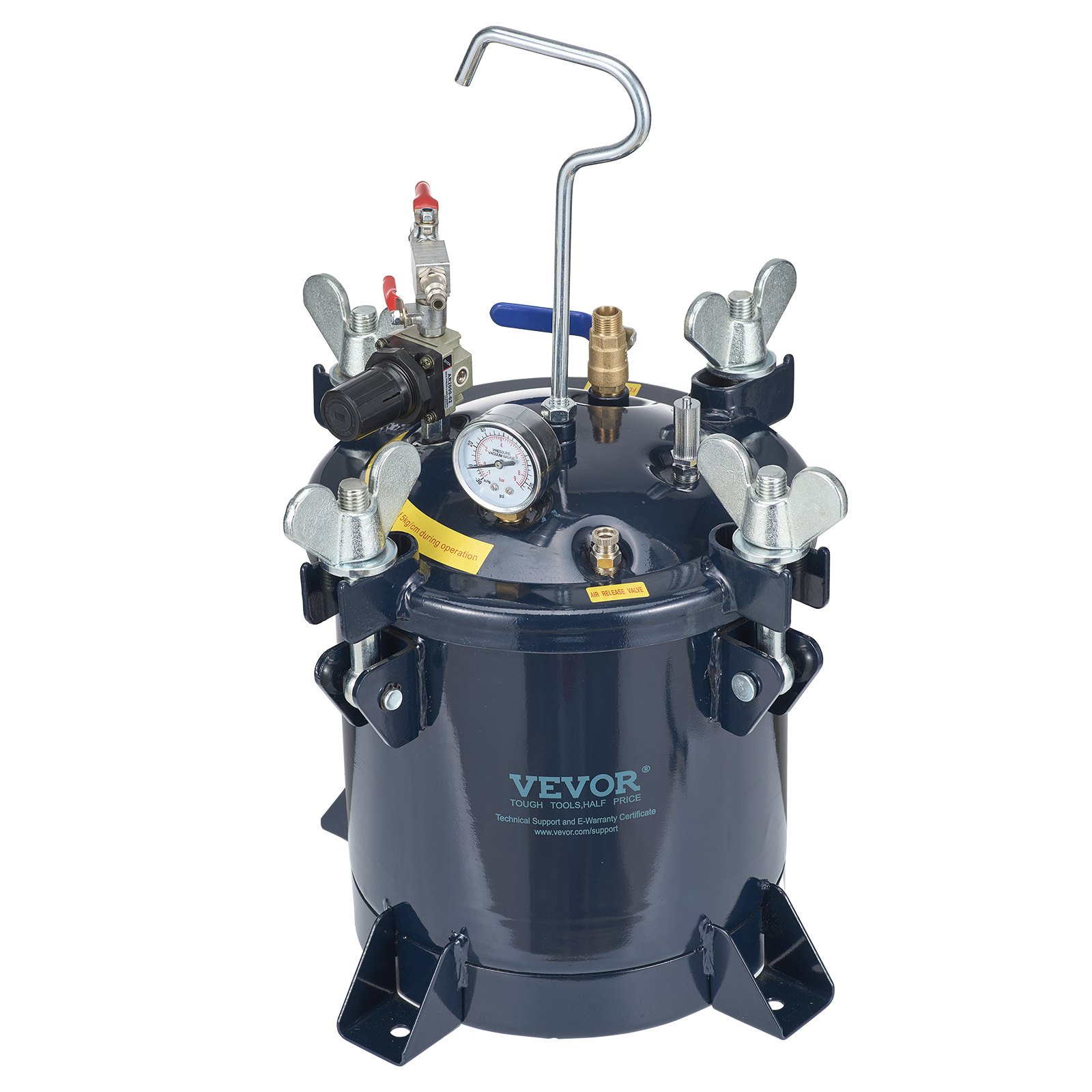

VEVOR Spray Paint Pressure Pot Tank 10L/2.5gal Resin Pressure Feed Paint Tank

Name: VEVOR Spray Paint Pressure Pot Tank 10L/2.5gal Resin Pressure Feed Paint Tank
Brand: VEVOR
SKU: PQTBDOX10LDHOBYECV0
Price: 94.99 GBP
Availability: OutOfStock
Rating: 4.9 (27 reviews)

See All Customer Reviews

27 Reviews 8 answered questions

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive ￡5.00 off for your first three orders on the App.

Download Now

Exclusive ￡5.00 off for your first three orders on the App.

Scan the QR code to download

Litres: 10 L

10 L
30 L
2 L

Spray Nozzle Diameter: None

1.5 mm + 4.0 mm
None
1.8 mm

About this item

Applied for Resin Products: VEVOR offers an ideal paint pressure pot for resin making that can also be used for spray painting. The pressure pot tank has a double valve design that allows you to close the outlet valve and connect the air compressor to the air inlet port for pressurization, resulting in fewer bubbles and perfect resin crafts.
10L Large Capacity: Introducing our state-of-the-art 10L spray paint pressure pot tank, with a 1/4" inlet and outlet port and a 3/8" fluid outlet port. This makes it easy to connect to a spray gun for more efficient and effortless spraying on various surfaces. This resin casting pressure pot is perfect for those who want to make high-quality resin crafts or perform spray painting tasks.
Adjustable Pressure: The paint tank pressure is adjustable with a maximum of 70psi. You can adjust it precisely with the pressure knob, and the accurate pressure gauge shows the real-time pressure. The safety valve of our pressure pot for painting automatically releases pressure when it exceeds 0.5Mpa to ensure secure operation.

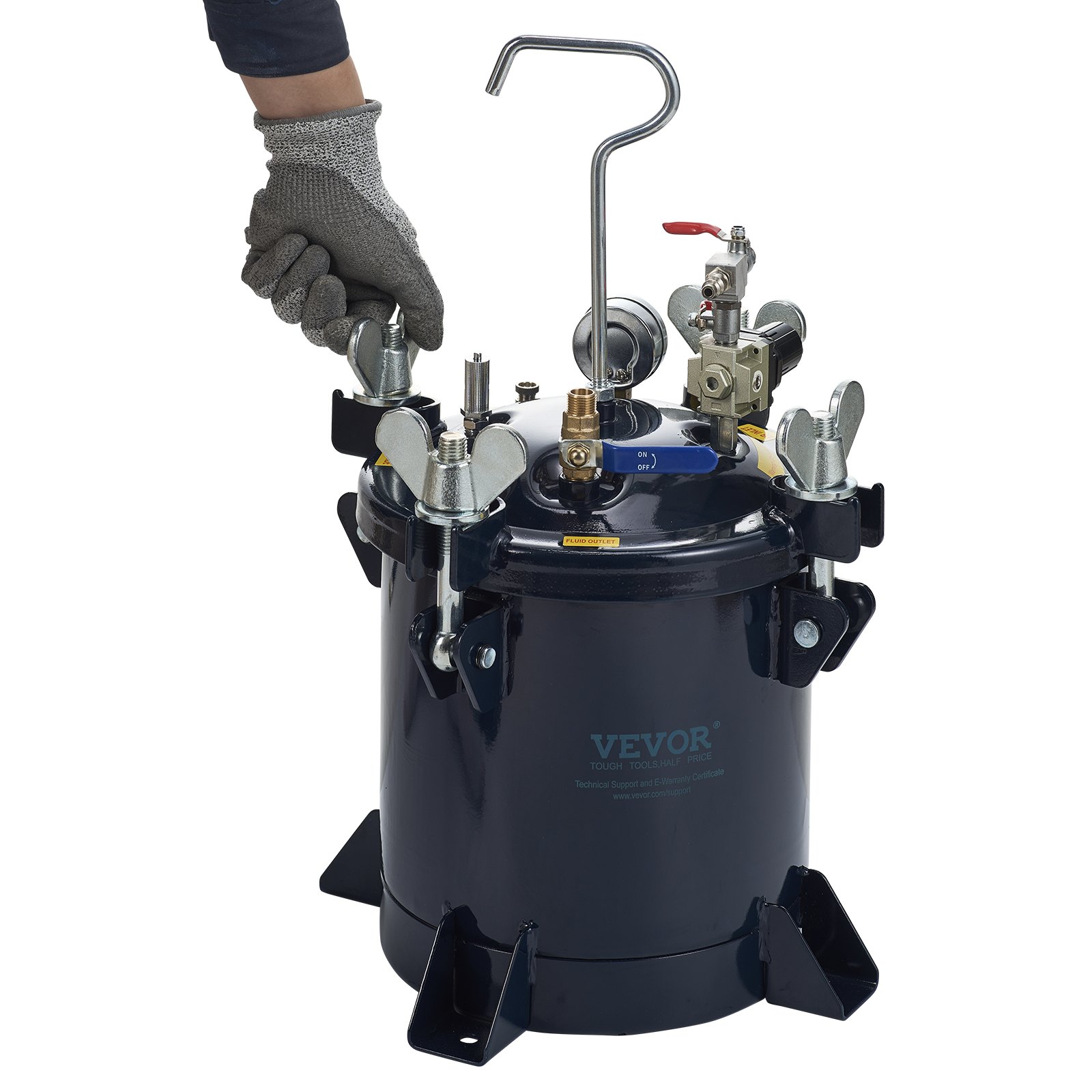

Upgraded Sealing: The high paint pressure pot has been upgraded with high-quality, pressure-resistant metal material and a rubber sealing ring at the bucket mouth. It has four lid sealing clamps that securely close and are equipped with anti-rust and anti-leakage thread sealant. It has undergone a water tightness test before leaving the factory, ensuring no gas leakage issues.
Paint What You Want: Our epoxy pressure pot is versatile and suitable for both home decoration and industrial spray painting. One person can easily complete spray painting tasks on home decor, walls, fences, construction vehicles, ships, and more. It can be used with common paints such as latex paint, water-based sand paint, and metal paint. The pressure paint tank bottom stand can be fitted with movable casters or fixed in place according to your needs.

See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Spray Paint Pressure Pot Tank 10L/2.5gal Resin Pressure Feed Paint Tank

Litres: 10 L Spray Nozzle Diameter: None

Description Specification Questions and Answers Reviews

vevorA+Template

VEVOR Helps You Achieve High-Quality Results

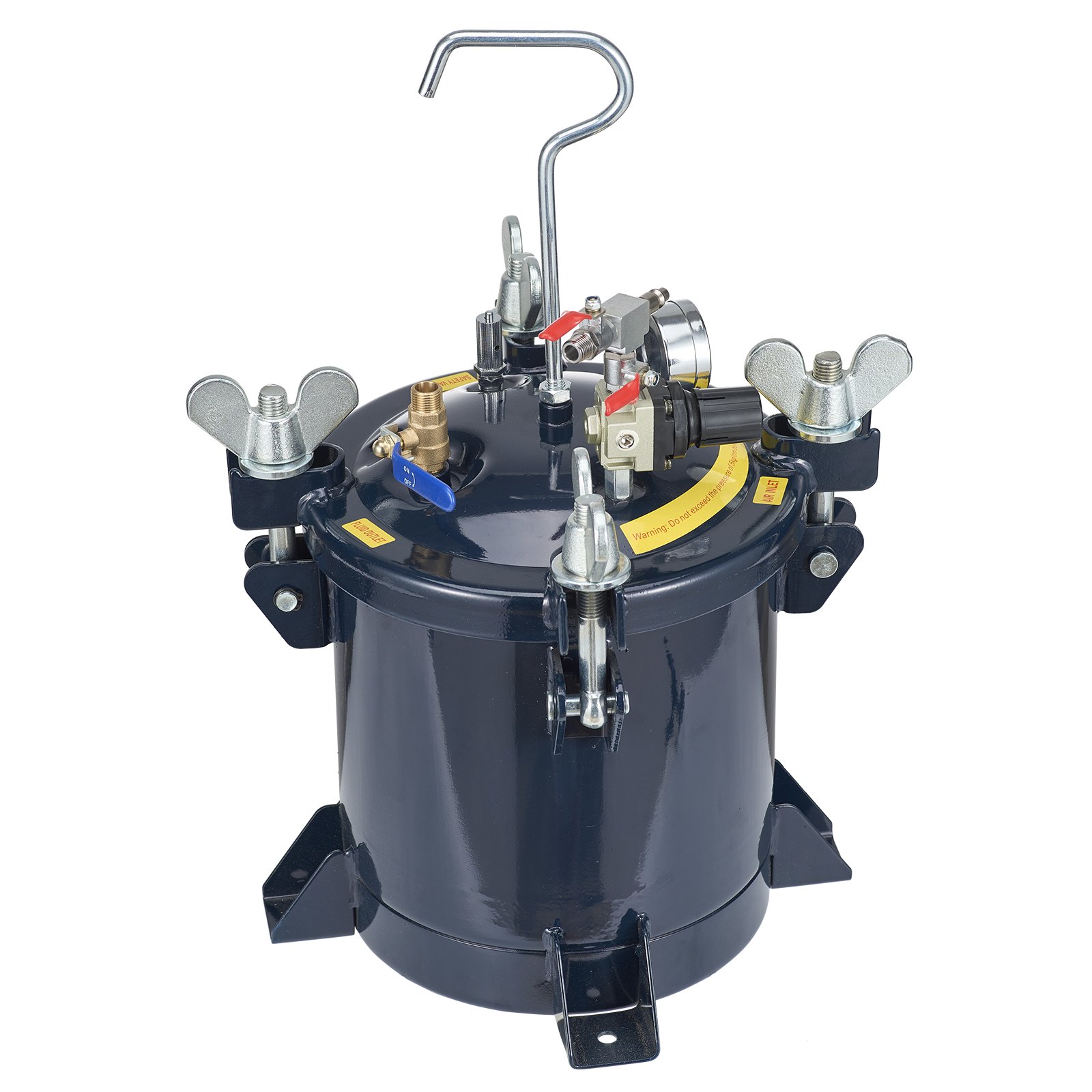

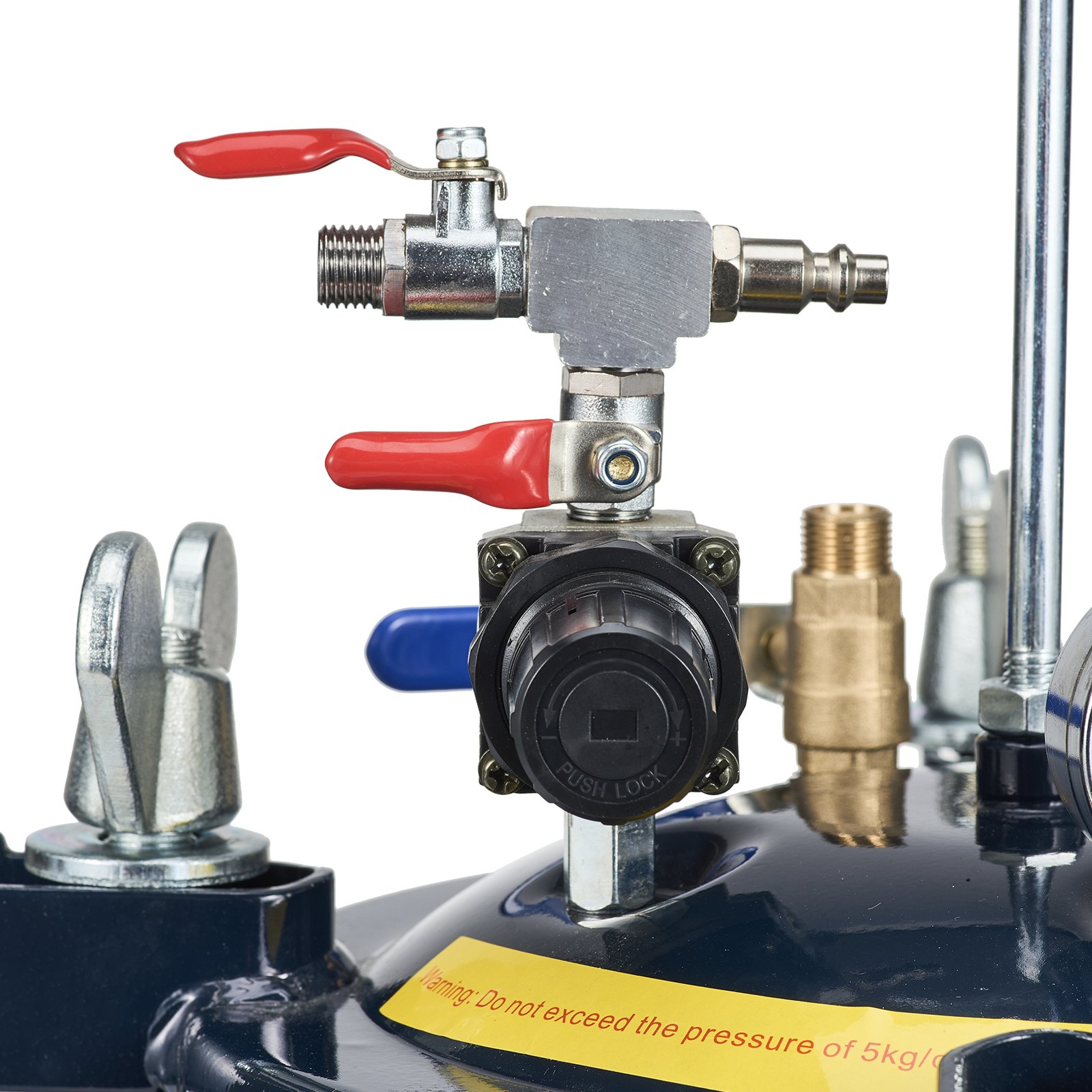

The VEVOR spray paint pot features a double valve design with an outlet and inlet valve that can be quickly closed and stopped. With a large 10L capacity, you can complete your work in one go, making it more efficient and easy to operate.

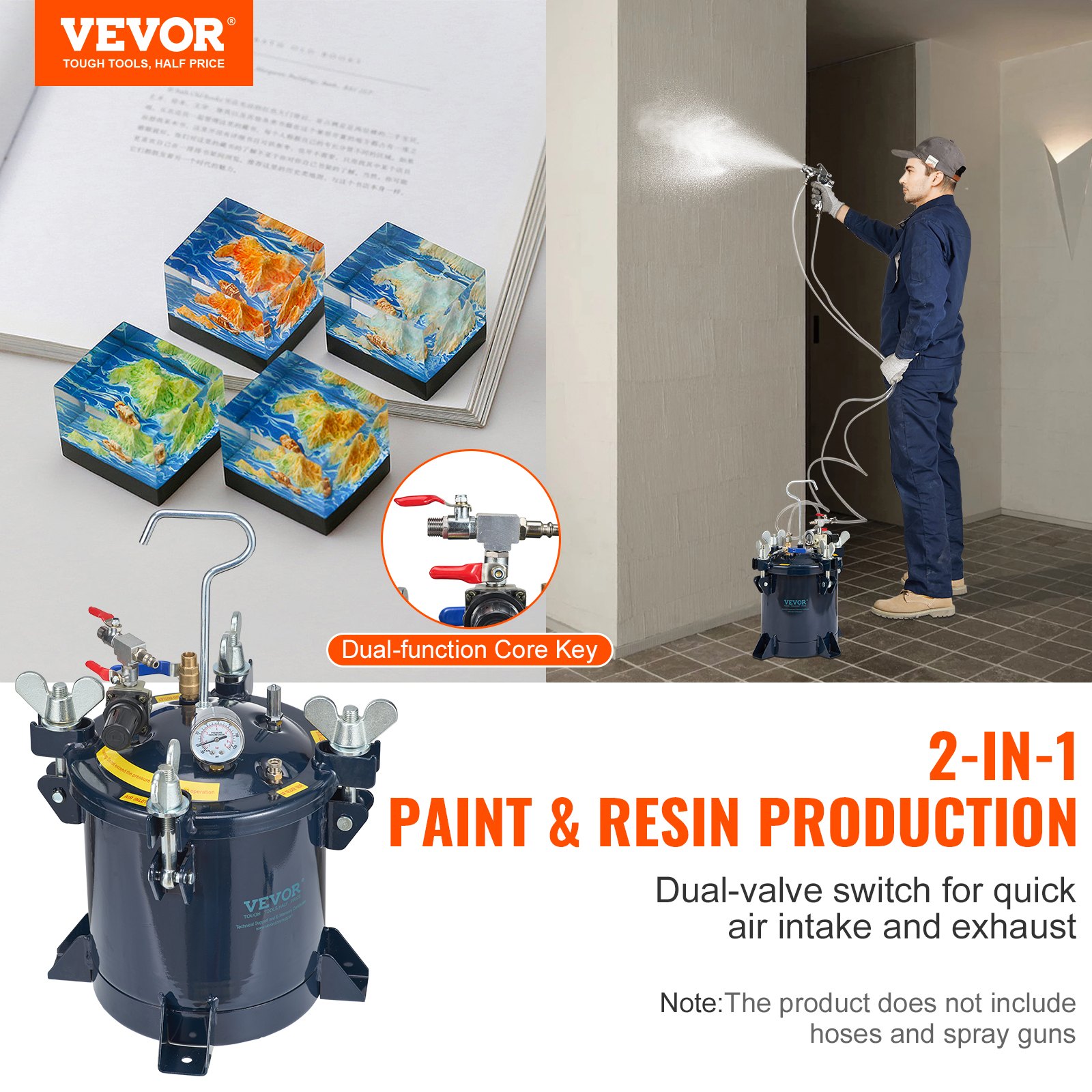

VEVOR offers you an ideal pressure pot that can be used for resin products and is perfect for creating resin pieces that require spraying. The dual-valve design eliminates the need for manual modification and ensures a perfect resin piece with fewer bubbles.

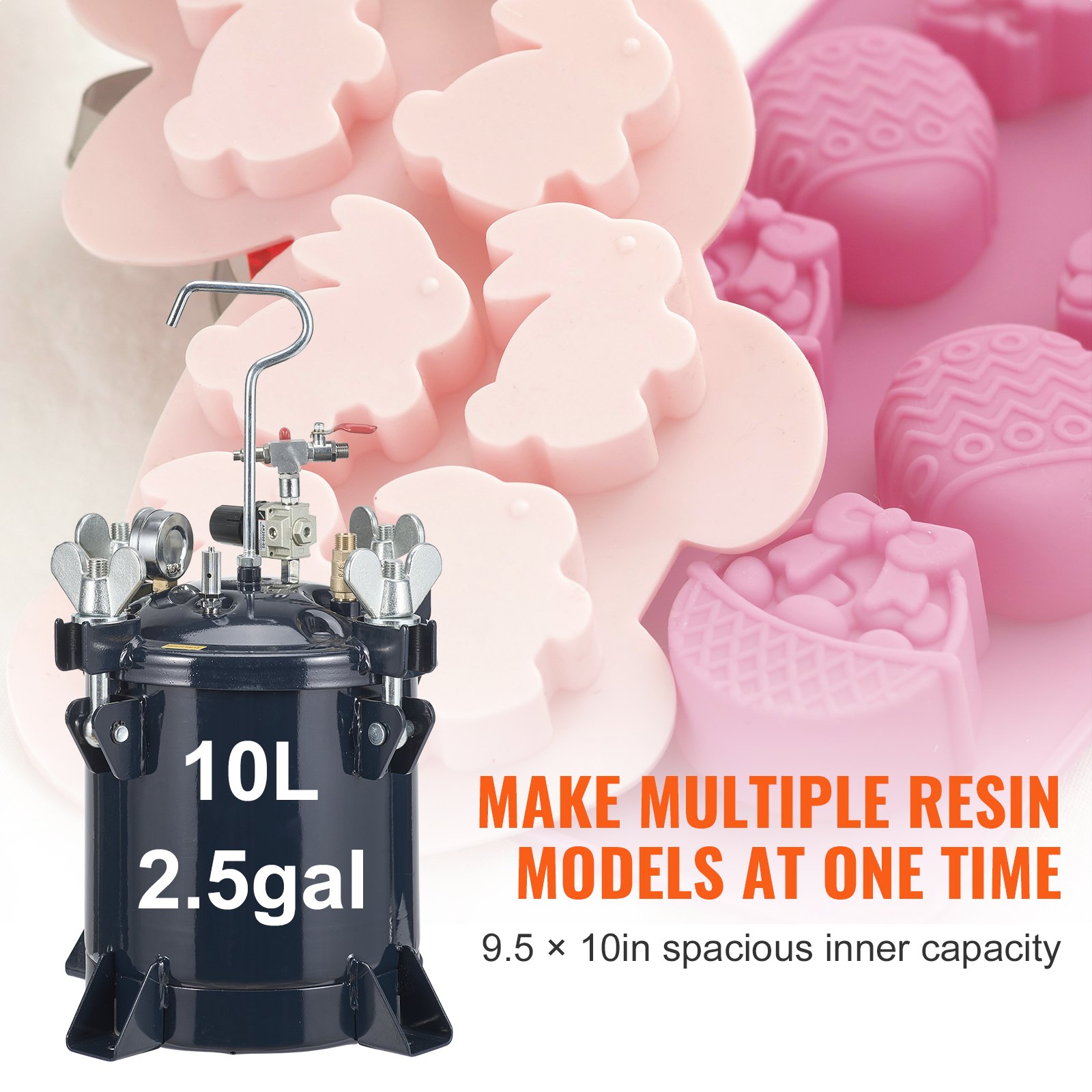

The pressure pot has a capacity of 10L/2.5gal with an inlet and outlet diameter of 1/4in and a fluid outlet diameter of 3/8in. It can accommodate more paint or small resin models, making your painting work more efficient.

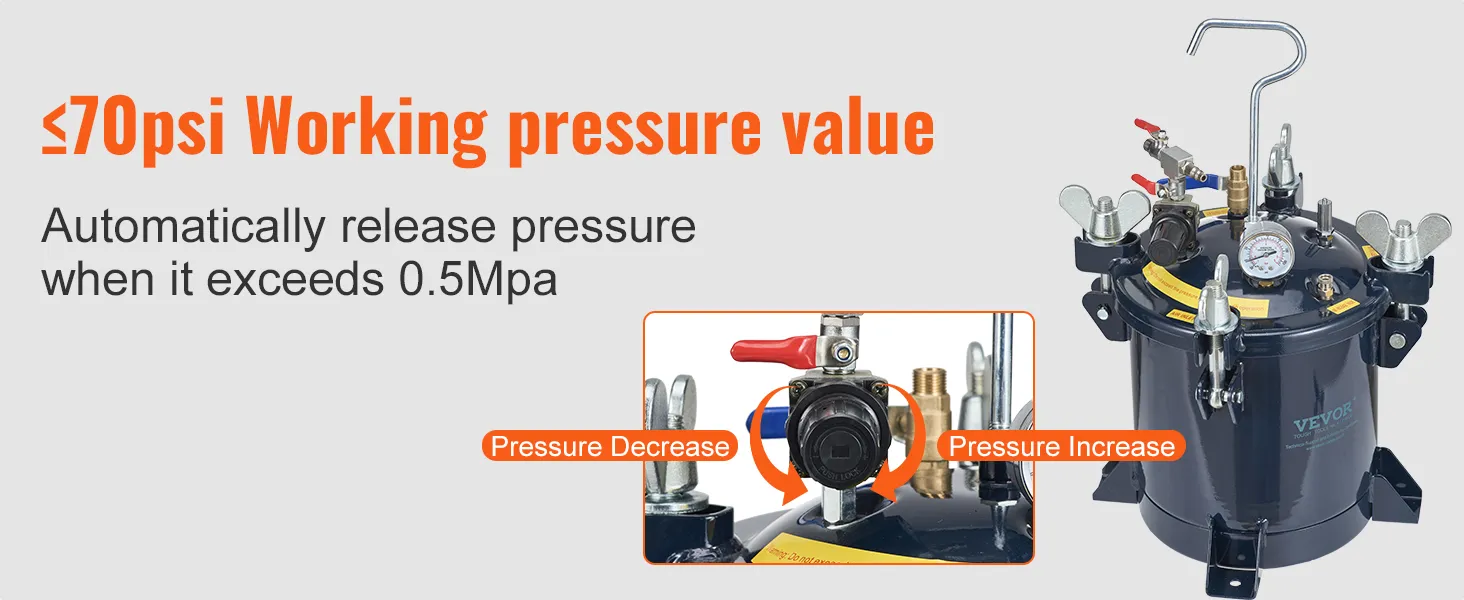

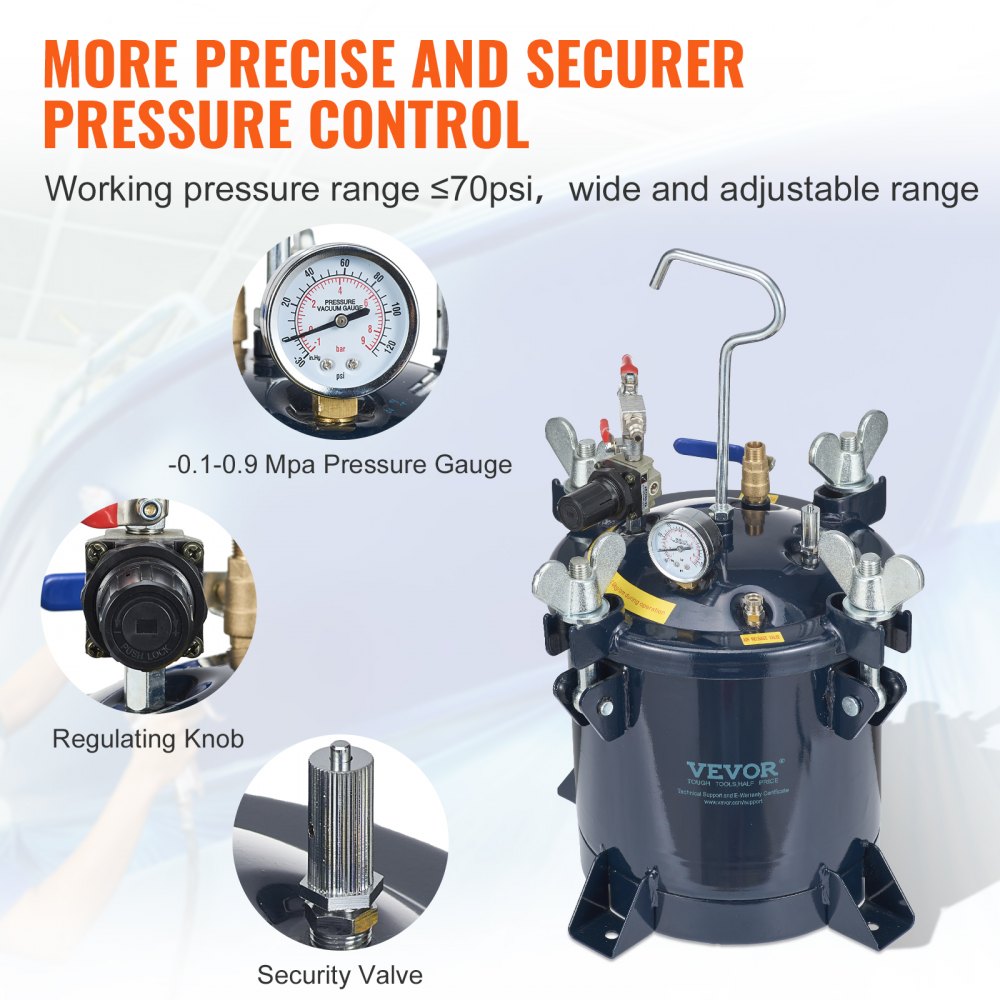

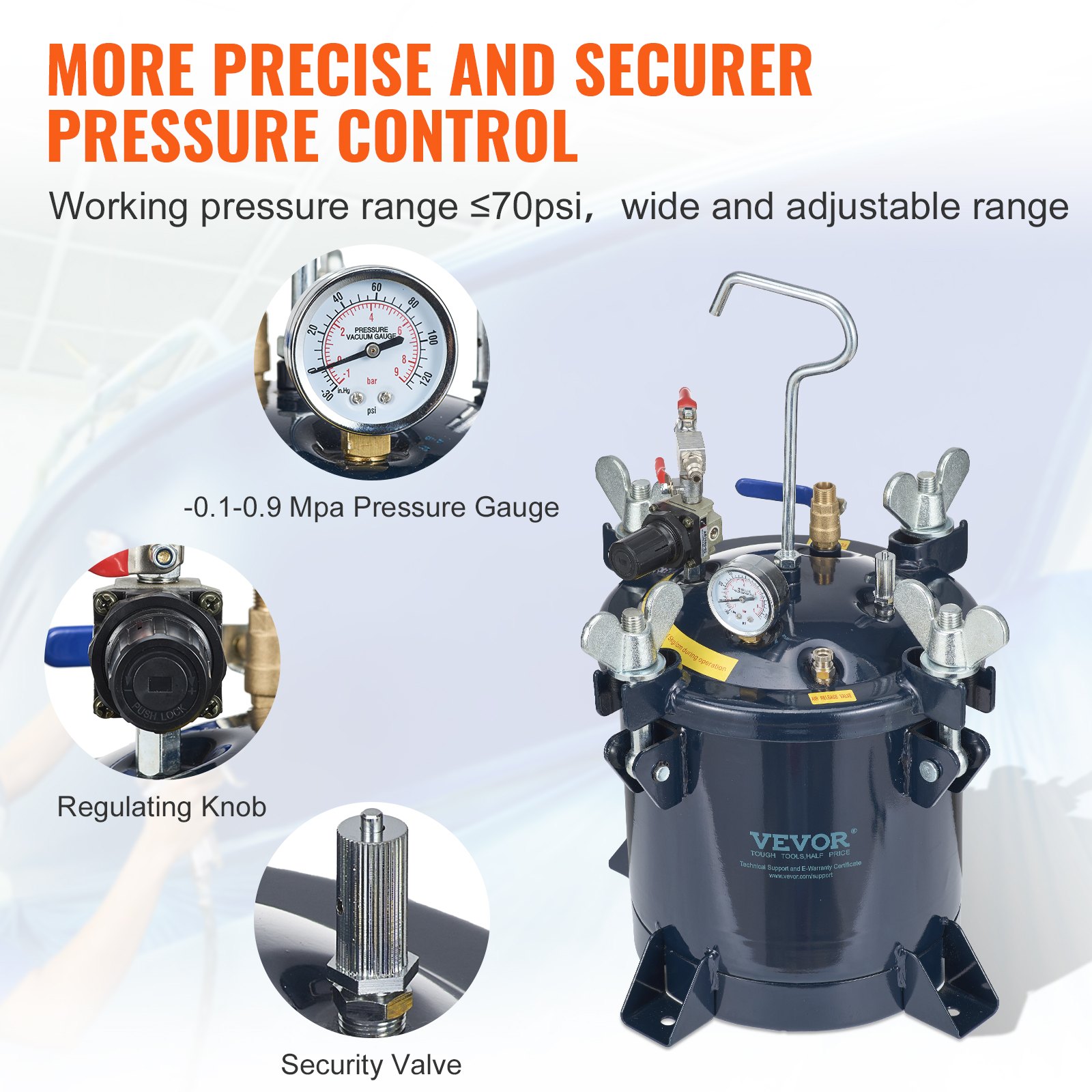

You can adjust the pressure in a range of 0-70psi using the adjustable pressure knob, and the security valve automatically releases pressure when the air pressure exceeds 0.5Mpa.

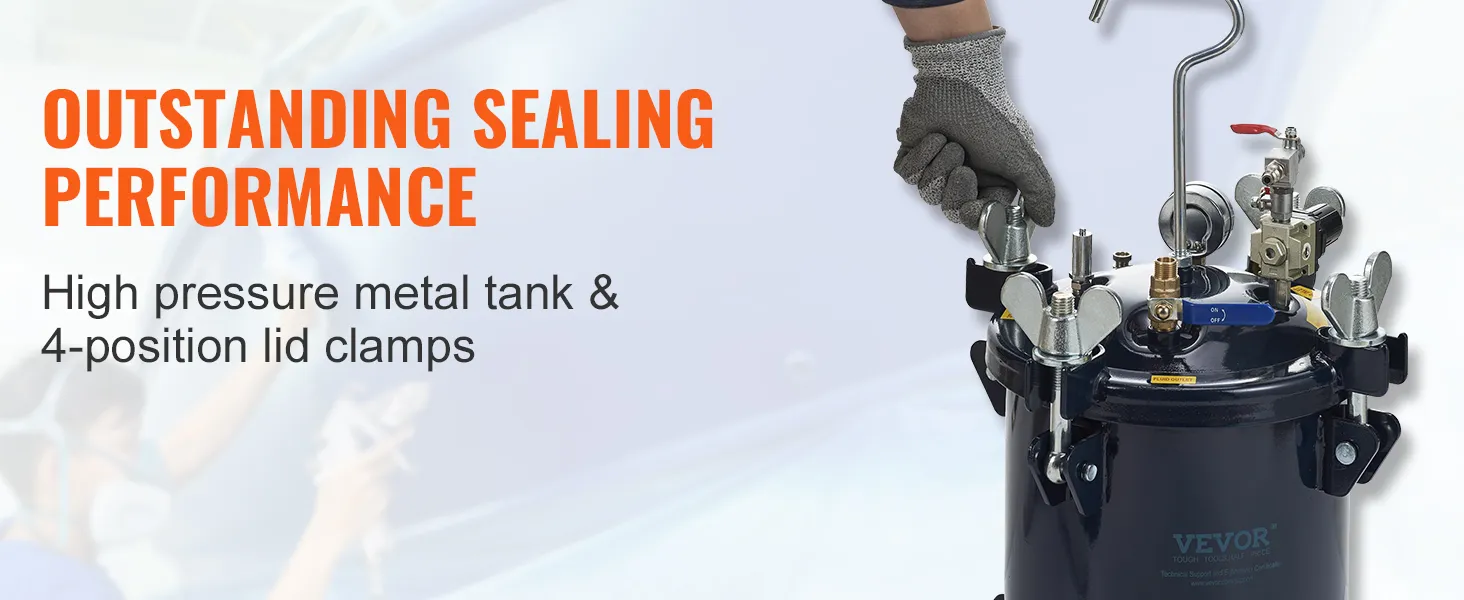

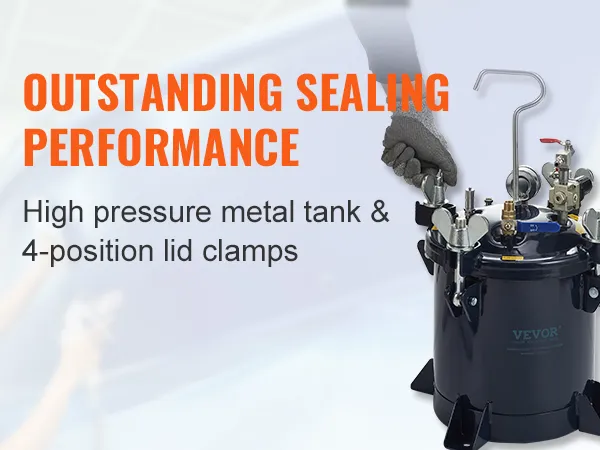

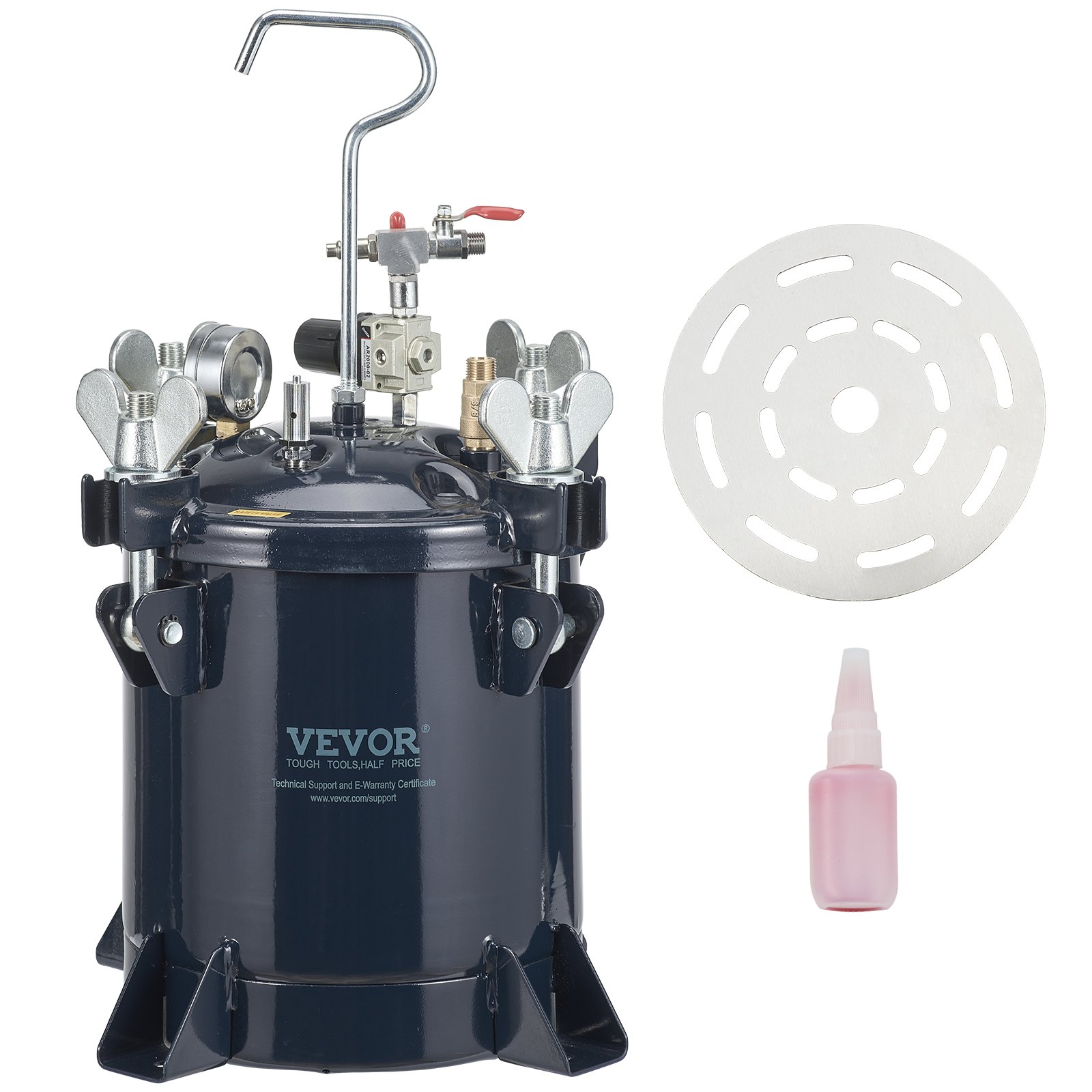

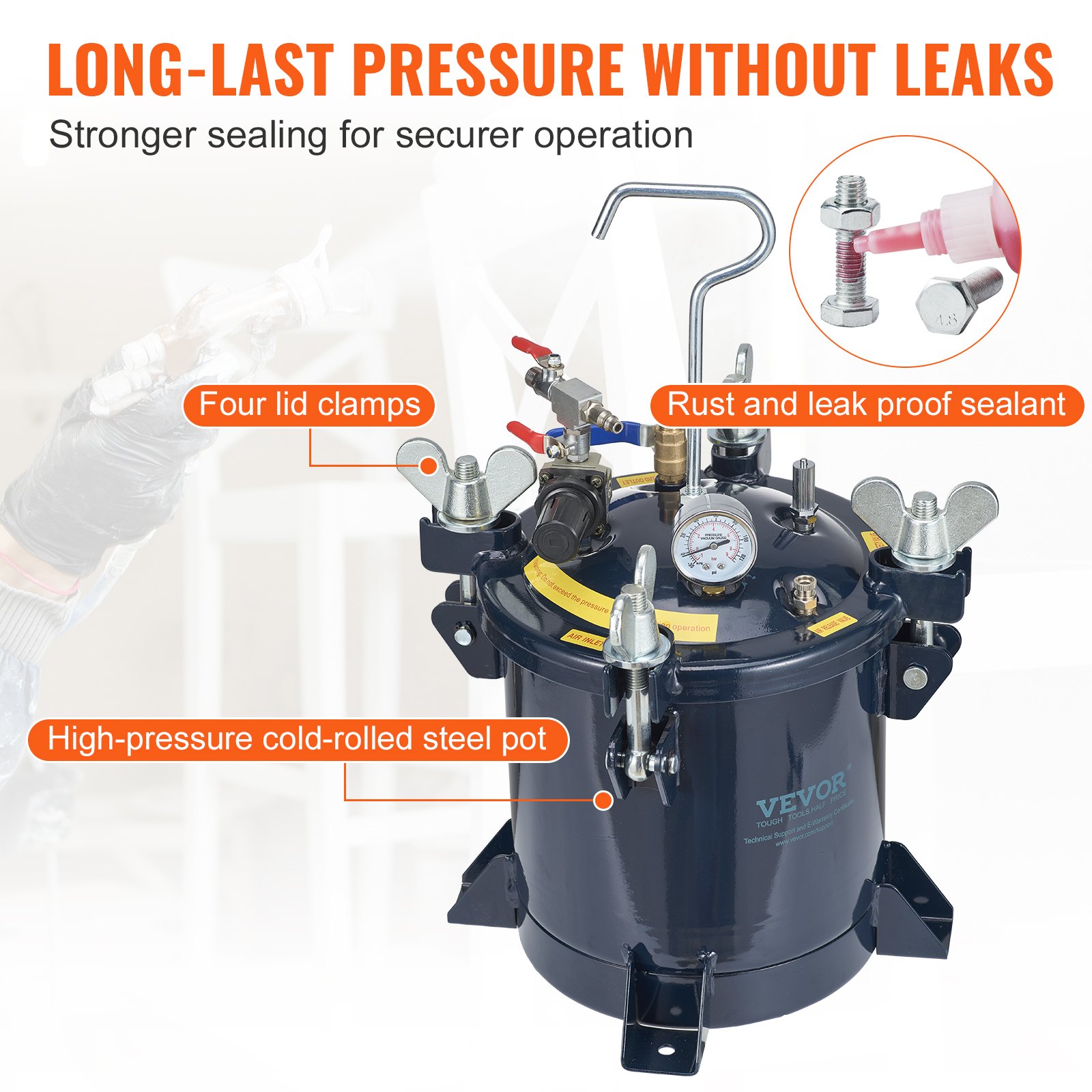

4 lid clamps can firmly seal the tank. Besides, the thread sealant can also seal and prevent rust and corrosion. Our paint tank has passed a water tightness test with no gas leakage.

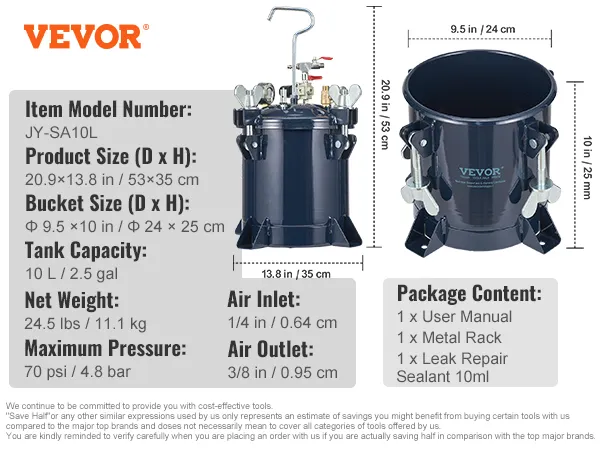

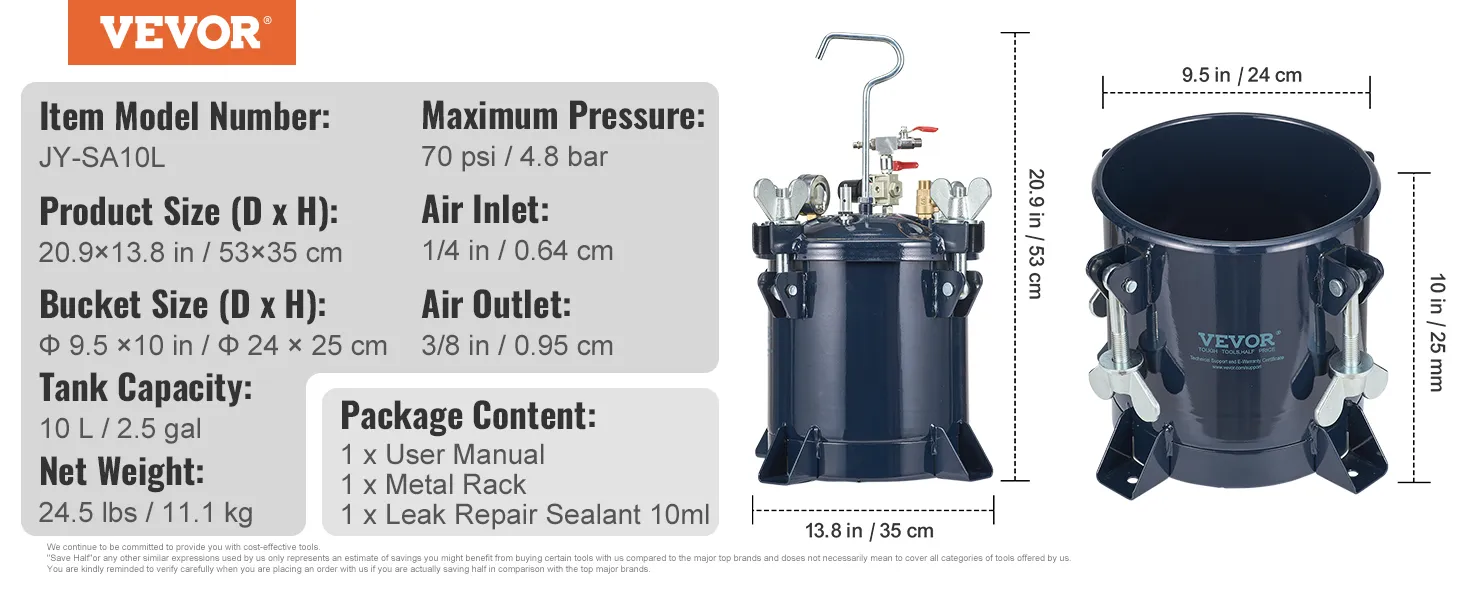

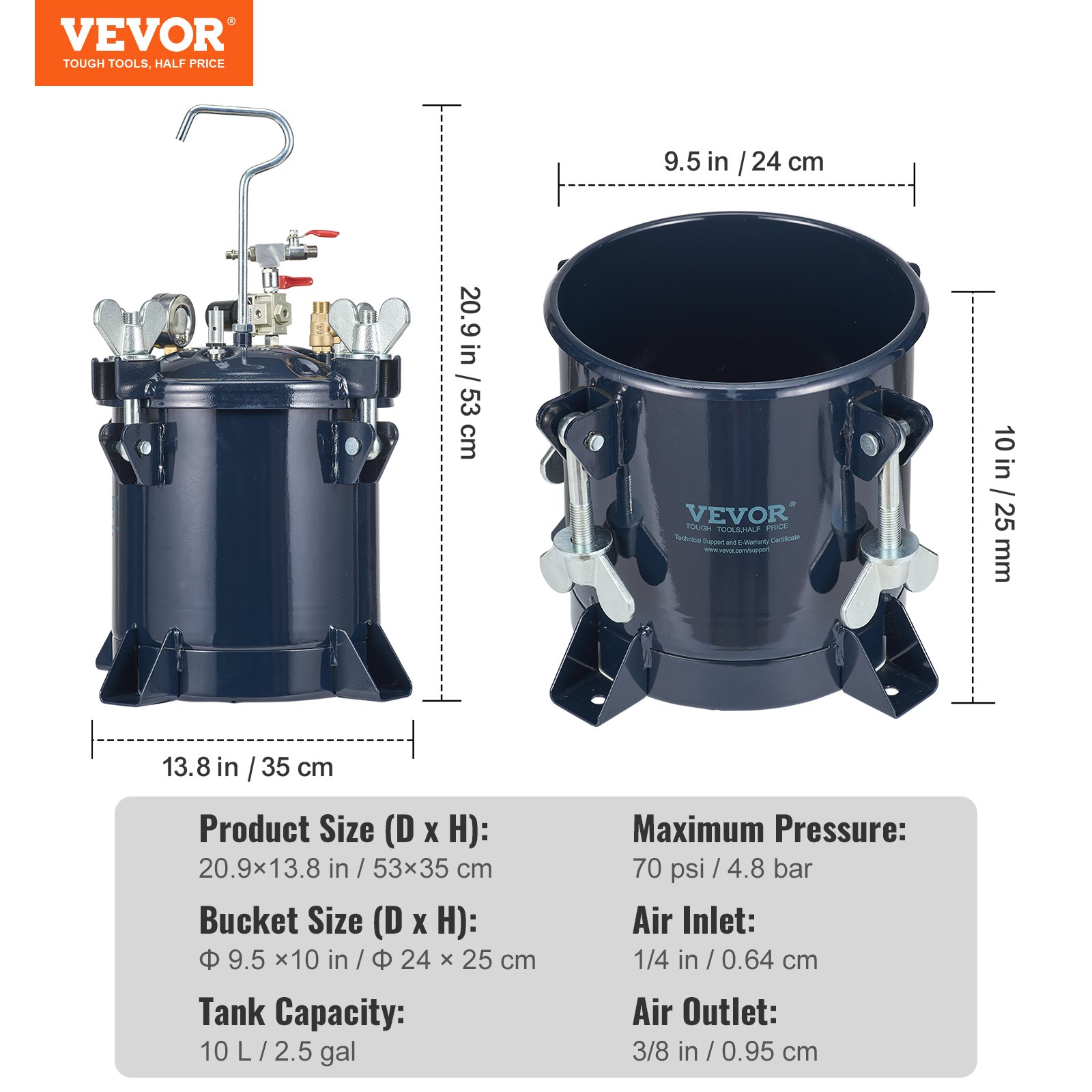

Specification

Item Model Number: JY-SA10L

Product Size (D x H): 20.9 × 13.8 in / 53 × 35 cm

Bucket Size (D x H): Φ 9.5 ×10 in / Φ 24 × 25 cm

Tank Capacity: 10 L / 2.5 gal

Net Weight: 24.5 lbs / 11.1 kg

Maximum Pressure: 70 psi / 4.8 bar

Air Inlet: 1/4 in / 0.64 cm

Air Outlet: 3/8 in / 0.95 cm

Manual: Download Link

Questions and Answers

8 Questions

or Ask a Question

Question:

Hello, Can I use this as a resin pressure tank straight out of the box or do I need to convert it to a resin pressure tank with extra parts that I would need to buy separately? Is it already set up as a resin pressure tank without any extra work or conversion needed?

Answer This Question

Answer:

An air compressor and external air hose are needed.

By vevor

Helpful ( 7 )

Question:

Hi there i bught this tank for resin casting and was wondering how i convert it.And remove the suction tube as i dont want it for paint also is there any other bits i need to buy to convert it.

Answer This Question

Answer:

It can be sawed off or broken by force.

By vevor

Helpful ( 4 )

Question:

Is the paint suction tube removable as it get in the way when using larger resin moulds Does it unscrew from the discharge valve ir do you need to remove both and replace with a 3/8 cap?

Answer This Question

Answer:

It can be disassembled by heating it with a heat gun and turning it counterclockwise. You can saw it off if you don't paint it.

By vevor

Helpful ( 2 )

Question:

Will a 6L compressor work with this or does it it need to be 10L like the pot?

Answer This Question

Answer:

A 6L compressor will work with this.But the speed of painting will be affected

By vevor

Helpful ( 0 )

Question:

I bought this pressure pot to use as a resin tank, but cannot find the right adapter to connect an air compressor with the tank. Can you advise the right materials to make this into a resin pot please?

Answer This Question

Answer:

You will need an 8*5 hose and a European pneumatic quick connector (female plug).

By vevor

Helpful ( 0 )

Customer Reviews

4.9 Out of 5

Based on 27 reviews

Ratings by Features

Price 4.9
Quality 4.7
Features 4.7
Easy to Use 4.7
See More See Less

27 Review(s)

Clear filters

mark

Quality product

Delivered earlier than expected. Good quality, easily converted to pressure pot for resin

See More See Less

Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful

Horacedog

I am very pleased with the paint pressure tank, I am using it to pressurise resin castings. The the spray gun can still be used if I need to.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 4 people found this helpful

Andrew

Andrew

Handy for those smaller jobs still made strong and sturdy easy to work easy to clean ,looked after properly should last for years

See More See Less

Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful

stephen g.

Packaged very well arrived in perfect condition

Packaged in a hard wood crate and air cushions in side. Good quality perfect for the price.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 3 people found this helpful

John Young

over the moon

I'm over the moon with this firstly it got delivered very fast something i've seen vevor does regularly and i bought it to convert so i can use it for resin casting and it seems vevor is open to this as all it seem i have to do is just put an end cap on the outlet pipe, now i cant wait to use it but it is heavier than i anticipated but of course it has to be to keep the pressure in i'll certainly be recommending it to anyone looking for one

See More See Less

Helpful Sending feedback... Thank you for your feedback. 5 people found this helpful

Robin B

This equipment takes time to set up. Check for leaks with water in the reservoir, before spraying paint/stainer etc. I used wood preservative (water based) and the quality of finish/speed of coverage was great. I got hours of brush coverage done in minutes. Recess penetration was excellent. When finished rinse out the reservoir, partial fill with solvent and flush residuals out, when empty use more air to drive out solvent and dry equipment. This equipment is excellent value and fast for big panels/area at least 5 sq metres.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Jason

Excellent service from Vevor - numerous email notifications of order progress and next day delivery. Very well packaged and courier was excellent too, equally with email notification of progress. The unit still has the internal paint tub fitted even though it's the resin model. I tried to remove the tube by unscrewing but it was well and truly in there - resulted in cutting it off. Even heating it didn't loosen the thread lock adhesive. The chamber is very well made, excellently painted and all the valves are high quality. I used a 6 litre mini compressor (6.3CFM) to pressurise it and it took about 40 seconds to reach 50psi, from no charge in the compressor. The chamber holds it pressure and does not leak at all over an hour of testing. I have not tried it for resin casting yet (too cold in the garage - only using the compressor to blow wood dust off the beer cans!) but I have absolutely no doubt it will be brilliant. I did consider converting a paint chamber - but no point. This unit comes complete and ready to go, why have the stress, extra time and effort messing about buying the extra valves, etc for a DIY unit. This ticks all the boxes and converted ready to go. Trust me - I did a lot of research before buying.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful

Discover Rings

Easy to convert into a pressure pot for resin casting.

I'm really happy with this pot. There are loads of videos on YouTube showing how to convert it for resin casting. I pressurise mine to 60 psi and it holds perfectly. Bear on mind you'll always lose a couple of psi as the air cools back down. To convert this in the same way I have, you'll need... 3/8x1/4 bsp male x male fitting 1/4 bsp Tee (all female) 1/4 female to male ball valve 1/4 male to whatever your compressor or pump uses 1/4 pressure gauge (the pot comes with one but I chose to get a sturdier one) Ptfe tape The pot also comes with a pressure release valve There are two holes in the lid, one is 1/4 and one us 3/8. I screwed the pressure release valve straight into the 1/4. I assembled the other as in the photo but switched the gauge and inlet around. use 3 wraps of ptfe on each thread. This is how I put it all together, do lots of research and make sure you're confident :) If this was useful or if you have any questions, pop to instagram and say hi! https://www.instagram.com/discover_rings/?hl=en-gb

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Kenneth Fallows

Not used it yet as I have not been doing anything to paint but we'll let you know later if it isn't good product

See More See Less

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Eyeinthesky

Excellent piece of kit. Sealed lid for first time, filled it with air to 50psi. Disconnected compressor and left for 3 days. The psi was still 50, never had that before with a pressure pot. Used it several times since and still holding pressure, no leakage at all. Good quality. I cut off the liquid out pipe inside as it interfered with caddy. Excellent thanks.

See More See Less

Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
