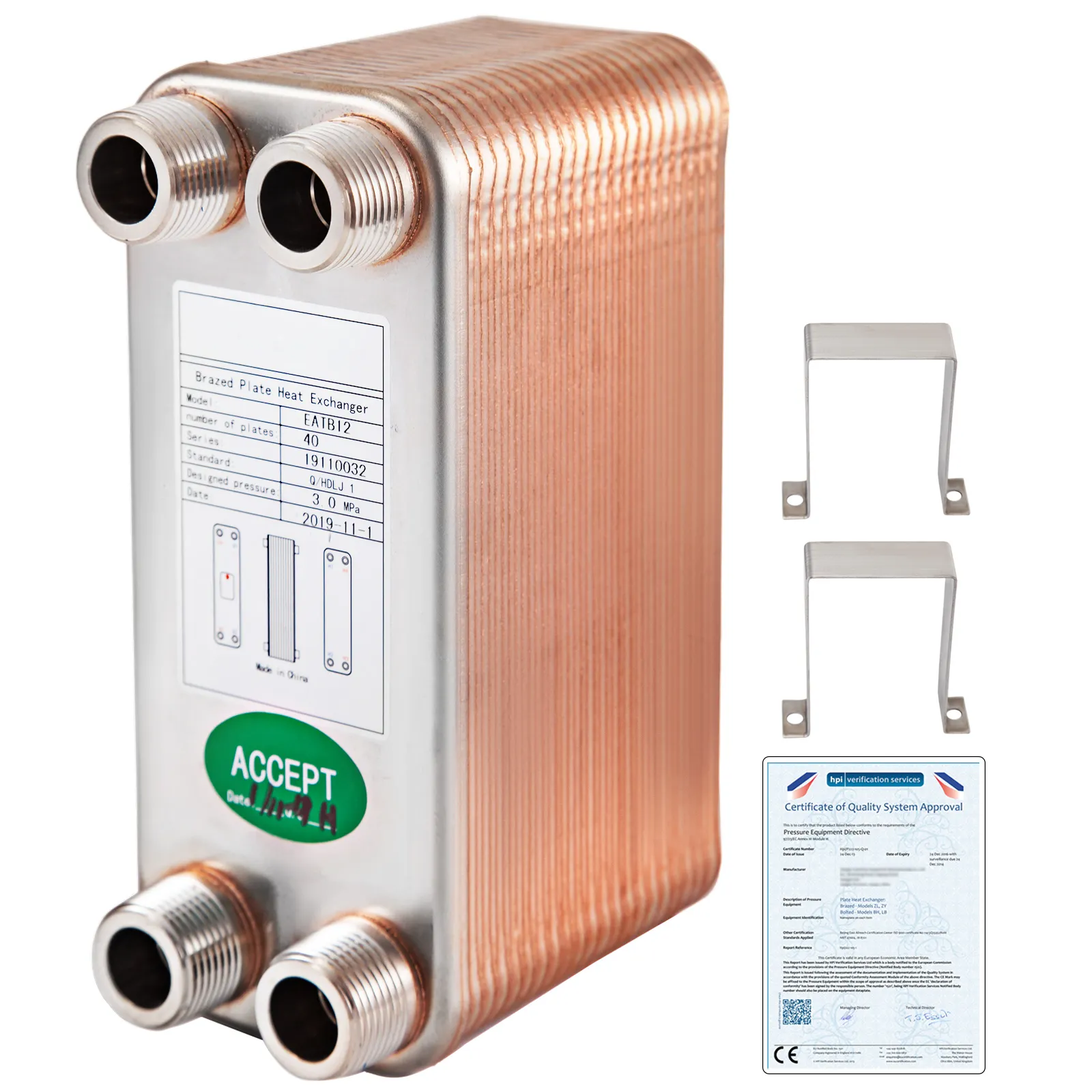

VEVOR heat exchanger with mounting brackets and quality certification. VEVOR heat exchanger with copper plates and excellent thermal performance. VEVOR heat exchanger with copper finish, green leaves, and low energy consumption. VEVOR heat exchanger made of 316l stainless steel with water splash background. VEVOR heat exchanger with dedicated mnpt ports and a green accept label. VEVOR heat exchanger with mounting brackets, compact and flexible design. VEVOR heat exchanger applications in kitchen, bathroom, pool, and maritime settings.
BSHRQ1240MN34G601V0

Heat Exchanger Brazed Plate Heat Exchanger 40 Plate Heat Exchanger For Heating

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive £5.00 off for your first three orders on the App.
Download Now
Exclusive £5.00 off for your first three orders on the App.
Scan the QR code to download

3/4 inch MNPT

  • 1/2 inch BSP FPT
  • 3/4 inch MNPT

40 pcs

  • 60 pcs
  • 30 pcs
  • 40 pcs

About this item

  • 【HIGH THERMAL EFFICIENCY】- Turbulent-flow design moves the two media in opposite directions and creates strong turbulence for superior heat transfer rates and efficiency. Our heat exchanger series have been certificated by CE. Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm.
  • 【ENERGY OPTIMIZED】 - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.
  • 【ROBUST CONSTRUCTION】- This 40 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece that can withstand high pressure and temperature. Four thickened MNPT ports for your easier installation.
  • 【COMPACT DESIGN】- Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.
  • 【HIGHLY VERSATILE】- This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.

Frequently Bought Together

People Who Bought This Item Also Bought

Heat Exchanger Brazed Plate Heat Exchanger 40 Plate Heat Exchanger For Heating
3/4 inch MNPT 40 pcs
VEVOR heat exchanger next to a bathtub with water splashes, highlighting key features.

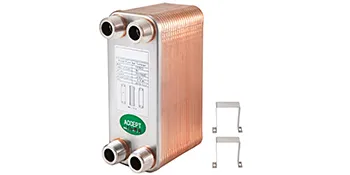

VEVOR heat exchanger, including mounting brackets and quality certificate.
Brazed Plate Heat Exchanger 40 Plate Heat Exchanger
Our brand new heat exchanger features a compact & lightweight body, offering excellent thermal performance, and 316L stainless steel +99.9% copper material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling, evaporation and condensing, etc.
  • High Thermal Efficiency
  • Energy Optimized
  • Robust Construction
  • Compact Design
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

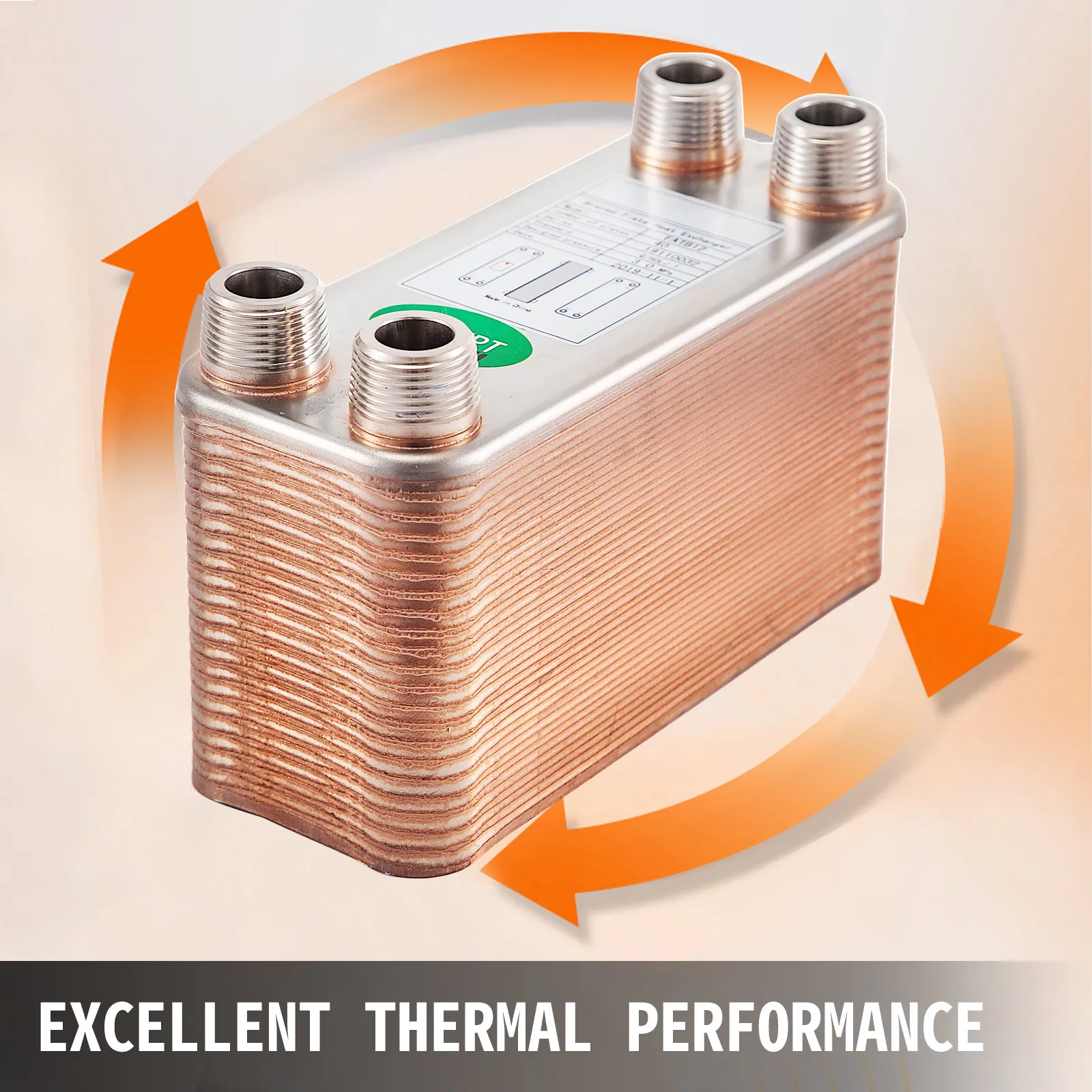

VEVOR heat exchanger showcasing excellent thermal performance.
Excellent Thermal Performance
Extremely efficient herringbone construction for maximum heat transfer.

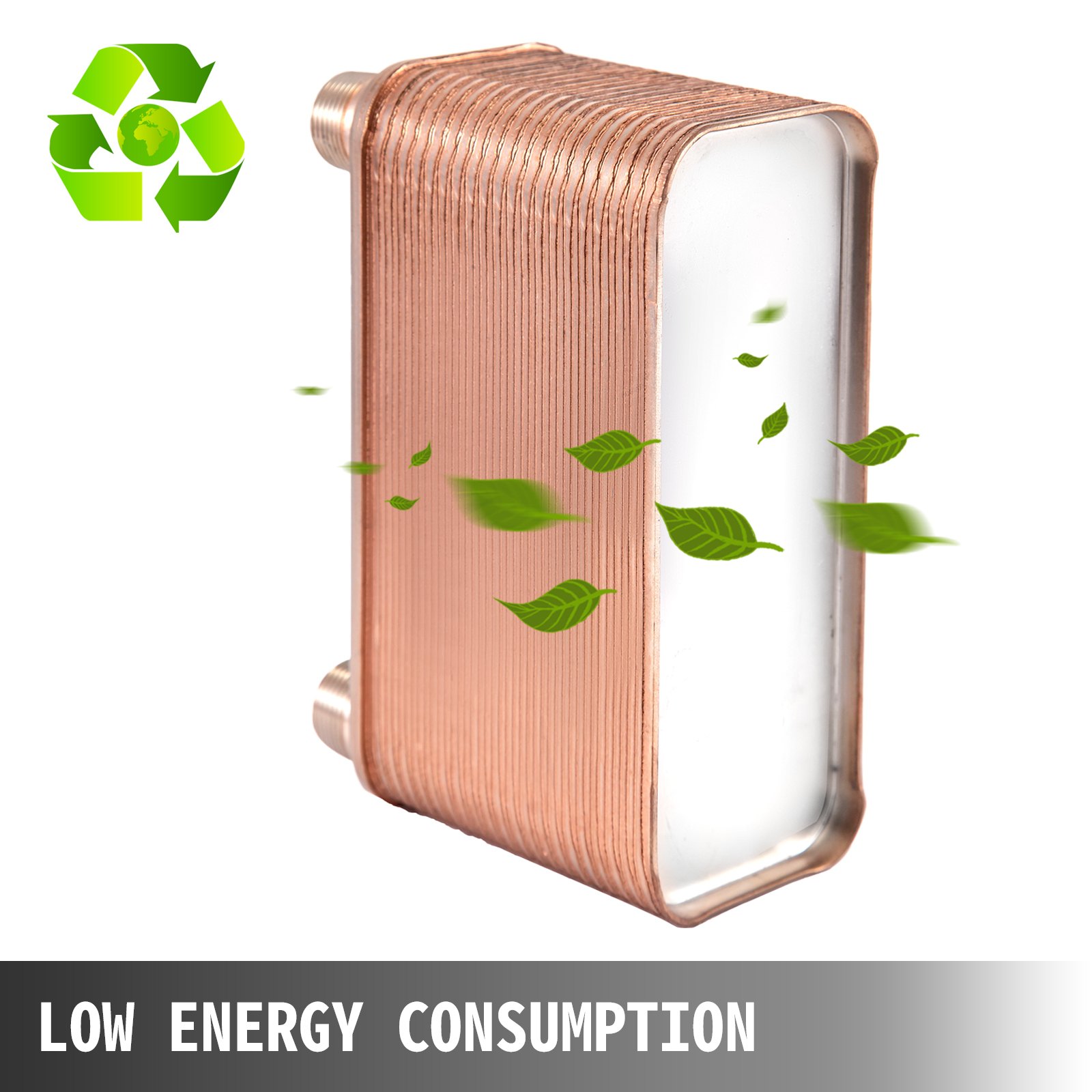

VEVOR heat exchanger with green leaves and recycling symbol, promoting low energy consumption.
Low Energy Consumption
Low energy consumption due to the very low-pressure drop over the heat exchanger.

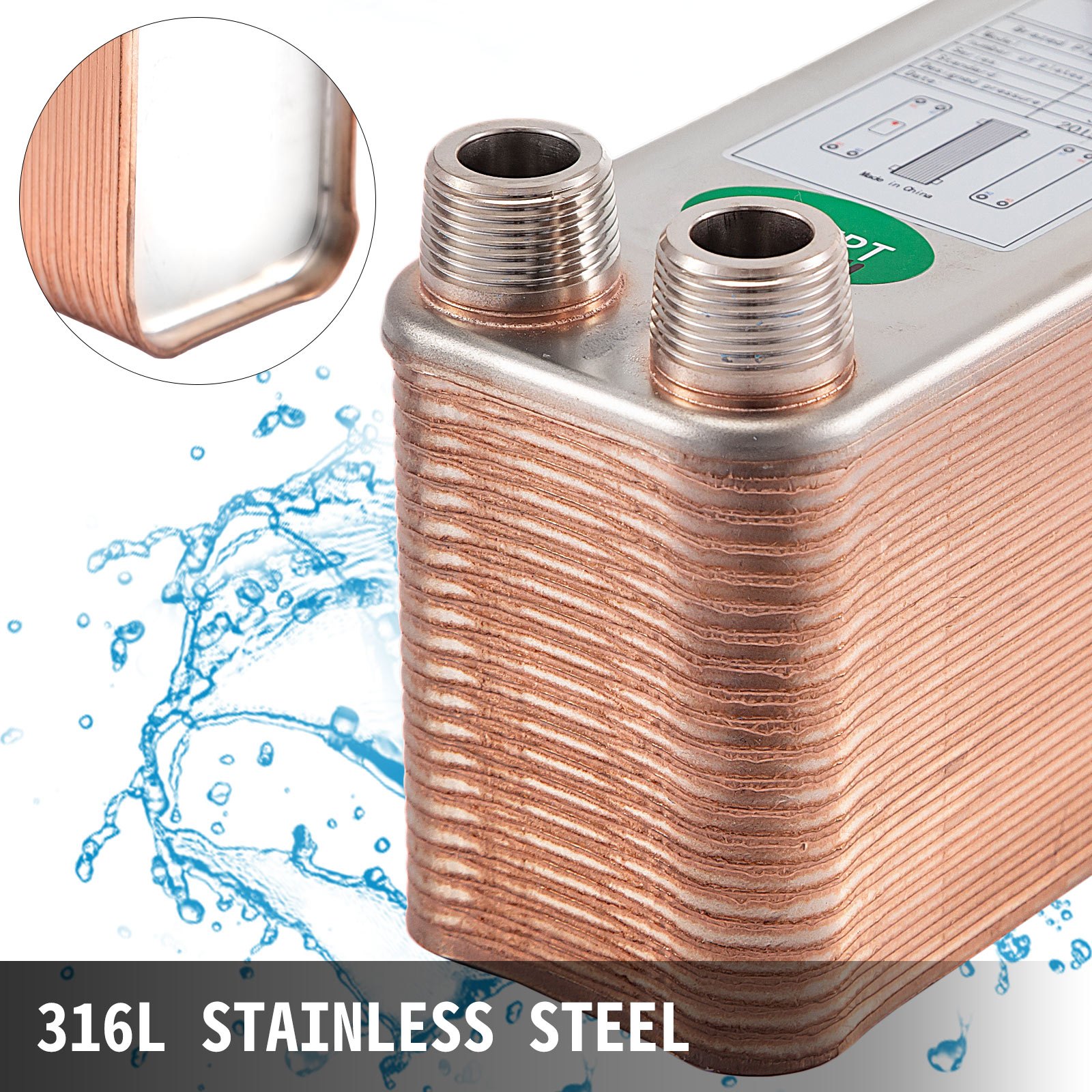

VEVOR heat exchanger with 316l stainless steel construction and water splash background.
316L Stainless Steel
The heat exchanger comprises 316L stainless steel with high toughness to resist pressure, corrosion, and rust.

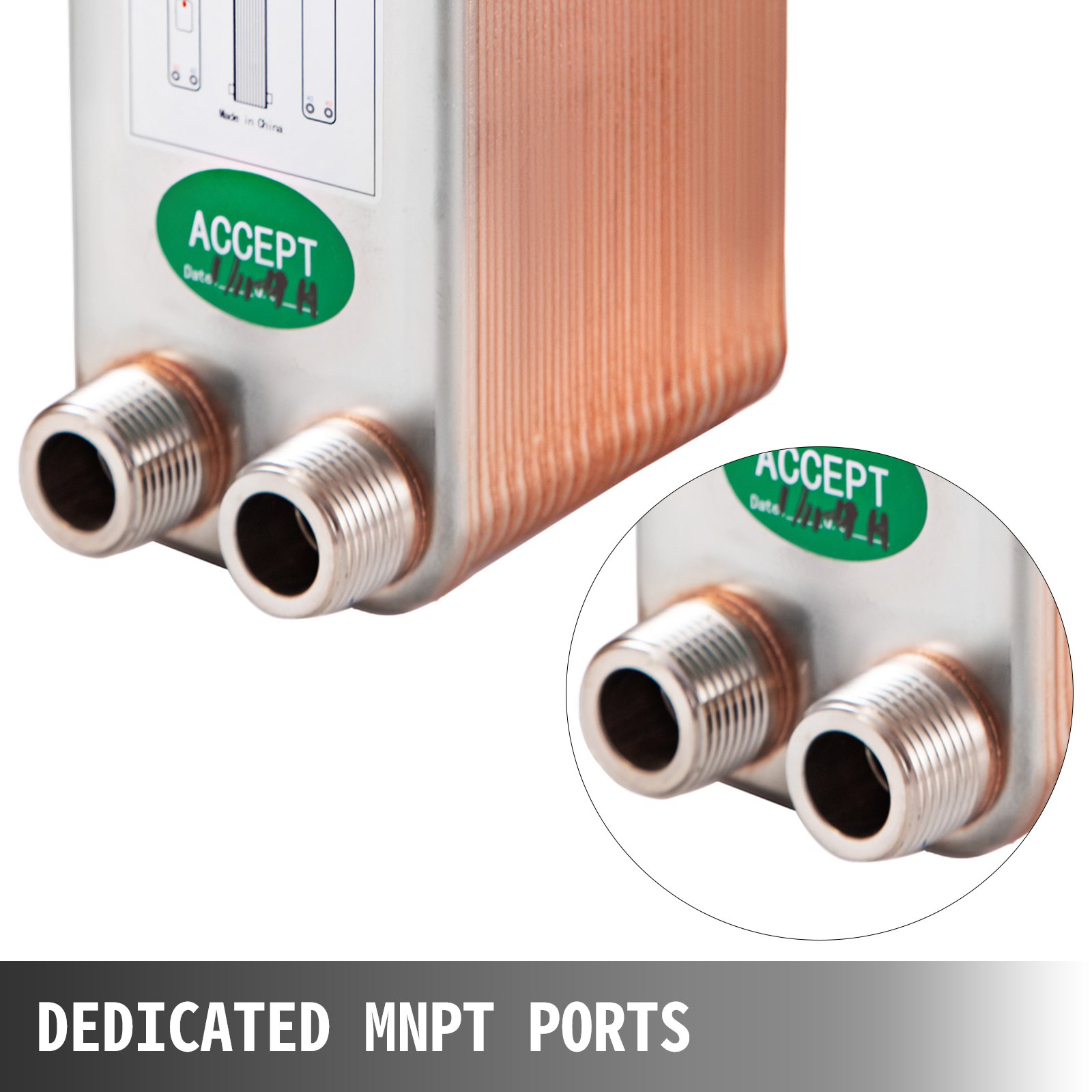

VEVOR heat exchanger with dedicated mnpt ports and copper connections.
Dedicated MNPT Ports
Four Thickened 3/4" MNPT ports for your easier installation.

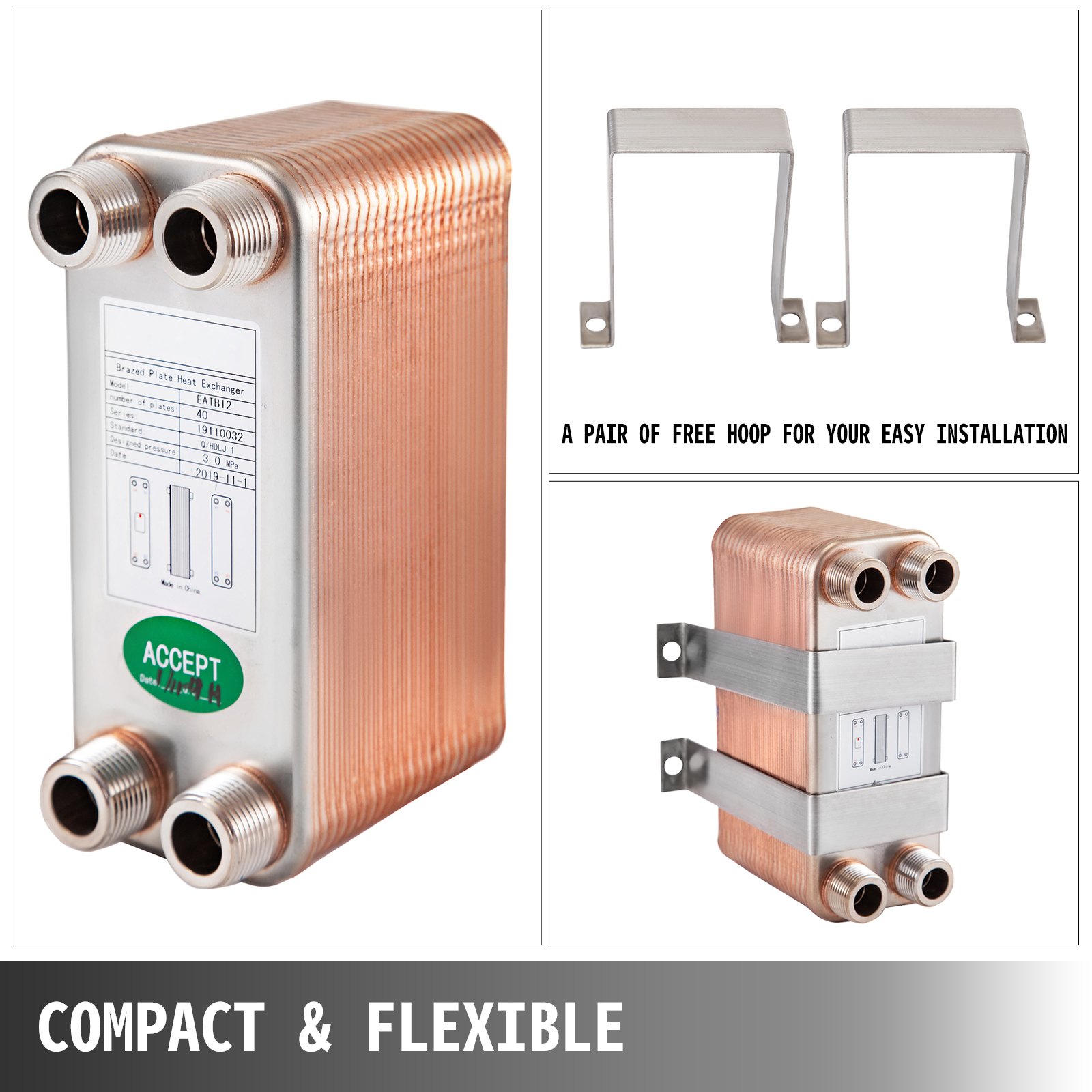

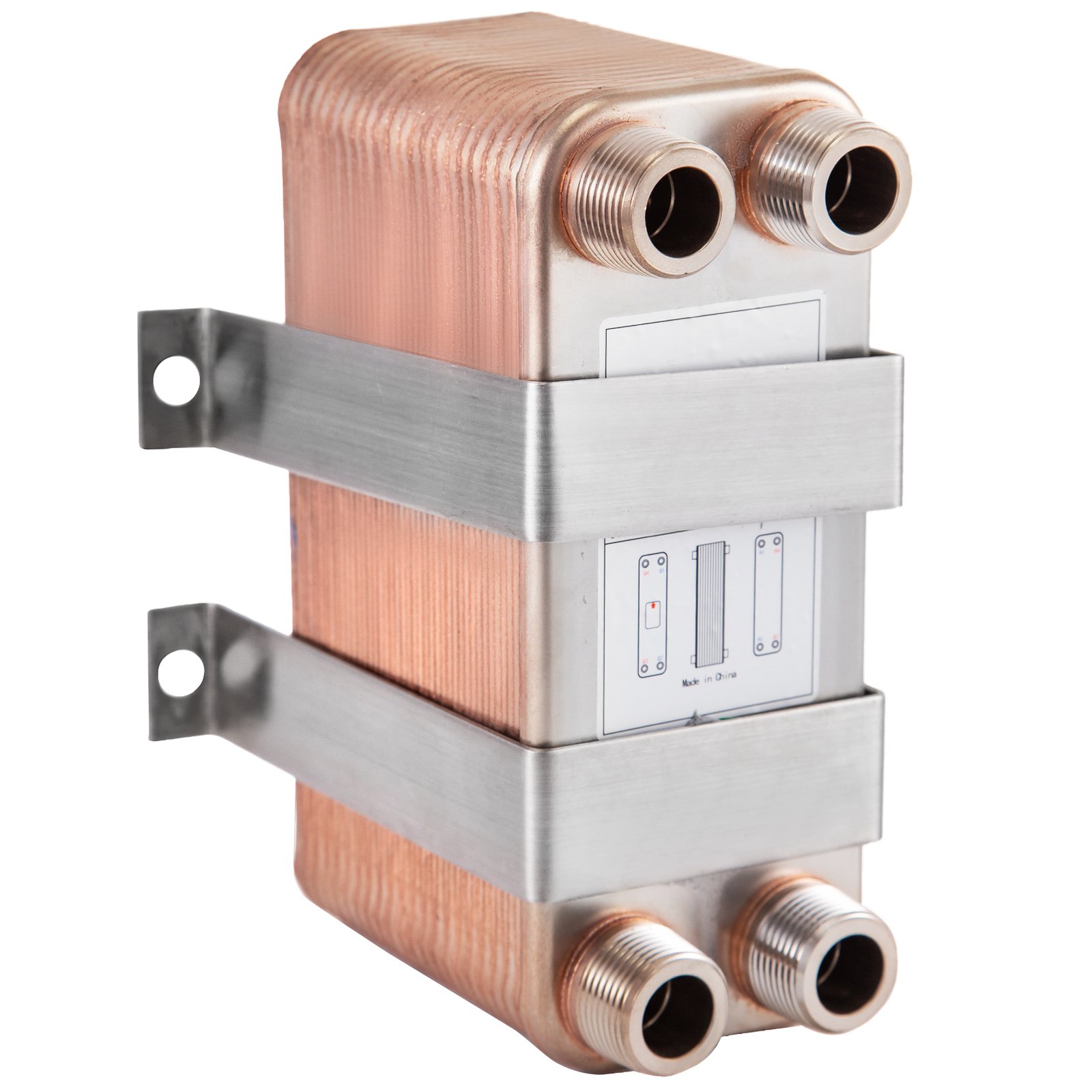

VEVOR heat exchanger with mounting brackets, compact and flexible design.
Compact & Flexible
The footprint can be as little as one-tenth that of a shell & tube heat exchanger, and its compact size means it also offers greater system design freedom.

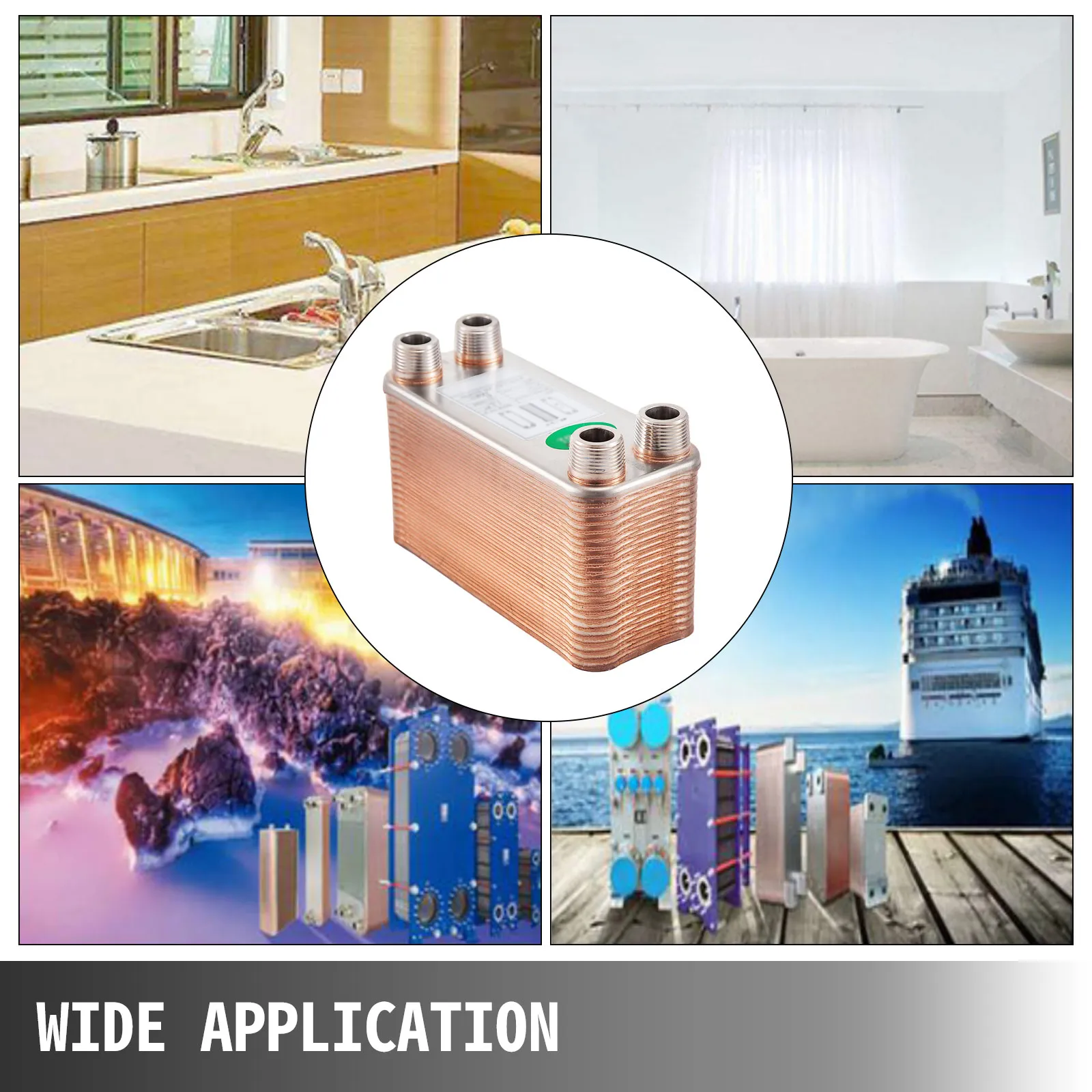

VEVOR heat exchanger for kitchen, bathroom, industrial use, and maritime application.
Wide Application
Suitable for the HVAC industry, dairy/food/beverage industry, refrigeration industry, etc.

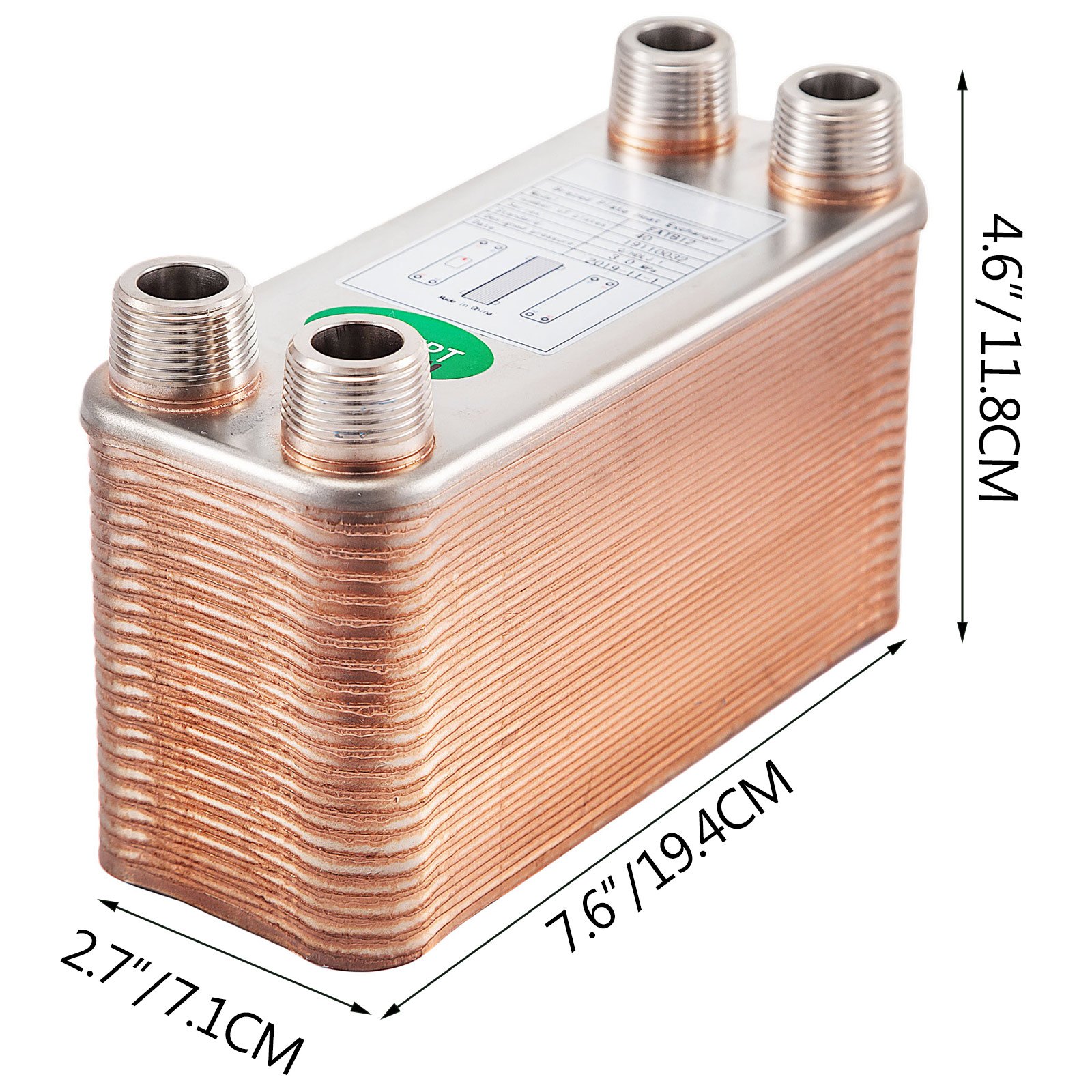

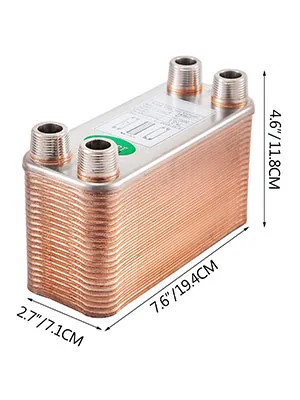

VEVOR heat exchanger with four ports and dimensions: 7.6"x2.7"x4.6".
Specifications
  • Model: EATB12
  • Material: 316L +99.9% Copper
  • Ports: 3/4" MNPT
  • Plate Quantity: 40
  • Design Pressure(Max):3.0 Mpa
  • Test Pressure:(Min):4.5 Mpa
  • Design Temp.(℃): Max +225
  • Design Temp.(℃): Min -196
  • Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm

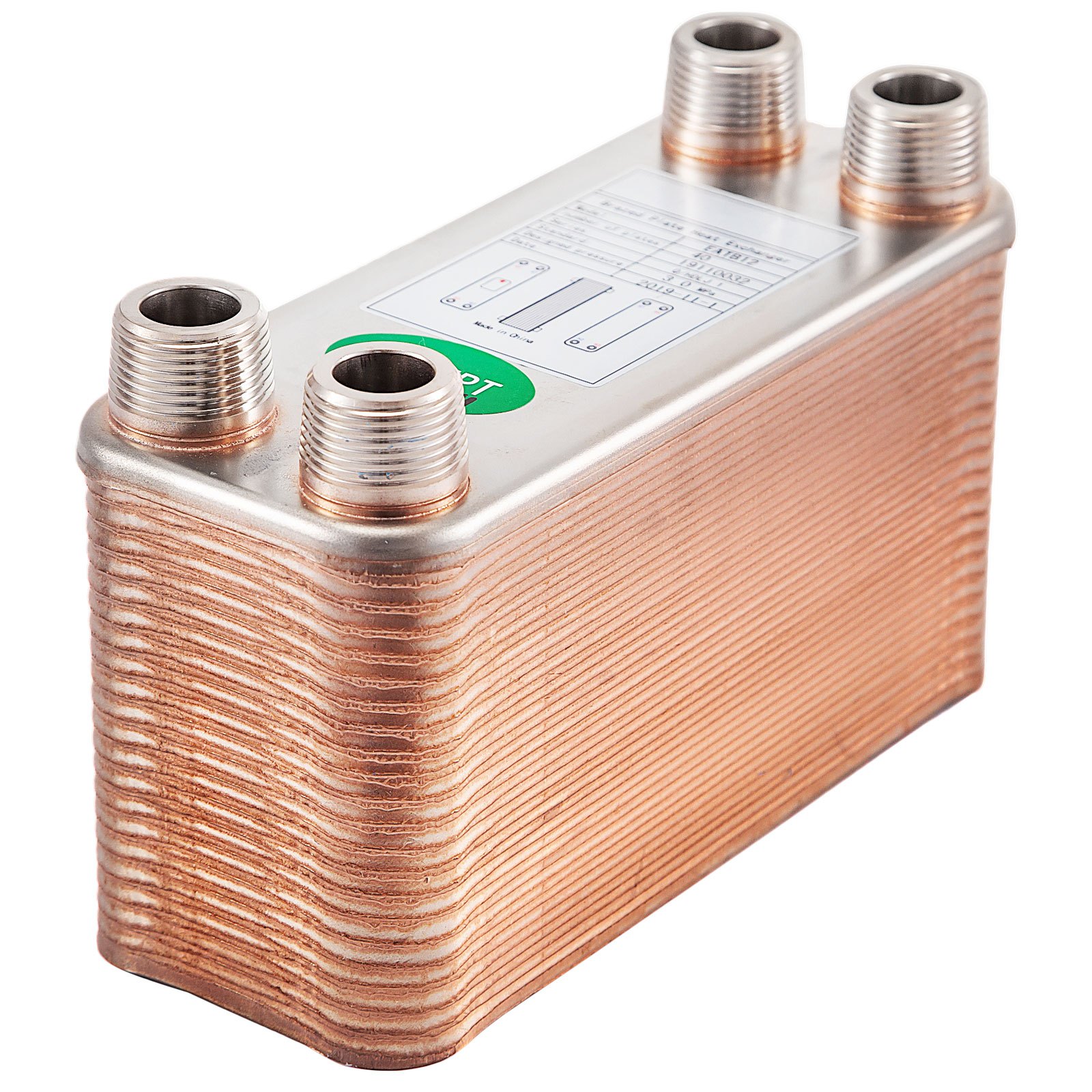

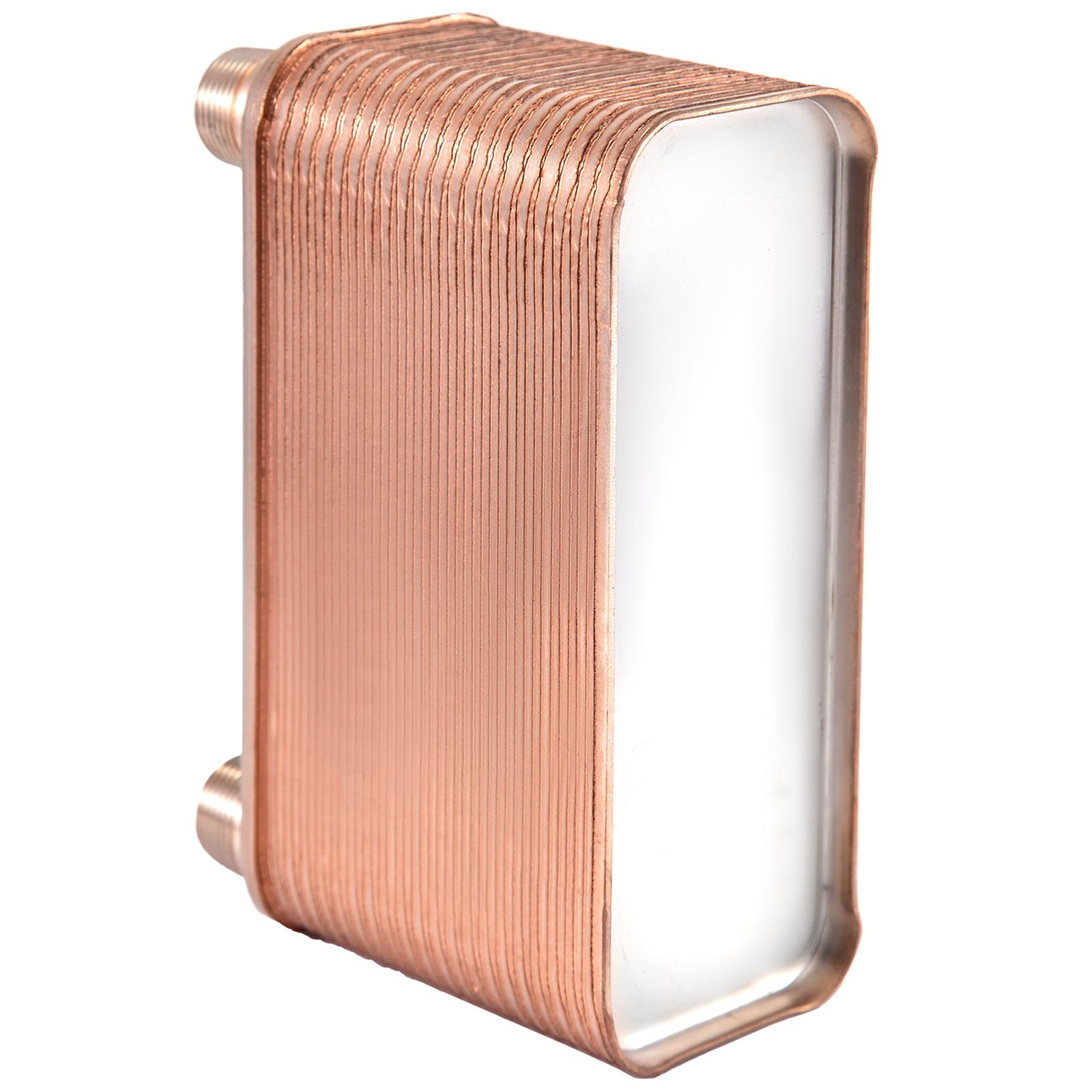

VEVOR heat exchanger with copper brazed plates and mounting brackets.
Package Content
  • 1 x Heat Exchanger

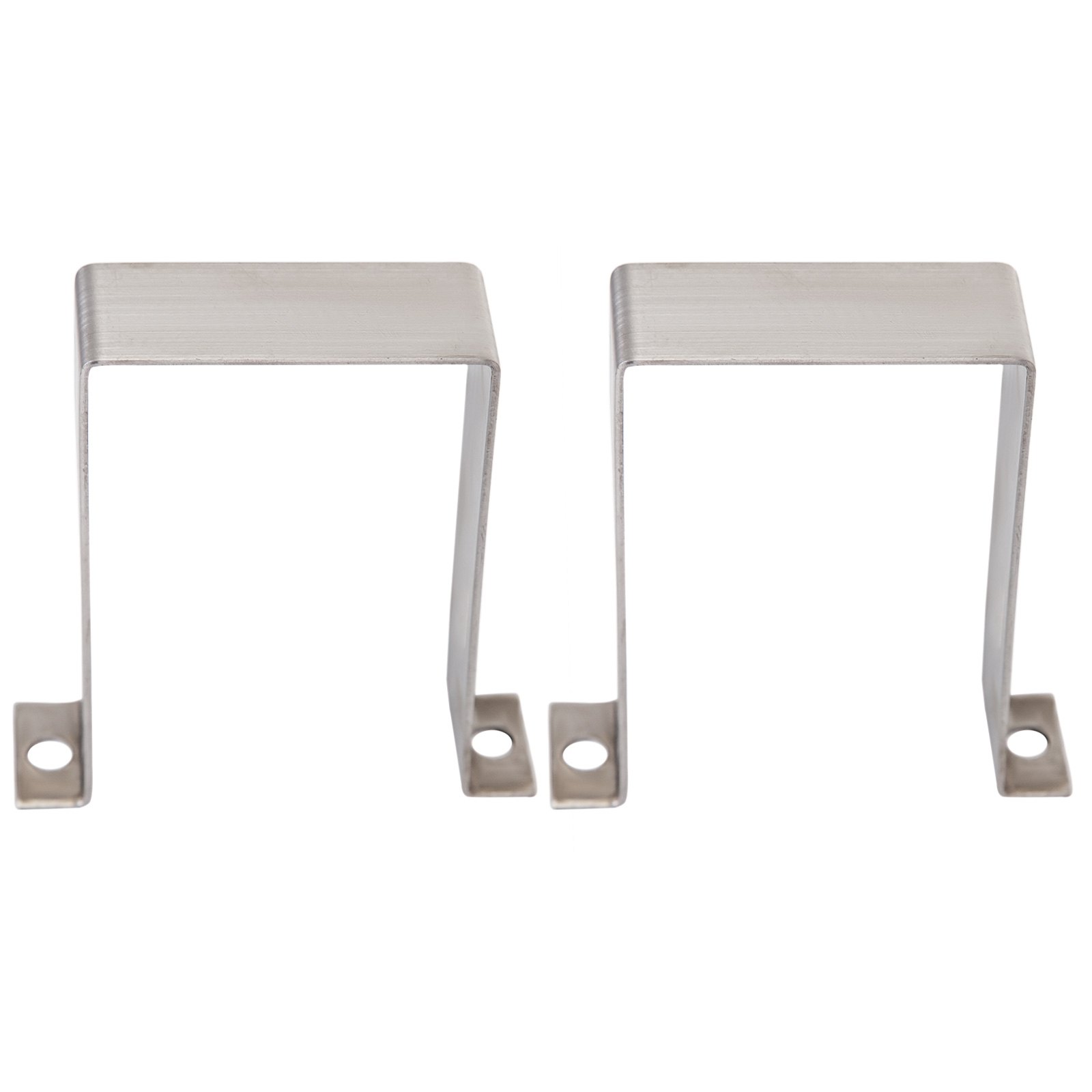

  • 1 x A Pair of Hoops
VEVOR heat exchanger next to a bathtub with water splashes, highlighting key features.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR heat exchanger, including mounting brackets and quality certificate.
Brazed Plate Heat Exchanger 40 Plate Heat Exchanger
Our brand new heat exchanger features a compact & lightweight body, offering excellent thermal performance, and 316L stainless steel +99.9% copper material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling, evaporation and condensing, etc.
  • High Thermal Efficiency
  • Energy Optimized
  • Robust Construction
  • Compact Design
VEVOR heat exchanger showcasing excellent thermal performance.
Excellent Thermal Performance
Extremely efficient herringbone construction for maximum heat transfer.
VEVOR heat exchanger with green leaves and recycling symbol, promoting low energy consumption.
Low Energy Consumption
Low energy consumption due to the very low-pressure drop over the heat exchanger.
VEVOR heat exchanger with 316l stainless steel construction and water splash background.
316L Stainless Steel
The heat exchanger comprises 316L stainless steel with high toughness to resist pressure, corrosion, and rust.
VEVOR heat exchanger with dedicated mnpt ports and copper connections.
Dedicated MNPT Ports
Four Thickened 3/4" MNPT ports for your easier installation.
VEVOR heat exchanger with mounting brackets, compact and flexible design.
Compact & Flexible
The footprint can be as little as one-tenth that of a shell & tube heat exchanger, and its compact size means it also offers greater system design freedom.
VEVOR heat exchanger for kitchen, bathroom, industrial use, and maritime application.
Wide Application
Suitable for the HVAC industry, dairy/food/beverage industry, refrigeration industry, etc.
VEVOR heat exchanger with copper brazed plates and mounting brackets.
Package Content
  • 1 x Heat Exchanger
  • 1 x A Pair of Hoops
VEVOR heat exchanger with four ports and dimensions: 7.6"x2.7"x4.6".
Specifications
  • Model: EATB12
  • Material: 316L +99.9% Copper
  • Ports: 3/4" MNPT
  • Plate Quantity: 40
  • Design Pressure(Max):3.0 Mpa
  • Test Pressure:(Min):4.5 Mpa
  • Design Temp.(℃): Max +225
  • Design Temp.(℃): Min -196
  • Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm

Heat Exchanger for Versatile Applications

This VEVOR heat exchanger is perfect for a wide range of applications. It can be used for radiant floor heating, hot tub heating, and even homebrew chilling. This versatility makes it an incredibly useful addition to any setup. The 316L stainless steel material ensures durability and reliability. It can handle high pressure and temperature. So, it’s suitable for both home and commercial use. These heat exchangers are designed to meet different heating and cooling needs efficiently. Their compact size also allows for easy installation in tight spaces.


Efficient Cooling for Homebrew Wort Chillers

This heat exchanger is highly efficient in cooling wort for homebrew setups. It can cool 6 gallons of wort from 210° to 65° in under 5 minutes. This fast cooling saves time and improves brewing efficiency. The compact design of this heat exchanger makes it easy to handle and store. You can clip it next to your kettle, ready for use whenever needed. 40 plates in this heat exchanger ensure effective heat transfer. So, it’s an excellent choice for homebrew enthusiasts.


Fastidious Cleaning Made Easy

Cleaning this heat exchanger is simple and necessary. After each use, it needs thorough cleaning to maintain efficiency. Alternating between hot PBW and water helps in effective cleaning. This method guarantees the removal of all residue. The easy-clean design minimizes maintenance headaches. It is recommended to be cleaned immediately after use to avoid any build-up. Additionally, the stainless steel material is corrosion resistant, ensuring long-term use.


Compact and Durable Design for Easy Installation

This heat exchanger is compact, making it easy to install. Its small size allows it to fit in tight spaces. Despite its compactness, it is highly durable. This device is made from 316L stainless steel and can handle high pressure and temperature. The included mounting bracket adds to its ease of installation. Built to last, this heat exchanger provides reliable performance over time. Furthermore, its design facilitates seamless integration into various systems.


High-Performance Heat Transfer for Radiant Floor Heating

It is ideal for radiant floor heating systems. It efficiently transfers heat, ensuring optimal performance. The 40 plates ensure effective heat exchange. This makes it suitable for both small and large heating projects. The material uses high heat conductivity. This heat exchanger can handle a wide range of temperatures. Even with the lowest temperature level of -196°C, this device is a dependable choice for any heating application.


Reliable for Hot Tub Heating with Outdoor Wood Boiler

This heat exchanger is reliable for heating hot tubs. It works well with outdoor wood boilers, and it can quickly raise the temperature of your hot tub water. This ensures a comfortable and enjoyable experience. Its compact size enables installation in a variety of settings. Durable material: It can handle the rigors of outdoor use. This heat exchanger has consistent performance. So, it’s an excellent addition to any hot bath heating system.


Excellent Value for Money with Fast Shipping

It offers excellent value for money. It is competitively priced, making it accessible to many. The fast shipping ensures you get it promptly. This heat exchanger combines quality and affordability. You can use it for various heating and cooling needs. Reliable performance with easy installation makes it a great investment. This heat converter is perfect for a hygienic, affordable solution.


Ideal for Hydronic Heating Systems

It is the perfect heat exchanger for hydronic heating systems. It efficiently transfers heat, making it a reliable component. The compact design ensures it fits well in various setups. It can handle high pressure and temperature. This makes it suitable for any hydronic system. This heat exchanger guarantees optimal performance in heating applications.


See More

Specification

Model
EATB12
Material
316L +99.9% Copper
Ports
3/4" MNPT
Plate Quantity
40
Design Pressure(Max)
3.0 Mpa
Test Pressure
(Min)
Design Temp.(℃)
Max +225
Design Temp.(℃)
Min -196
Dimension
7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm
Questions and Answers
8 Questions
Can you advise if this heat exchanger would be able to increase water temperature to a target temperature of 65°C? As per details below; Hot Side - Glycol (20% ethylene glycol) Hot inlet = 75°C. Flow = 15 liters per minute Hot outlet = temperature drop not an issue, as Hot Side heated by diesel heater. Cold Side - Water (pure water) Cold inlet - Starting temperature 10°C. - Flow = 2.5 Liters per minute Cold outlet - TARGET TEMPERATURE = 65°C.
No, this one is not suitable for you because of the large temperature difference.
By vevor
What is the heat transfer area?
Heat exchanger = temperature difference * flow rate * specific heat * specific gravity. The heat exchanger will be different under different working conditions.
By vevor
Hi, what is the approximate kW rating of this unit, assuming a constant hot side temp of 80degC (20% ethylene glycol)? I want to calculate what I can expect in the way of hot water flow for a shower, if I plumb the unit into a diesel SUV's cooling system.
1. We need you to provide the temperature difference and flow rate to calculate the power. 2. You mentioned connecting the equipment to the diesel cooling system. Please tell us what the cooling system uses, what the medium is, what the temperature is, and what the flow rate is. 3. Please tell us whether the ethylene glycol and cooling system mentioned above are together.
By vevor
Whether the flow rate is 3L/min or 30L/min, when the pipe is small, 3L/min is also very fast, so it cannot be calculated. According to the heat exchange amount = temperature difference * flow rate * specific heat * specific gravity, the temperature difference of water = the inlet temperature of the water on one side - the outlet temperature. The specific heat specific gravity of water is constant, so you need to know the outlet temperature and flow rate to calculate the exchange rate.
By vevor
Can this be used in reverse - as a beer wort chiller using cold water to cool beer wort from 100 DegC (boiling) to 22 DegC? Is it food grade standard? What flow rate would I need in order to satisfy my above requirement with a cold water supply of 17 DegC? How many plates would you recommend?
It can be used to cool food. Our faucets are also made of brass. Pure copper is better than brass. Ours is a copper brazed plate heat exchanger. The main body is stainless steel. The solder is 99.9% pure copper. Copper is a heavy metal. If the customer has high requirements for food, it is not recommended to use it. We don’t have a food certificate. If you must have a food certificate, it is not recommended. However, many customers use this for food.
By vevor
Hi I have a 30Kw gas boiler and want to use the 40 plate exchanger to raise the underfloor heating circuit water from approx 20 degrees C to between 30 to 40degrees C as the intake for the UFH circuit is at the bottom of the heat store and is to cold to maintain room temps in cold weather .Will this be ok for this exchanger ?
Please tell us what is the temperature of the hot water coming out of the boiler. The floor heating circuit water increases from about 20 degrees Celsius to between 30 and 40 degrees Celsius. Please tell us whether this is recycled water.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
17 Review(s)
Clear filters
DaddyNev DaddyNev
Mr
I purchased this heat exchanger direct from Vevor, as it was cheaper than on eBay and Amazon, and I specifically wanted the 30 plate exchanger, which made choices quite difficult. When it arrived, and it did arrive fairly quickly, it was well packed, and also included two fitting brackets that I didn't use. Quality is excellent!, I'm using this as a heat exchanger for my spa. I use a custom heater configuration with Webasto Thermo Top Z directly pumped to this heat exchanger via fully insulated, copper plumbing and push fit connectors. The set up is only designed to heat the heat exchange of water to 52°C. Chilled water from the spa circuit is pumped direct from the spa through the second circuit of the heat exchanger. I use a basic antifreeze solution based on copper and aluminium for the primary circuit. This set up with this heat exchanger works faultlessly. I am very impressed.
wig wig
Hot Stuff
first class service, verry hot price , fast delivery. 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
John bowen John bowen
Mr
This exchanger has saved us a fortune in electricity, before we purchased it , it was taking 3 or 4 days to get our outdoor pool up to temperature. After fitting this bit of kit in a solar black box , we got the temperature in one day , well done Vevor .
HARTY EIRE 1 HARTY EIRE 1
Heat exchanger is perfect!
Heat exchanger is perfect but the insulation surround never came which is a pity. I have made a home made version that does the job but the right cover would have being nice to have.
andrew p. andrew p.
It's ok.
I am using this for connecting my unvented system to a solid fuel vented system. It is replacing a 20 plate unit of the same size, that struggled to deliver 10kW without raising the return temperature. I anticipate that this will deliver the performance required. It does not come with an insulation shell. On complaint to the supplier, they offered a discount, so I am happy enough.
Prof Brains Prof Brains
Simple but brilliant
I bought this to enable me to connect my air-source heat pump to my thermal store. This removed the need to get an additional tank or add a coil to the existing store. Works brilliantly and is excellent value for money.
Gary williams Gary williams
Used for swimming pool
Used this to heat my 12 foot swimming pool, can get the pool to 40c from the central heating if I want! Left it turned on with no control, that’s how I know. Controls and stats now fitted, sits perfect at 30c now great item
Aaron King Aaron King
Great chiller at a great price
This is a great chiller that helps get wort down to pitch temp within 15-20 minutes. It took my immersion chiller 2 hours. That saves time and money! Great value for the money.
carl holt carl holt
It works but threads leak
The exchanger works extremely well but the threads do not have a tight seal. CG I used brass hose fittings on the water sides and stainless 3/4 NPTFNPT quick release fitting on the beer side or hot liquid side. Used pipe thread sealant but still minor leaks on both sides. Considering soldering them all
Miguel A. Miguel A.
Good
Good product, good seller
