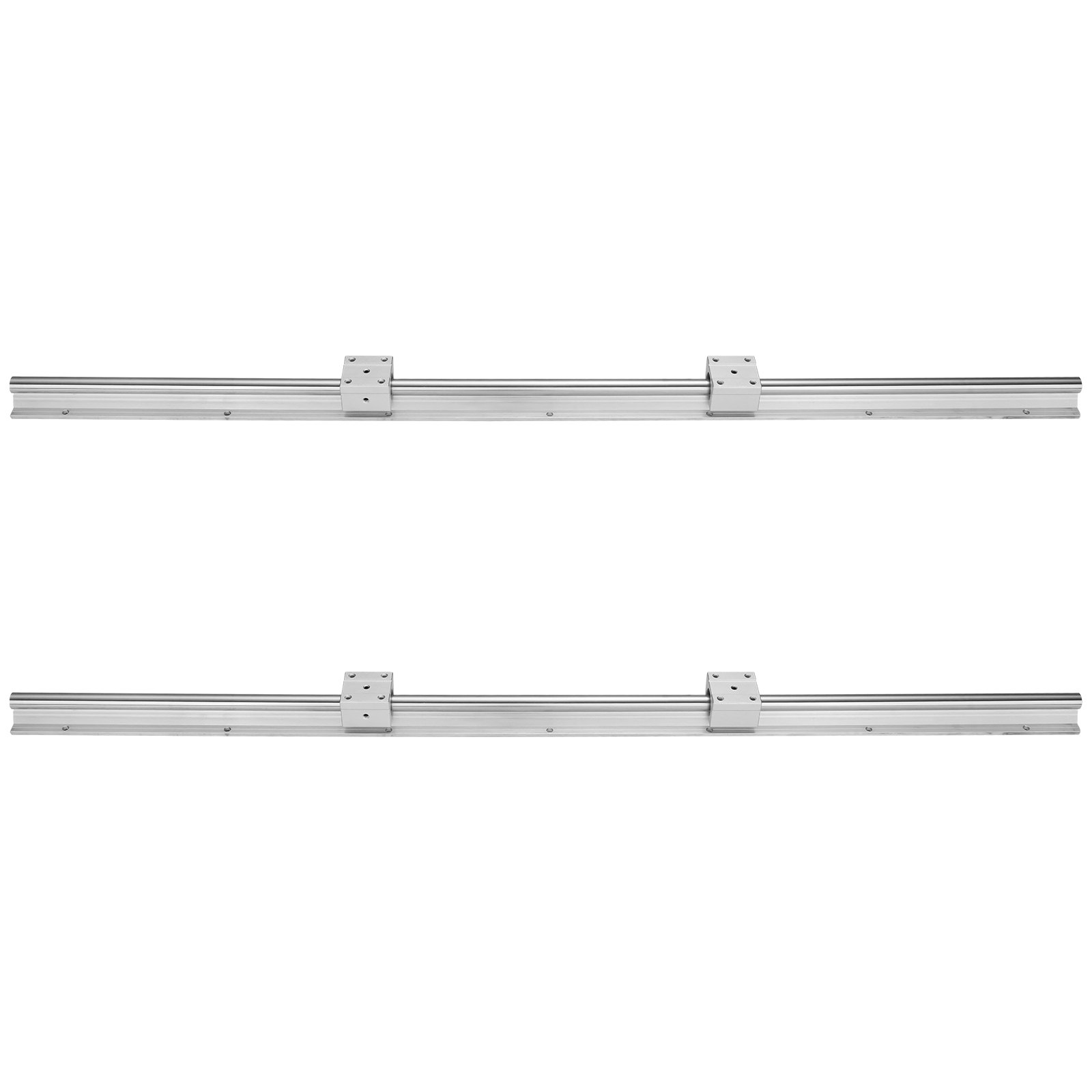

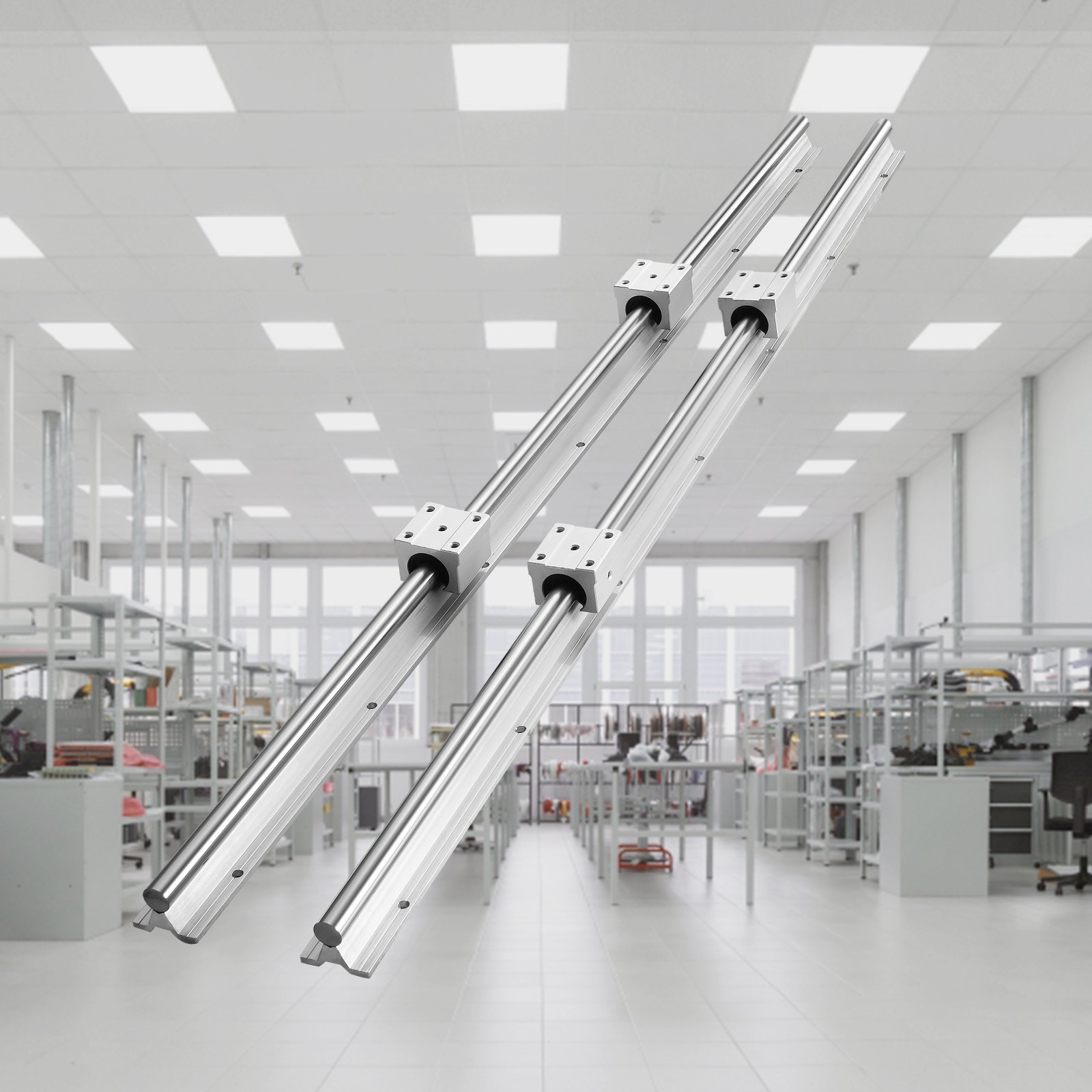

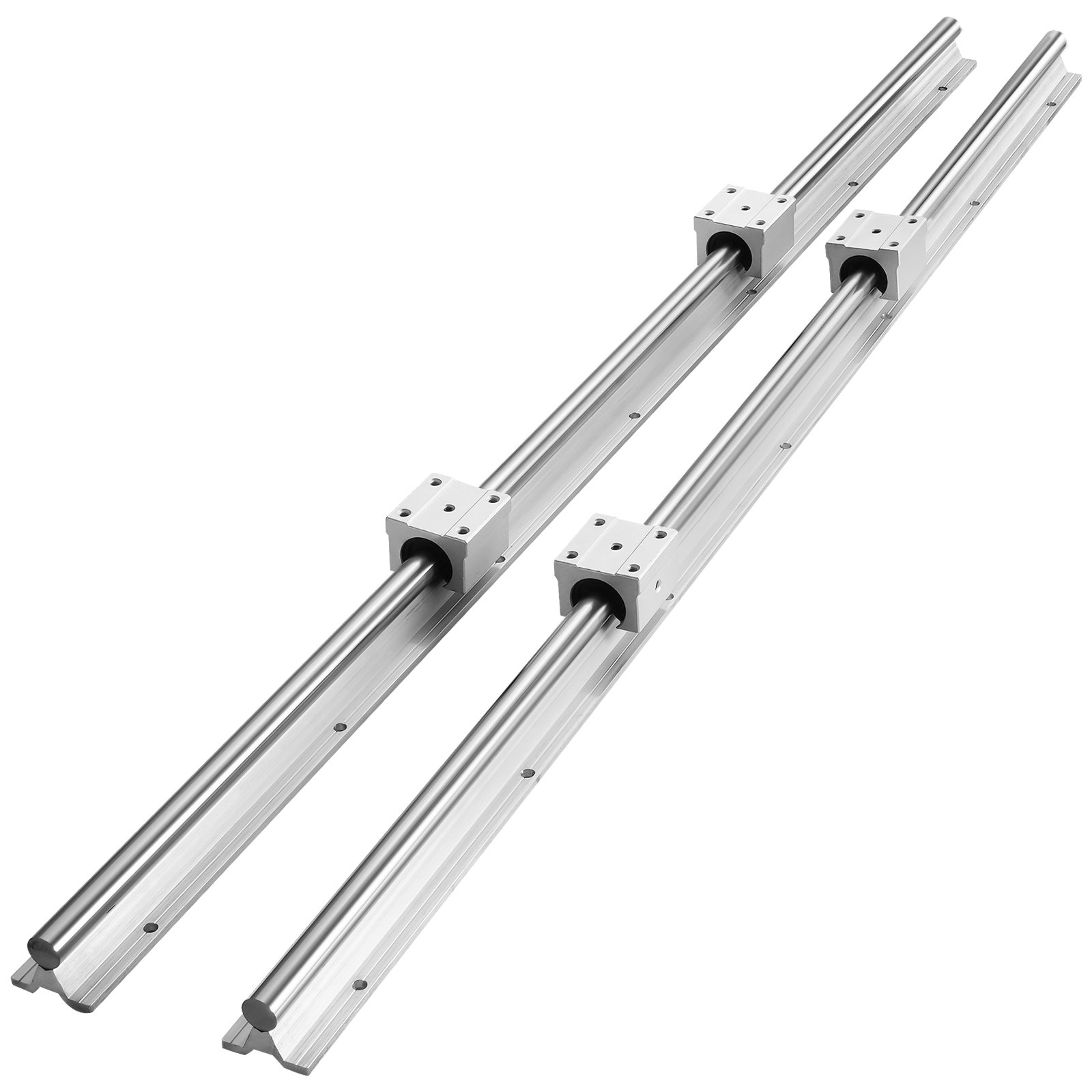

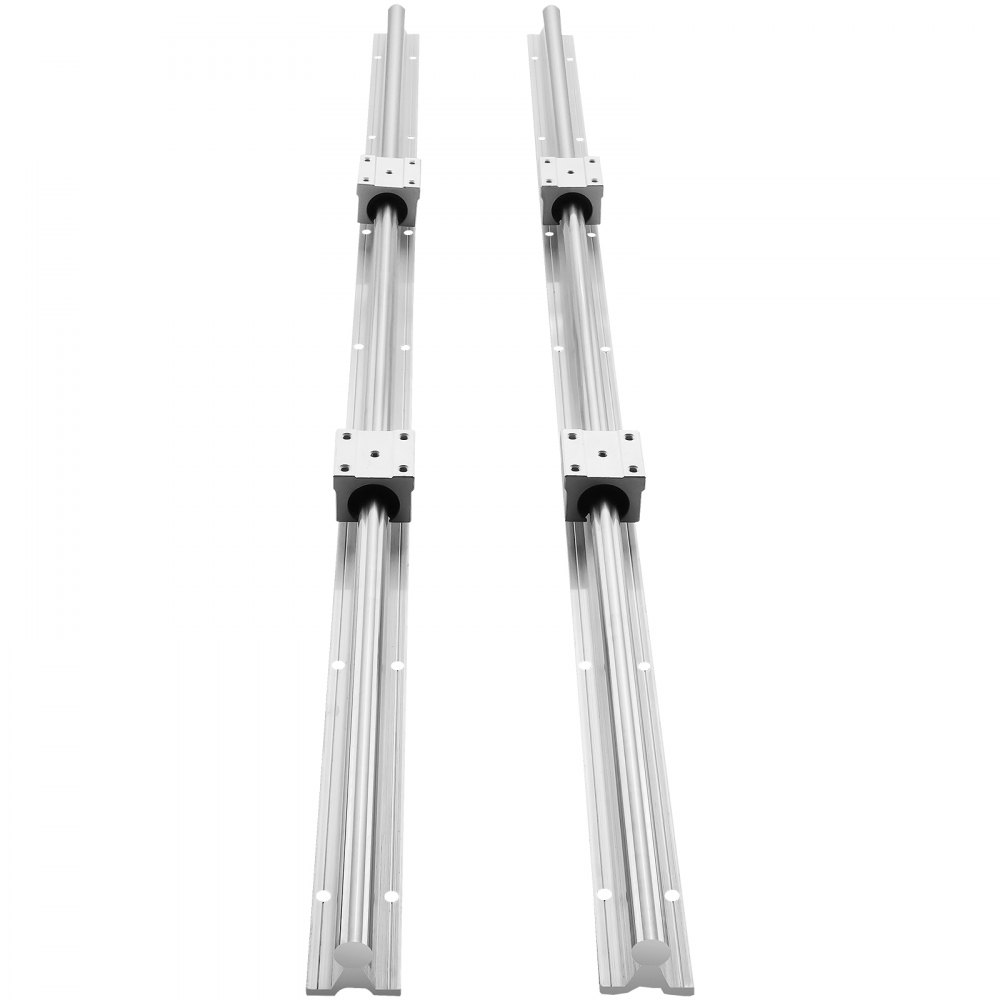

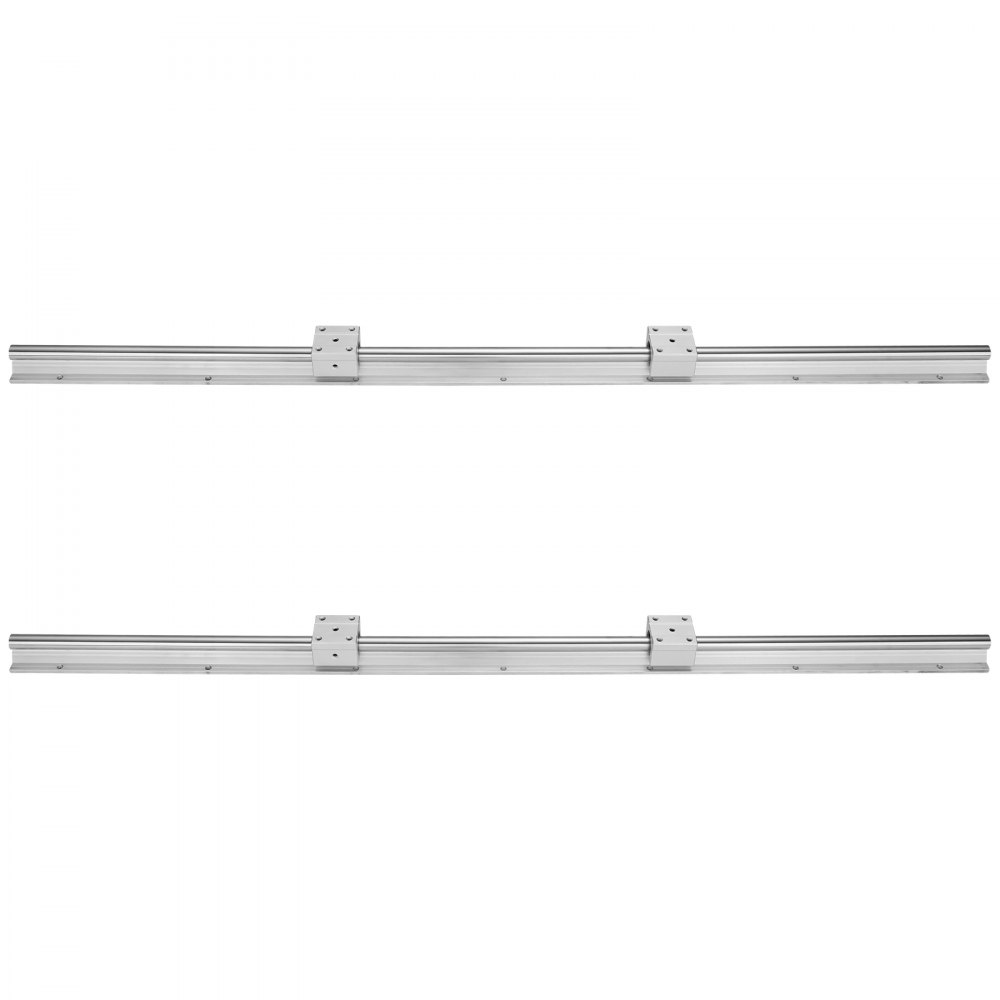

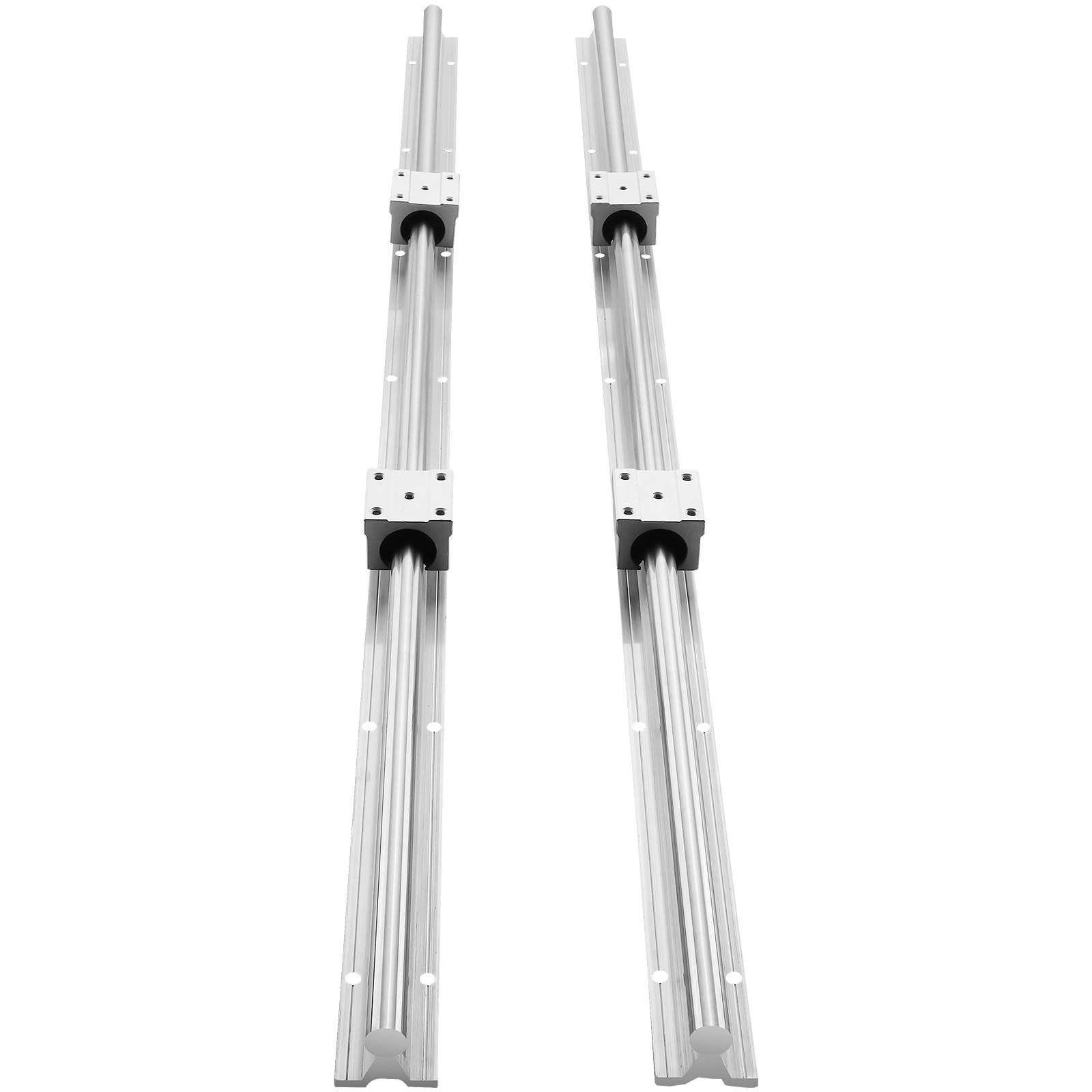

VEVOR linear guide rail set with two parallel rails and four bearing blocks on a white background. VEVOR linear guide rail set with 2 guide rails, 4 slide blocks for cnc machines and diy projects. VEVOR linear guide rail set with carbon steel linear shaft and aluminum alloy slide block and bracket. VEVOR linear guide rail set with slide block and ball bearing for low noise and unhindered movement VEVOR linear guide rail set: highly precise with accurate hole spacing and scratch-free rail surface. VEVOR linear guide rail set installation steps shown: align shaft end, push forward, fully insert. VEVOR linear guide rail set with specifications including length, diameter, and load capacity.
ZXDGSBR20MM125YV3V0

VEVOR Linear Guide Rail Set, SBR20 1200mm, 2 PCS 47.2 in/1200 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive £5.00 off for your first three orders on the App.
Download Now
Exclusive £5.00 off for your first three orders on the App.
Scan the QR code to download

20 mm

  • 20 mm
  • 12 mm
  • 25 mm

1200 mm

  • 800 mm
  • 650 mm
  • 1000 mm
  • 1200 mm
  • 1800 mm
  • 1500 mm
  • 2210 mm
  • 2200 mm

About this item

  • SBR Linear Guide Rail Set: SBR20-1200 mm Linear motion guide rail includes 2 x 47.2 in/1200 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.

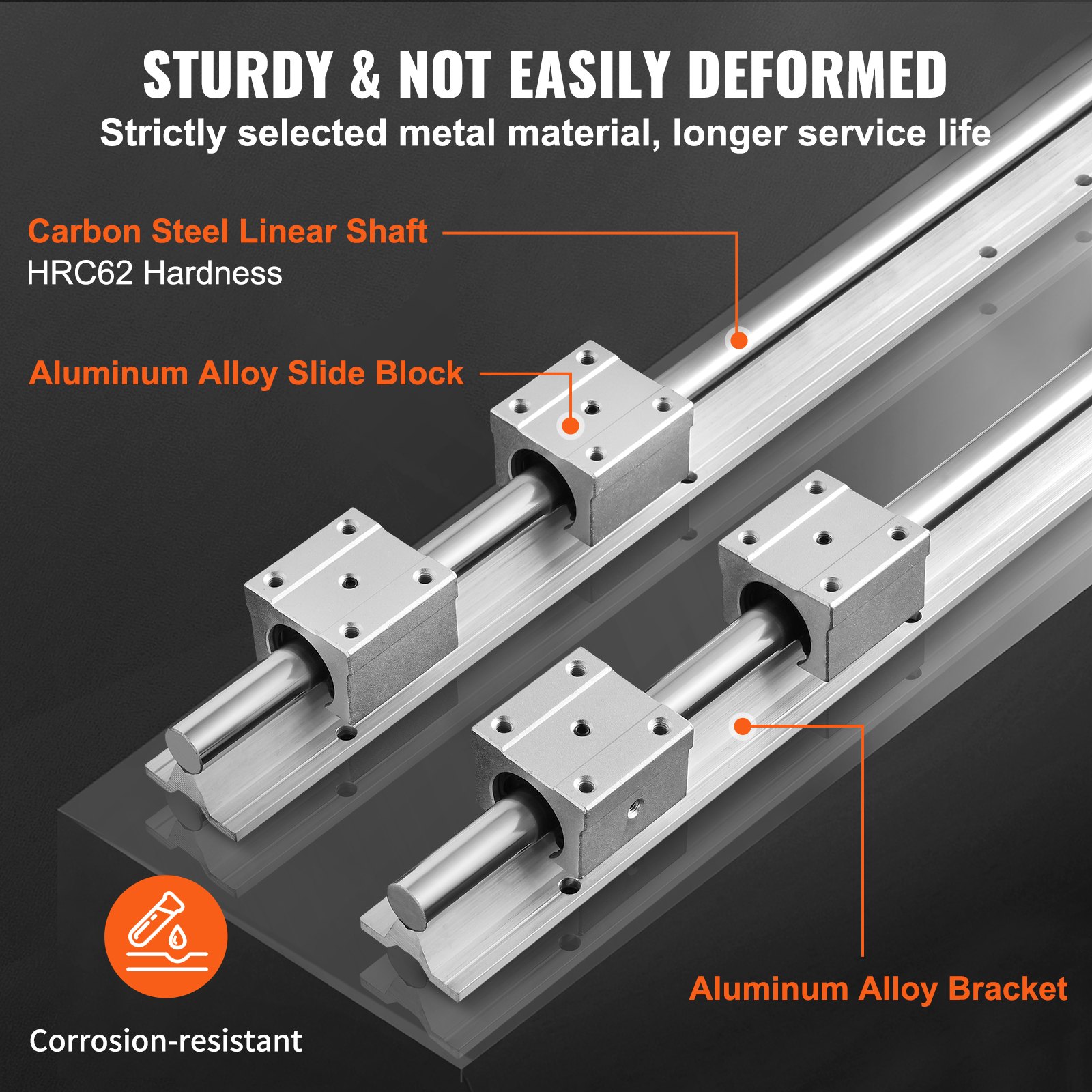

  • Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
  • Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
  • High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
  • Wide Application: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Linear Guide Rail Set, SBR20 1200mm, 2 PCS 47.2 in/1200 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines
20 mm 1200 mm
vevorA+Template
SBR Linear Guide Rail

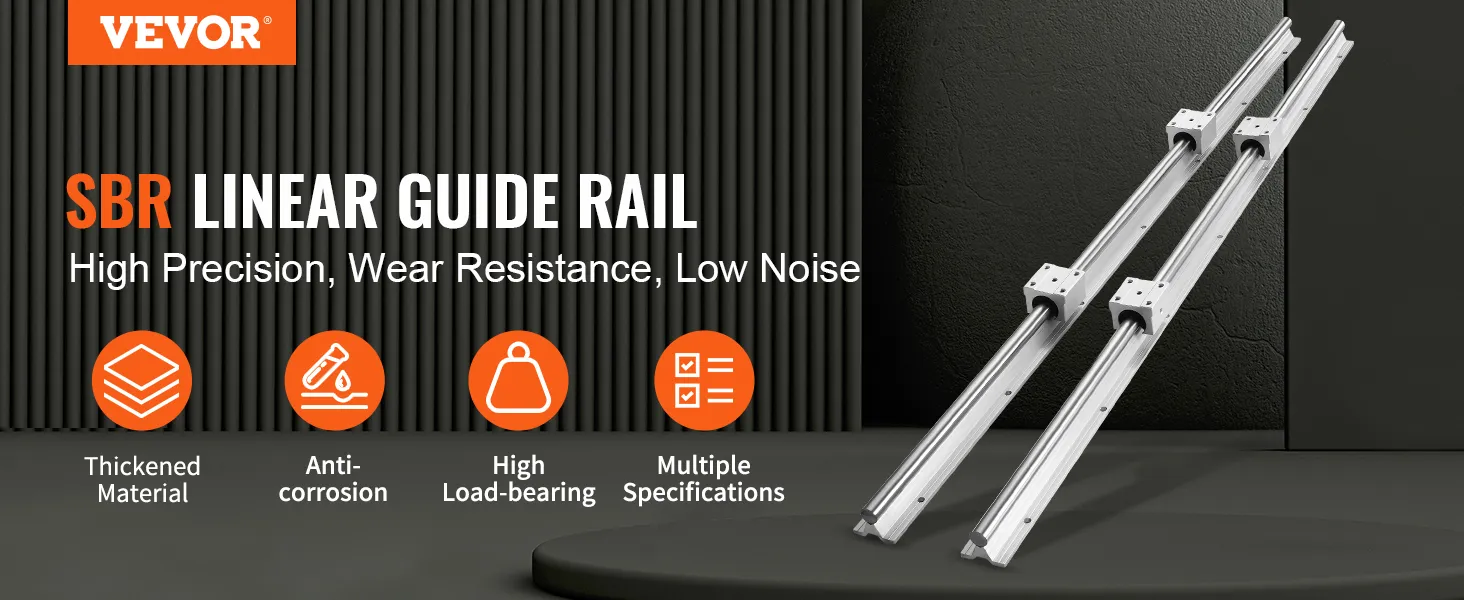

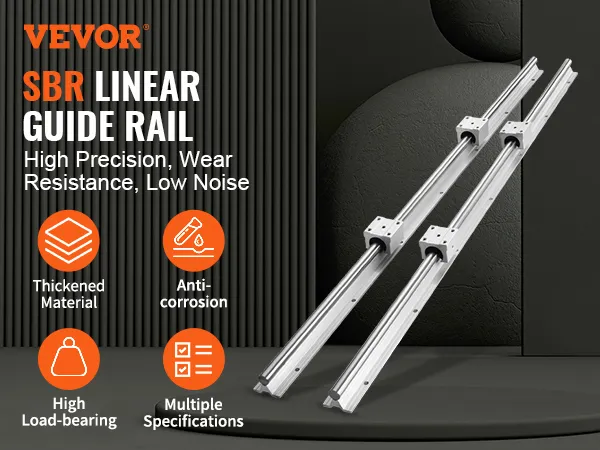

VEVOR sbr linear guide rail set with high precision, wear resistance, low noise, and anti-corrosion.
VEVOR sbr linear guide rail set with high precision, wear resistance, low noise, and anti-corrosion.

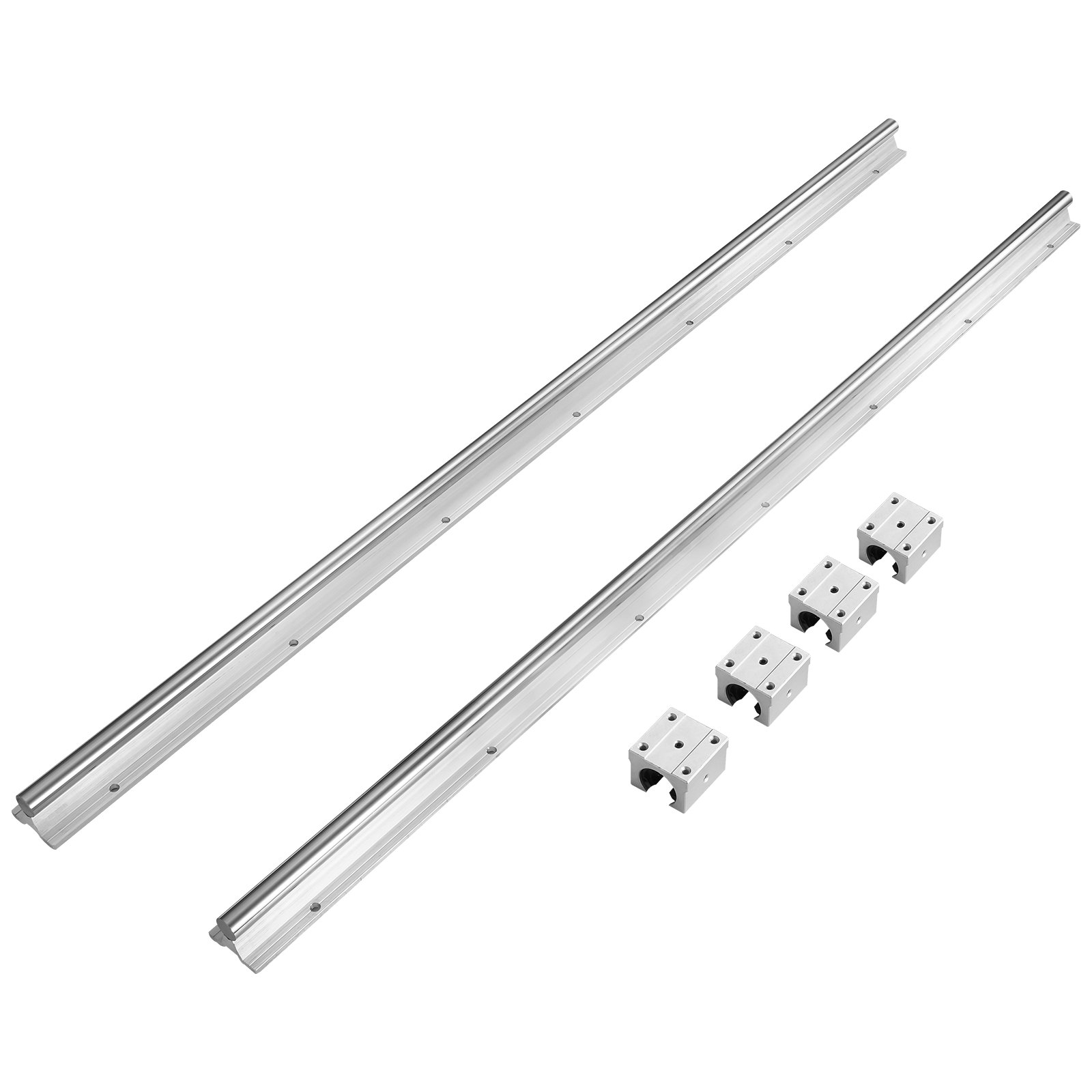

VEVOR high-quality SBR linear guide rail includes 2 guide rails and 4 slide blocks. The durable aluminum guide rails feature precise hole diameter and distance, while the SBR slide blocks utilize ball bearings for smooth and unobstructed movement.

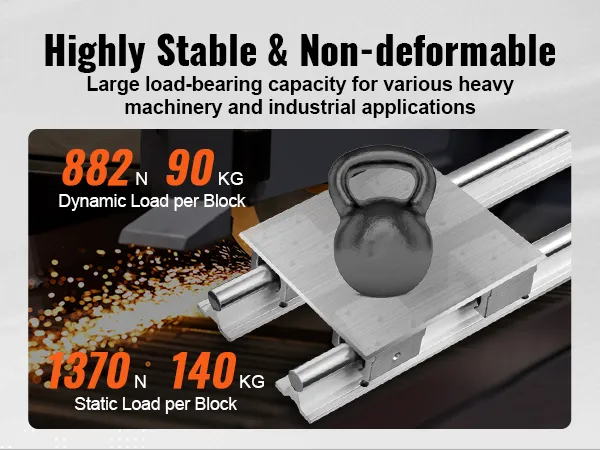

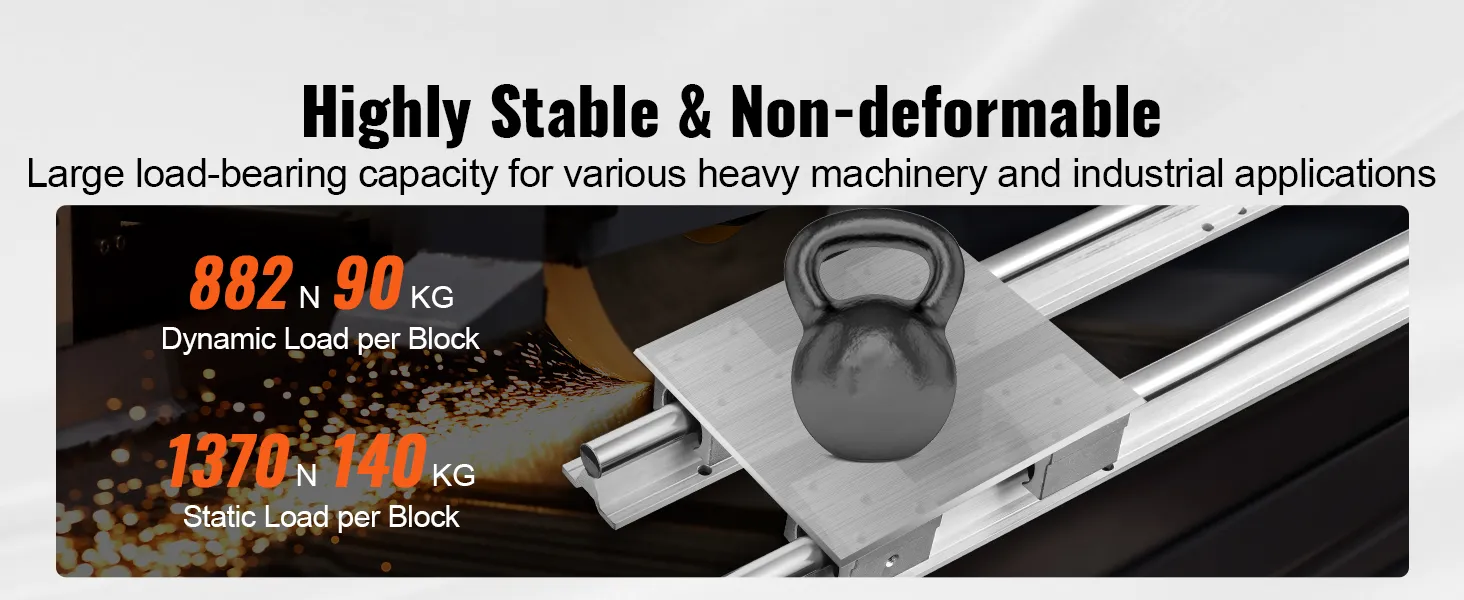

highly stable VEVOR linear guide rail set with large load-bearing capacity for heavy machinery.
highly stable VEVOR linear guide rail set with large load-bearing capacity for heavy machinery.
The linear bearing adopts an all-metal structure, and the slide block is tightly locked on the linear shaft, which has a high bearing capacity.

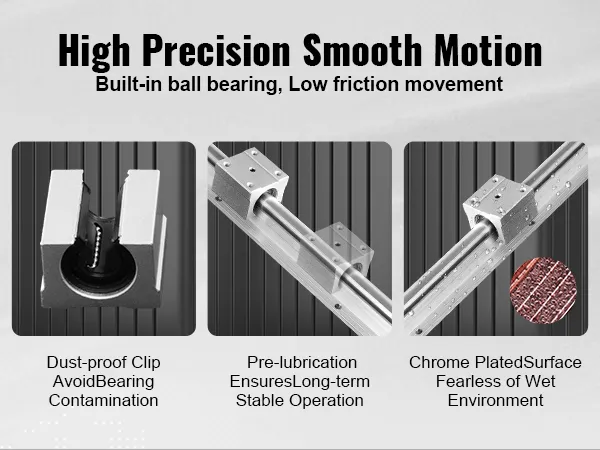

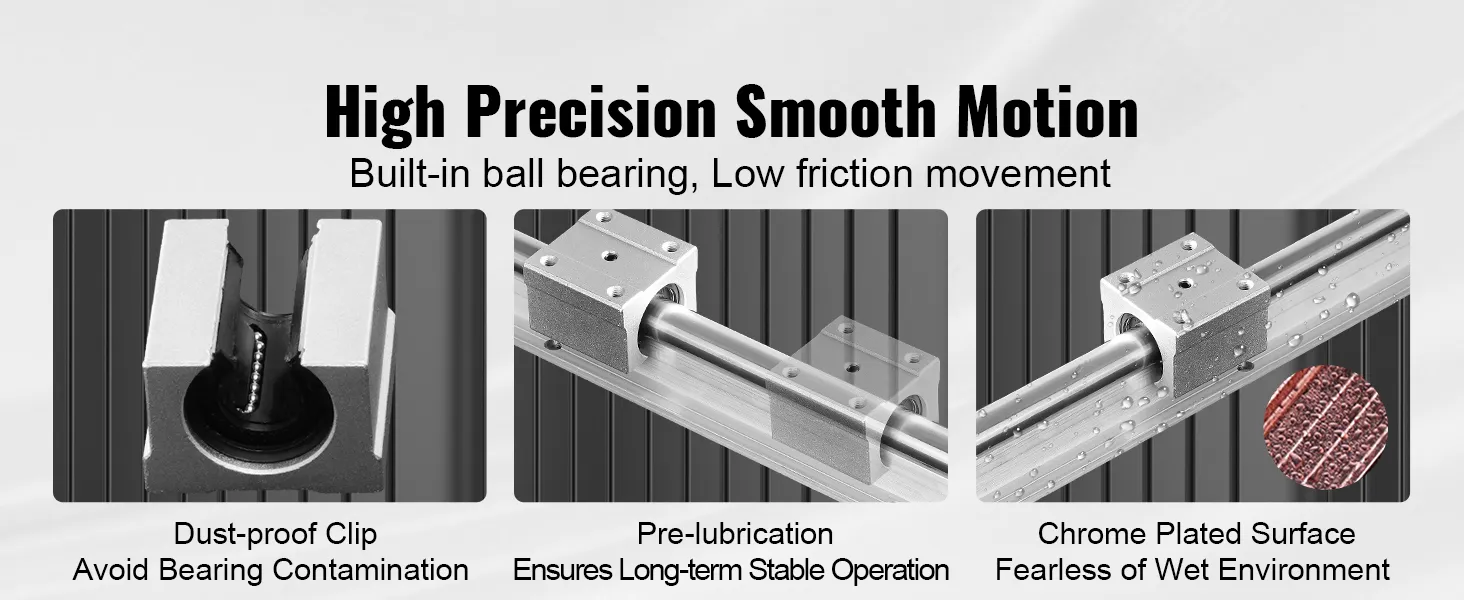

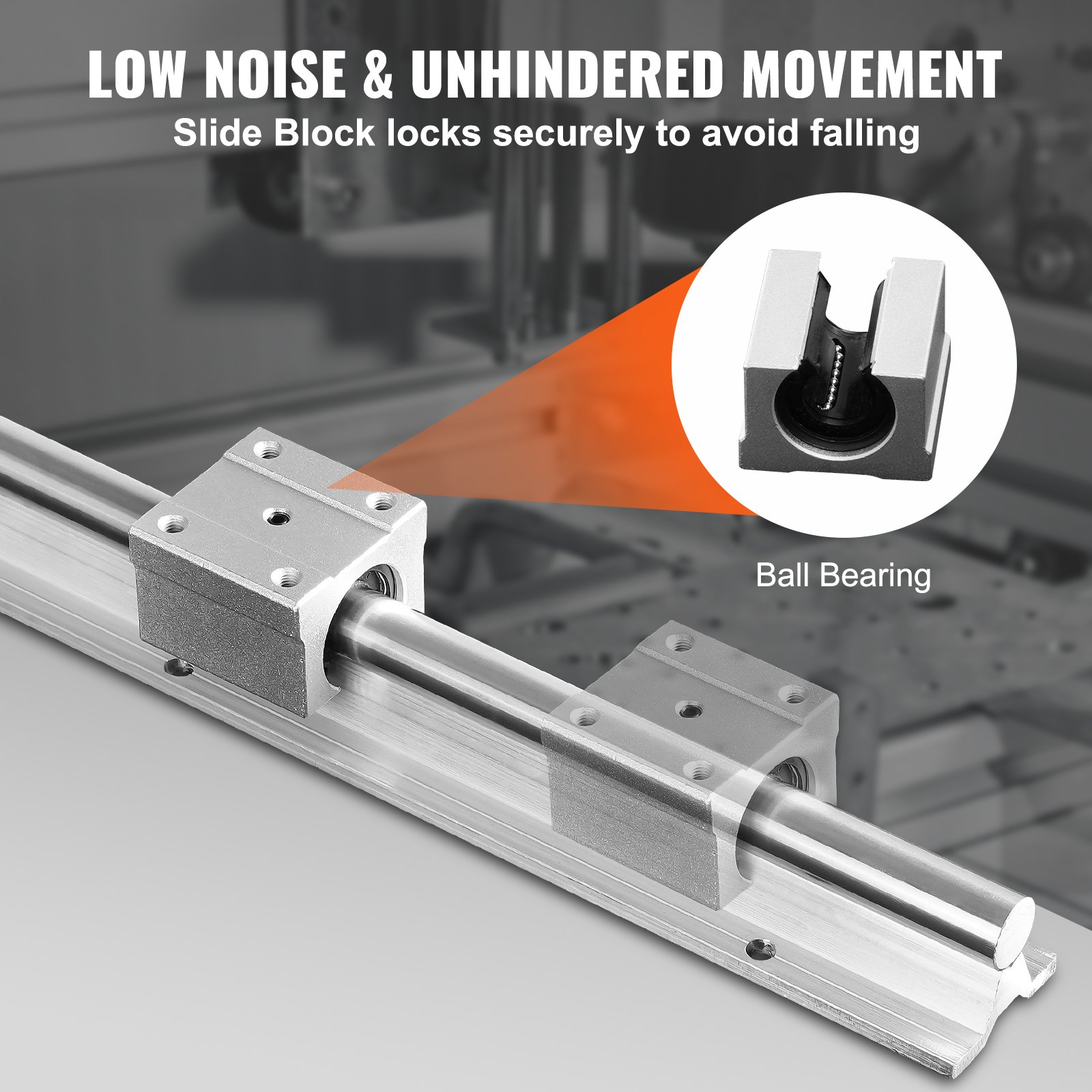

high precision VEVOR linear guide rail set with built-in ball bearing, dust-proof clip, pre-lubrication, and chrome plated surface.
high precision VEVOR linear guide rail set with built-in ball bearing, dust-proof clip, pre-lubrication, and chrome plated surface.
Aluminum SBR slide block and built-in ball bearings slide smoothly and move more effortlessly to ensure long-term stable operation.

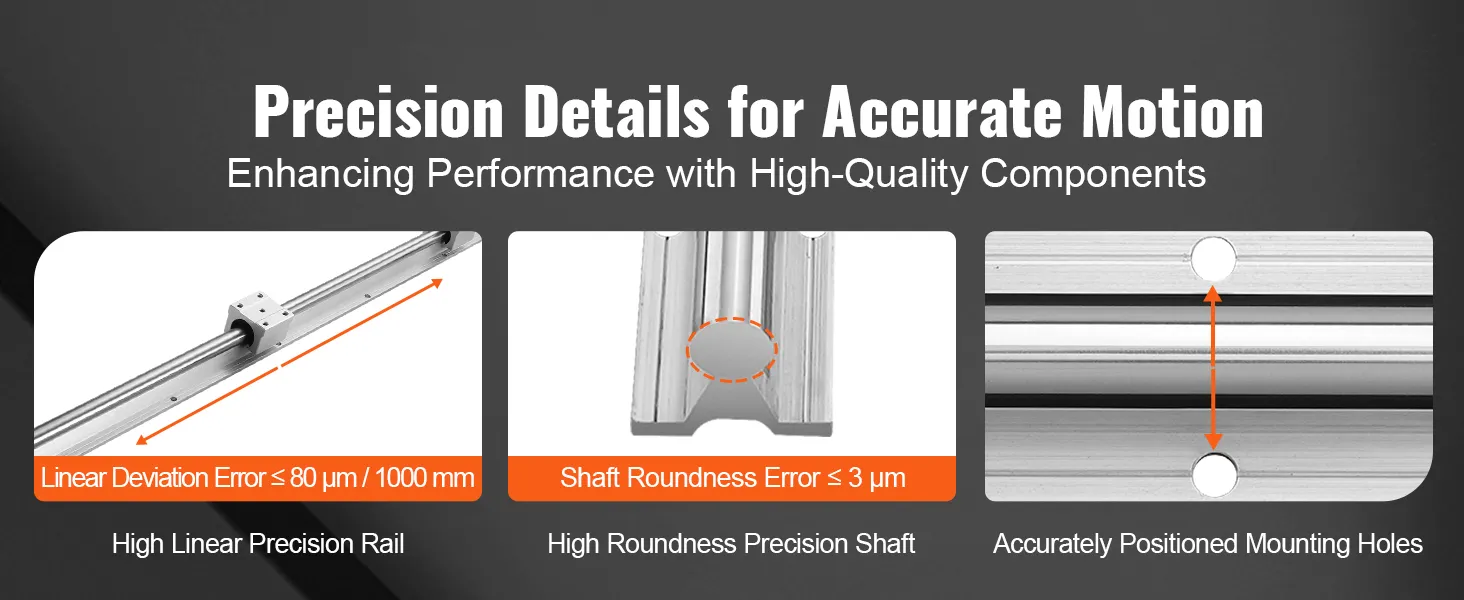

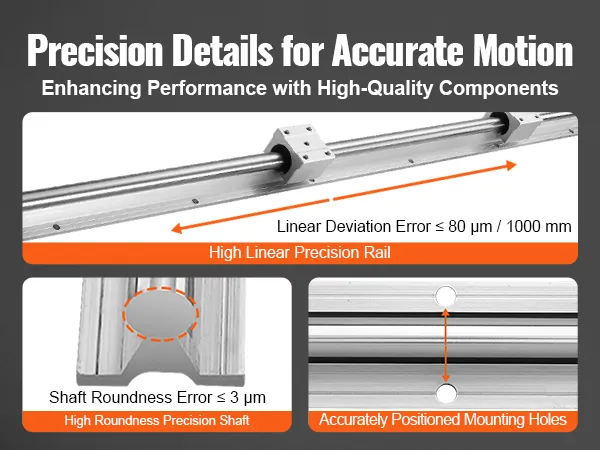

precision details of VEVOR linear guide rail set with accuracy metrics and high-quality components.
precision details of VEVOR linear guide rail set with accuracy metrics and high-quality components.

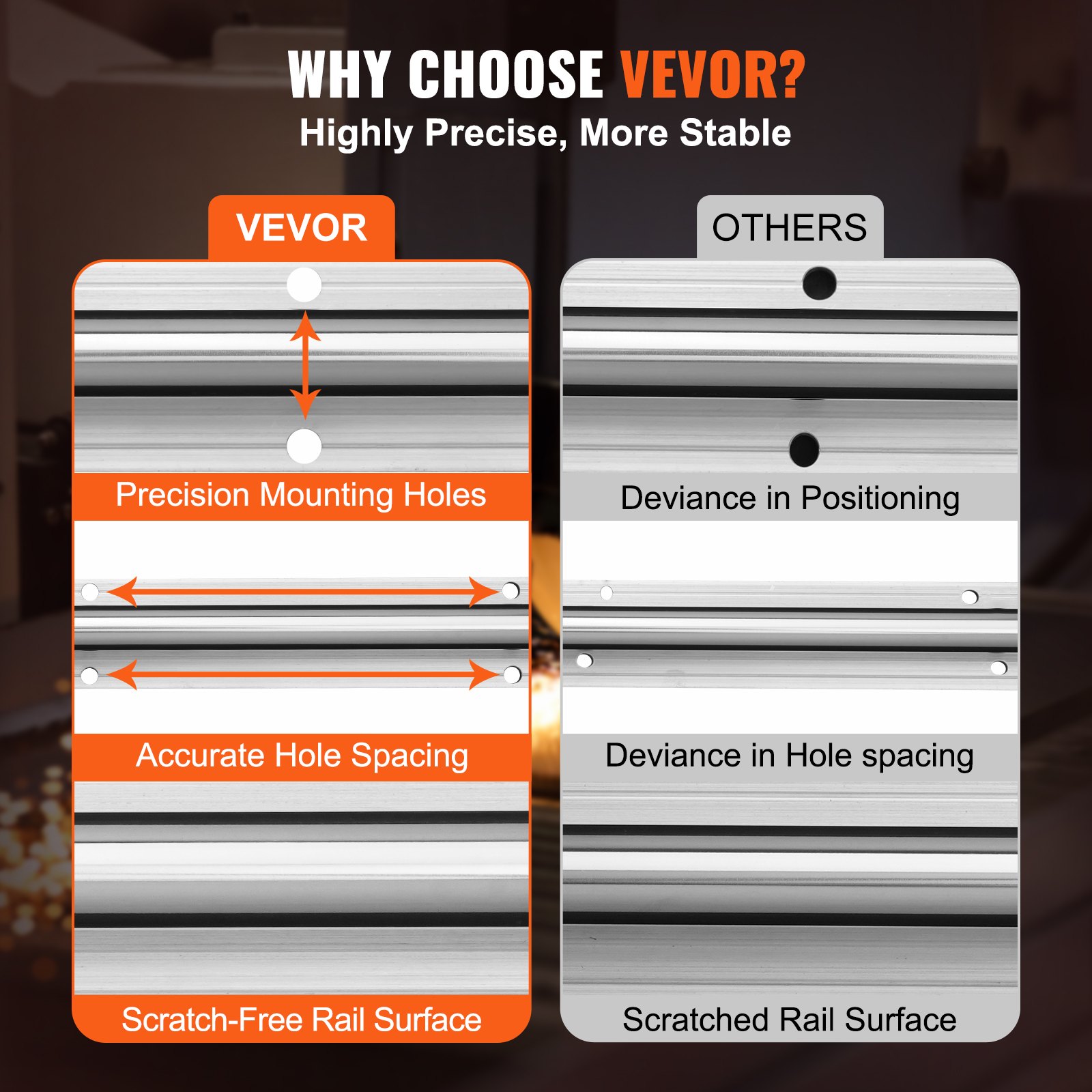

The linear motion guides have accurate hole distance, hole diameter, and standard shaft diameter, allowing you to install your equipment more precisely.

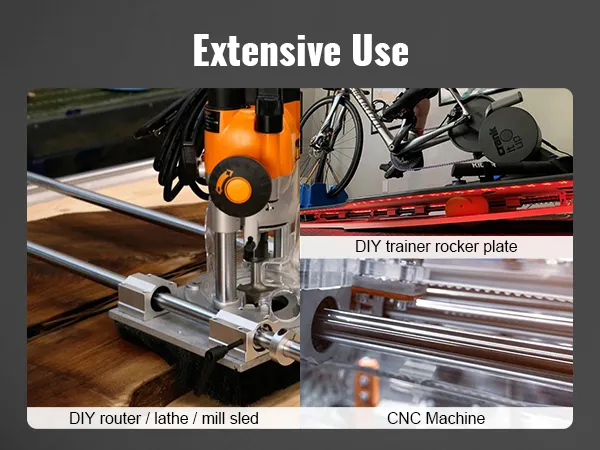

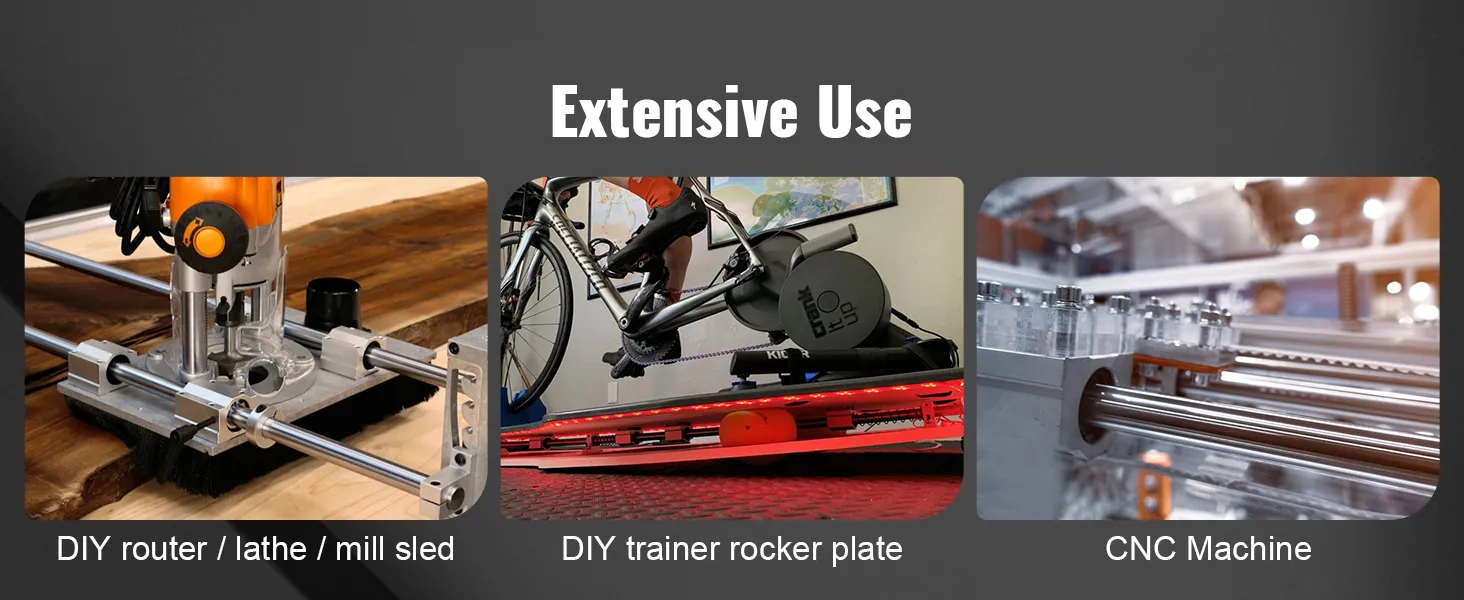

various uses of VEVOR linear guide rail set: diy router, trainer rocker plate, cnc machine.
various uses of VEVOR linear guide rail set: diy router, trainer rocker plate, cnc machine.
Linear rail kit is widely used in high-load automation equipment and DIY equipment production. For example, DIY CNC engraving machines, lathes, etc.

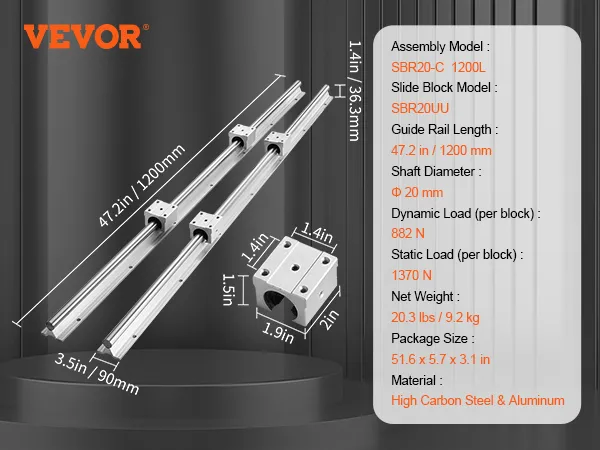

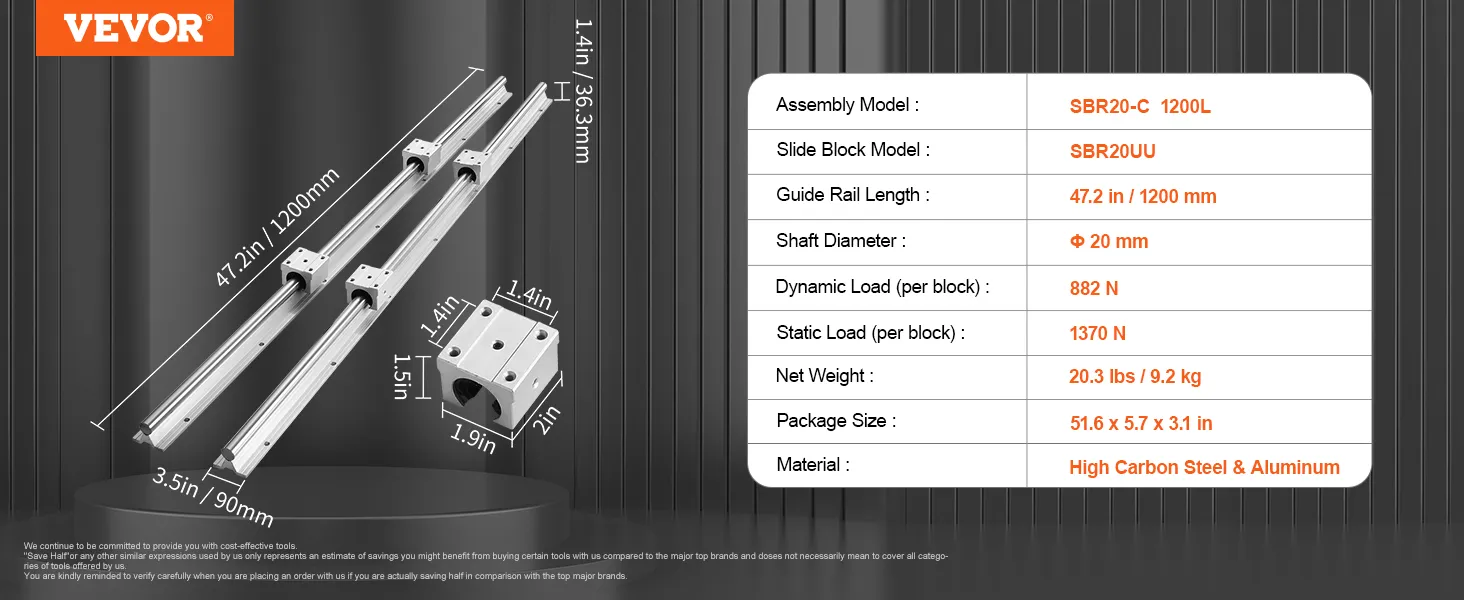

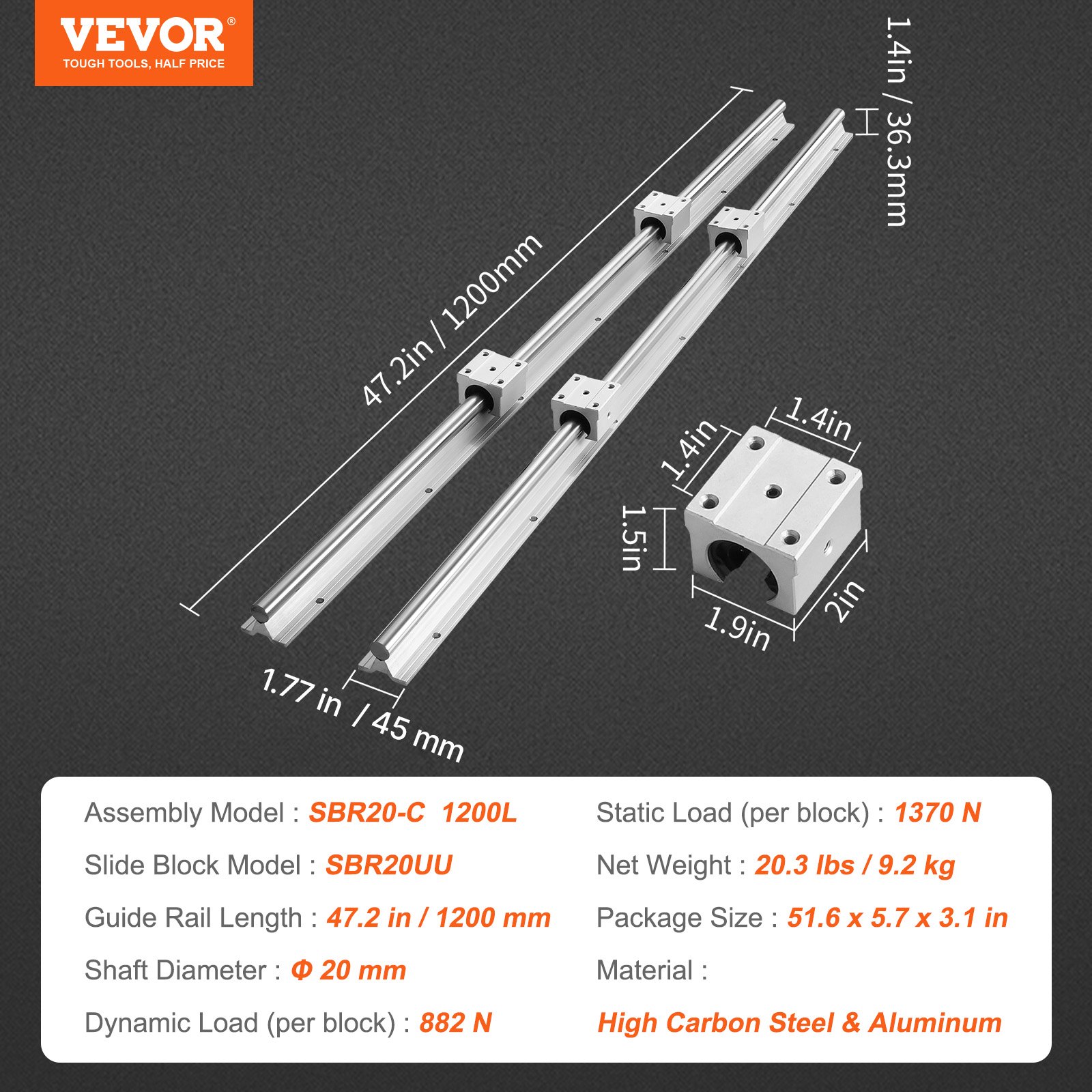

VEVOR linear guide rail set, 47.2in length, 20mm shaft diameter, high carbon steel and aluminum.
VEVOR linear guide rail set, 47.2in length, 20mm shaft diameter, high carbon steel and aluminum.

Linear Guide Rail Set for Precision and Efficiency in DIY Projects and CNC Routers

The VEVOR linear guide rails are perfect for your DIY projects and CNC routers. They ensure smooth and precise movement, enhancing the efficiency of your machines. The high steel and aluminum materials give you durability and reliability. The high-carbon steel and aluminum materials offer durability and reliability. These materials are ideal for various applications, including constructing router sleds and shaping surface planers. The rails are straight and true, guaranteeing accurate and consistent results. Is it easy for the bearing blocks to slide under a load? Great for both hobbyists and professionals. These rail systems can handle heavy-duty applications without compromising on quality! Easy Installation and Adjustment. This makes them a versatile addition to your workshop. These linear guide rails provide excellent value for money, so get professional results. Thus, they are an essential tool for any project.


Smooth and Precise Movement with SBR20 Guide Rail and SBR20UU Slide Blocks

They work seamlessly, ensuring accuracy and efficiency. The rails are made of high-carbon steel, providing strength and stability. These slide blocks, made from aluminum, are lightweight yet durable to move effortlessly along the railing, eliminating friction and wear. This precision is essential for projects that require high accuracy, like CNC routers or automated machines. Their dynamic load capacity of 882 N and static load capacity of 1370 N ensure they can handle significant weight. These rails are ideal for building router sleds, planers, etc. They are easy to install and adjust, making them a versatile tool for various applications. Whether you're a hobbyist or professional, these rail systems provide consistent performance! With VEVOR linear guide rails, the precision of your projects will progress, and these guide rails will enhance your tasks.


Durable High Carbon Steel Rails for Heavy-Duty Applications

The high carbon steel construction makes these linear guide rails durable. They can handle heavy-duty applications without bending or warping. The steel rail provides a stable and reliable base for your projects. It is perfect for building strong machines and tools. This material ensures longevity, even with frequent use. These railings are ideal for both DIY enthusiasts and professionals. You get the strength needed for demanding tasks. Also, resistance to wear and tear maintains accuracy over time. Therefore, their durability makes them an immensely valuable investment for any workshop. With this sturdy rail in your project, you can get reliable performance.

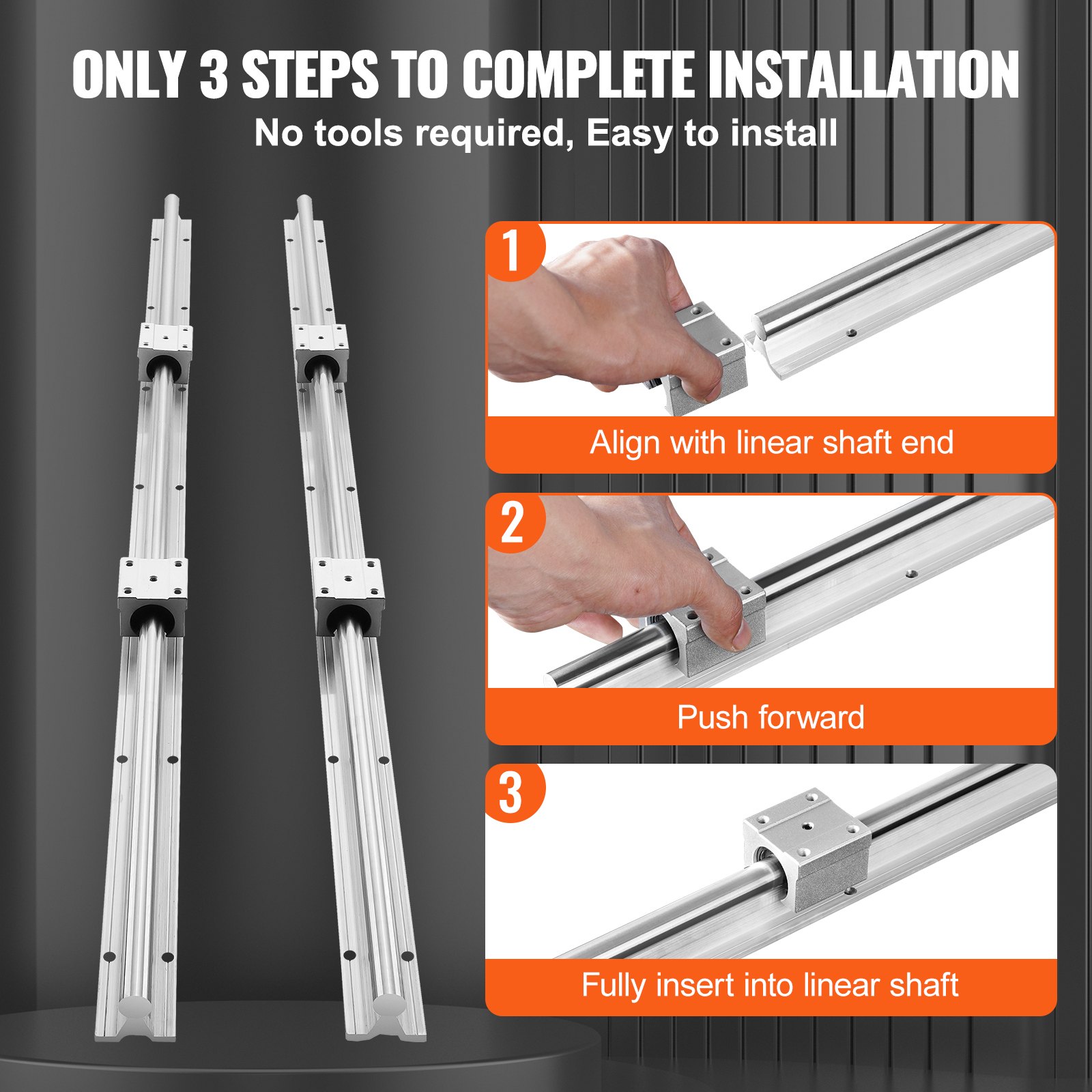

Easy Installation and Adjustment with Precise Mounting Holes

It is a simple process to install and adjust these linear guiderails. Precise mounting holes make the setup process quick and easy. The rail systems come with clear instructions, ensuring hassle-free assembly. SBR20UU slide blocks fit perfectly onto the rails so that you can move smoothly. Adjusting the blocks is straightforward, ensuring optimal performance. This ease of installation is ideal for both beginners and experts. It saves time and effort. You don't need work experience because it saves time while working on your project. Precision alignment of the holes ensures accurate positioning. This feature is important for projects that require high precision, like CNC routers and automated machines. Use these rails to achieve professional results with minimal effort.


Versatile Use in CNC Routers, DIY Projects, and Automated Machines

All-in-one: These linear guide rails can be used for a variety of purposes, from woodworking to metalworking. They are versatile and reliable. Whether working on a simple DIY project or completing an intricate CNC router setup, these rails provide consistent performance. Enhance your projects with the precision and reliability of VEVOR linear guide rails.


Cost-Effective Solution for High-Quality Linear Motion Control

These linear guide rails offer excellent value for money. They provide high-quality linear motion control at an affordable price. The combination of high-carbon steel and aluminum ensures durability without compromising on cost. This solution is affordable for both DIY enthusiasts and professionals. Achieve professional results without breaking the bank. These rails are ideal for budget-conscious projects without giving up quality. It is a smart investment for anyone looking to improve the performance of their machines. Enjoy smooth and precise movement without the high price tag. The VEVOR linear guide rails deliver reliability and quality at an accessible price point.


Robust and Reliable Performance for Long-Term Use

These linear guide rails are built to perform reliably over the long term. Their robust construction ensures they withstand heavy use without failure. High-carbon steel rails and aluminum slide blocks are durable and sturdy. Even with frequent operations, they maintain their precision. This reliability is crucial for projects that require consistent performance. The rails are ideal for both short-term and long-lasting applications. You can trust them to work smoothly. Invest in these rails for jobs that demand reliable performance, knowing your machines will operate smoothly. Their strong design ensures they are a long-lasting addition to your workshop tools.


See More

Specification

Model Number
SBR20-C 1200L
Slide Block Model
SBR20UU
Guide Rail Length
47.2 in/1200 mm
Shaft Diameter
Φ20 mm
Dynamic Load (per block)
882 N
Static Load (per block)
1370 N
Material
High Carbon Steel & Aluminum
Mounting Hole Distance A
1.4 in/35 mm
Mounting Hole Distance B
1.4 in/35 mm
Slide Block Size(L x W x H)
2 x 1.9 x 1.5 in/50 x 48 x 39 mm
Product Dimensions(L x W x H)
47.2 x 3.5 x 1.4 in/1200 x 90 x 36.3 mm
Package Size(L x W x H)
51.6 x 5.7 x 3.1 in/1310 x 145 x 80 mm
Net Weight
20.3 lbs/9.2 kg
Manual
Download Link
Questions and Answers
1 Questions
Are the bearings suitable for mounting the guide rail/bar to a vertical surface and would the load per block be equivalent in this orientation?
They can be installed, but the load-bearing capacity will be reduced.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
27 Review(s)
Clear filters
Brigitte Brigitte
Mrs
Very good product, just what I needed for my project. Good quality and reasonable price. I would buy again. Very good product, just what I needed for my project. Good quality and reasonable price. I would buy again.
Norman Norman
Mr
This item is an excellent product and at a very competative price when compared to other sellers. I would certainly purchase this or similar item again.
Marc Marc
Great Product
These were just right to build my router sled. very smooth rollers and glides really well. would purchase again
Paul Okami Paul Okami
Great value
I ordered these rails as a replacement setup for my home made panel saw. They arrived in good condition with all of the parts. The pillow blocks fit perfectly and run along the rail smoothly. They aren_ as smooth as high end blocks, but you can_ beat the price.
CoX CoX
Useful
Great for the router sled project I'm working on.
G2138 G2138
Mr
I have used these to build a router ‘flattening sled’ - Really well made rails and bearings for this price. Delivery was on time, so all in all really very pleased. A nice touch would have been to provide bolts / screws to attach the bearing runners to “whatever your attaching” to them. That said I would highly recommend these, thank you Vevor.
JJ JJ
Mr
Great peice of kit for creating router sled for my work shop making flattening boards so east and going the jo b in a 1/3 of the time
JJ JJ
Mr
Great peice of kit for creating router sled for my work shop making flattening boards so east and going the jo b in a 1/3 of the time
Poppy Ann Poppy Ann
Just about the best priced CNC mechanical parts
I built a cnc desk top machine several years ago and used simular parts but about half the size and even with importing the parts directly from China it cost me well over 3 times the price I had checked the price of parts in uk but they would have cost a lot more than I could afford, this set has all of the mechanical parts you would need to build your own cnc cutter/engraver except for the base which could be any type of stiff board like a piece of kitchen worktop, I am going to use a workbench which I bought from amazon :- https://www.amazon.co.uk/dp/B0CNGHX25M?psc=1&ref=ppx_yo2ov_dt_b_product_details As it is a great heavy duty workbench which has adjustable legs which allow 3 different heights so you can use it sat down or stood up I have 2 of them which I use with the wheels fitted and if you want to move it it is very easy to move and it you want it not to it has brakes on the wheels and doesn't move at all. The only other thing it will need is stepper motors plus drivers, a program controller, and power supply's which will require 48 volts for the stepper motors and a 12 volt supply for the program controller and limit switches. I will add photos once built.
D. C. Finch D. C. Finch
Surprisingly good.
I wasn't expecting much for this price but was surprised at the accuracy. Still need to do some tests for backlash in the lead screws but as yet they're absolutely solid. Guide rails aren't the best but perfectly adequate for my use and a little tweaking mops up the slop. Very happy with these.
