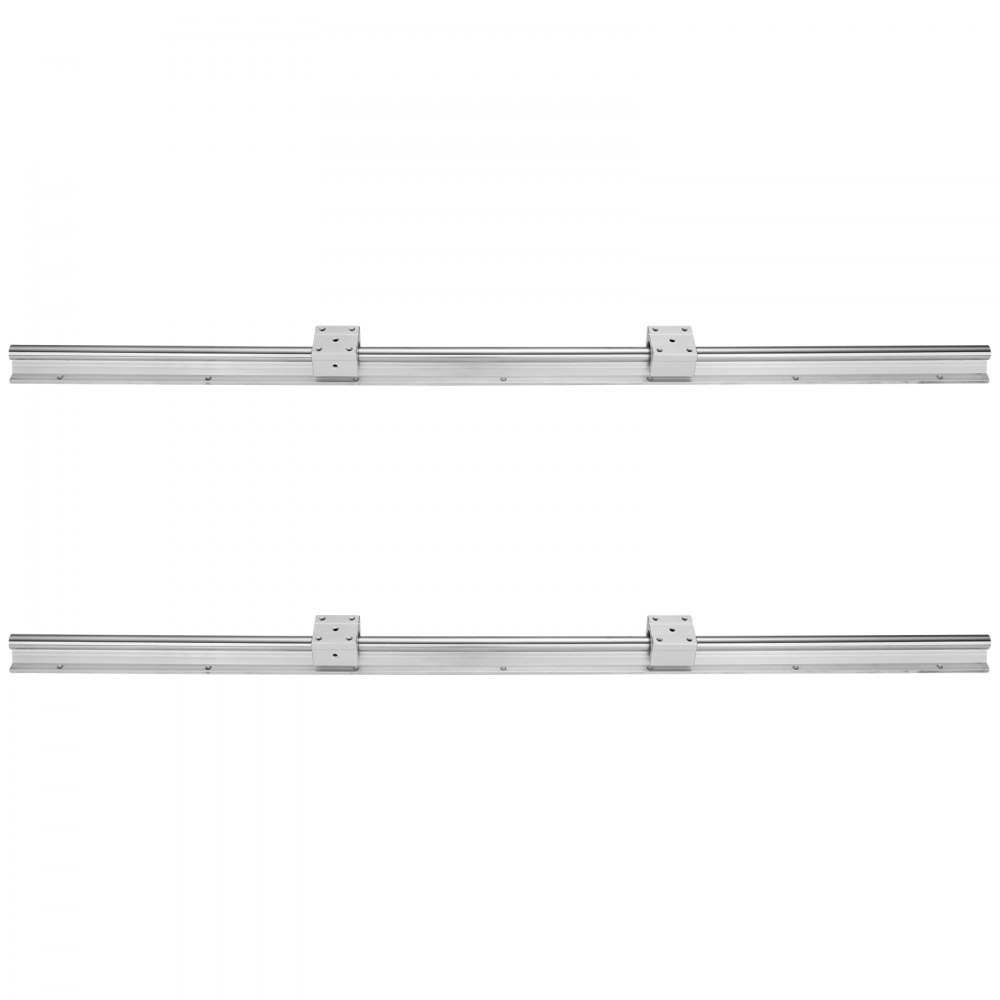

VEVOR linear guide rail set with dual aluminum rails and sliding blocks on a white background. VEVOR linear guide rail set sbr16 with 2 guide rails and 4 slide blocks for diy and cnc machines. VEVOR linear guide rail set featuring carbon steel linear shafts and aluminum alloy slide blocks. VEVOR linear guide rail set with slide block and ball bearing for low noise and smooth movement. comparison of VEVOR linear guide rail set with precise mounting holes, accurate hole spacing VEVOR linear guide rail set easy 3-step installation: align, push forward, and fully insert into shaft. VEVOR linear guide rail set with 1000mm rails and sbr16uu blocks, detailed dimensions and specs.
ZXDGSBR16MM10H508V0

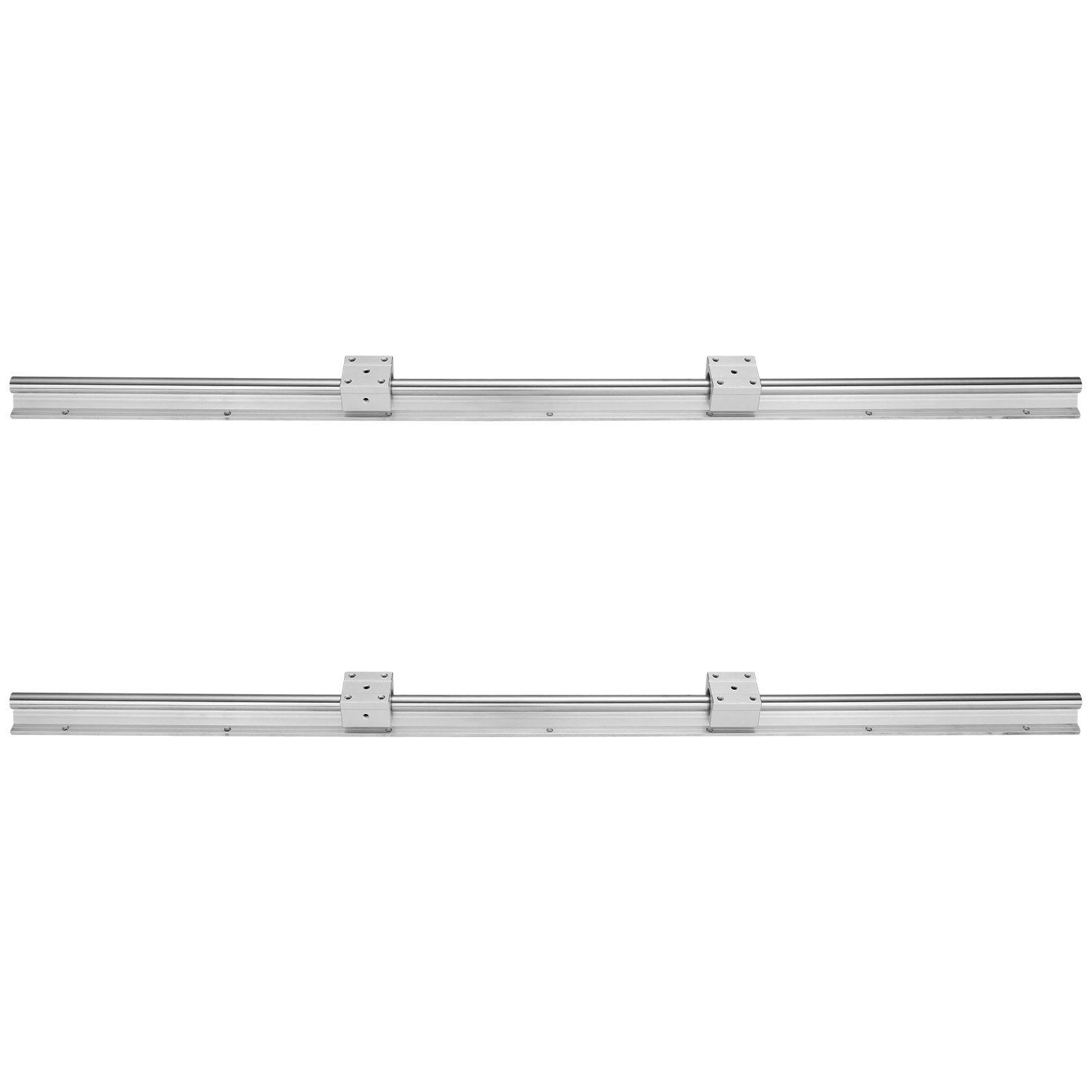

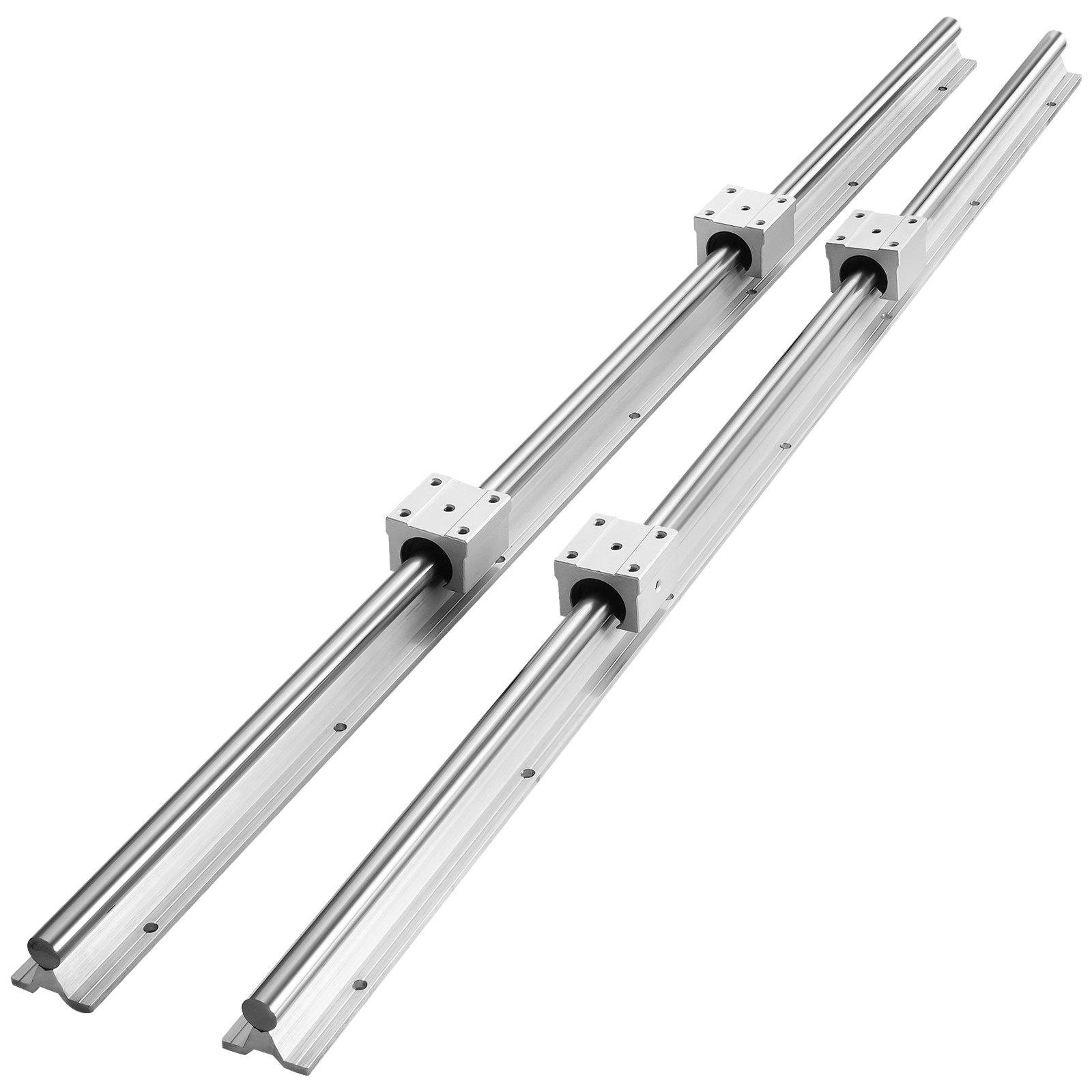

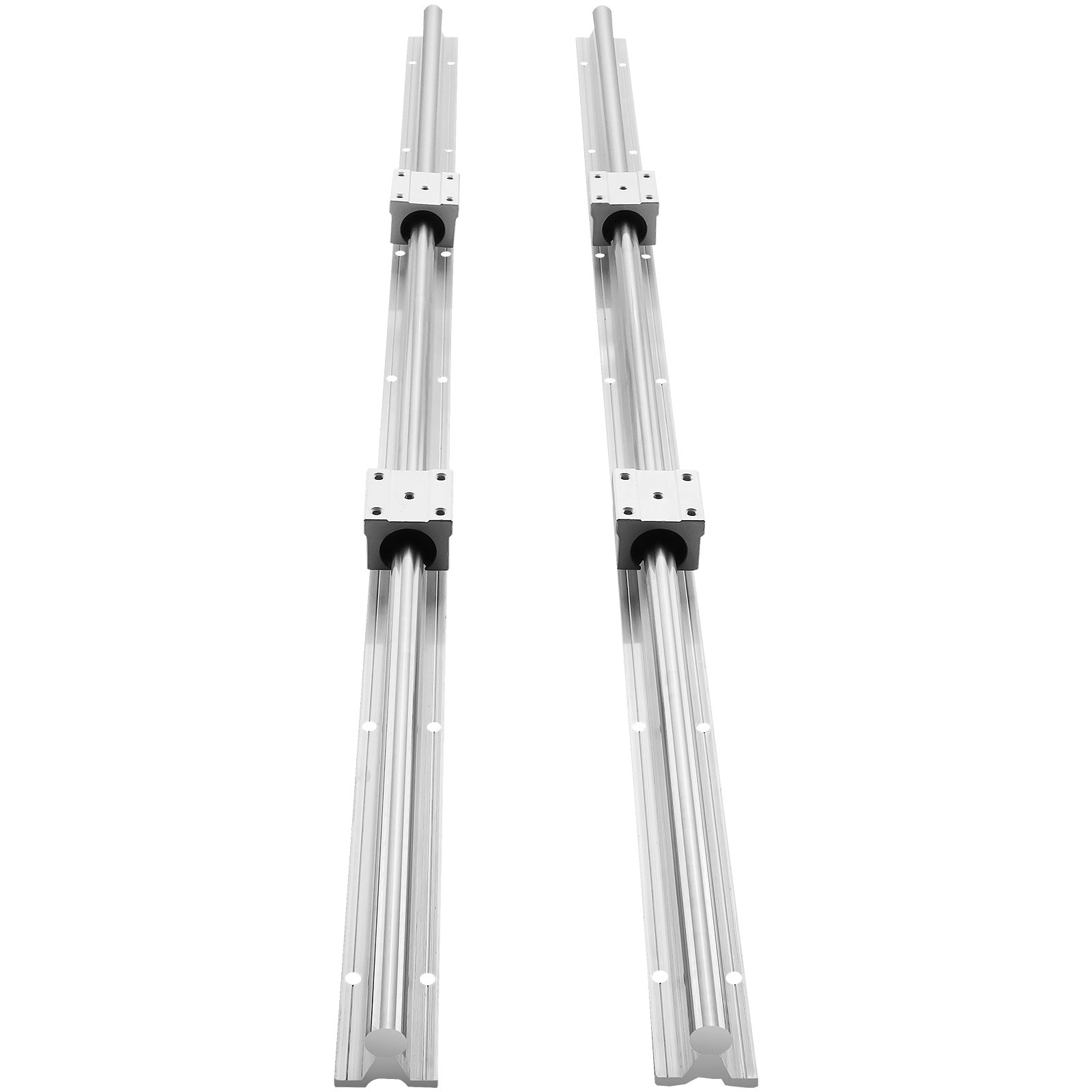

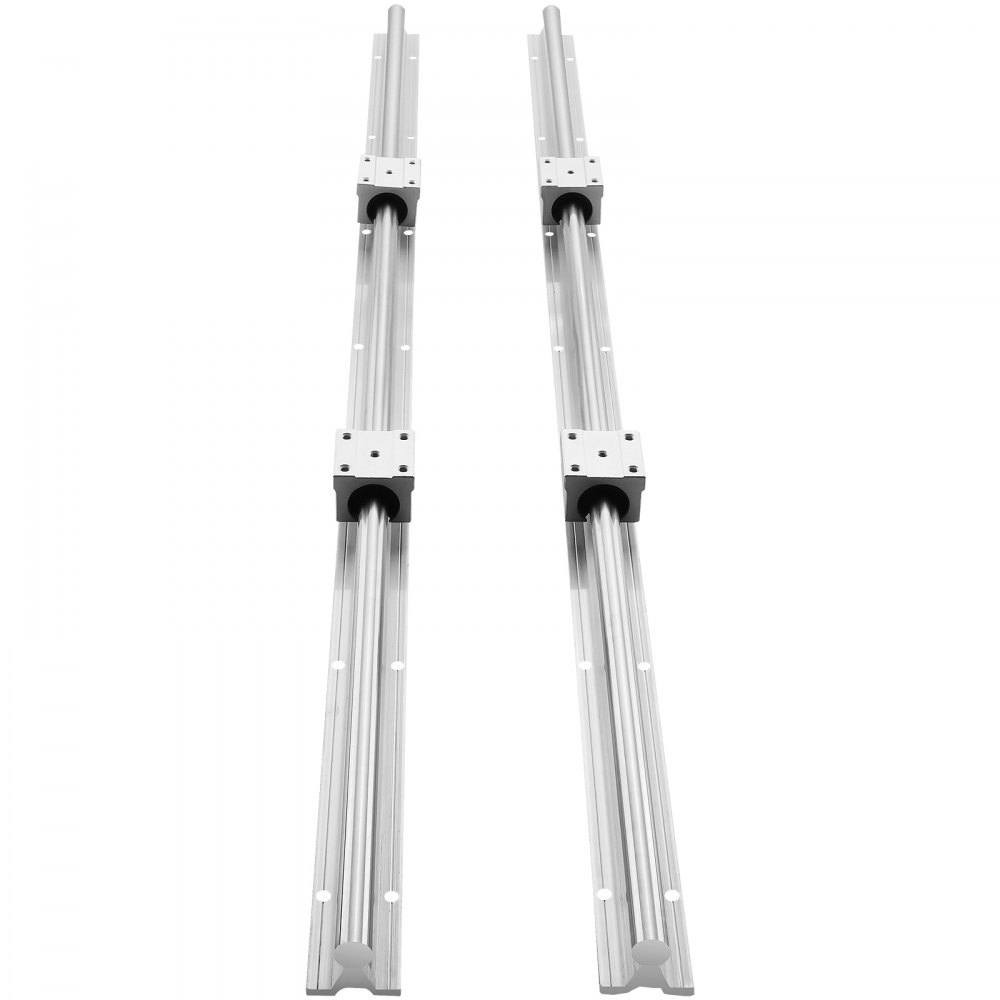

VEVOR Linear Guide Rail Set, SBR16 1000mm, 2 PCS 39.4 in/1000 mm SBR16 Guide Rails and 4 PCS SBR16UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive £5.00 off for your first three orders on the App.
Download Now
Exclusive £5.00 off for your first three orders on the App.
Scan the QR code to download

1000 mm

  • 600 mm
  • 800 mm
  • 1000 mm
  • 1500 mm
  • 500 mm

About this item

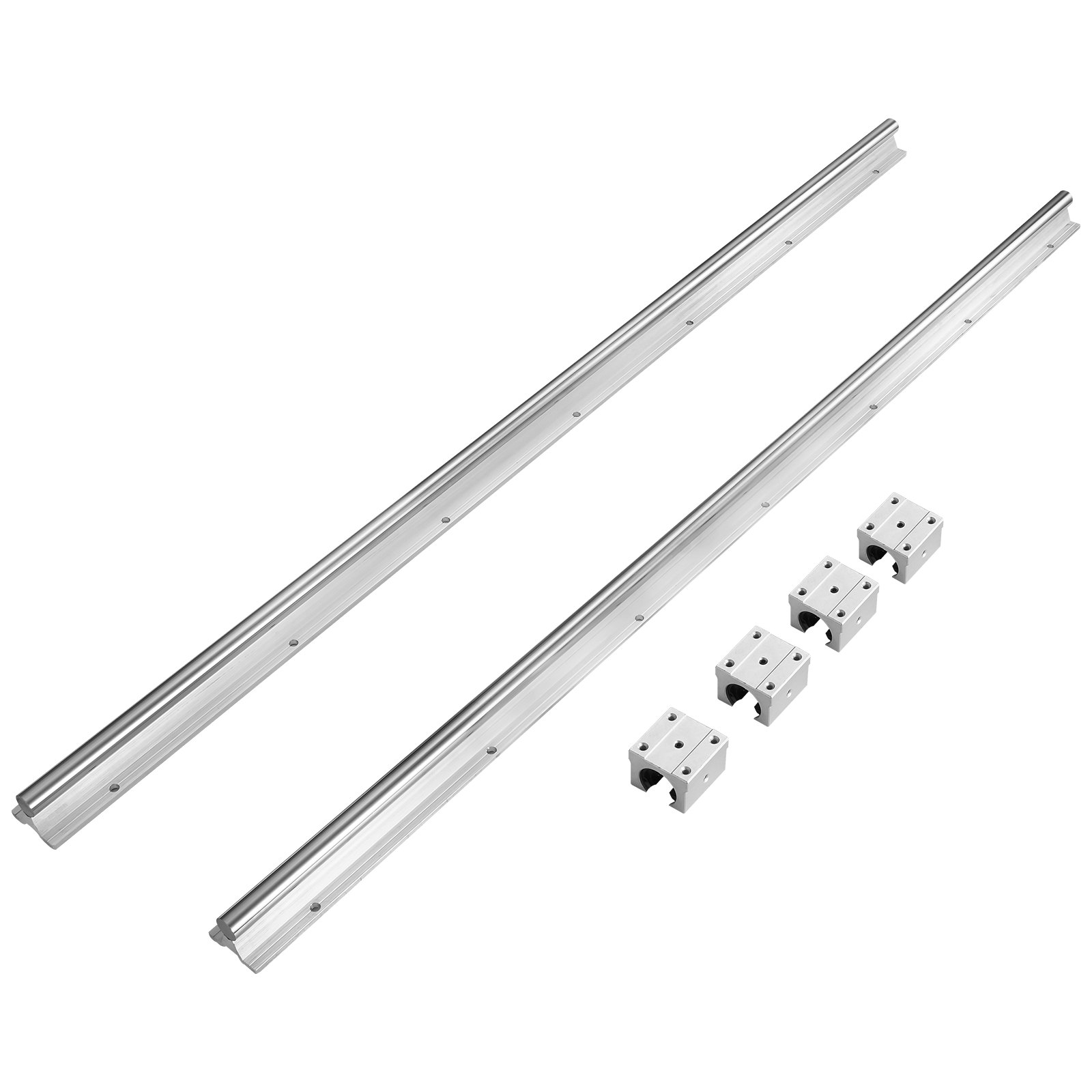

  • SBR Linear Guide Rail Set: SBR16-1000 mm Linear motion guide rail includes 2 x 39.4 in/1000 mm length SBR16 guide rails and 4 x SBR16UU slide blocks. Dynamic Load Per Block: 774 N, Static Load Per Block: 1180 N.

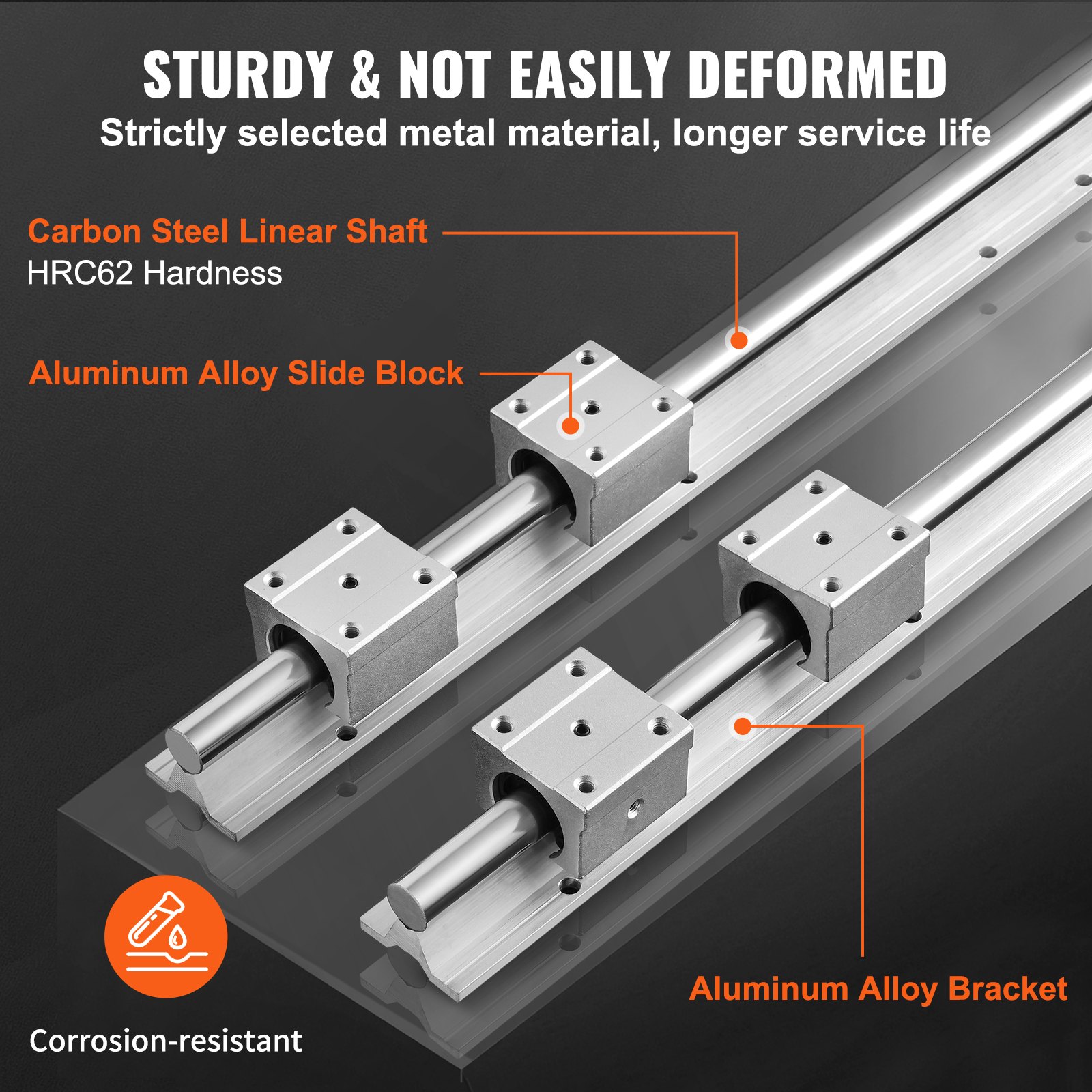

  • Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
  • Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
  • High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
  • Wide Application: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Linear Guide Rail Set, SBR16 1000mm, 2 PCS 39.4 in/1000 mm SBR16 Guide Rails and 4 PCS SBR16UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines
1000 mm
vevorA+Template
SBR Linear Guide Rail
VEVOR linear guide rail set, high precision, anti-corrosion, high load-bearing, multiple specs.
VEVOR linear guide rail set, high precision, anti-corrosion, high load-bearing, multiple specs.
VEVOR high-quality SBR linear guide rail includes 2 guide rails and 4 slide blocks. The durable aluminum guide rails feature precise hole diameter and distance, while the SBR slide blocks utilize ball bearings for smooth and unobstructed movement.
VEVOR linear guide rail set highly stable, supports 80 kg dynamic and 120 kg static loads per block.
VEVOR linear guide rail set highly stable, supports 80 kg dynamic and 120 kg static loads per block.
The linear bearing adopts an all-metal structure, and the slide block is tightly locked on the linear shaft, which has a high bearing capacity.

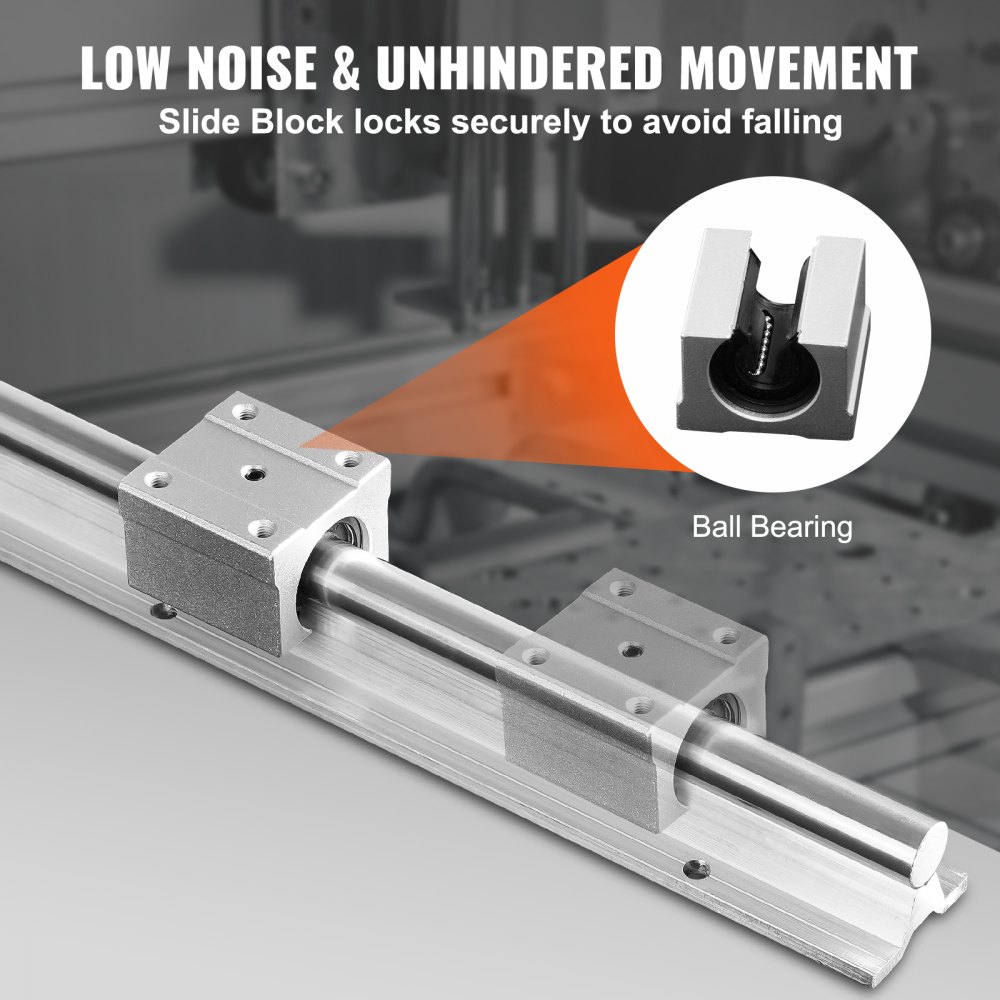

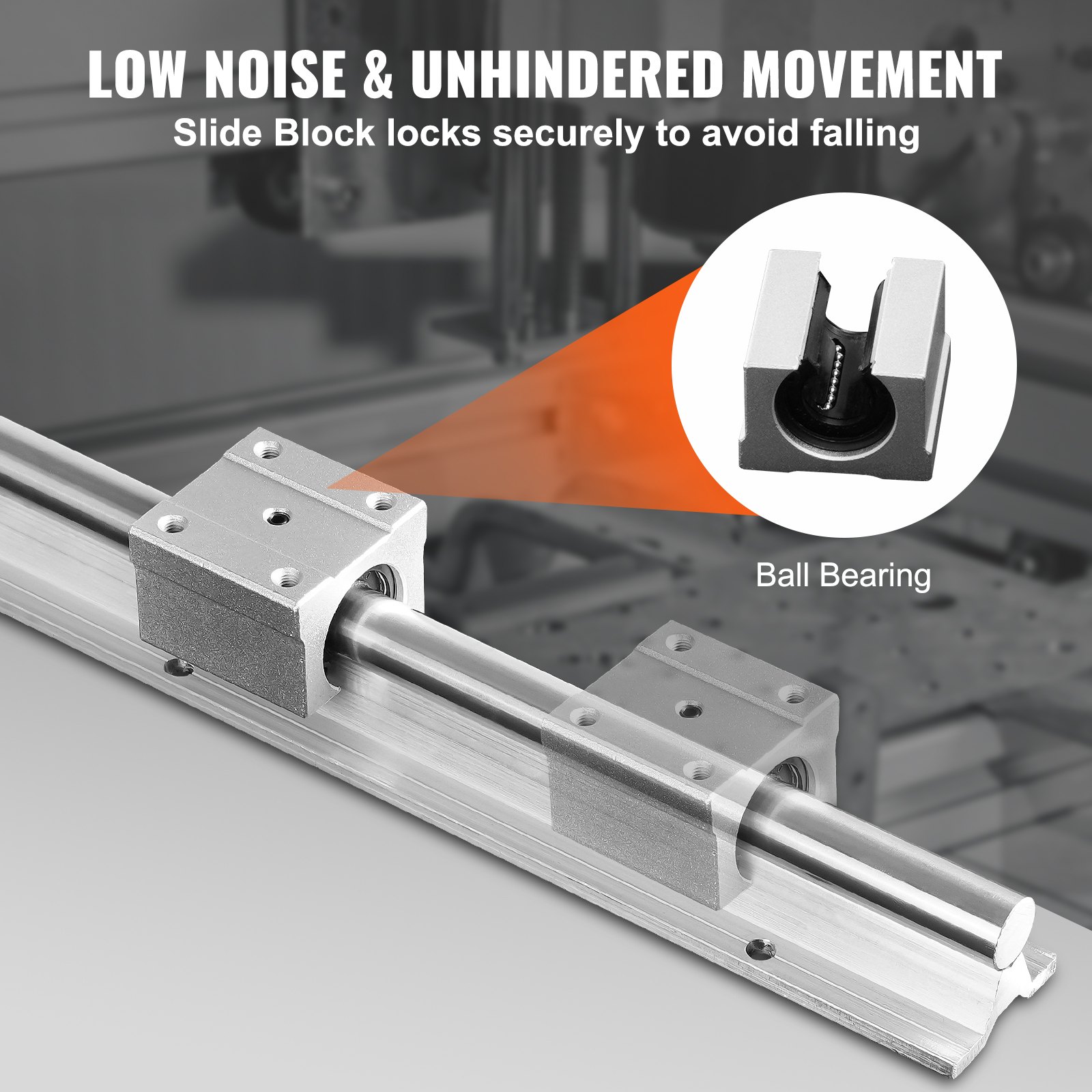

high precision VEVOR linear guide rail set with built-in ball bearing for smooth motion and low friction.
high precision VEVOR linear guide rail set with built-in ball bearing for smooth motion and low friction.
Aluminum SBR slide block and built-in ball bearings slide smoothly and move more effortlessly to ensure long-term stable operation.

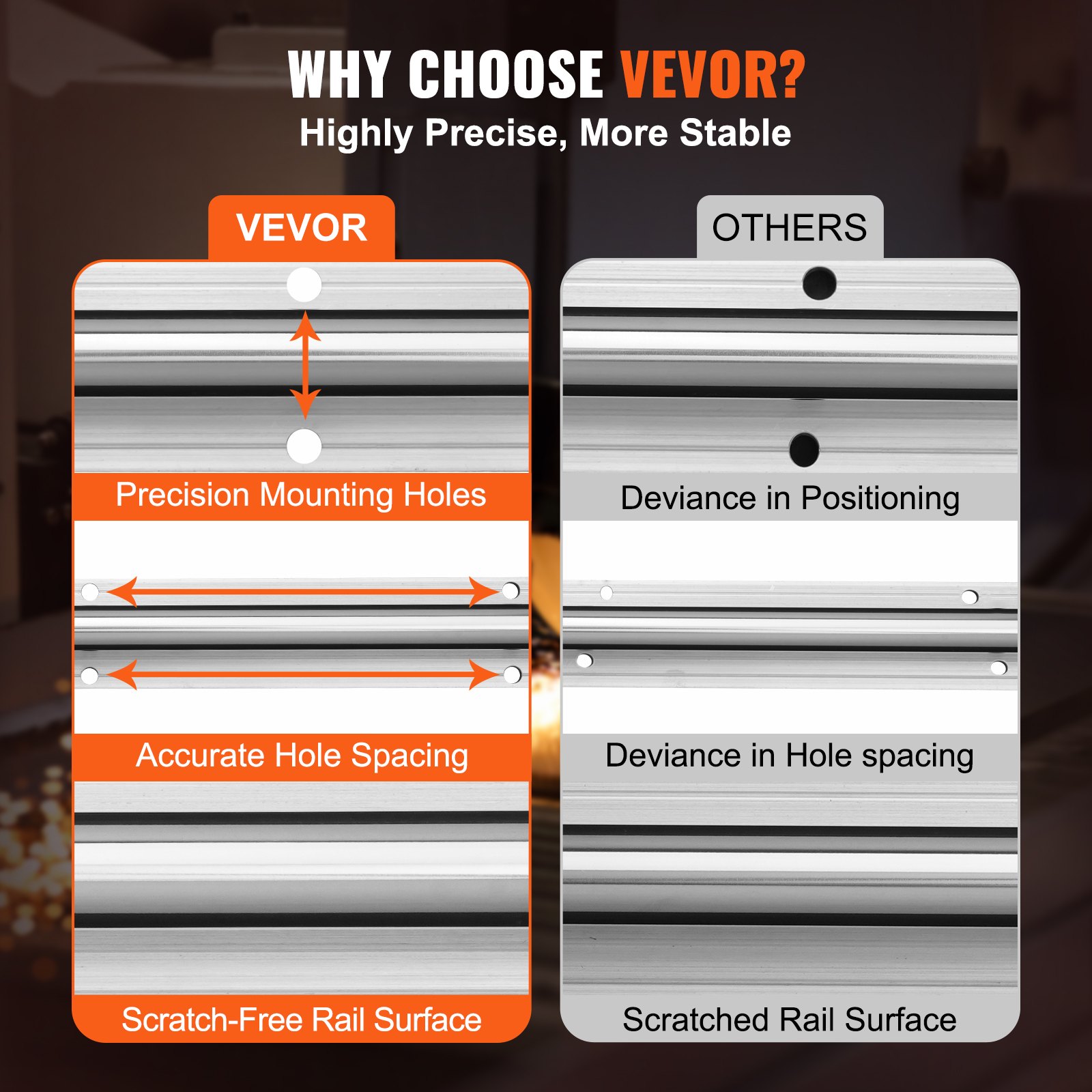

VEVOR linear guide rail set with high precision rail, roundness shaft, and accurate mounting holes.
VEVOR linear guide rail set with high precision rail, roundness shaft, and accurate mounting holes.
The linear motion guides have accurate hole distance, hole diameter, and standard shaft diameter, allowing you to install your equipment more precisely.

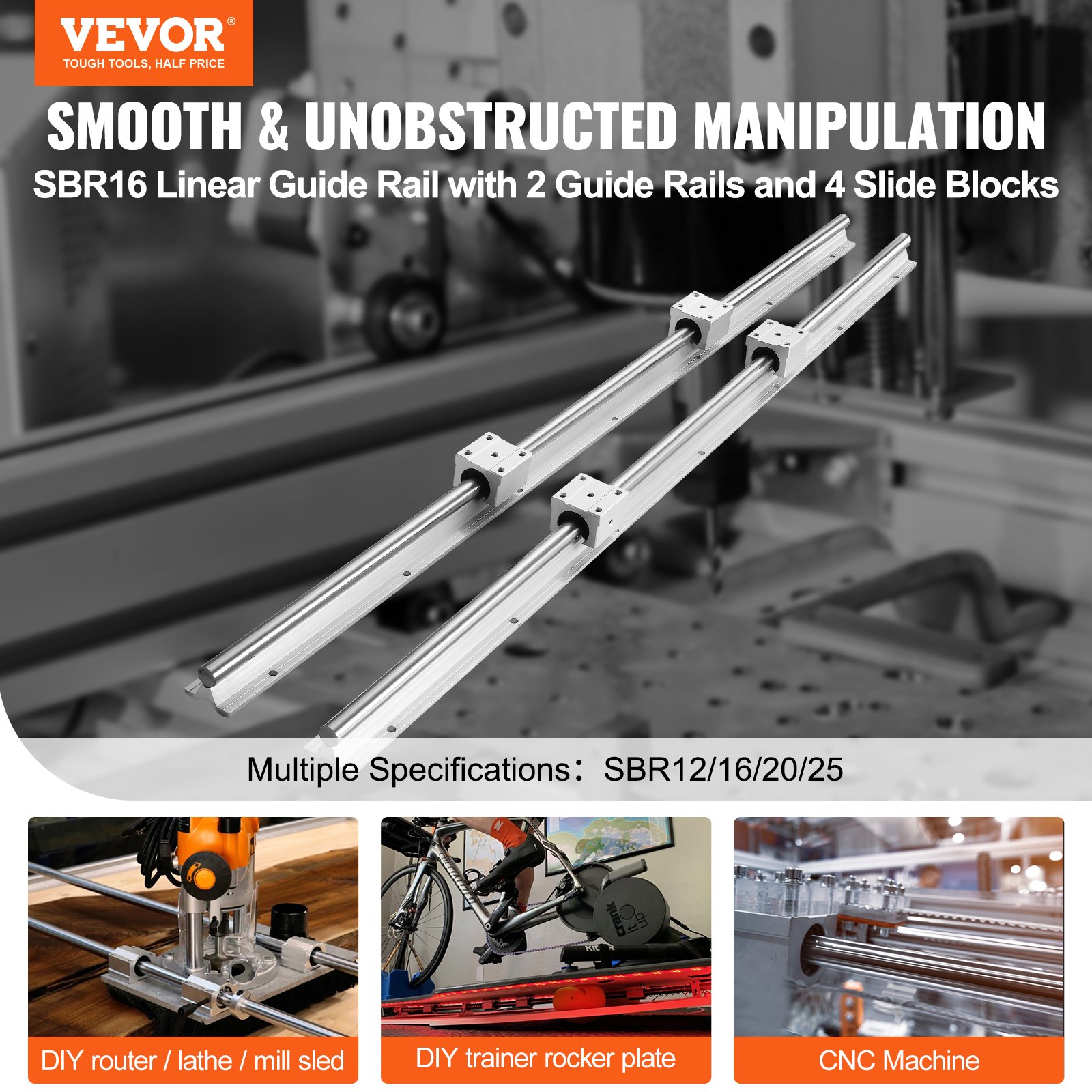

VEVOR linear guide rail set used in diy router, trainer rocker plate, and cnc machine applications.
VEVOR linear guide rail set used in diy router, trainer rocker plate, and cnc machine applications.
Linear rail kit is widely used in high-load automation equipment and DIY equipment production. For example, DIY CNC engraving machines, lathes, etc.

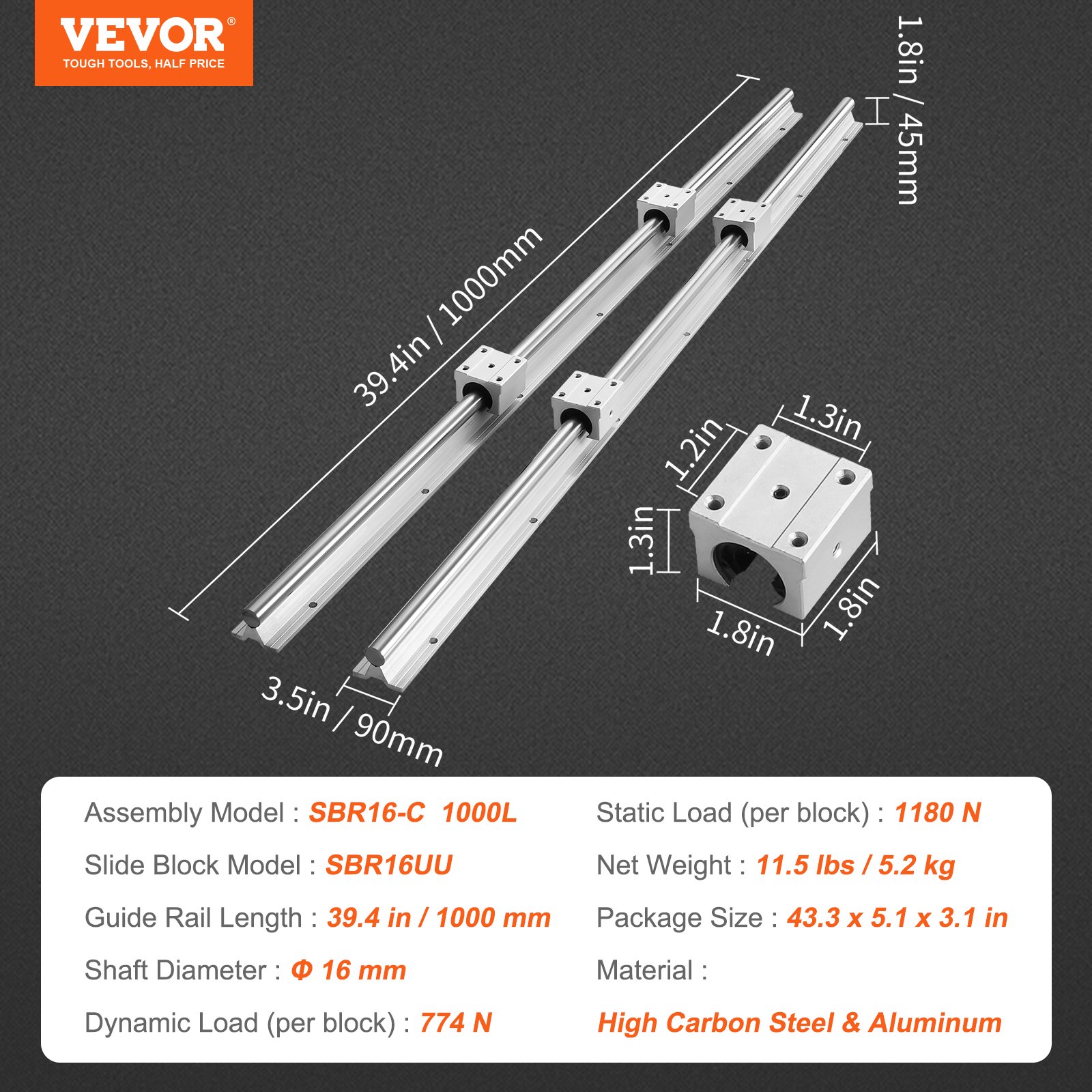

VEVOR linear guide rail set specifications: sbr16-c 1000l, 1000mm rail, 16mm shaft, slide block sbr16uu.
VEVOR linear guide rail set specifications: sbr16-c 1000l, 1000mm rail, 16mm shaft, slide block sbr16uu.

Linear Guide Rail Perfect for CNC Router Machines

This is why these VEVOR linear guide rails are ideal for your CNC router projects. Made with high-carbon steel, they offer durability and precision. The SBR16 Guiderails have a 1000-mm-long base that provides eloquent and accurate movement. They make your projects easier and more efficient. These rails support dynamic loads of up to 774 N per block. This feature makes them ideal for heavy-duty applications. You can trust these railings to support your router and provide stable guidance. Whether you're a hobbyist or professional, these rails meet your needs. They are easy to install and work perfectly with the included slide blocks. Upgrade your routing setup using these reliable guide rails.


High Precision Linear Rails and Bearings Kit

For your projects, the SBR16UU slide blocks in this linear rails and bearings kit provide high precision. The kit includes everything you need for a seamless setup. Achieve professional results with this high-precision kit. These features smooth sailing along the SCR16 guide rails. This ensures accurate and repeatable positioning. High carbon steel rails are straight and true, providing minimal deflection. The slide blocks are made from durable aluminum. There are adjustable screws that allow them to fine-tune the fit. Precision makes them ideal for detailed work. You can trust these rails for consistent performance. It is perfect for both DIY projects and professional applications. Our kit covers everything needed for an efficient setup! Get professional outcomes with our high quality kit today.


Sturdy Construction with High Carbon Steel and Aluminum

They are built to last. Made from high-carbon steel, the rails are strong and durable. They can handle heavy loads without bending. The slide blocks are made from sturdy aluminum. This combination ensures long-lasting performance. These railings have been designed for toughness against the rigors of regular use. It is ideal for both light and heavy-duty applications. Their materials provide excellent resistance to wear and tear. You can trust that these rails will support your projects for years. With solid construction, these rails are a reliable choice for any setup.


Easy Installation with Precise Mounting Holes

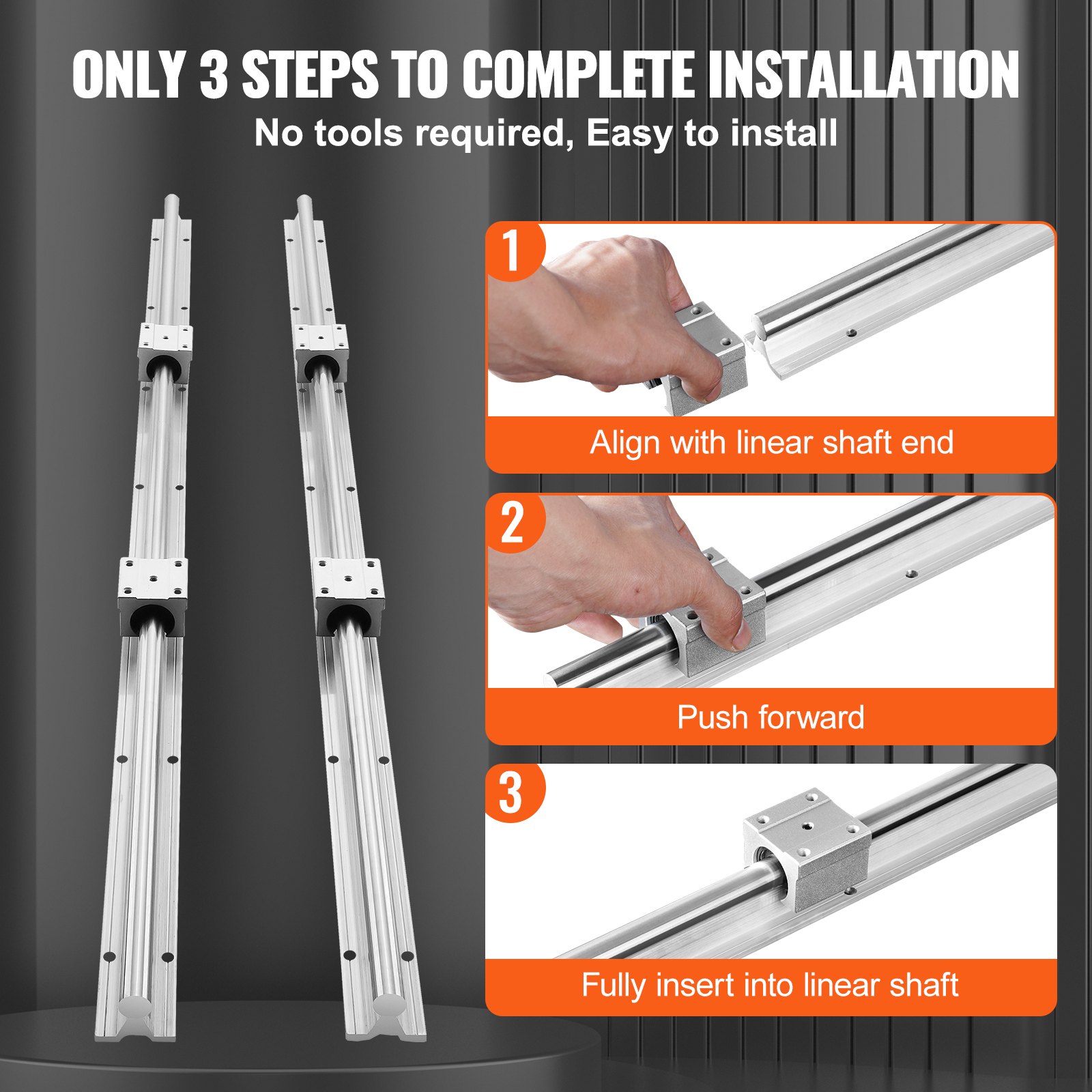

Installing these linear guide rails is a simple process, easy. The rails come with precise mounting holes. This allows for accurate and secure attachment to your setup. Slide blocks also have easy-to-adjust screws. It ensures adherence every time. The installation process is hassle-free because clear documentation is provided. You can get your rail set up and ready to use quickly! The rails are compatible with various mounting configurations, making them versatile for different applications. Achieve ion setup with minimal effort.


Smooth and Quiet Operation with Well-Lubricated Bearings

These linear guiderails provide smooth and quiet operation. The SBR16UU slide blocks come with well-lubricated bearings. This ensures effortless movement along the rails. You can achieve precise and controlled motion. It reduces noise and friction, making your projects more enjoyable and efficient. Additionally, the lubrication helps extend the life of the rails. You should depend on consistent performance over time. Enjoy an easier workspace with these well-engineered rails. They are perfect for detailed work that requires steady movement.


Versatile Use in DIY Projects and Automated Machines

You can use them in a variety of applications due to their versatility. From router sleds to sliding tables, they're perfect for DIY projects. Their strong construction also makes them suitable for automated machines. You can use them in CNC routers, 3D printers, etc. With their versatility, these rails make an incredibly useful addition to any workshop. Whether you're a hobbyist or a professional, this rail provides dependable grounding for your projects. These versatile rail systems provide precise and efficient results.


Great Value with Affordable Price and Reliable Performance

This is why they are great value for their price. They provide reliable performance at an affordable cost. You get high-quality materials and precise engineering. This ensures long-lasting and accurate operation. The rails are designed to handle heavy loads. They are, therefore, suitable for demanding applications. You can trust that these rail systems will effectively support your projects. Their affordability does not compromise on quality. Enjoy professional results without breaking the bank. These rails are a cost-effective solution for your setup needs.


See More

Specification

Model Number
SBR16-C 1000L
Slide Block Model
SBR16UU
Guide Rail Length
39.4 in/1000 mm
Shaft Diameter
Φ16 mm
Dynamic Load (per block)
774 N
Static Load (per block)
1180 N
Material
High Carbon Steel & Aluminum
Mounting Hole Distance A
1.3 in/32 mm
Mounting Hole Distance B
1.2 in/30 mm
Slide Block Size(L x W x H)
1.8 x 1.8 x 1.3 in/45 x 45 x 33 mm
Product Dimensions(L x W x H)
39.4 x 3.5 x 1.8 in/1000 x 90 x 45 mm
Package Size(L x W x H)
43.3 x 5.1 x 3.1 in/1100 x 130 x 80 mm
Net Weight
11.5 lbs/5.2 kg
Manual
Download Link
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
27 Review(s)
Clear filters
Brigitte Brigitte
Mrs
Very good product, just what I needed for my project. Good quality and reasonable price. I would buy again. Very good product, just what I needed for my project. Good quality and reasonable price. I would buy again.
Norman Norman
Mr
This item is an excellent product and at a very competative price when compared to other sellers. I would certainly purchase this or similar item again.
Marc Marc
Great Product
These were just right to build my router sled. very smooth rollers and glides really well. would purchase again
Paul Okami Paul Okami
Great value
I ordered these rails as a replacement setup for my home made panel saw. They arrived in good condition with all of the parts. The pillow blocks fit perfectly and run along the rail smoothly. They aren_ as smooth as high end blocks, but you can_ beat the price.
CoX CoX
Useful
Great for the router sled project I'm working on.
G2138 G2138
Mr
I have used these to build a router ‘flattening sled’ - Really well made rails and bearings for this price. Delivery was on time, so all in all really very pleased. A nice touch would have been to provide bolts / screws to attach the bearing runners to “whatever your attaching” to them. That said I would highly recommend these, thank you Vevor.
JJ JJ
Mr
Great peice of kit for creating router sled for my work shop making flattening boards so east and going the jo b in a 1/3 of the time
JJ JJ
Mr
Great peice of kit for creating router sled for my work shop making flattening boards so east and going the jo b in a 1/3 of the time
Poppy Ann Poppy Ann
Just about the best priced CNC mechanical parts
I built a cnc desk top machine several years ago and used simular parts but about half the size and even with importing the parts directly from China it cost me well over 3 times the price I had checked the price of parts in uk but they would have cost a lot more than I could afford, this set has all of the mechanical parts you would need to build your own cnc cutter/engraver except for the base which could be any type of stiff board like a piece of kitchen worktop, I am going to use a workbench which I bought from amazon :- https://www.amazon.co.uk/dp/B0CNGHX25M?psc=1&ref=ppx_yo2ov_dt_b_product_details As it is a great heavy duty workbench which has adjustable legs which allow 3 different heights so you can use it sat down or stood up I have 2 of them which I use with the wheels fitted and if you want to move it it is very easy to move and it you want it not to it has brakes on the wheels and doesn't move at all. The only other thing it will need is stepper motors plus drivers, a program controller, and power supply's which will require 48 volts for the stepper motors and a 12 volt supply for the program controller and limit switches. I will add photos once built.
D. C. Finch D. C. Finch
Surprisingly good.
I wasn't expecting much for this price but was surprised at the accuracy. Still need to do some tests for backlash in the lead screws but as yet they're absolutely solid. Guide rails aren't the best but perfectly adequate for my use and a little tweaking mops up the slop. Very happy with these.
