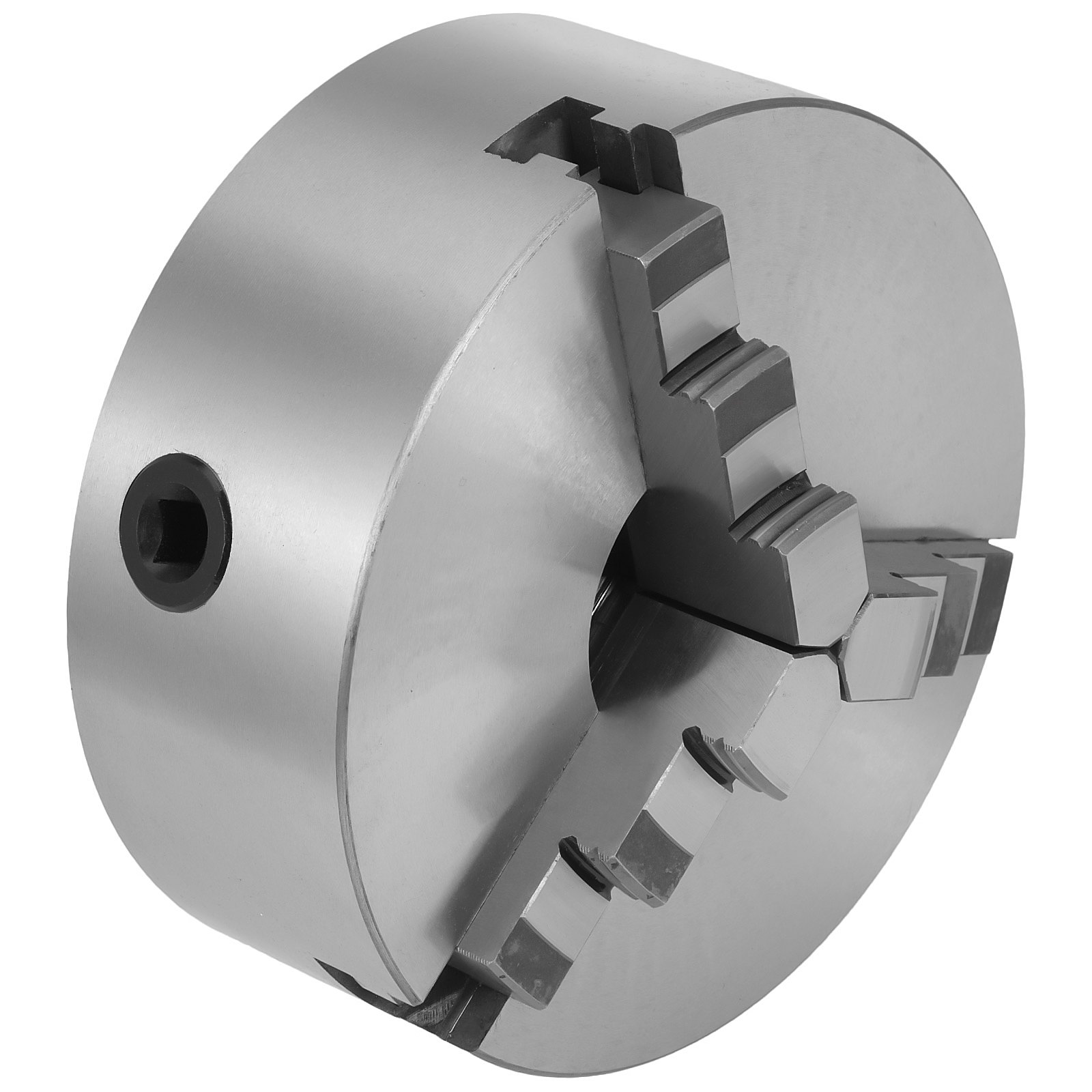

VEVOR lathe chuck with accessories, including screws and tightening tools. VEVOR lathe chuck with 3-jaw design, ideal for lathe, grinder, and milling machine. VEVOR lathe chuck with anti-rust oil coating and high-grade steel construction. VEVOR lathe chuck with large clamping range, internal/external jaw diagrams, and spec table. VEVOR lathe chuck with high-precision jaws, self-locking system, and accurate bearings. VEVOR lathe chuck installation guide with components and tightening instructions. VEVOR lathe chuck with 8in diameter and 31.2 lbs weight, shown in silver.
KPK11-200ZFZ00001V0

VEVOR Lathe Chuck K11-200 200mm 3 Jaw Reversible Self-Centering External Jaw Milling Machine Internal Jaw, Self-Centering External Jaw 8 Inch CNC

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive £5.00 off for your first three orders on the App.
Download Now
Exclusive £5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • Premium Steel Structure: The lathe chuck body is made of high-quality hardened steel, and the hardness test of the jaws and guides is HRC 58-62. It has high strength and toughness, compression resistance and durability, and long service life.
  • Large Clamping Range: This chuck includes two sets of internal and external jaws. The clamping range of this chuck is between 0.16" / 4 mm - 7.87" / 200 mm, which is suitable for clamping a variety of industrial parts.

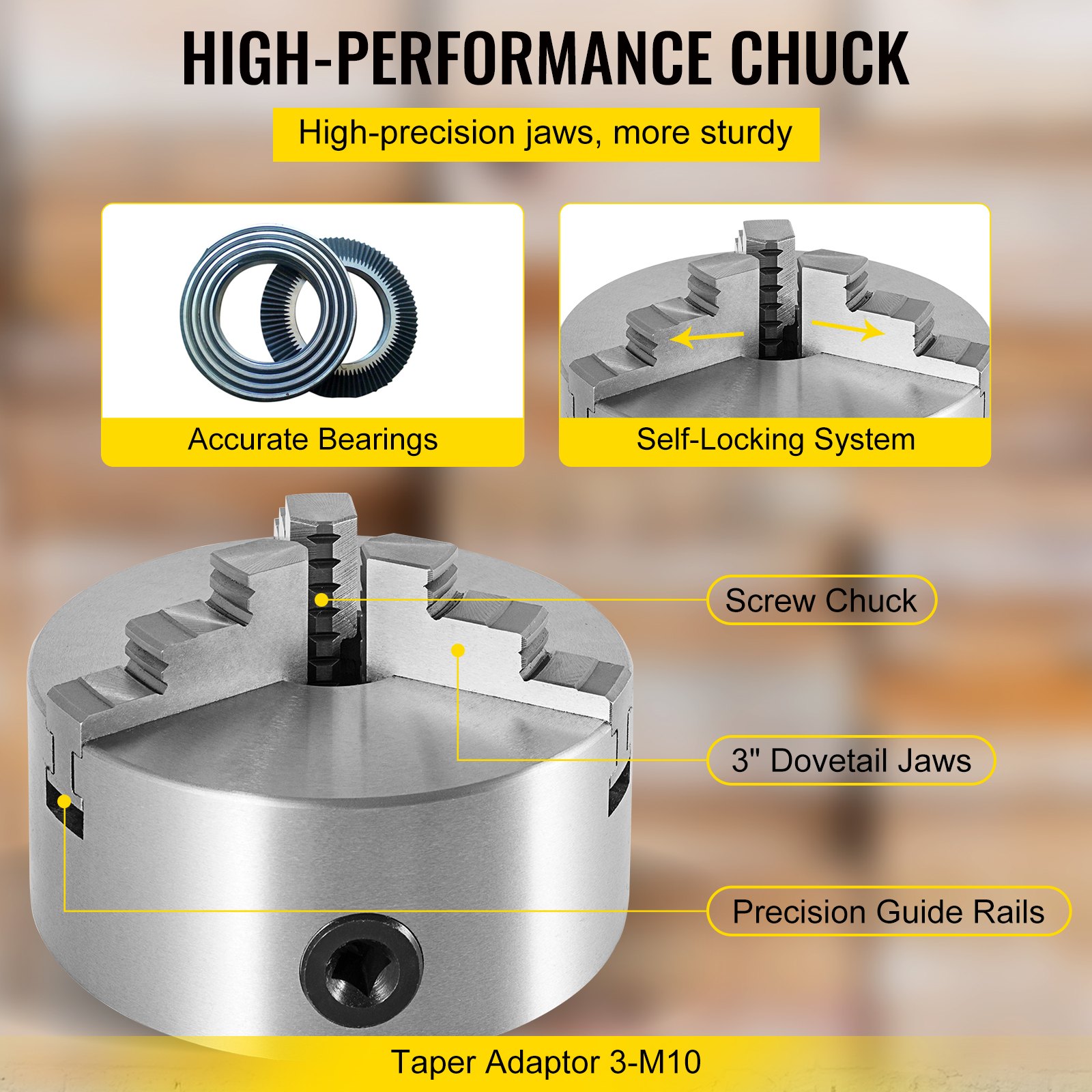

  • High-Performance Chuck: The wood lathe chuck jaws and three jaws are self-centering, the alignment accuracy is less than or equal to 0.002" / 0.05 mm, and no adjustment is required after installation. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.

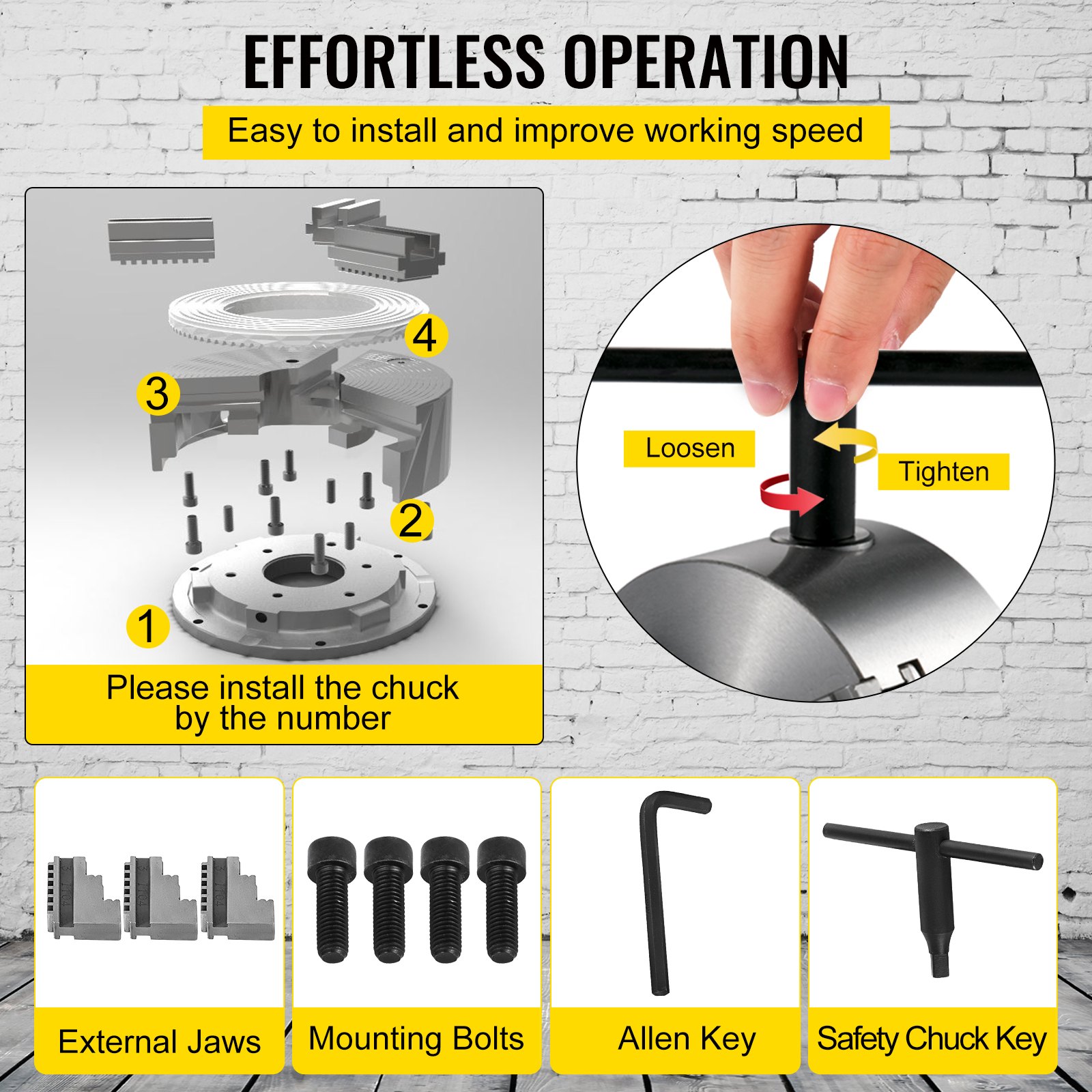

  • Effortless Operation: The lathe chuck has an automatic centering function, so it does not need to be repeatedly calibrated during installation. It only needs to be installed in the correct order, which is simple, fast, and convenient. The chuck has 1" x 8 TPI Thread and 3/4" x 16 TPI Adapter (Mounted on the Chuck)
  • Wide Application: This scroll chuck is highly adaptable and can be used with the same series of jaws, which is suitable for a variety of parts such as hanging shafts, disks, equilateral triangles, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Lathe Chuck K11-200 200mm 3 Jaw Reversible Self-Centering External Jaw Milling Machine Internal Jaw, Self-Centering External Jaw 8 Inch CNC
VEVOR lathe chuck set with 3-jaw, 8-inch, durable service, and quenching hardened.
VEVOR lathe chuck with additional jaws and screws set.
8" Lathe Chuck 3 Jaw
Two Sets of Jaws & Self-Centering Function & High-Precision
This versatile chuck is made of high-quality hardened steel, compressive and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.16" / 4 mm - 7.87" / 200 mm. The self-centering function can save the trouble of repeated calibration during installation. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
  • Premium Steel Structure
  • Large Clamping Range
  • High-Performance Chuck
  • Effortless Operation
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

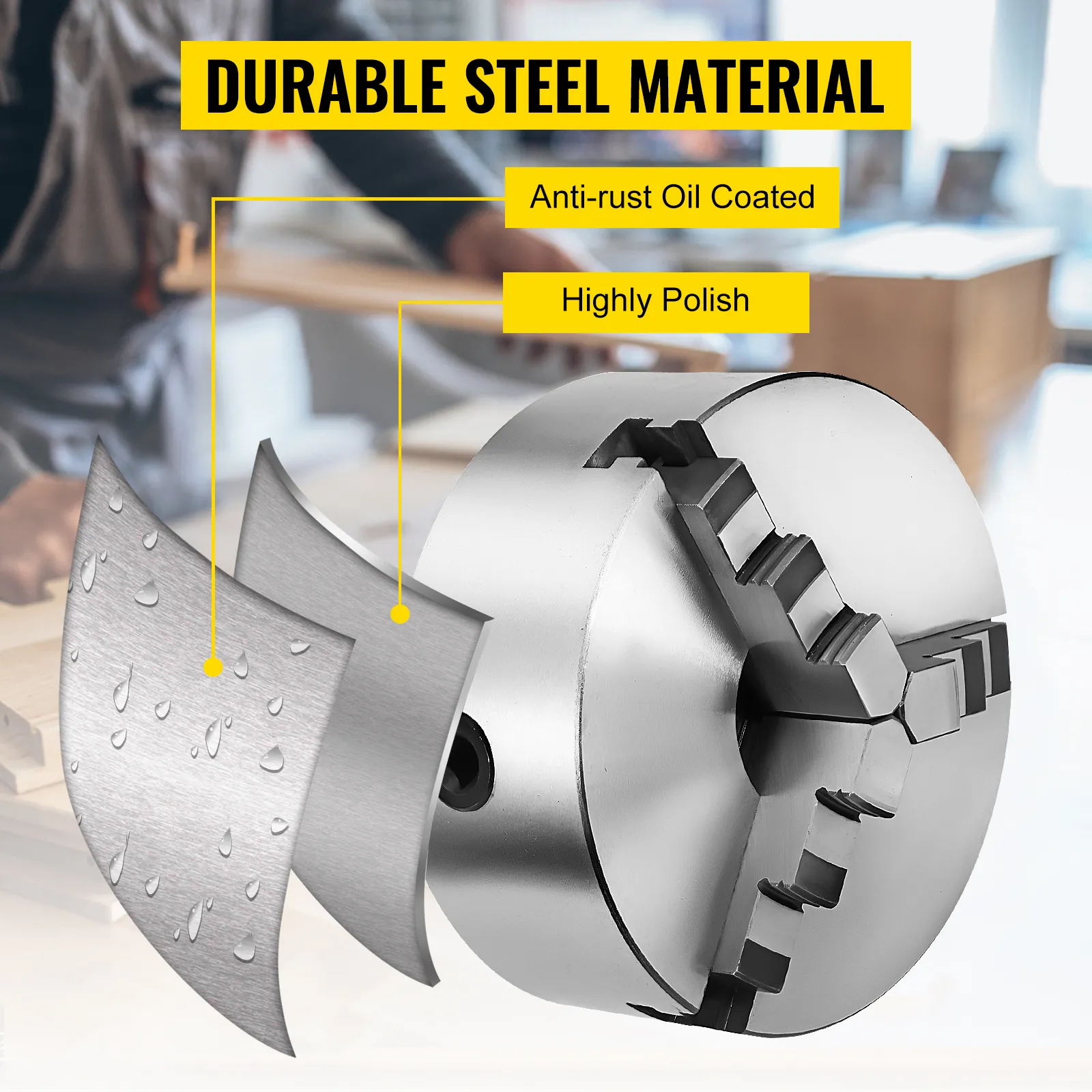

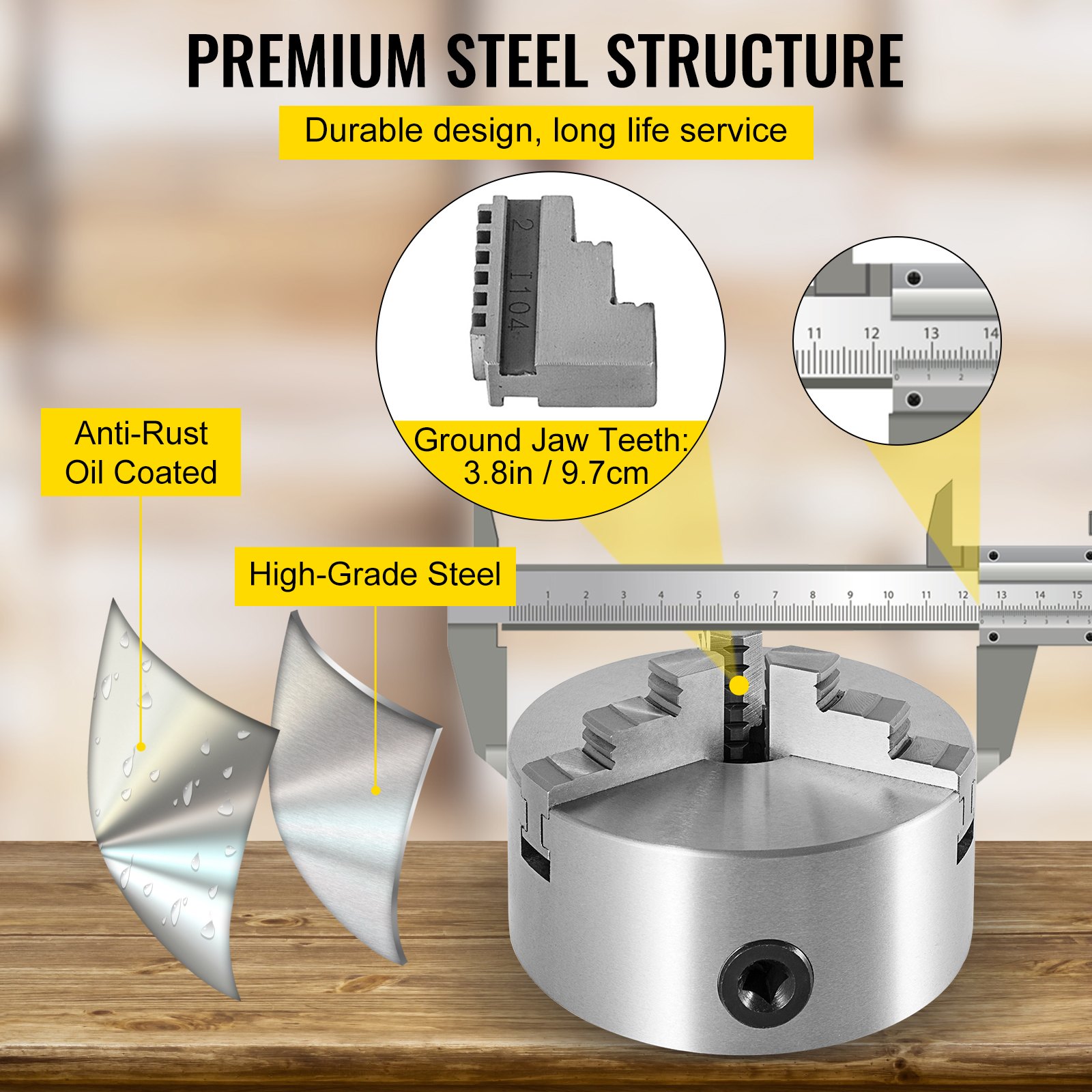

VEVOR lathe chuck showing durable steel material with anti-rust oil coating and high polish.
Durable Steel Material
Made of quality cast iron, the lathe chuck have passed the HRC 58-62 test for better performance. Flimsy parts are specifically engineered by quenching process to enhance durability.

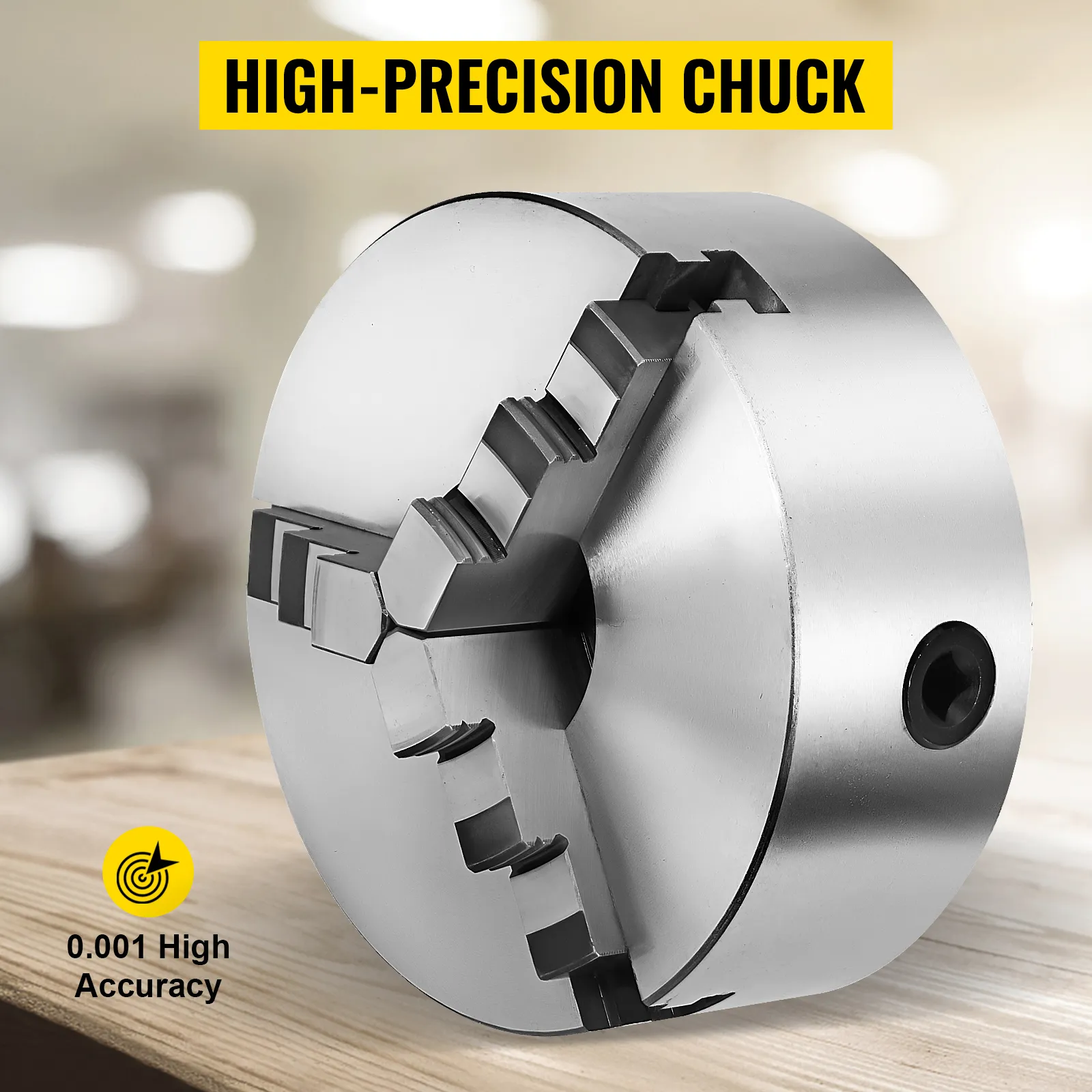

high-precision VEVOR lathe chuck on a wooden surface with 0.001 high accuracy text.
High-Precision Chuck
The lathe chuck is milled by pricise milling skill for high precision and accuracy. It looks more beautiful and concise.

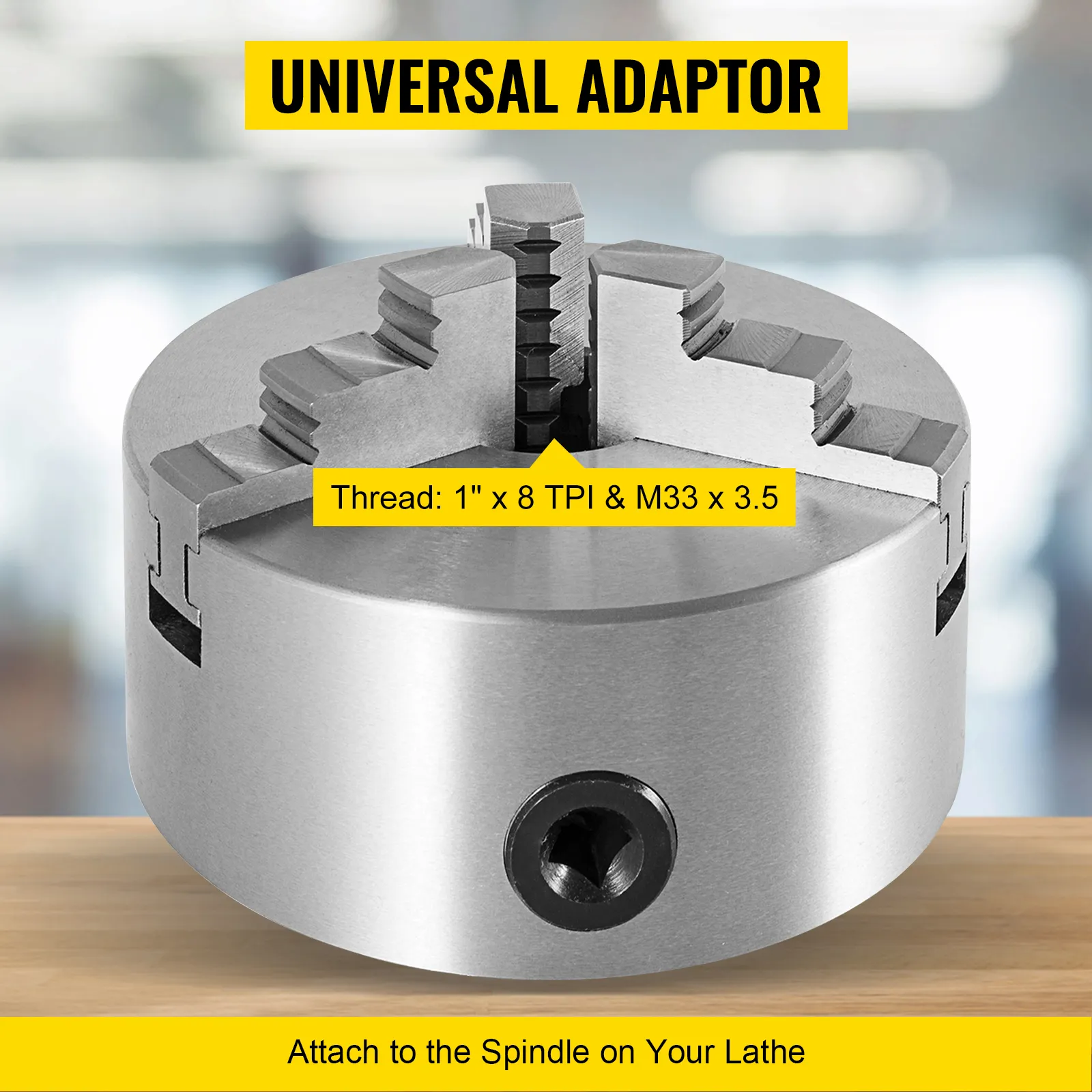

VEVOR lathe chuck with universal adaptor and thread of 1" x 8 tpi & m33 x 3.5.
Universal Adaptor
An adapter is also in the package to convert 1'' x 8TPI to 3/4" x 16TPI. Thus, it can adapt to more types of machines.

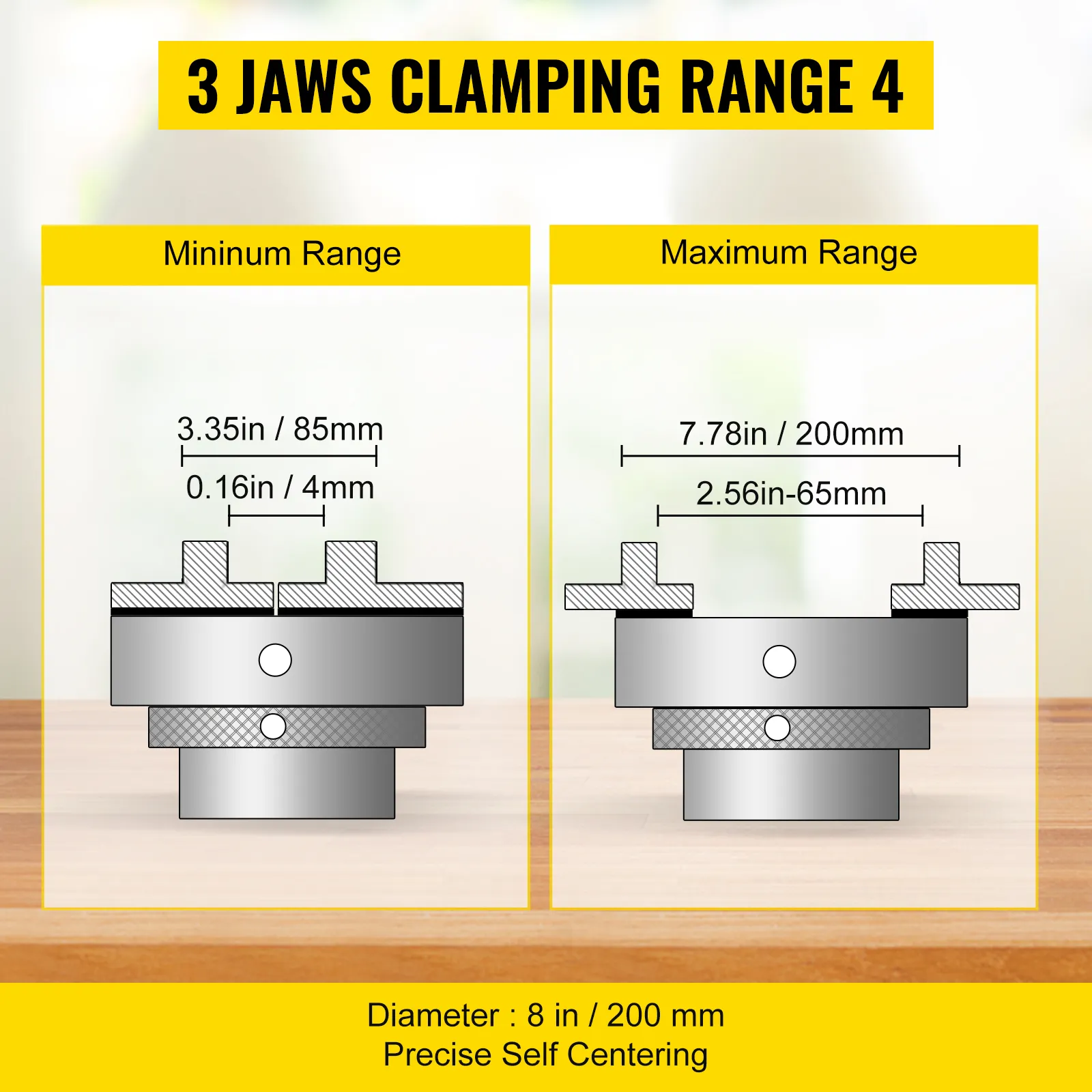

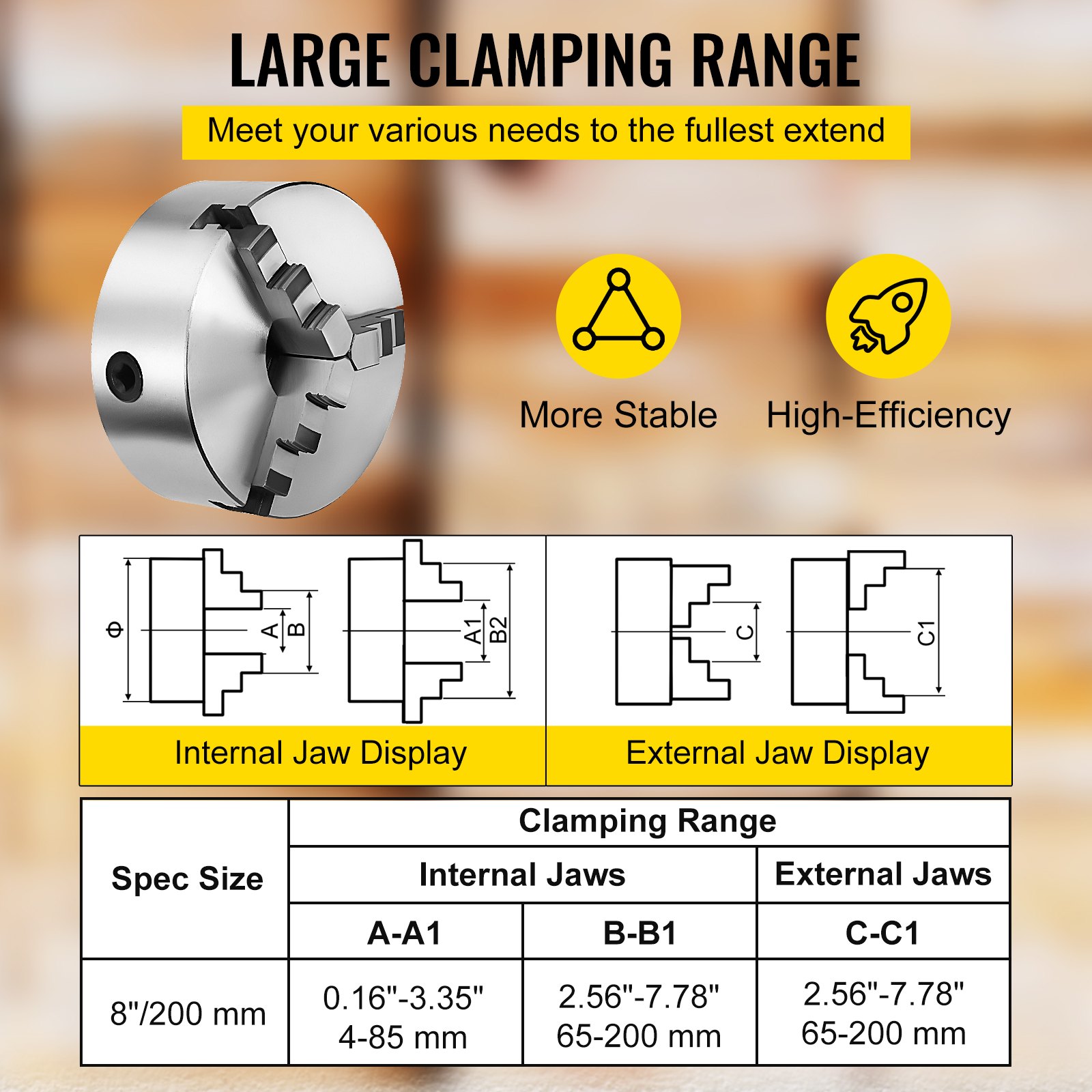

VEVOR lathe chuck: minimum clamping 3.35in/85mm, max 7.78in/200mm. diameter 8in/200mm
3 Jaws Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts. The clamping range of this chuck is between 0.16" / 4 mm and 7.87" / 200 mm.

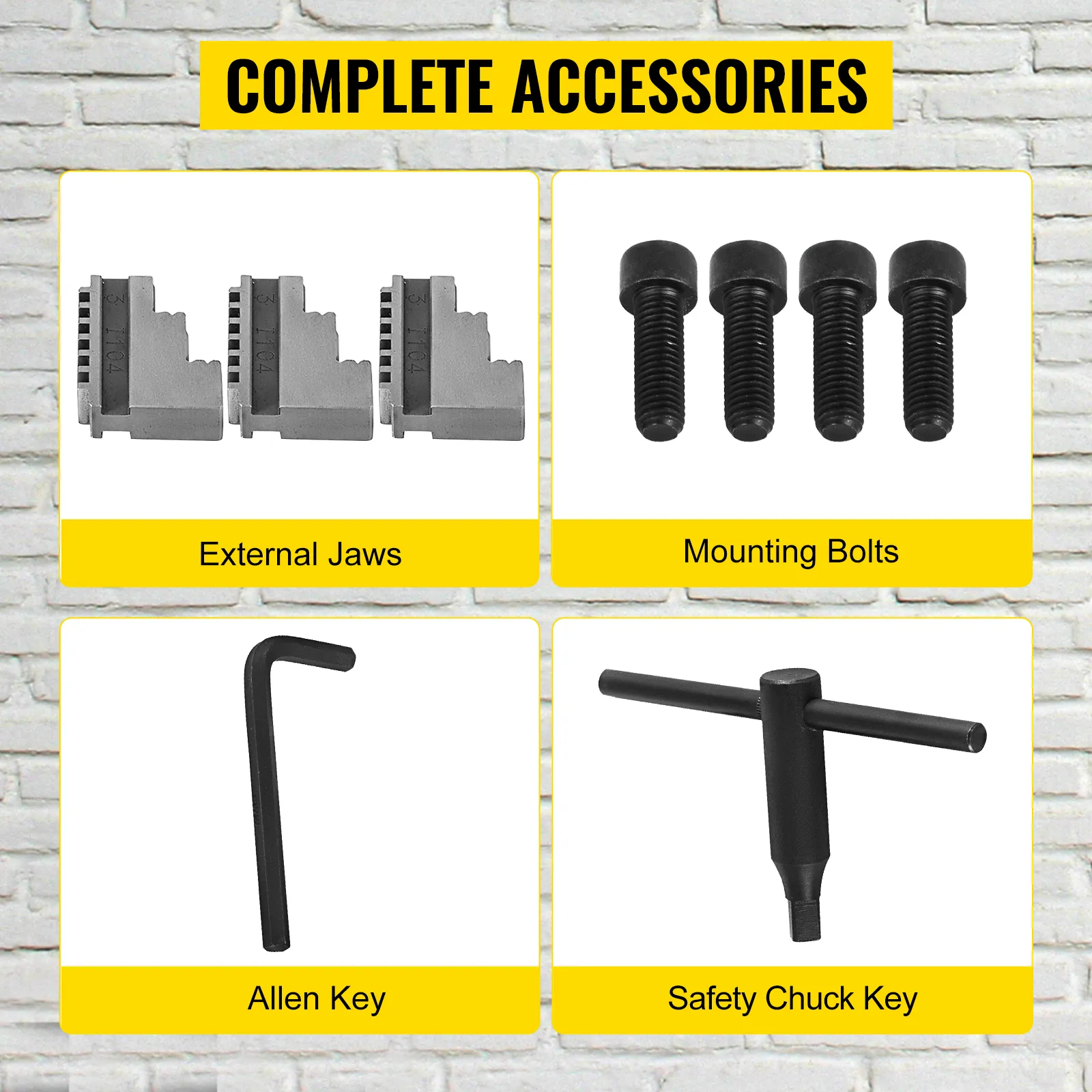

VEVOR lathe chuck accessories: external jaws, mounting bolts, allen key, safety chuck key.
Complete Accessories
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.

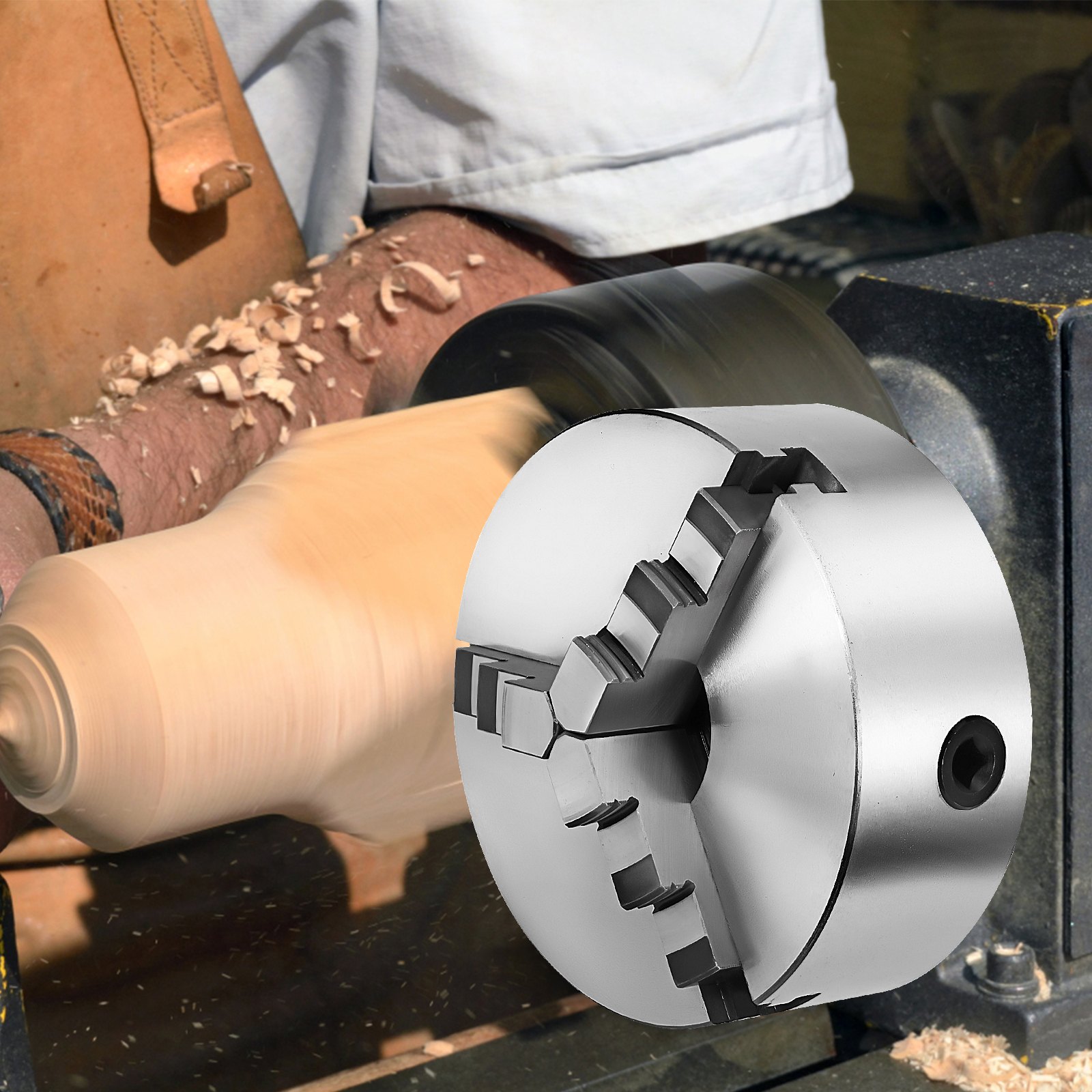

extensive uses of VEVOR lathe chuck for wood, metal, drilling, and milling machines.
Extensive Uses
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.

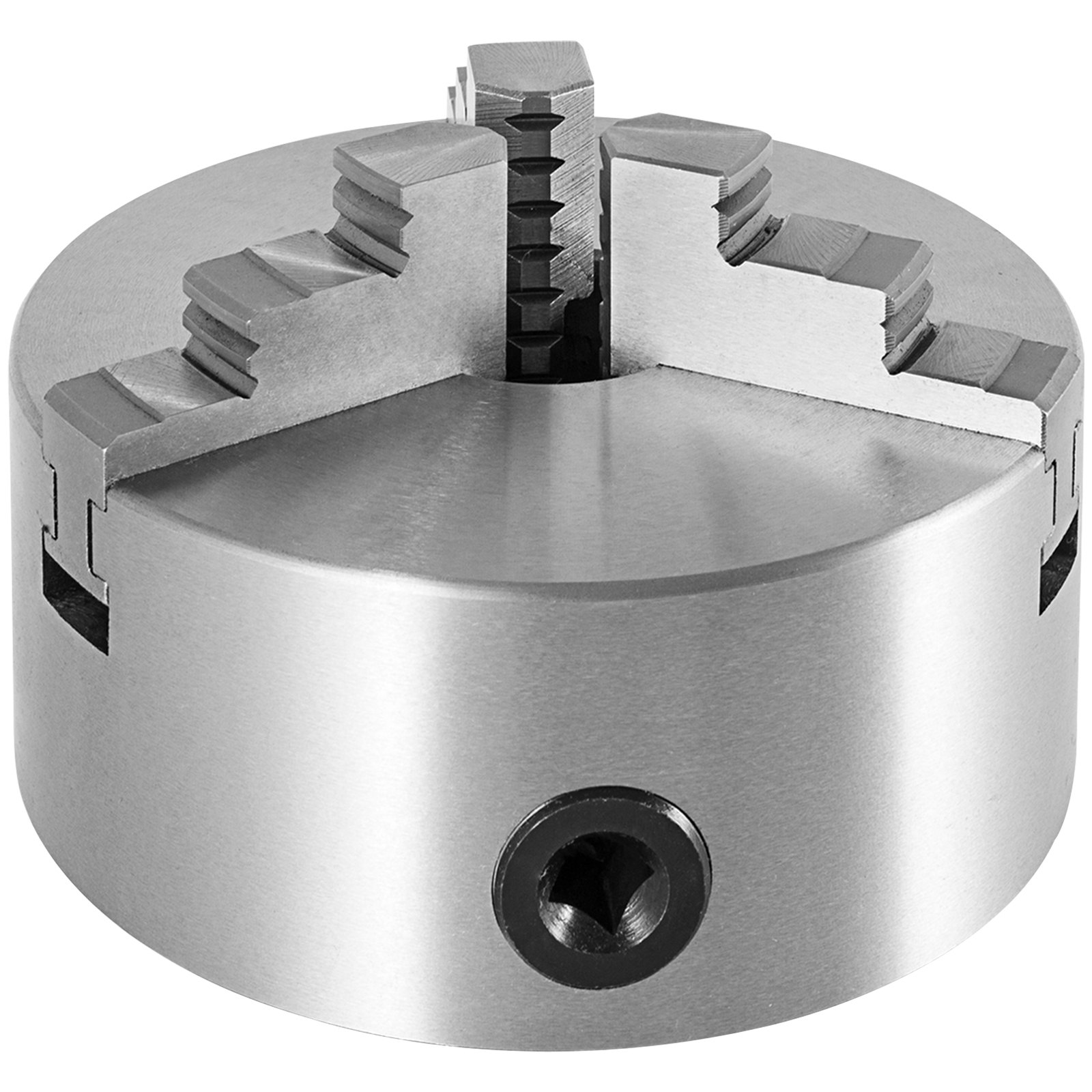

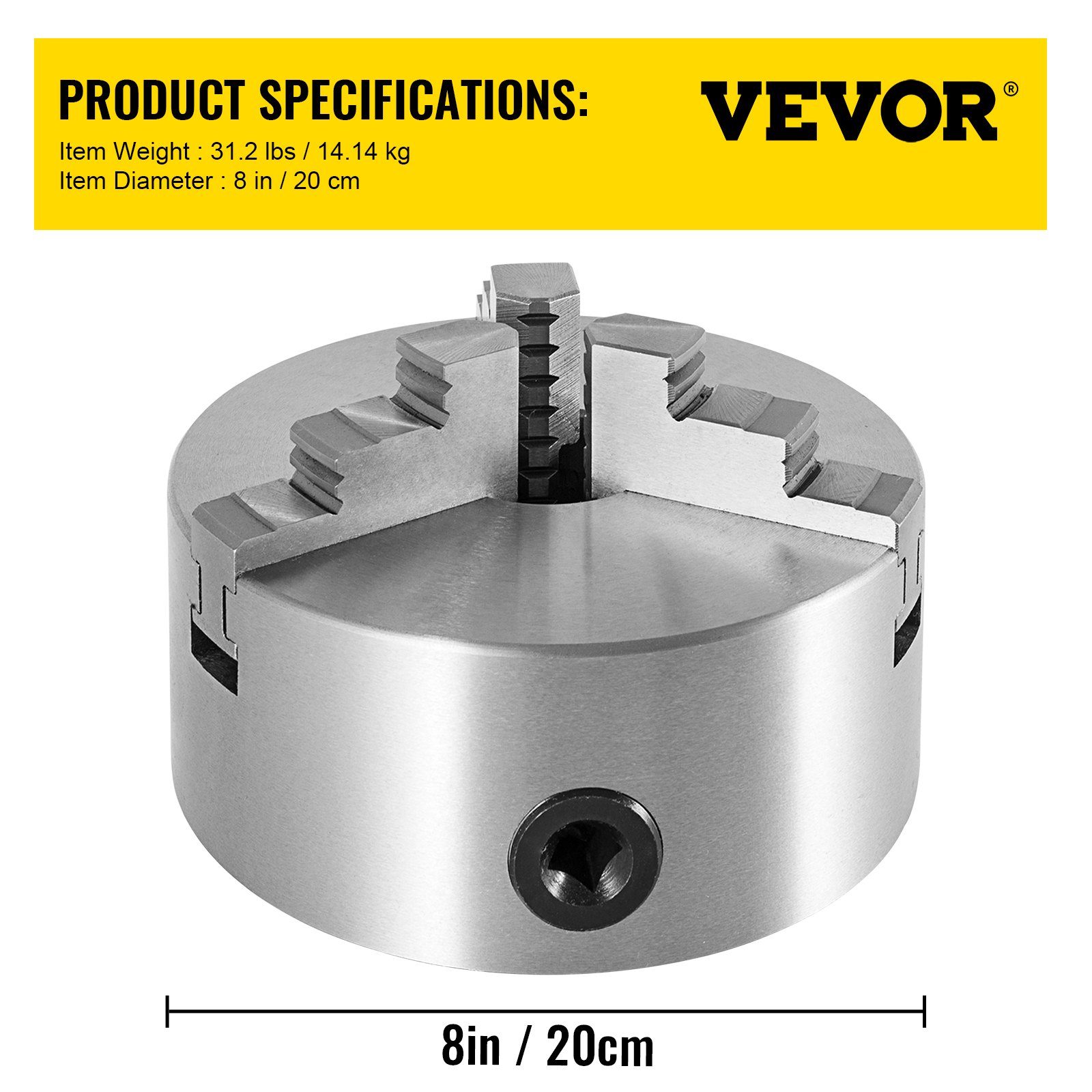

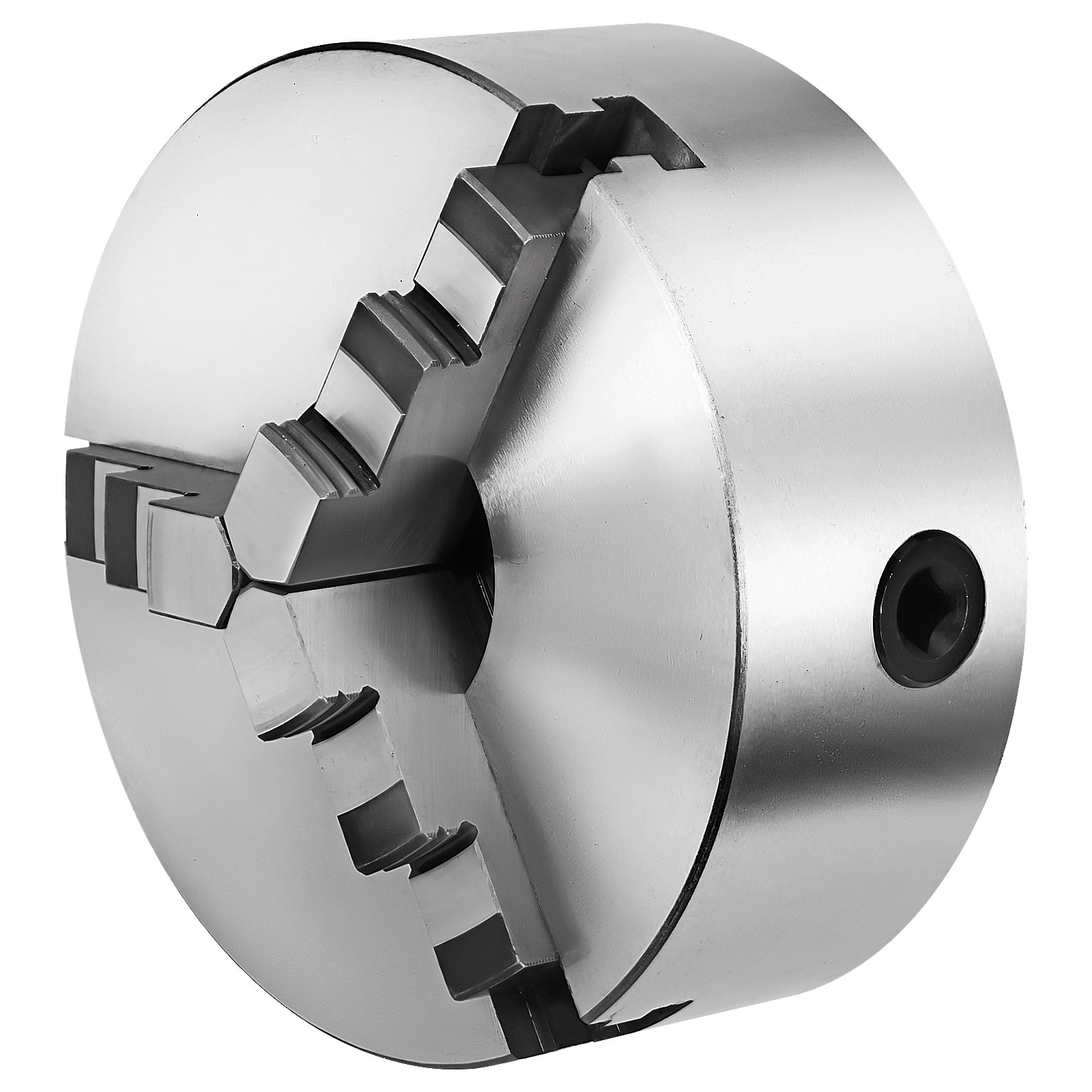

VEVOR lathe chuck, 8in/20cm, showcasing three sturdy metal jaws.
Specifications
  • Model: K11-200
  • Mounting Thread: 3-M10
  • Chuck Body Thickness: 2.95" / 75 mm
  • Bolt Circle Diameter: 7.1" / 180 mm
  • Center Thru Hole Diameter: 2.6" / 65 mm
  • Chuck Body Material: 300 Cast Iron
  • Internal Jaw Clamping Range (A-A1): 0.16" / 4 mm - 3.35" / 85 mm
  • Internal Jaw Jamming Range (B-B1): 2.56" / 65 mm - 7.87"/ 200 mm
  • External Jaw Clamping Range (C-C1): 2.56" / 65 mm - 7.87" / 200 mm
  • Item Diameter: 8 in / 200 mm
  • Item Weight: 31.2 lbs / 14.14 kg

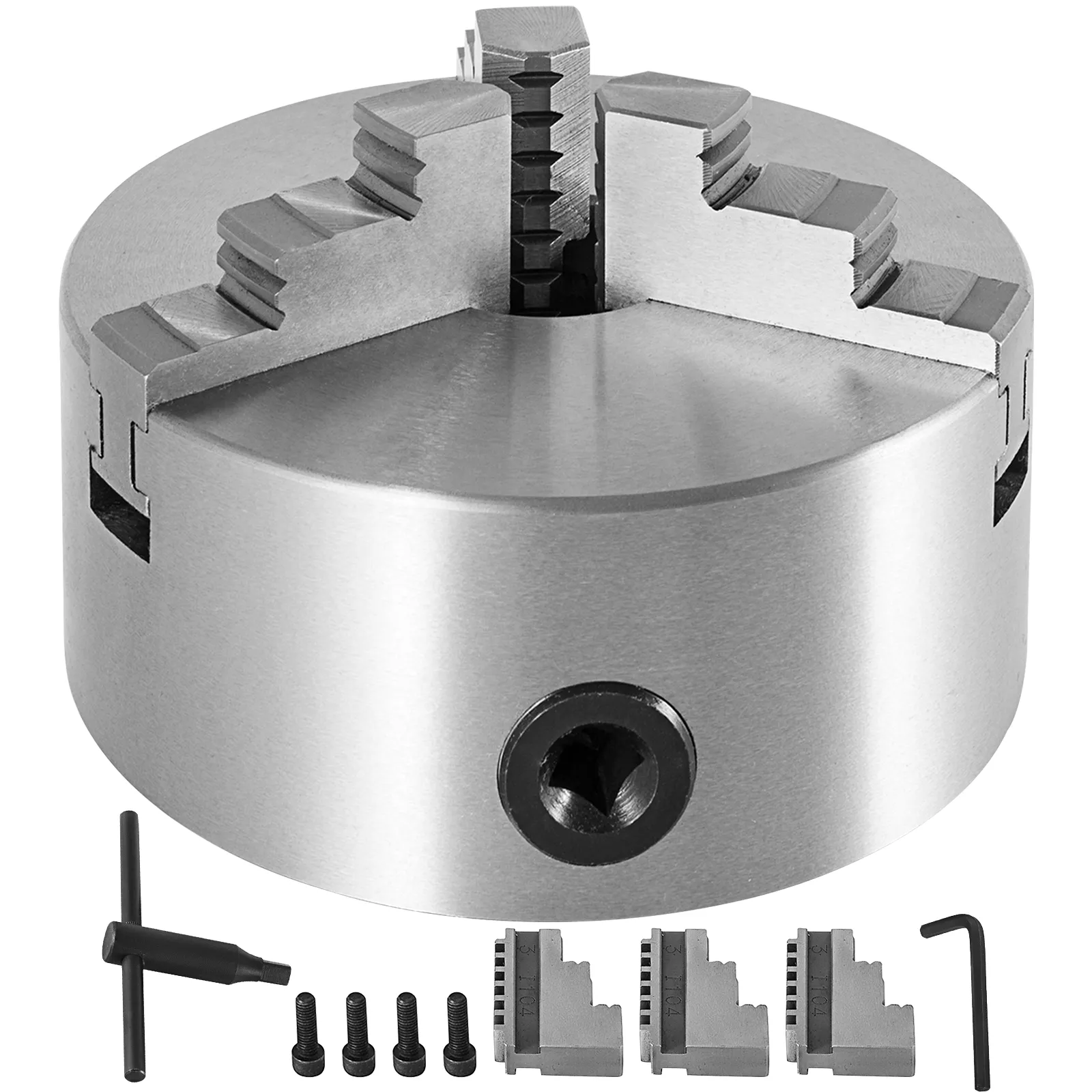

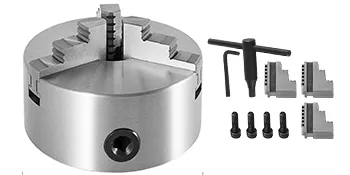

VEVOR lathe chuck with key, jaws, and screws on a white background.
Package Content
  • 1 x 8" / 200 mm Lathe Chuck Body
  • 3 x Internal Jaws
  • 3 x External Jaws
  • 3 x Mounting Bolts
  • 1 x Chuck Key
VEVOR lathe chuck set with 3-jaw, 8-inch, durable service, and quenching hardened.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR lathe chuck with additional jaws and screws set.
8" Lathe Chuck 3 Jaw
Two Sets of Jaws & Self-Centering Function & High-Precision
This versatile chuck is made of high-quality hardened steel, compressive and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.16" / 4 mm - 7.87" / 200 mm. The self-centering function can save the trouble of repeated calibration during installation. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
  • Premium Steel Structure
  • Large Clamping Range
  • High-Performance Chuck
  • Effortless Operation
VEVOR lathe chuck showing durable steel material with anti-rust oil coating and high polish.
Durable Steel Material
Made of quality cast iron, the lathe chuck have passed the HRC 58-62 test for better performance. Flimsy parts are specifically engineered by quenching process to enhance durability.
high-precision VEVOR lathe chuck on a wooden surface with 0.001 high accuracy text.
High-Precision Chuck
The lathe chuck is milled by pricise milling skill for high precision and accuracy. It looks more beautiful and concise.
VEVOR lathe chuck with universal adaptor and thread of 1" x 8 tpi & m33 x 3.5.
Universal Adaptor
An adapter is also in the package to convert 1'' x 8TPI to 3/4" x 16TPI. Thus, it can adapt to more types of machines.
VEVOR lathe chuck: minimum clamping 3.35in/85mm, max 7.78in/200mm. diameter 8in/200mm
3 Jaws Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts. The clamping range of this chuck is between 0.16" / 4 mm and 7.87" / 200 mm.
VEVOR lathe chuck accessories: external jaws, mounting bolts, allen key, safety chuck key.
Complete Accessories
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
extensive uses of VEVOR lathe chuck for wood, metal, drilling, and milling machines.
Extensive Uses
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
VEVOR lathe chuck with key, jaws, and screws on a white background.
Package Content
  • 1 x 8" / 200 mm Lathe Chuck Body
  • 3 x Internal Jaws
  • 3 x External Jaws
  • 3 x Mounting Bolts
  • 1 x Chuck Key

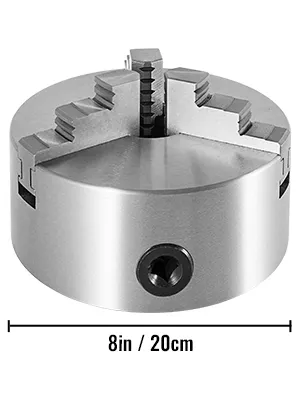

VEVOR lathe chuck, 8in/20cm, showcasing three sturdy metal jaws.
Specifications
  • Model: K11-200
  • Mounting Thread: 3-M10
  • Chuck Body Thickness: 2.95" / 75 mm
  • Bolt Circle Diameter: 7.1" / 180 mm
  • Center Thru Hole Diameter: 2.6" / 65 mm
  • Chuck Body Material: 300 Cast Iron
  • Internal Jaw Clamping Range (A-A1): 0.16" / 4 mm - 3.35" / 85 mm
  • Internal Jaw Jamming Range (B-B1): 2.56" / 65 mm - 7.87"/ 200 mm
  • External Jaw Clamping Range (C-C1): 2.56" / 65 mm - 7.87" / 200 mm
  • Item Diameter: 8 in / 200 mm
  • Item Weight: 31.2 lbs / 14.14 kg

Essential 3 Jaw Lathe Chuck for Precision and Reliability

This VEVOR 3 jaw lathe chuck offers the precision you need. Whether you are a hobbyist or pursuing a professional level, it performs reliably. The 8-inch size and self-centering feature ensure accuracy and consistency. Its design helps maintain balance during rotation, which is important for precision tasks. This tool accommodates various tasks with clamping ranging from 0.16 inches to 7.87 inches. You can use it for both small and large projects. This chuck keeps your work steady. You can focus on creating precise pieces. You can rely on it to meet your machining needs!


Easily Adaptable Reversible Lathe Chuck for Versatile Applications

The reversible jaws are more versatile than the traditional lathe chuck. They fit well on an old model lath or are freshly installed. The adaptability means you can switch between projects without needing extensive modifications. It’s a truly versatile tool for your workshop.


Highly Durable Hardened Steel Construction Ensures Longevity

Designed from durable hardened steel, this 3 jaw lathe chuck lasts long. It can withstand routine wear and tear in various settings. With its construction, it means less maintenance over time. The robust build handles different materials and clamping pressures without degrading. It ensures a reliable grip on workpieces. The durability means lower downtime for repairs and more productivity. This lathe chuck is built to handle heavy use in your shop. Its long lifespan provides great value for money. So, it's an excellent investment for any craftsman.


Convenient Self-Centering Feature for Quick Setup

It saves time and ensures each piece is aligned the same. The accuracy helps maintain consistent quality in your projects. The setup is quick and easy so that you can focus on your work. You can enjoy more efficient workflows with this advantage.


Perfect for Upgrades: Compatible with Various Lathes and Projects

You can easily upgrade your current lathe with this 8-inch chuck. It fits various laths, from antique models to modern machines. Its compatibility ensures you can improve your setup without needing new equipment. Enhancing your lathe with the rotary jack can bring new life to old tools. This allows for more complex projects and expands your capabilities. This flexibility makes it an ideal choice for hobbyists upgrading their home setups. The compatibility and ease of transition make it a valuable tool for professional machinist seeking to enhance their equipment upgrades.


Exceptional Value for Price with Reliable Performance

This lathe chuck offers outstanding value. It combines affordability with reliable performance. The construction is built to handle many tasks without breaking your budget. This lathe chuck is designed for practical, real-world applications. The quality matches higher-priced options without the steep cost. A balance of price and performance makes it accessible to many craftsmen. The pricing is fair, considering its strong features and reliability. Investing in this tool means getting dependable service without financial strain.


Suitable for a Wide Range of Clamping Sizes

This 3 jaw lathe chuck handles different clamping sizes. Whether you need to work on small items or larger projects doesn't matter. The internal jaw clamper and external jaw clipping ranges cover various diameters. Its jaws can reach anywhere from 0.16 to 7.87 inches. This wide range allows flexibility for different tasks. You can use the versatility in clamping sizes to manage different projects easily. Use this chuck for small precision components or bigger pieces. It covers multiple applications, making it versatile for many tasks!


See More

Specification

Model
K11-200
Mounting Thread
3-M10
Chuck Body Thickness
2.95" / 75 mm
Bolt Circle Diameter
7.1" / 180 mm
Center Thru Hole Diameter
2.6" / 65 mm
Chuck Body Material
300 Cast Iron
Internal Jaw Clamping Range (A-A1)
0.16" / 4 mm - 3.35" / 85 mm
Internal Jaw Jamming Range (B-B1)
2.56" / 65 mm - 7.87"/ 200 mm
External Jaw Clamping Range (C-C1)
2.56" / 65 mm - 7.87" / 200 mm
Item Diameter
8 in / 200 mm
Item Weight
31.2 lbs / 14.14 kg
Questions and Answers
1 Questions
What is the max rpm of this chuck?
2000.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
18 Review(s)
Clear filters
Clarke Clarke
Ady
Quality chuck straight out the box,quick delivery well packaged would definitely buy again looking at a 4 jaw next
jsg1943 jsg1943
oap
Satisfactory product, prompt delivery, now fitted to lathe and working well. Highly satisfied overall.
anthony wilson anthony wilson
mr
My wife saw this chuck, I have been looking just for the right one for some time. Very pleased, just what I wanted, perfect. has already been fitted and used, made life so much simpler. Will use your firm again, many thanks, was quick delivery and boxed safely with our postal service. thankyou,
Ian Humphrey Ian Humphrey
Great Product
Fitted to a 9” South Bend lathe. Once I machined a backplate to the correct size, it fitted really easy. A quick tap with a hammer to adjust the runout, and it has less than 1 thousands of an inch. Just be aware that the jaws need to go back in the same slots.
Nick C Nick C
Vevor 10", 3 Jaw Lathe Chuck (250mm with reversable jaws)
The quality of this lathe chuck is outstanding. I really cannot see how they can do it for the money! Over the last 4 months I have bought 5 of these to replace some old, tired ones in our workshop.
Colink Colink
Great for the money
Way better than expected for the money. Its a really good item, well packaged and delivered on time. Very pleased and done some good work with it.
chrisb chrisb
k11-100 chuck
nice finish to the chuck but surprised at the run out in relation to the register, no big isue quick re grind of the jaws in relation to the body spot on now
David Redfearn David Redfearn
Mr
Exceptional quality for the price.
Steve Steve
Lathe Chuck K11-125
Run out more than stated ; chuck jaws could have been finished better; comparing tests with my original chuck, which is Belco, virtually half run out compared to your chuck. We will not be returning unless you can supply replacement jaws, but felt you needed this feedback
Midge5 Midge5
100mm Lathe Chuck
Good quality chuck, well packed and all accessories well oiled with the exception of the key of course, very quick dispatch and delivery! Thankyou Vevor.
