VEVOR heavy-duty drawer slides with yellow tips and mounting screws. three-section full extension VEVOR heavy-duty drawer slides in various applications. steel ball-bearing VEVOR heavy-duty drawer slides with lock function for smooth operation. VEVOR heavy-duty drawer slides with 500 lbs load capacity and 19mm thick rugged brackets. VEVOR heavy-duty drawer slides selection and installation guide with measurements. VEVOR heavy-duty drawer slides installation guide with four-step instructions. VEVOR heavy-duty drawer slides with measurements for pull back and extension sizes.
SDSSSCTD56500RMY9V0

VEVOR Drawer Slides with Lock, 1 Pair 56 inch, Heavy-Duty Industrial Steel up to 500 lbs Capacity, 3-Fold Full Extension, Ball Bearing Lock-in & Lock-Out, Side Mount

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive £5.00 off for your first three orders on the App.
Download Now
Exclusive £5.00 off for your first three orders on the App.
Scan the QR code to download

56 inch

  • 40 inch
  • 28 inch
  • 30 inch
  • 36 inch
  • 44 inch
  • 34 inch
  • 20 inch
  • 56 inch
  • 60 inch
  • 26 inch

About this item

  • Three-Section Drawer Slides: You can get 1 pair of drawer slides: 56"/ 142.2 cm in length, 3"/ 7.6 cm in width, 0.75"/ 1.9 cm in thickness. A 3-fold full extension design, allows the entire drawer to be extended and reached. A great helper to maximally utilize your drawer's space(fully closed length: 56", fully extended length: 112"/ 284.5 cm).
  • Sturdy Steel & 500 lbs Bearing: Constructed with 0.75"/ 19 mm thickness cold-rolled steel (CRS), the heavy-duty drawer slides have up to 500 lbs/ 227 kg load capacity. Secure and rugged enough to support heavy storage without deformation over time. The zinc-plated surface stays the extension drawer slide be rust-proof and abrasion-proof, ensuring lifetime use. The slides can be applied to goods shelves, cabinets, the industrial drawers, RVs, trucks, vending machines, etc.
  • Softly & Quietly Slide with Lock: These slides feature a lock-in and lock-out design for easy control, secure fixation, and no chance of drawer separating from the cabinet. Different from those without locks or only one lock, our dual lock design provides more security and stability. A double row of ball-bearing action provides a smooth slide performance when closing and opening the drawer. The nylon buffer design on the middle-section slides produces less noise and no bounce back.
  • Choose the Right Size: Full extension drawer slides are compatible with most major drawer and cabinet types. How to determine the right size of slides for your drawer? Please refer to the detailed description of each size as the picture shows. It is better to measure the length of the drawer and cabinet without the frame board before choosing our drawer slides. Note: The length of slides should not be less than or equal to drawer depth.
  • Installation & Usage: The heavy-duty drawer slides can be installed on the side of the cabinet or machine parts. All screws and bolts are included for effortless installation. Ideal for new construction, remodeling, and replacement projects, such as industrial drawers, commercial equipment, and retrofitted vehicles.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Drawer Slides with Lock, 1 Pair 56 inch, Heavy-Duty Industrial Steel up to 500 lbs Capacity, 3-Fold Full Extension, Ball Bearing Lock-in & Lock-Out, Side Mount
56 inch
VEVOR heavy-duty drawer slides in red tool chest with various hand tools.

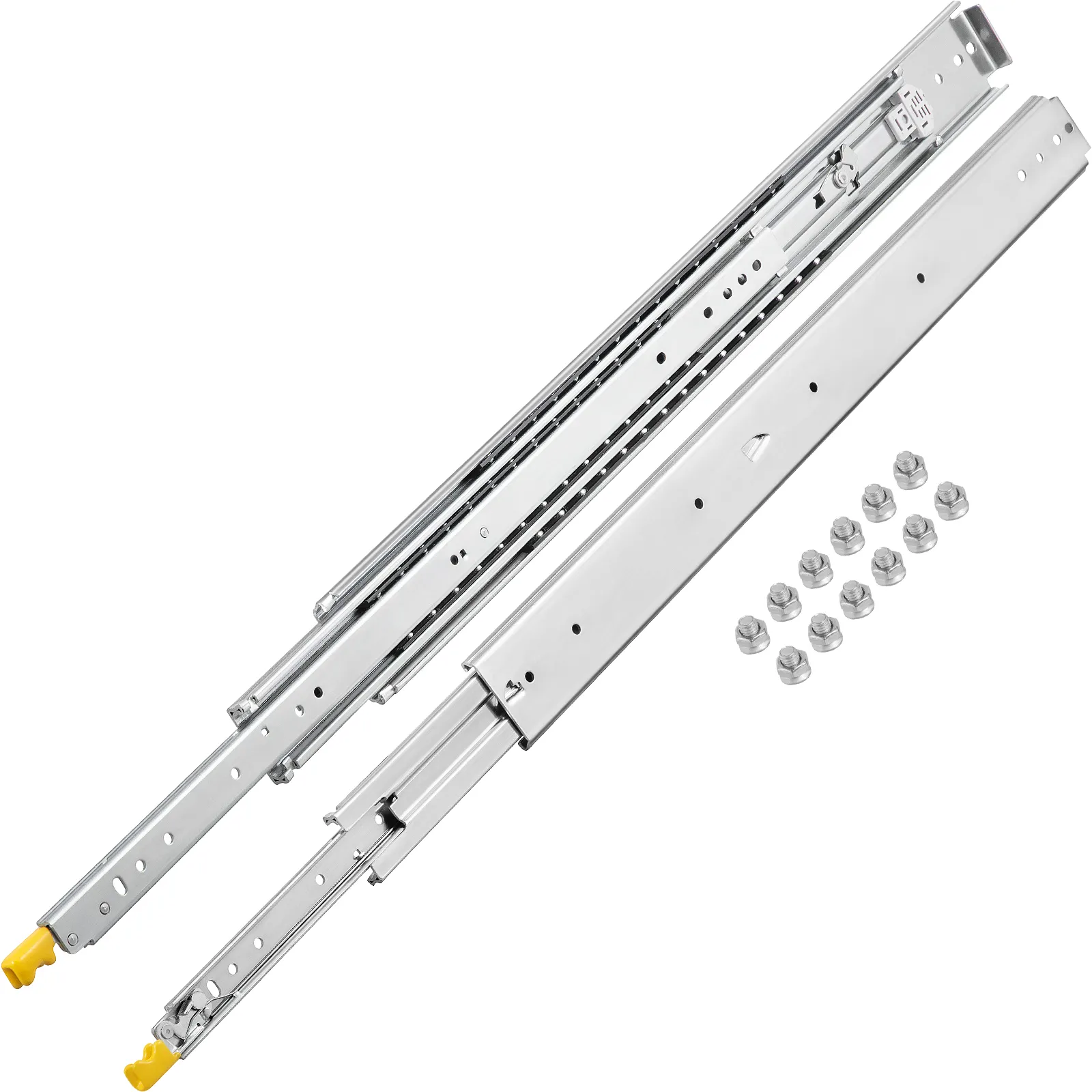

VEVOR heavy-duty drawer slides with mounting screws, set of two with yellow release levers.
Full Extension Slide Drawers
Low Noise & Smooth Slide & with Dual Lock
Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don't have to worry about replacing it over time. A detailed guide and handy screws make assembly simple. Our slide drawers can be used universally in cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.
  • Three-Section Drawer Slides
  • Sturdy Steel & 500 lbs Bearing
  • Softly & Quietly Slide with Lock
  • Choose the Right Size
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

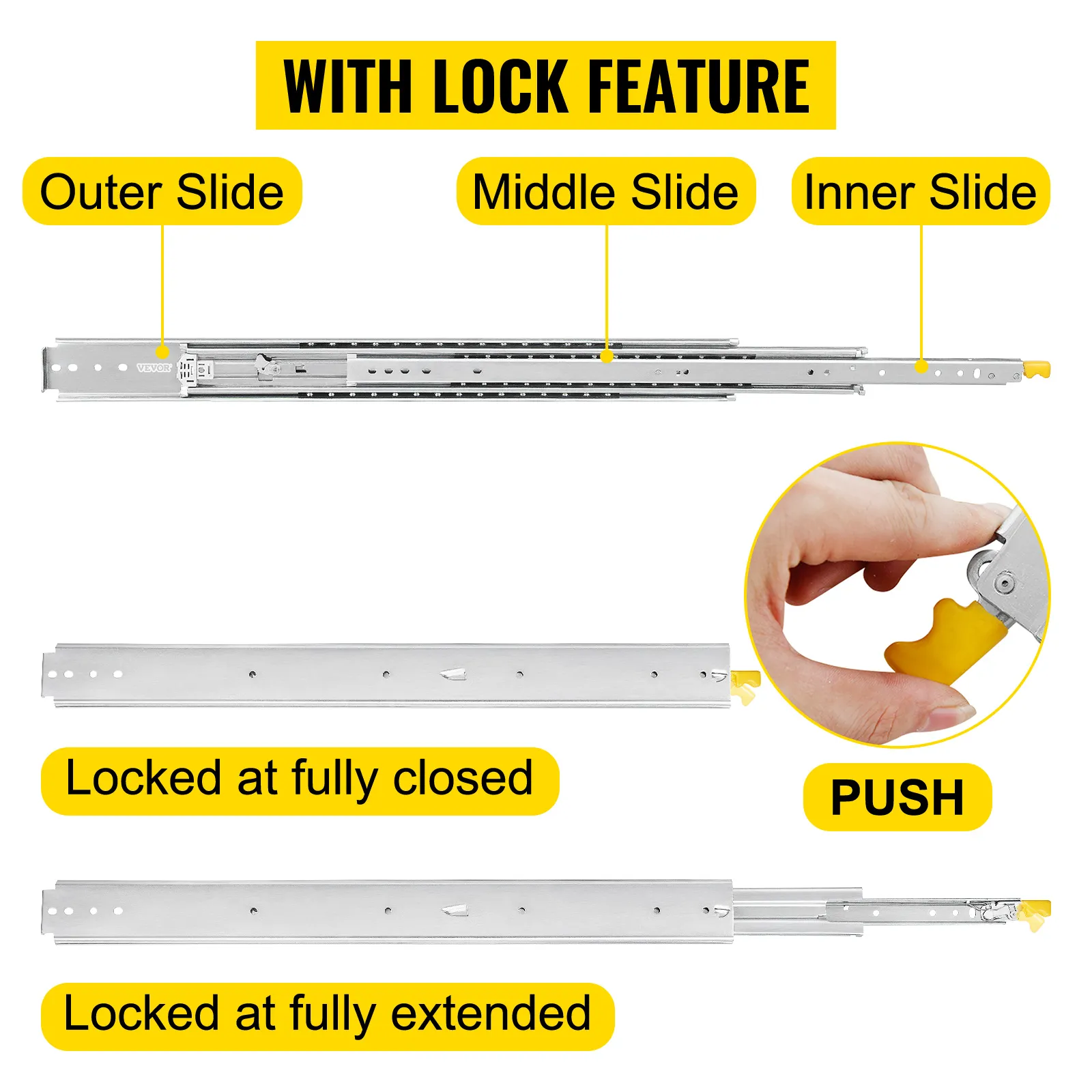

VEVOR heavy-duty drawer slides with lock mechanism, at fully closed and extended states.
with Lock Function
Inner slide, middle slide, and outer slide are included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.

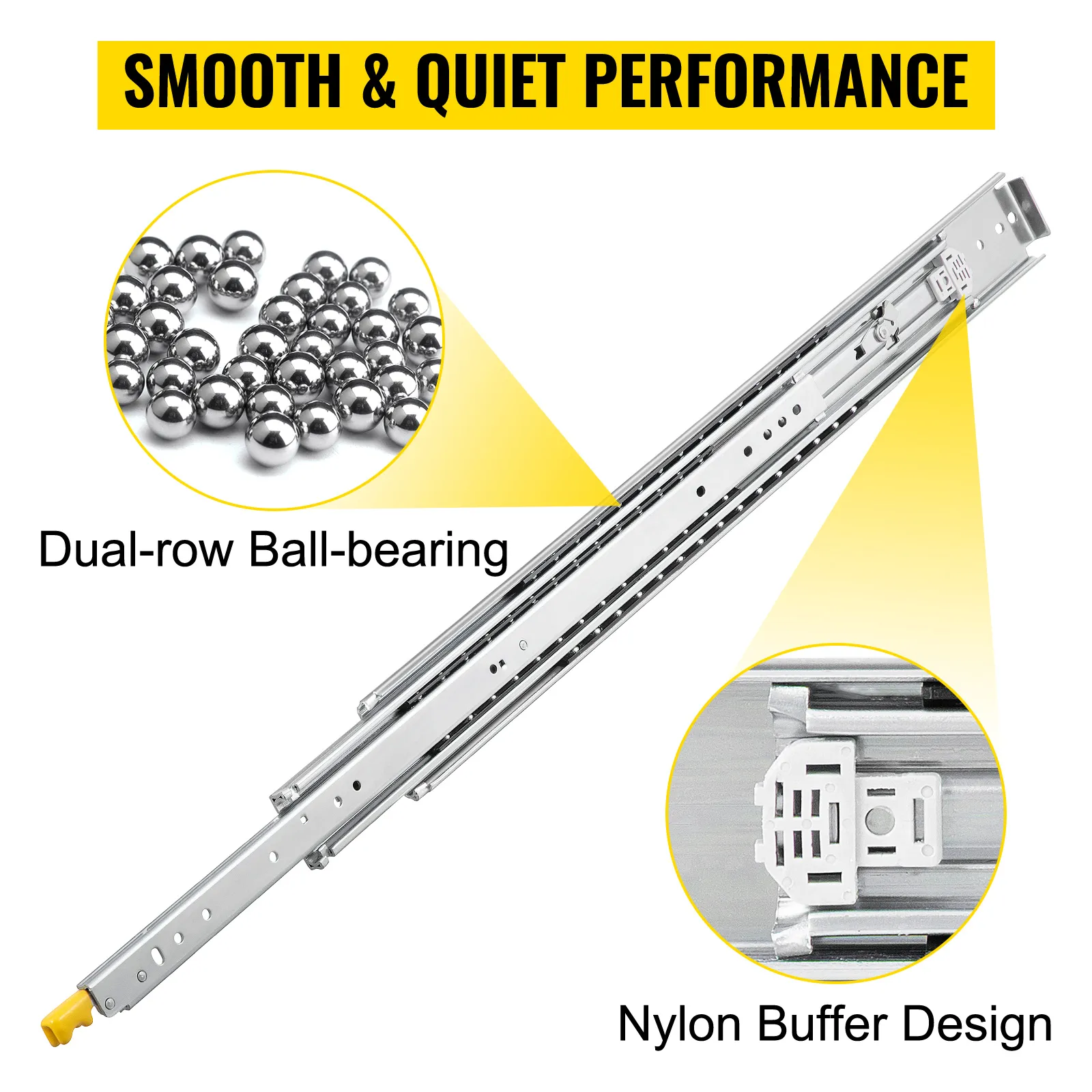

VEVOR heavy-duty drawer slides with dual-row ball-bearings and nylon buffer design.
Quiet Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.
cold-rolled steel VEVOR heavy-duty drawer slides with 500 lbs load capacity.
Cold Rolled Steel
High-grade cold-rolled steel with the zinc-plated finish can effectively prevent the drawer rail from scratches, deformation, and rust.

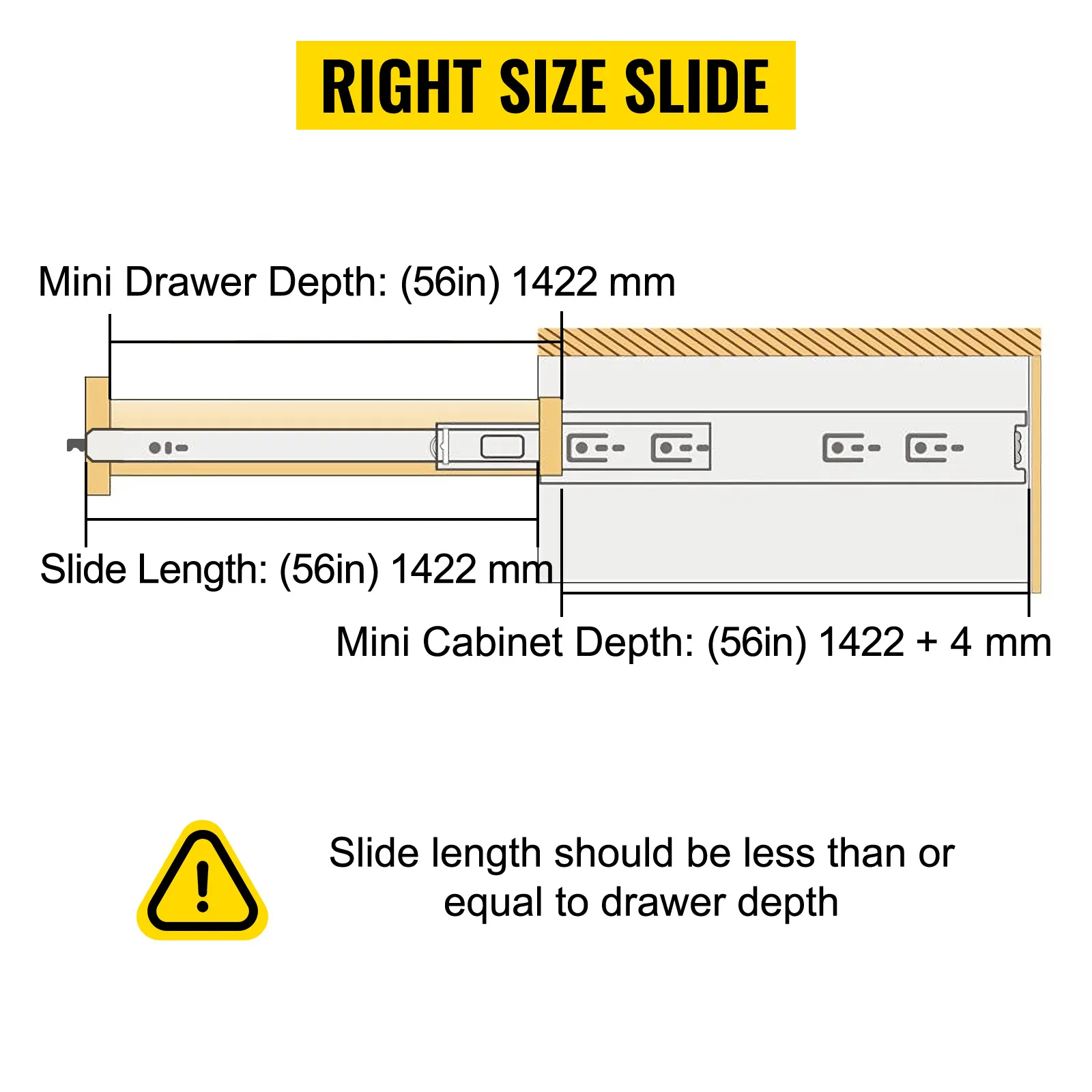

right size for VEVOR heavy-duty drawer slides; slide length matches drawer depth.
Right Size Table
Please refer to the above guide for choosing the right size of drawer slides. The length of slides can't be longer than the cabinet case depth.

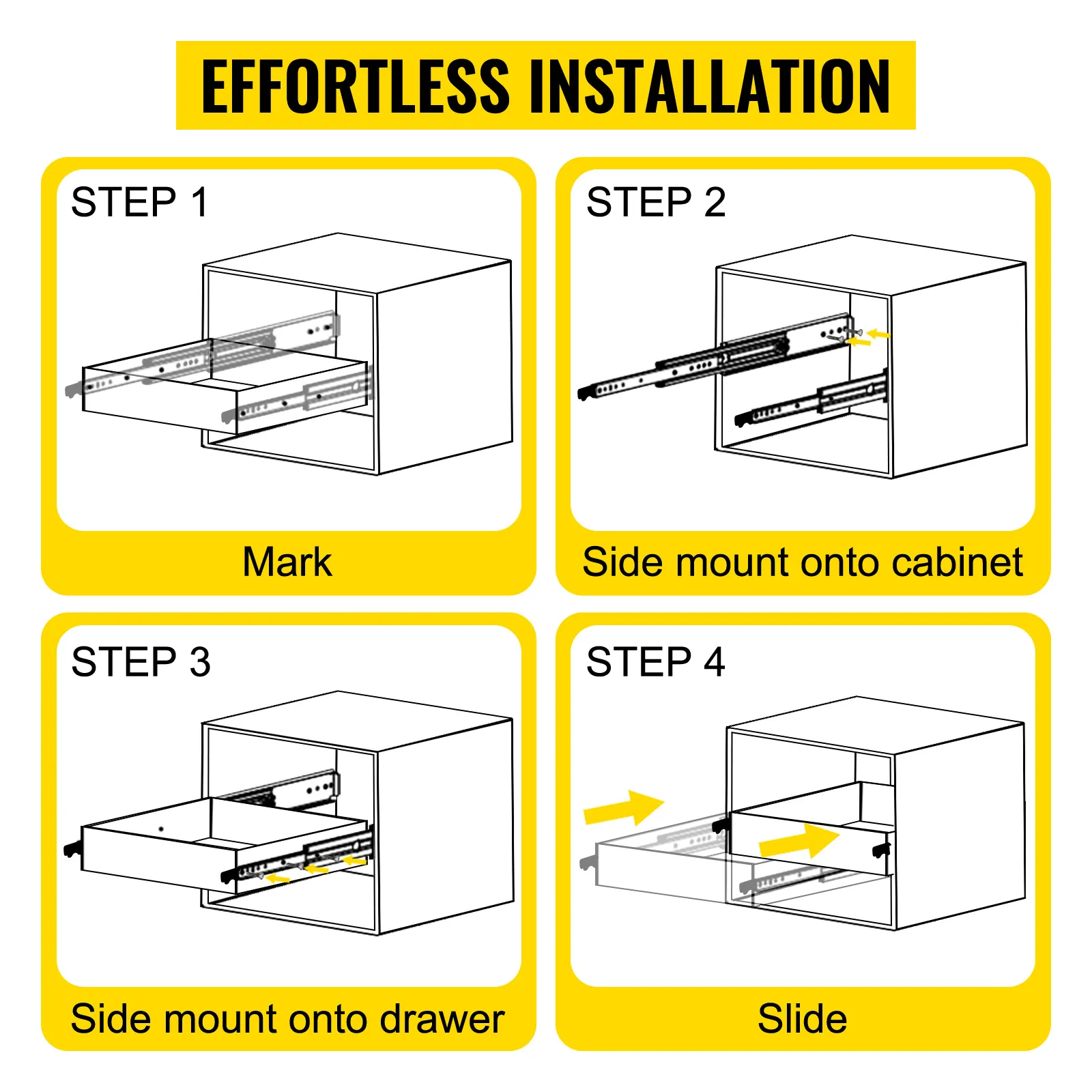

effortless installation steps for VEVOR heavy-duty drawer slides.
Easy & Quick Assemble
In the process of installation, it would be better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.

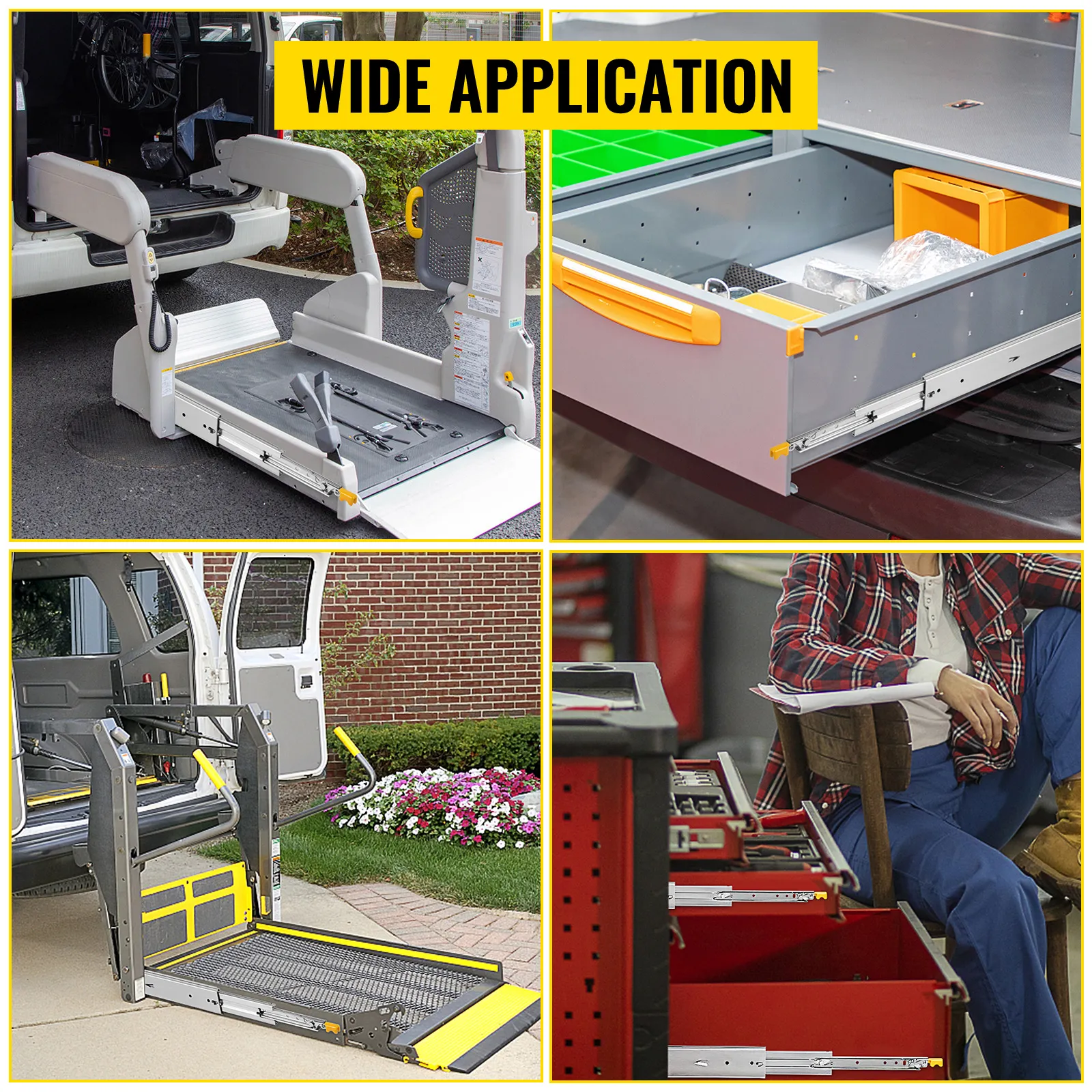

various uses of VEVOR heavy-duty drawer slides in vehicles and workshops.
Extensive Usage
The side mount drawer slides are for various applications: goods shelf, cabinet, industrial used drawer, RV, truck, vending machine, etc.

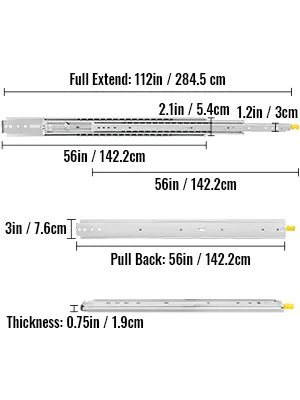

VEVOR heavy-duty drawer slides dimensions: fully extended 112in, pulled back 56in.
Specifications
  • Model: VV-SJTTDGDS-56IN
  • Color: Sliver
  • Material: Cold Rolled Steel
  • Finish: Zinc Plated
  • Amount: 1 Pack(2 PCs)
  • Load Capacity: 500 lbs/ 227 kg
  • Fully Pull-Out Length: 112"/ 284.5 cm
  • Fold Product Size: 56" x 3" x 0.75"/ 142.2 x 7.6 x 1.9 cm
  • Inner Size (L x W): 56" x 1.2"/ 142.2 x 3 cm
  • Middle Size (L x W): 56" x 2.1"/ 142.2 x 5.4 cm
  • Outer Size (L x W): 56" x 3"/ 142.2x 7.6 cm
  • Slide Lock: Support

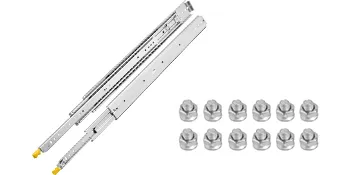

VEVOR heavy-duty drawer slides with mounting hardware.
Package Content
  • 2 x Drawer Slides
  • 12 x M5 Screws
  • 12 x M5 Screw Nuts
VEVOR heavy-duty drawer slides in red tool chest with various hand tools.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR heavy-duty drawer slides with mounting screws, set of two with yellow release levers.
Full Extension Slide Drawers
Low Noise & Smooth Slide & with Dual Lock
Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don't have to worry about replacing it over time. A detailed guide and handy screws make assembly simple. Our slide drawers can be used universally in cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.
  • Three-Section Drawer Slides
  • Sturdy Steel & 500 lbs Bearing
  • Softly & Quietly Slide with Lock
  • Choose the Right Size
VEVOR heavy-duty drawer slides with lock mechanism, at fully closed and extended states.
with Lock Function
Inner slide, middle slide, and outer slide are included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.
VEVOR heavy-duty drawer slides with dual-row ball-bearings and nylon buffer design.
Quiet Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.
cold-rolled steel VEVOR heavy-duty drawer slides with 500 lbs load capacity.
Cold Rolled Steel
High-grade cold-rolled steel with the zinc-plated finish can effectively prevent the drawer rail from scratches, deformation, and rust.
right size for VEVOR heavy-duty drawer slides; slide length matches drawer depth.
Right Size Table
Please refer to the above guide for choosing the right size of drawer slides. The length of slides can't be longer than the cabinet case depth.
effortless installation steps for VEVOR heavy-duty drawer slides.
Easy & Quick Assemble
In the process of installation, it would be better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.
various uses of VEVOR heavy-duty drawer slides in vehicles and workshops.
Extensive Usage
The side mount drawer slides are for various applications: goods shelf, cabinet, industrial used drawer, RV, truck, vending machine, etc.
VEVOR heavy-duty drawer slides with mounting hardware.
Package Content
  • 2 x Drawer Slides
  • 12 x M5 Screws
  • 12 x M5 Screw Nuts
VEVOR heavy-duty drawer slides dimensions: fully extended 112in, pulled back 56in.
Specifications
  • Model: VV-SJTTDGDS-56IN
  • Color: Sliver
  • Material: Cold Rolled Steel
  • Finish: Zinc Plated
  • Amount: 1 Pack(2 PCs)
  • Load Capacity: 500 lbs/ 227 kg
  • Fully Pull-Out Length: 112"/ 284.5 cm
  • Fold Product Size: 56" x 3" x 0.75"/ 142.2 x 7.6 x 1.9 cm
  • Inner Size (L x W): 56" x 1.2"/ 142.2 x 3 cm
  • Middle Size (L x W): 56" x 2.1"/ 142.2 x 5.4 cm
  • Outer Size (L x W): 56" x 3"/ 142.2x 7.6 cm
  • Slide Lock: Support

Drawer Slides with Lock for Enhanced Security and Control

The VEVOR drawer slides with lock have a strong locking mechanism. This ensures that your drawers stay in place when not in use. The lock-in and lock-out features provide added security. It is especially useful for heavy-duty applications or mobile setups like RVs. You can trust these slides to keep your items secure. These locks are easy to engage and disengage, making usage convenient. Also, the locking feature prevents unwanted movement during transit or in dynamic environments. Therefore, these slides are ideal for various industrial and commercial applications. They provide peace of mind by ensuring the safety and stability of your content. All locks are built to last, ensuring long-term reliability and performance.


Heavy-Duty Drawer Slides with High Load Capacity

These are some of the reasons why you should use these drawer slides for a variety of applications. Cold-rolled steel serves as their construction material, and their design allows them to support loads up to 500 lbs. This makes them ideal for heavy-duty applications, too. Whether you're using them in industrial settings or for DIY projects, they provide reliable support. The strong construction ensures durability and longevity. They can be used to store large drawers, toolboxes, and so on. They have a high load capacity, so you don't have to worry about the weight of your contents. These slides can handle it all with ease. They are also a versatile choice for various applications. Because of their strength and reliability, this makes them incredibly valuable.


56 inch Drawer Slides with Full Extension for Easy Access

The full extension of 112 inches allows you to extend the drawer for easy access to its contents fully. The full extension is especially useful for big drawers. It ensures that you are able to reach every part of the storage system without any trouble. This is beneficial for storage solutions in kitchens, workshops, or offices. Also, the full extension makes organizing and managing your items easier. Everything is visible and accessible without any obstructions. This feature enhances the usability and convenience of your storage systems! It's great for any project that requires full access.


Ball Bearing Drawer Slides for Smooth Operation

Ball bearings: These drawer slides come with ball bearings. This ensures smooth and quiet operation every time. The ball bearings reduce friction. This makes it easy to open and close the drawers. This smooth operation is beneficial for both residential and commercial use. They enhance user experience while also making daily tasks easier. Additionally, the ball bearings contribute to the durability of the slide designs. They ensure that the slides operate smoothly even after repeated use, making them a reliable choice for long-term applications. The smooth operation also reduces wear and tear, which extends the life of the slides.


Side Mount Drawer Slides for Versatile Installation

Whether you're installing them in cabinets, toolboxes, or custom projects, the side mount design simplifies installation. The installation is easy and can be done with minimal effort. This makes them a great choice for DIY enthusiasts and professionals alike. There are also side-mounting designs that ensure stability and reliability in different setups.


Robust Construction with Zinc Plated Finish for Durability

These drawer slides are made from high-quality cold rolled steel. This ensures that they are strong and durable. The zinc-plated finish provides additional protection against rust and corrosion. This makes them suitable for use in harsh environments. No matter if you're using them indoors or outdoors, they can withstand wear and tear. Durable construction ensures the slides stay effective over time. So, it is a reliable choice for long-term applications. The zinc plating also enhances the aesthetic appeal of the slide. You get a sleek look, and the professional design makes them ideal for various settings too.


Ideal for Various Applications Including RVs, Toolboxes, and Kitchen Drawers

These drawer slides are so versatile that you can use them in a wide range of applications. They are perfect for RVs, toolboxes, and kitchen drawers. Their high load capacity and smooth operation make them suitable for heavy-duty setups. You can work on them in industrial environments, workshops, or home projects. The locking mechanism ensures security and allows it to fit large drawers with easy access to contents. This makes them ideal for mobile setup systems, such as RVs. With their strong construction and durability, they can meet the demands of various uses, ensuring long-term performance and satisfaction.


See More

Specification

Model
VV-SJTTDGDS-56IN
Color
Sliver
Material
Cold Rolled Steel
Finish
Zinc Plated
Amount
1 Pack(2 PCs)
Load Capacity
500 lbs/ 227 kg
Fully Pull-Out Length
112"/ 284.5 cm
Fold Product Size
56" x 3" x 0.75"/ 142.2 x 7.6 x 1.9 cm
Inner Size (L x W)
56" x 1.2"/ 142.2 x 3 cm
Middle Size (L x W)
56" x 2.1"/ 142.2 x 5.4 cm
Outer Size (L x W)
56" x 3"/ 142.2x 7.6 cm
Slide Lock
Support
