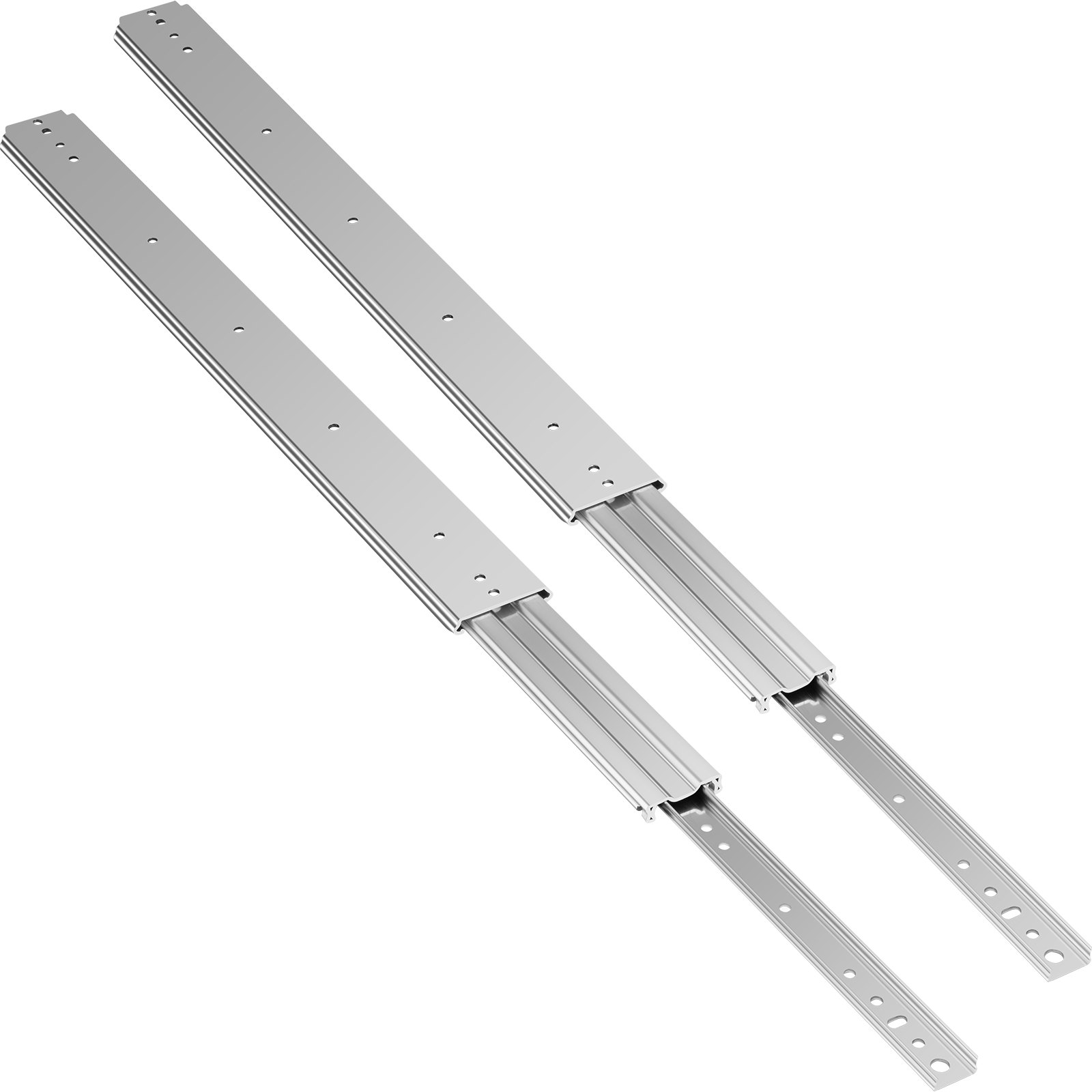

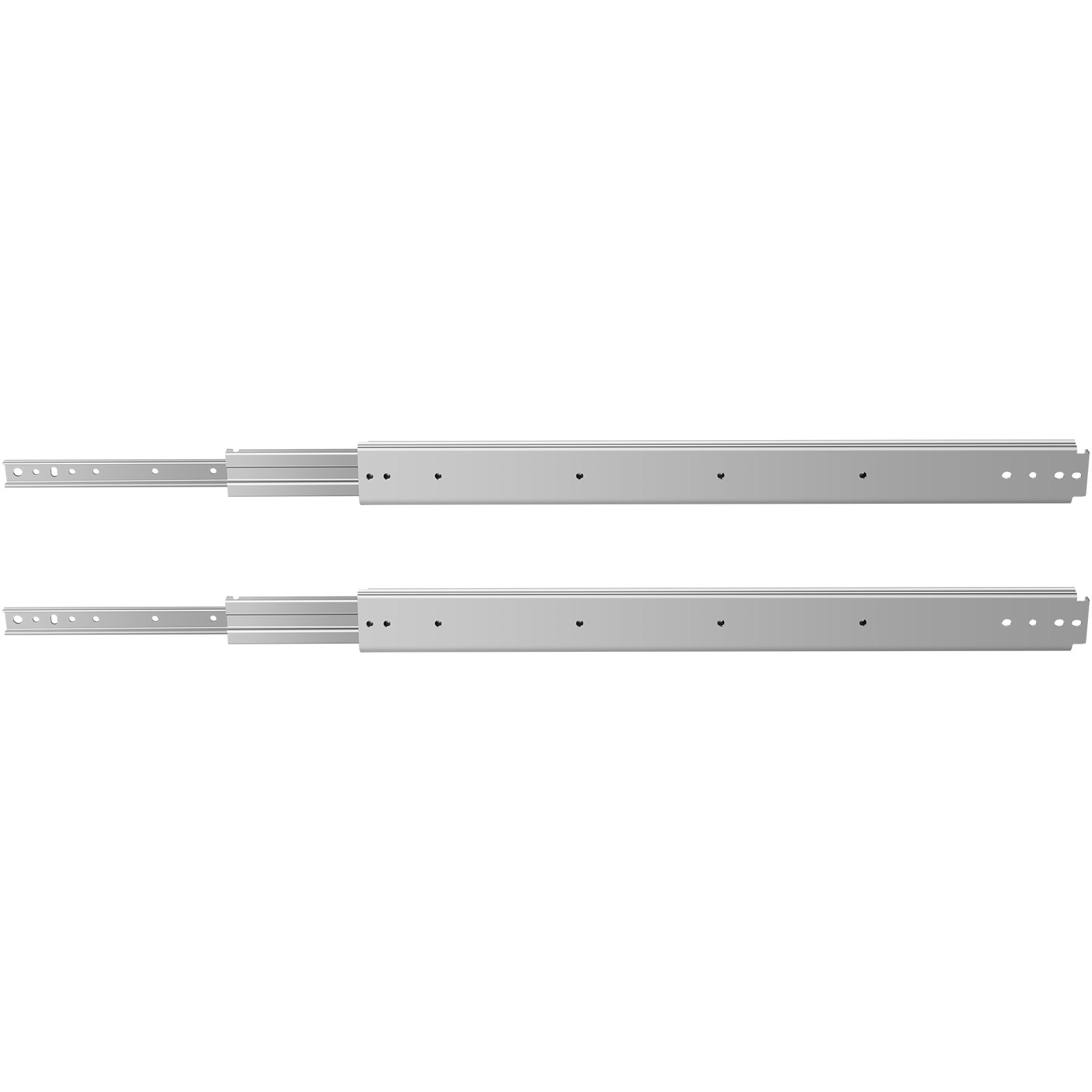

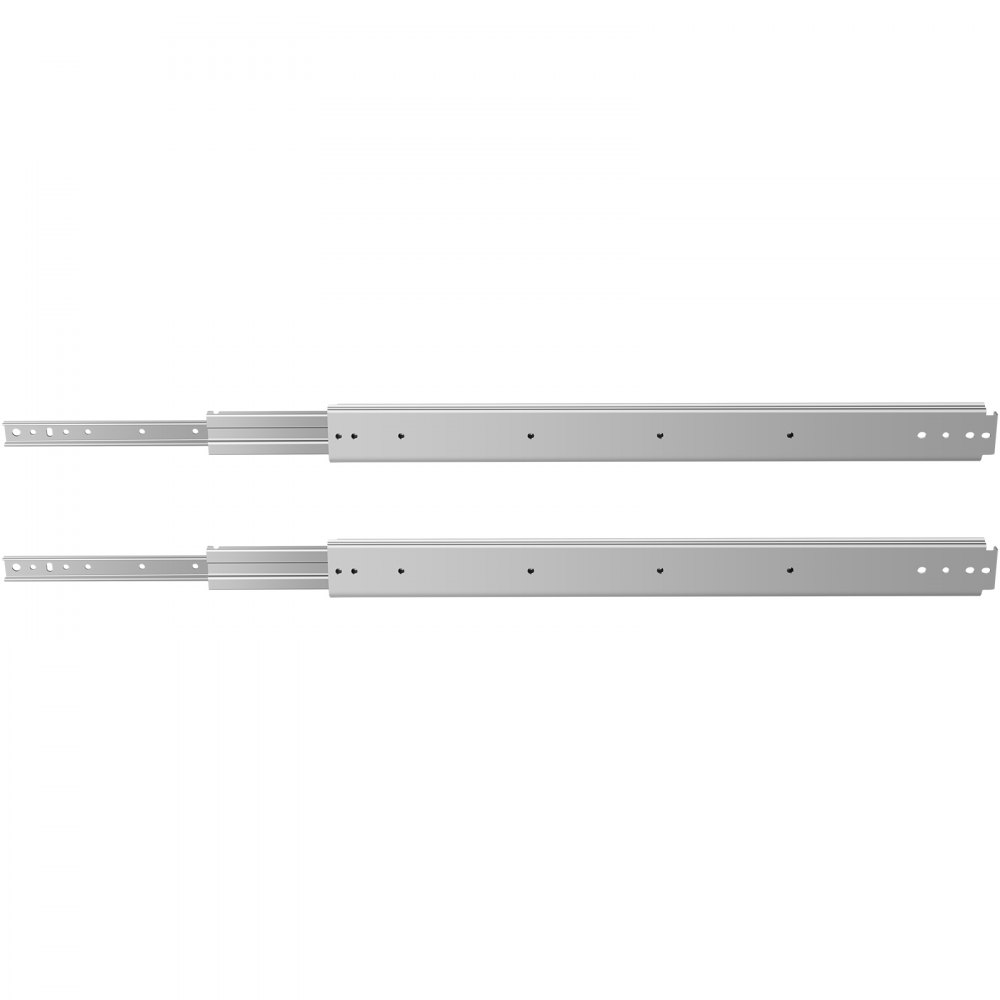

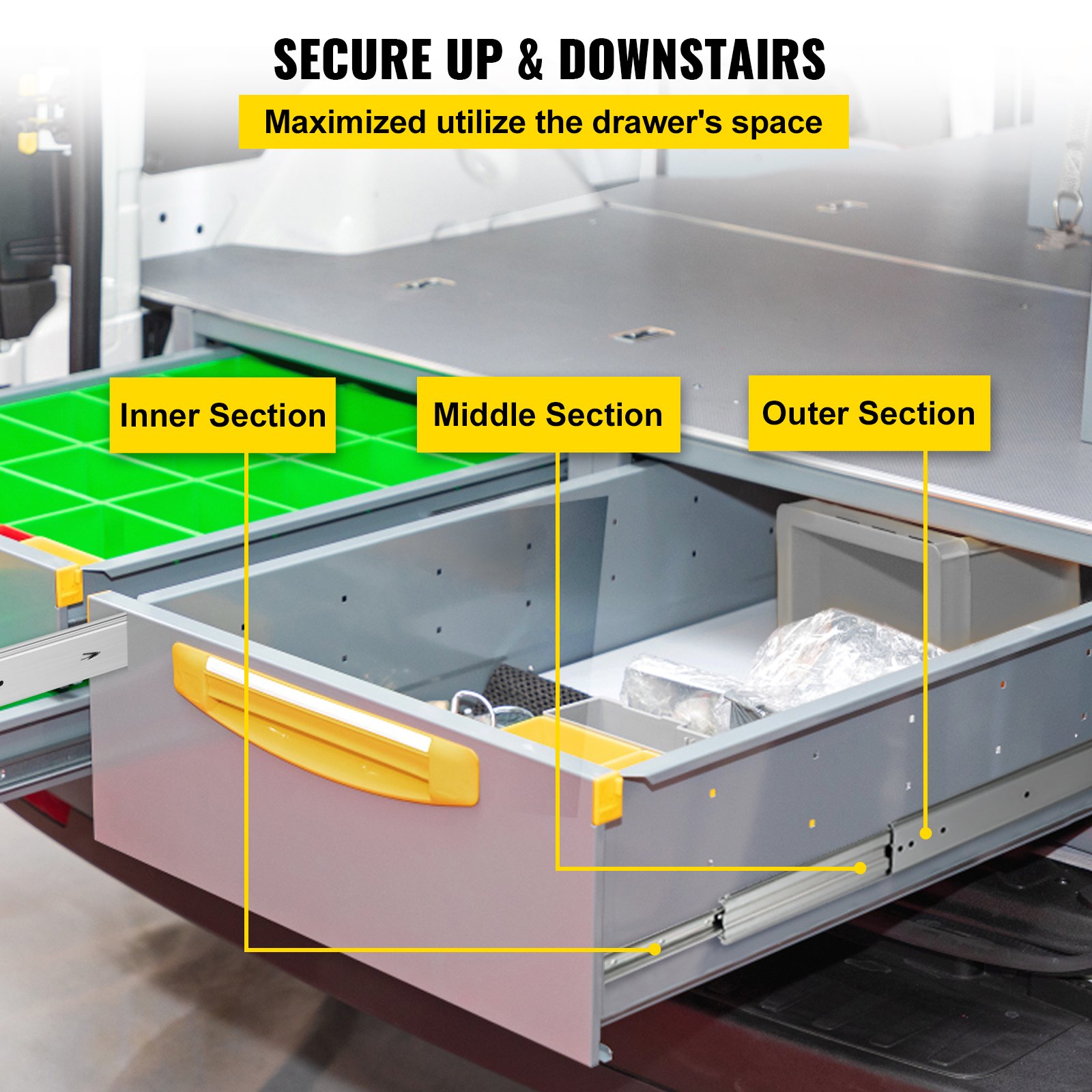

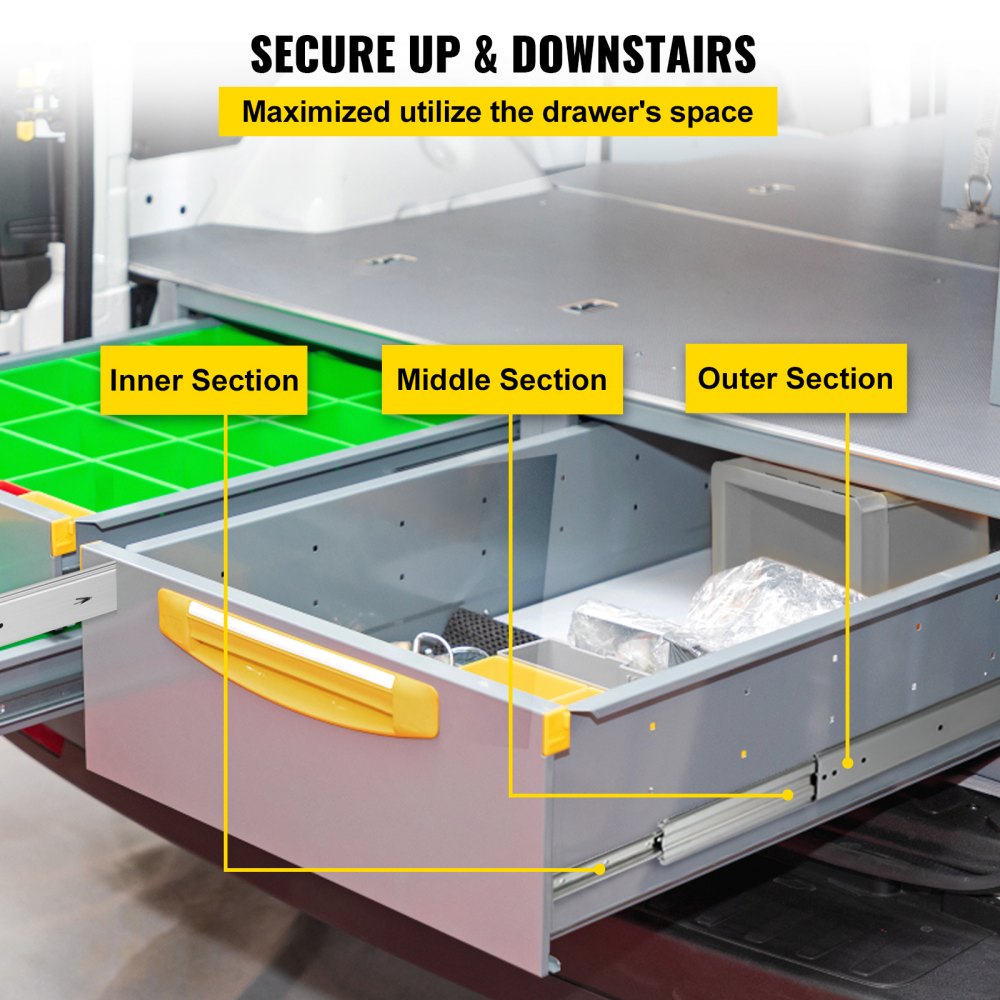

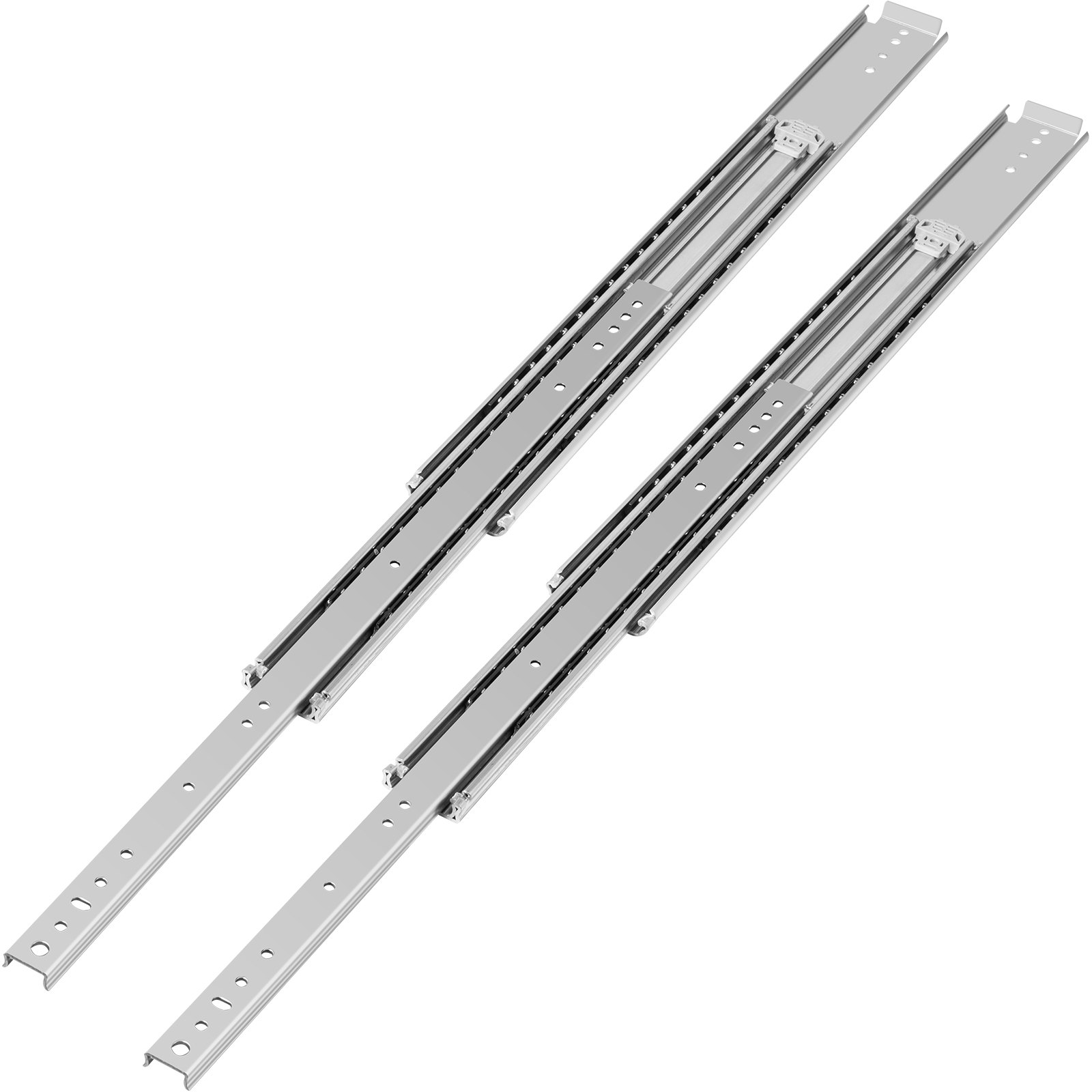

VEVOR drawer slides with mounting screws displayed on a white background. VEVOR drawer slides with labeled inner, middle, and outer sections for maximized space usage. cold-rolled steel drawer with VEVOR drawer slides, scratch-proof, non-corrosive, high rigidity. VEVOR drawer slides with steel ball-bearing, nylon buffer; smooth, low-noise operation. VEVOR drawer slides installation guide for mini cabinets and drawers. side-mounted VEVOR drawer slides installation steps and final appearance in tool drawer.
CTDGBYCW500342RPVV0

VEVOR Drawer Slides, 1 Pair 34 Inch Soft Close Drawer Slides, Ball Bearing Side Mount Drawer Hardware Slides, 500 LBS Load Capacity 3-Section Full Extension Drawer Slides for Smooth Slide, Less Noise

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive £5.00 off for your first three orders on the App.
Download Now
Exclusive £5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • Three-Section Slides: 1 pair of 34"/ 86.36 cm in length, 3"/ 7.6 cm in width, 0.75"/ 1.9 cm in thickness. The fold and full extension drawer slides consist of three sections and can be fully pulled out to utilize the drawer's space (Actual size 34", extended size 68"/ 172.72 cm). And the slide drawers are also designed to ensure your drawers smoothly pushing and pulling.
  • Steel & 500 lbs Bearing: The heavy-duty drawer slides are constructed with thick cold rolled steel (CRS) plates for a strong bearing capacity of 500 lbs. Therefore, they are tough enough to bear the heavy wooden or iron things you need. In addition, zinc is plated on the surface to stay rust-proof, abrasion-proof for long-term service.
  • Smooth & Quite to Slide: Drawer hardware slides are equipped with ball-bearing action to create a quiet environment for your family and work. The row of balls on the two sides of sliding and the nylon buffer design on the second section, which aim to make less noise and friction at closing and open the drawer.
  • Choose the Right Size: How to choose the right size of slides for your drawer? Install distance (each side): 0.76"/19.5 mm. Please measure the length of the drawer without the frame board at first. The length of slides should be less than or equal to drawer depth minus 4 mm.
  • Installation & Usage: The heavy-duty drawer slides can be installed on the side of the cabinet or machine parts. All included screws and bolts are easy and quick to install. They are mainly used for industrial, commercial equipment, factory machines, office, vehicle, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Drawer Slides, 1 Pair 34 Inch Soft Close Drawer Slides, Ball Bearing Side Mount Drawer Hardware Slides, 500 LBS Load Capacity 3-Section Full Extension Drawer Slides for Smooth Slide, Less Noise
VEVOR drawer slides for full extension, 500lbs bearing, quiet work, smooth slide.

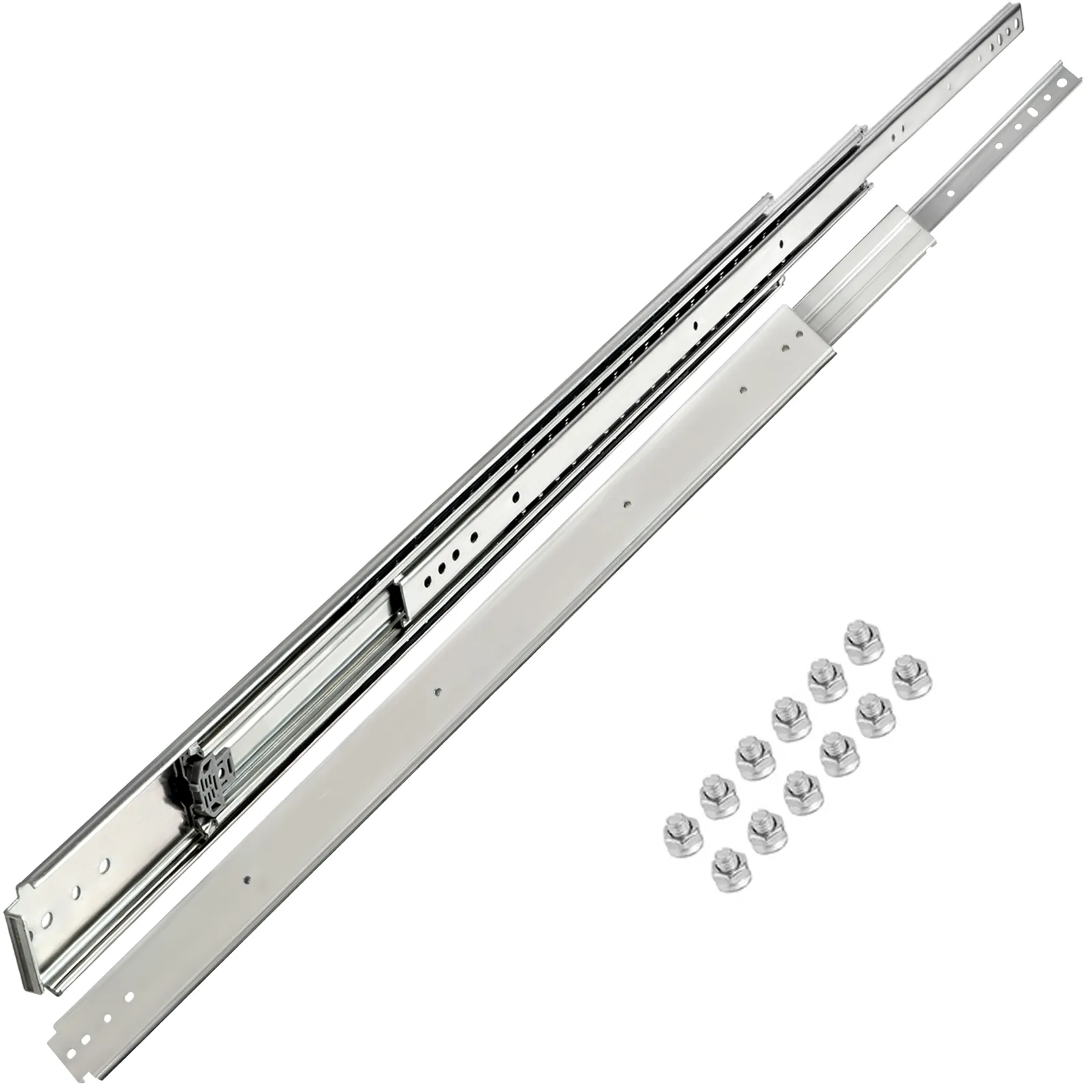

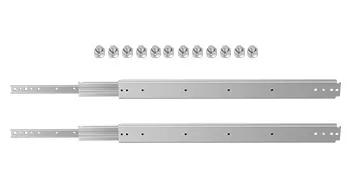

VEVOR drawer slides with mounting screws on a white background.
Full Extension Slide Drawers
The cold-rolled steel drawer slides are capable of high hardness with excellent stability and durability. In addition, you will be benefited from the ultra-secure, well-suited, and low-noise device with a detailed guide and handy screws. The universal places include cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.
  • Three-Section Slides
  • Steel & 500 lbs Bearing
  • Smooth & Quite to Slide
  • Choose the Right Size
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

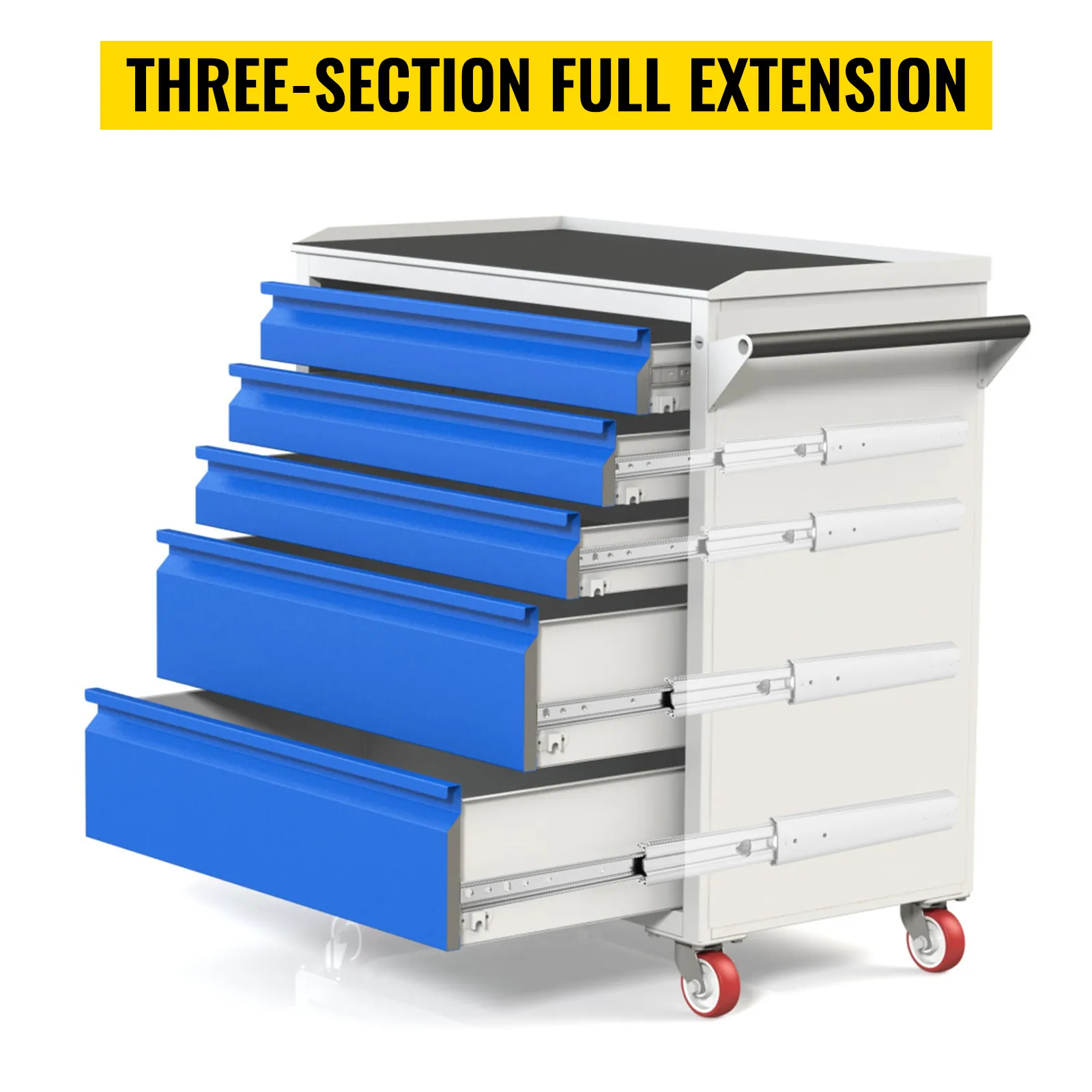

three-section tool cart with blue drawers and VEVOR drawer slides.
3-Fold Slide Drawers
Firstly, the drawers pull out the middle channels; the outer channel continues, and the inner channel lasts. The three-section slide drawers designs are for smooth slides.

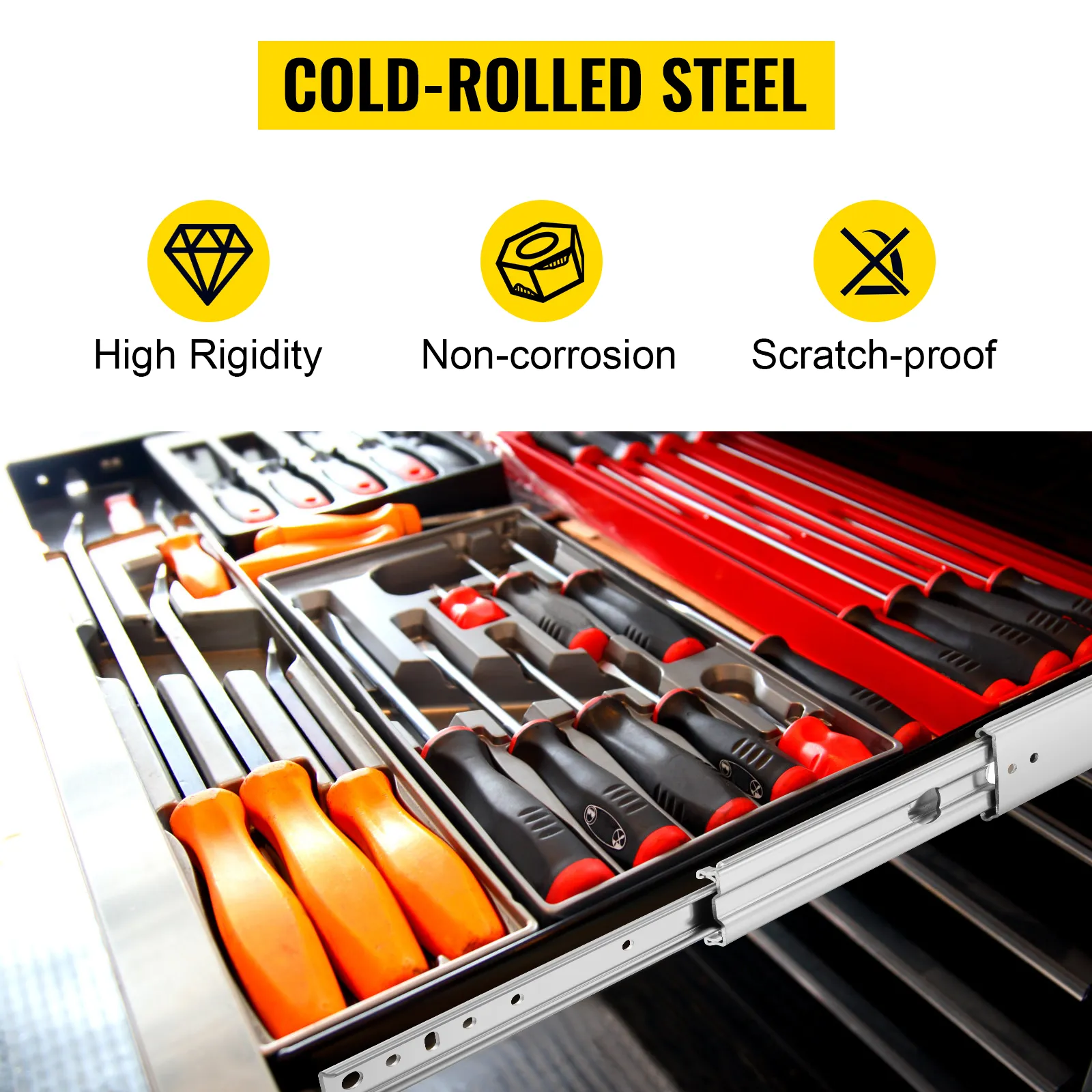

VEVOR drawer slides with tools in an organized drawer, highlighting cold-rolled steel features.
Cold Rolled Steel
Made from high-grade cold-rolled steel that is zinc plated can effectively keep the drawer glides and slides scratch-proof, abrasion-proof, and away from corrosion and rust.

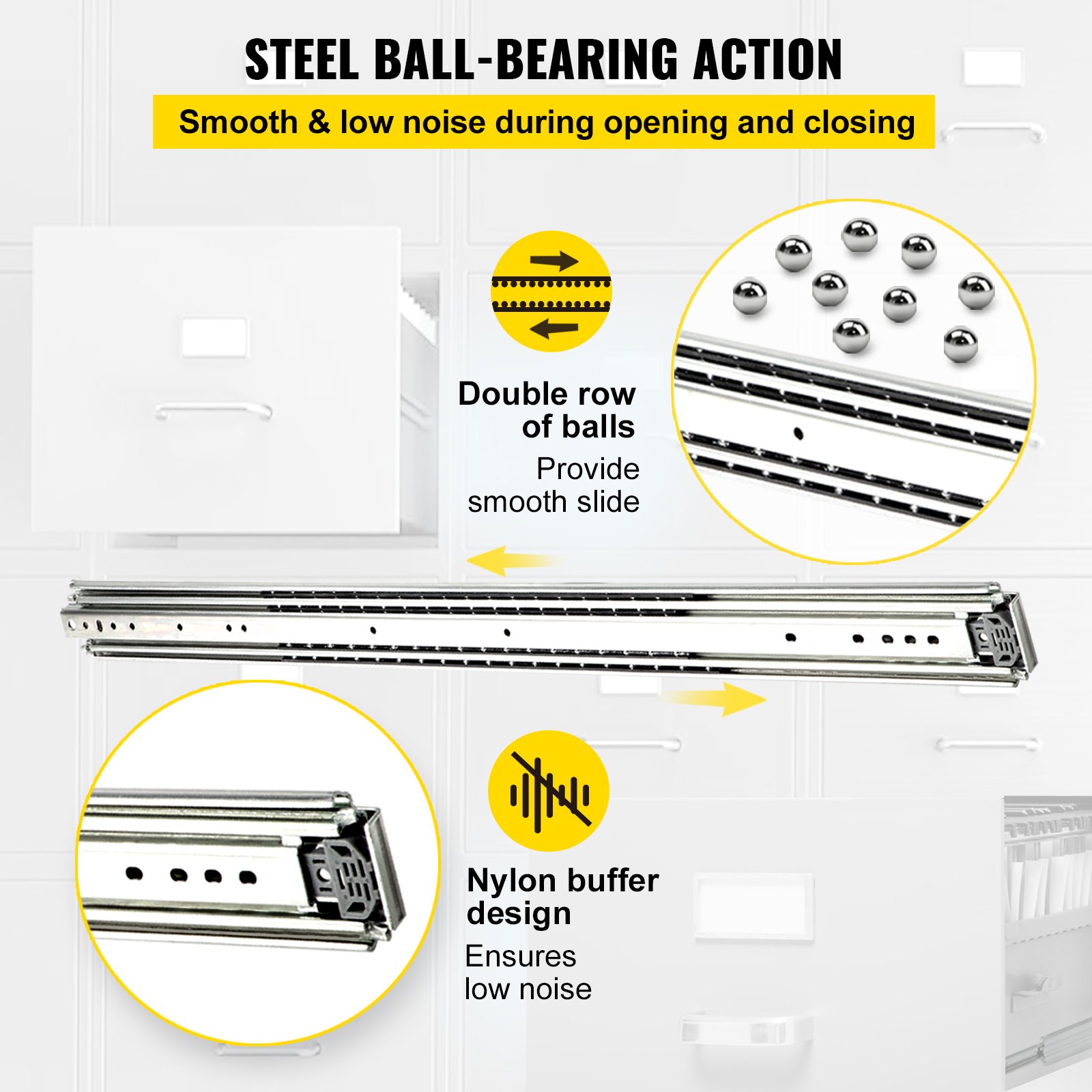

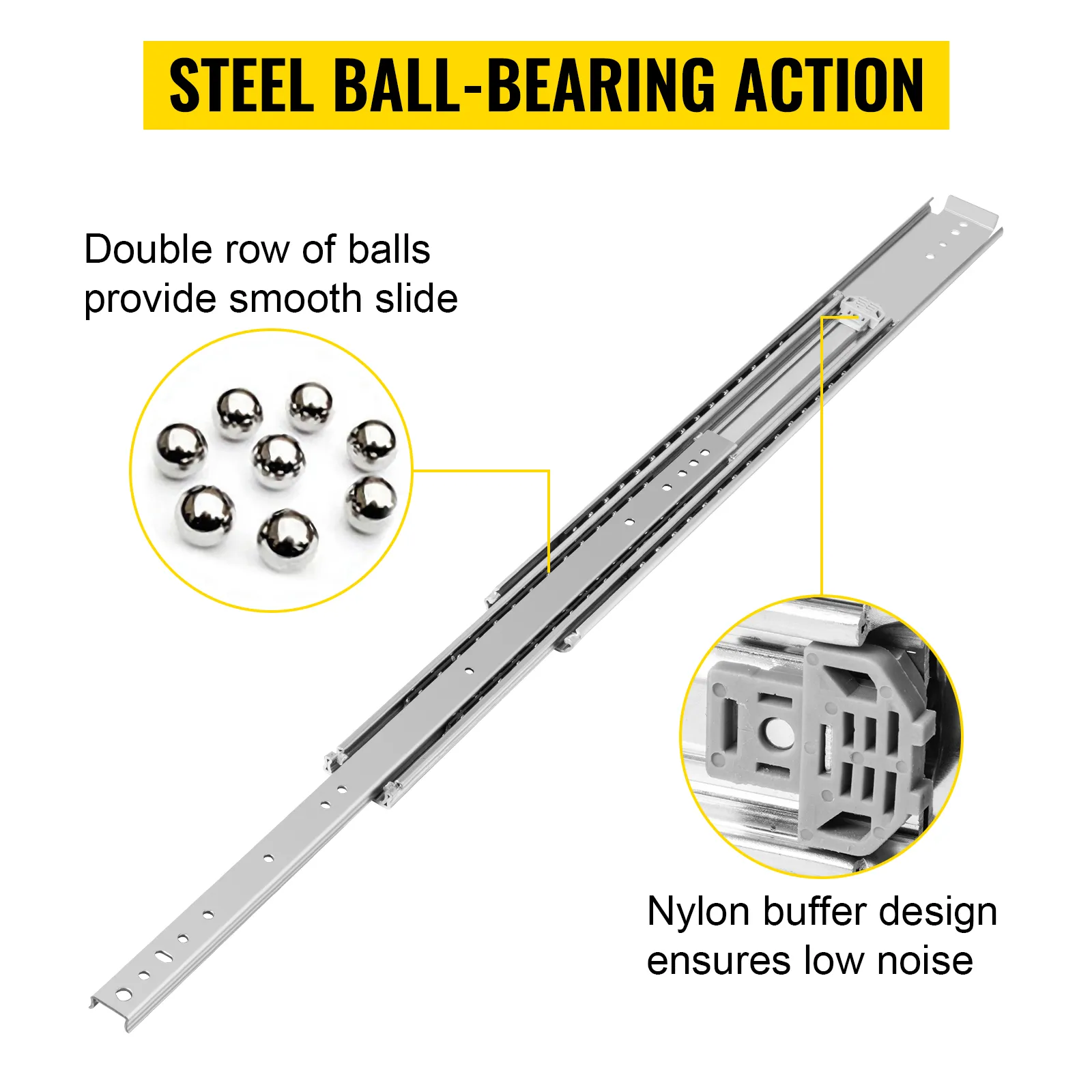

VEVOR drawer slides with steel ball-bearing action and nylon buffer for smooth, quiet use.
Low Noise Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. In addition, the embedded steel balls make the smooth sliding and quiet.

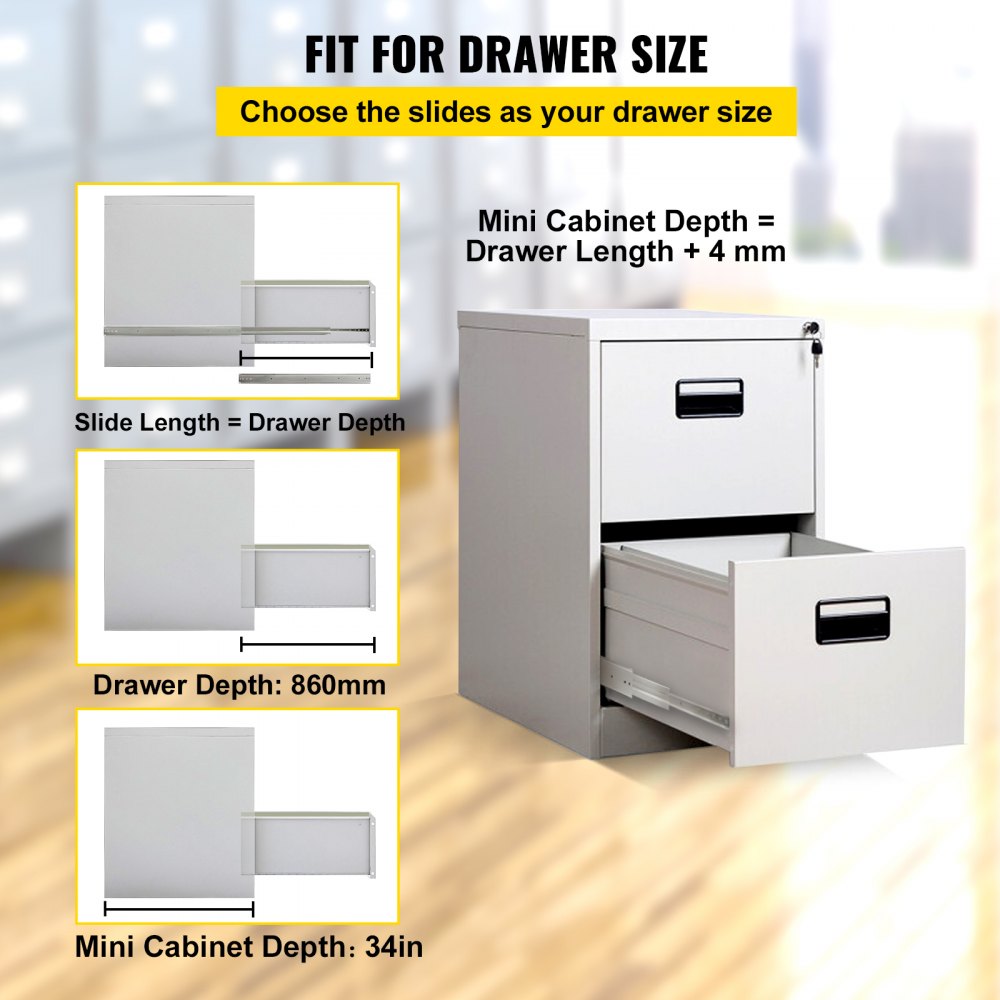

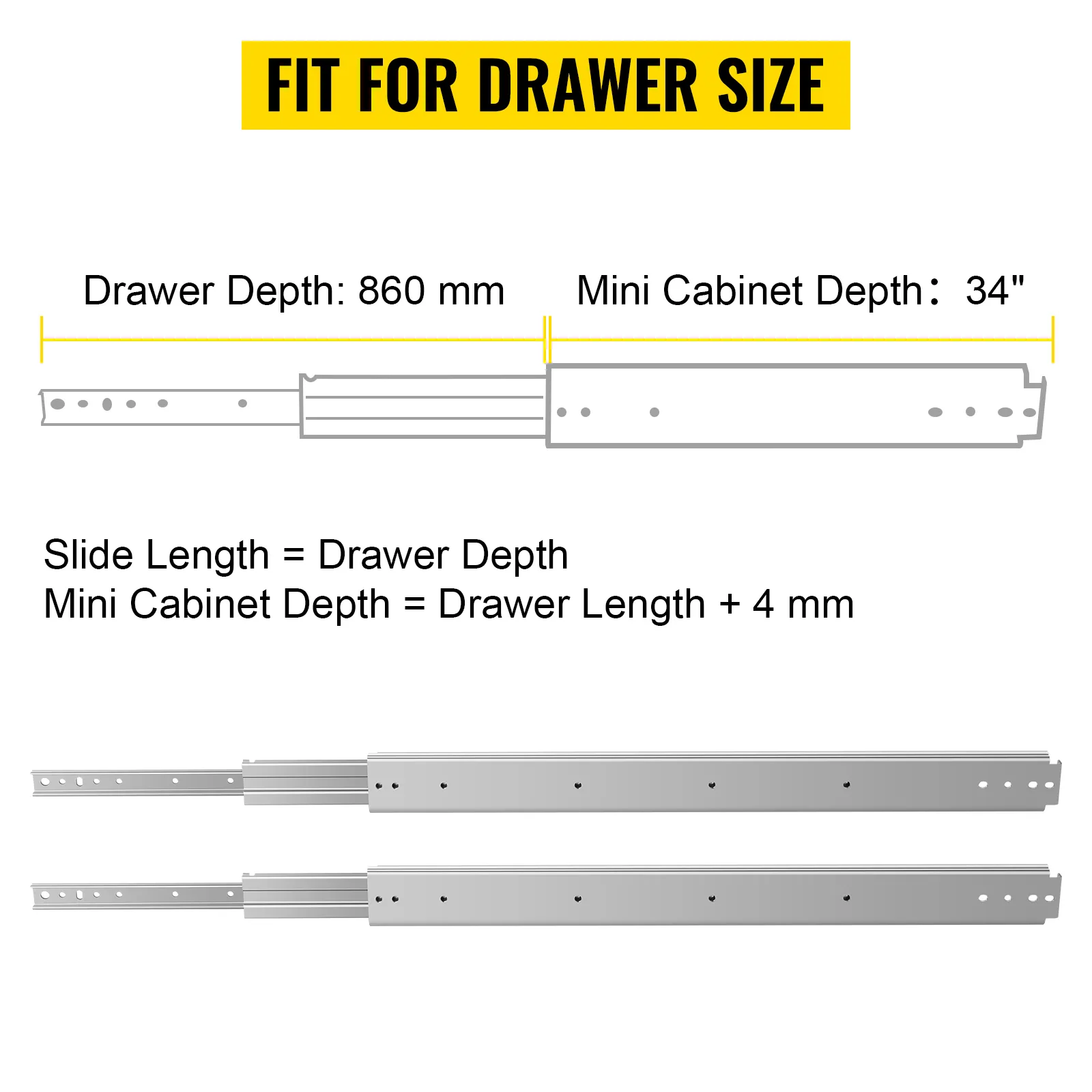

VEVOR drawer slides sizing guide highlighting drawer and mini cabinet depths.
Fit for Size
Slide length can be equal to drawer depth, and the minimized cabinet depth can be drawer length plus 4 mm. Please note that the side-mounted slide rails on both sides should be parallel.

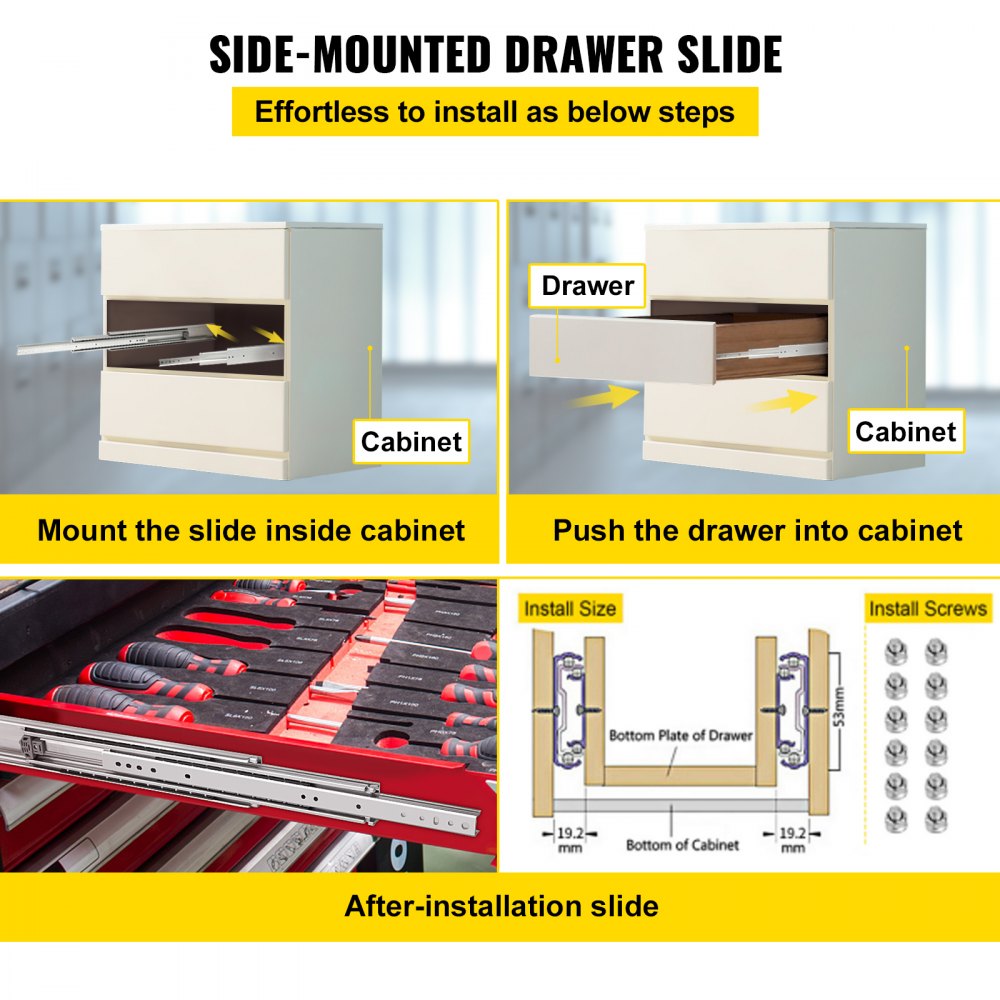

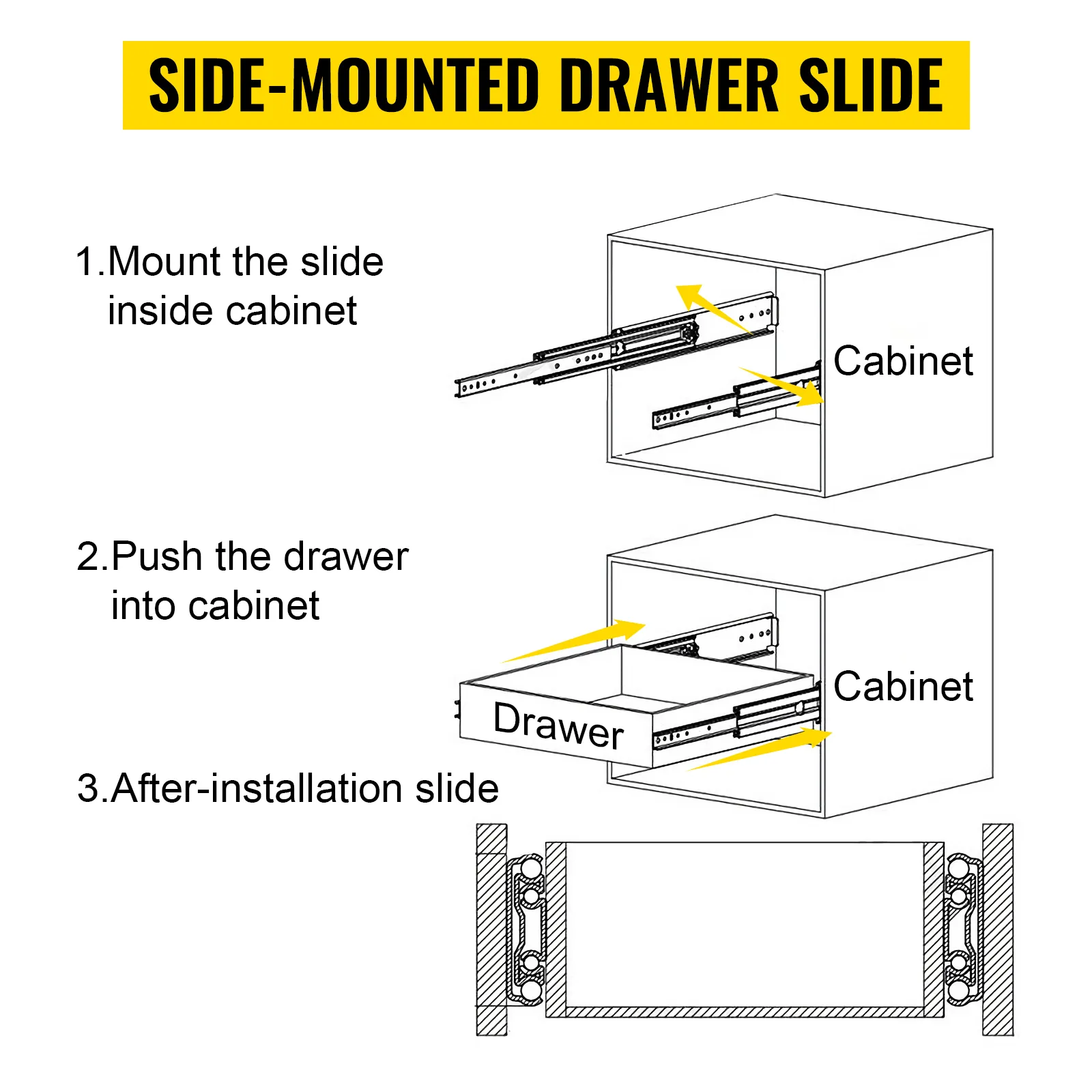

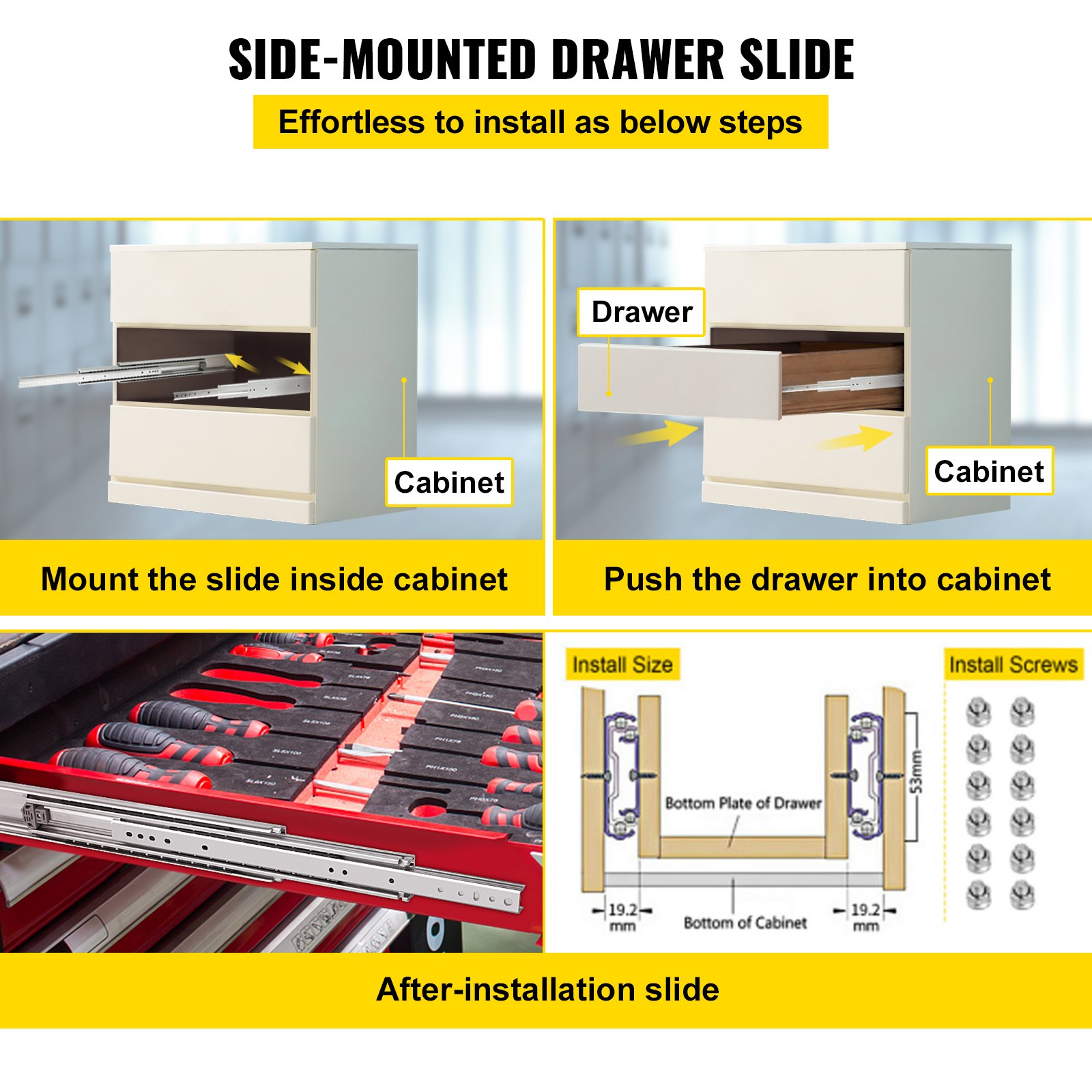

side-mounted drawer slide installation steps with VEVOR drawer slides.
Easy & Quick Assemble
It would be better to tighten the bolt between the side and the drawer from outside to inside. Then, the drawer and cabinet from inside to outside.
VEVOR drawer slides used in warehouse containers, industrial drawers, commercial equipment, and retrofitted vehicles.
Wide Application
The wood center mount drawer slides are suitable for the following places, such as industrial drawers, modified car drawers, office cabinets, tool rooms, etc.

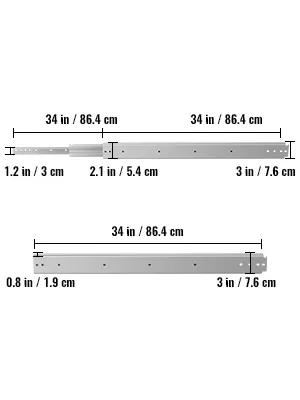

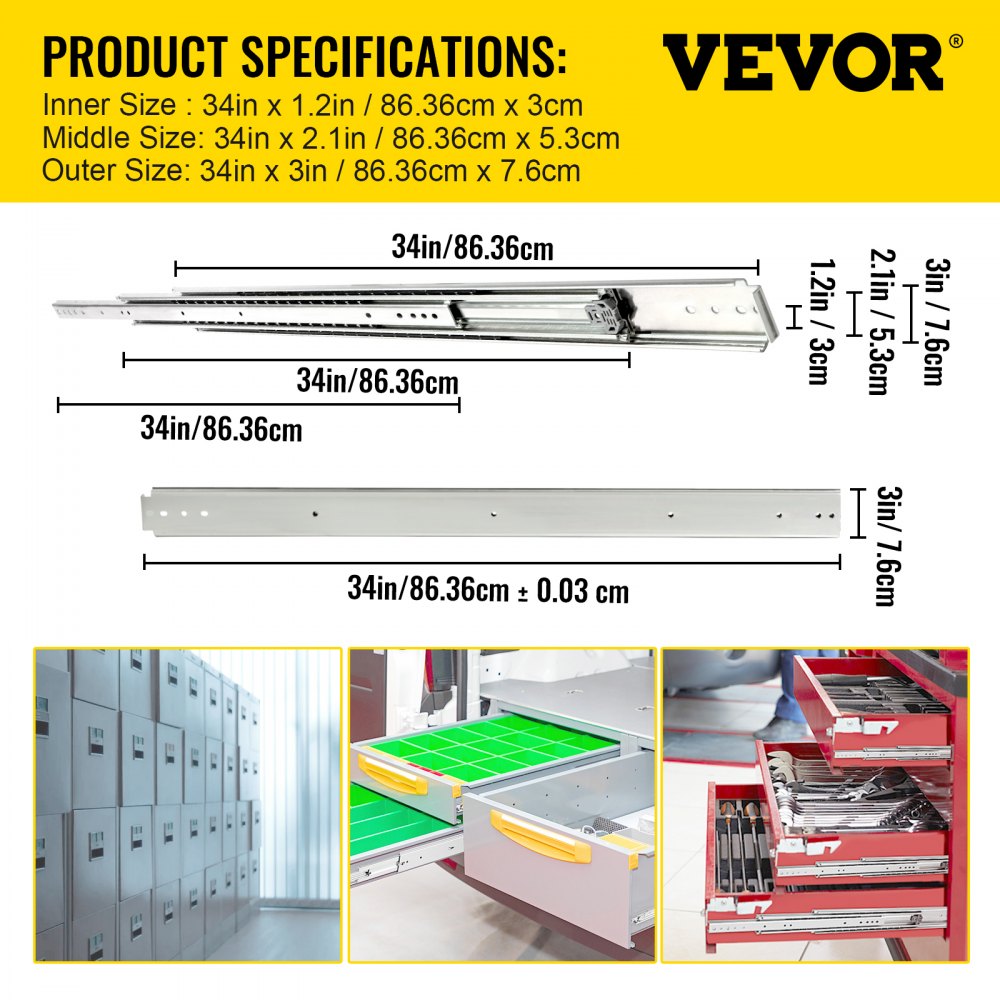

VEVOR drawer slides measurements: 34 in/86.4 cm length, 1.2 in/3 cm height.

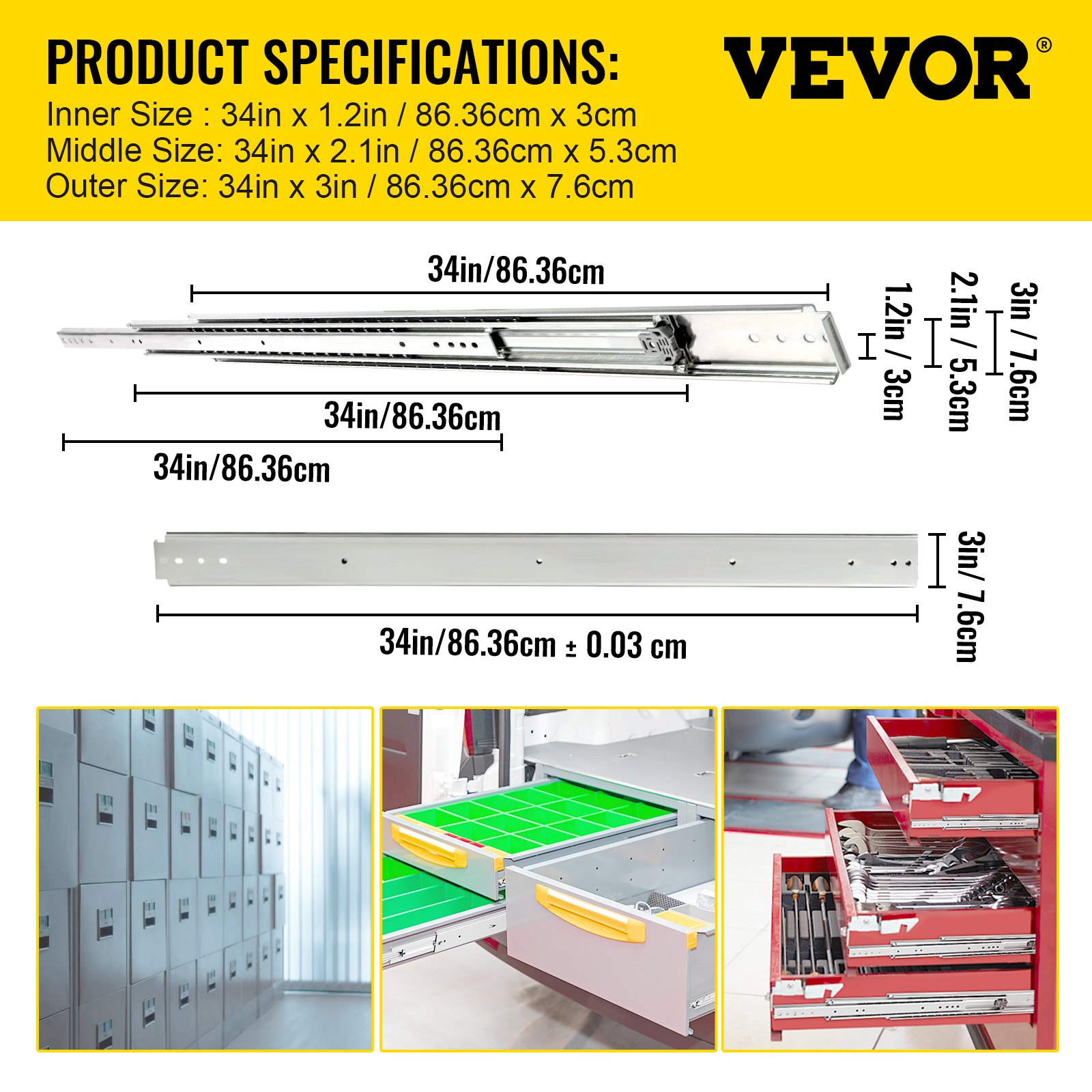

Specifications
  • Model: VV-CTDG-500B WS 34YC
  • Color: Sliver
  • Material: Cold Rolled Steel
  • Finish: Zinc Plated
  • Load Capacity: 500 lbs/ 225 kg
  • Fully Pull-Out Length: 68"/ 172.72 cm
  • Fold Product Size: 34 x 3 x 0.75"/ 86.36 x 7.6 x 1.9 cm
  • Inner Size: 34 x 1.2"/ 86.36 x 3 cm (L x W)
  • Middle Size: 34 x 2.1"/ 86.36 x 5.4 cm (L x W)
  • Outer Size: 34 x 3"/ 86.36 x 7.6 cm (L x W)

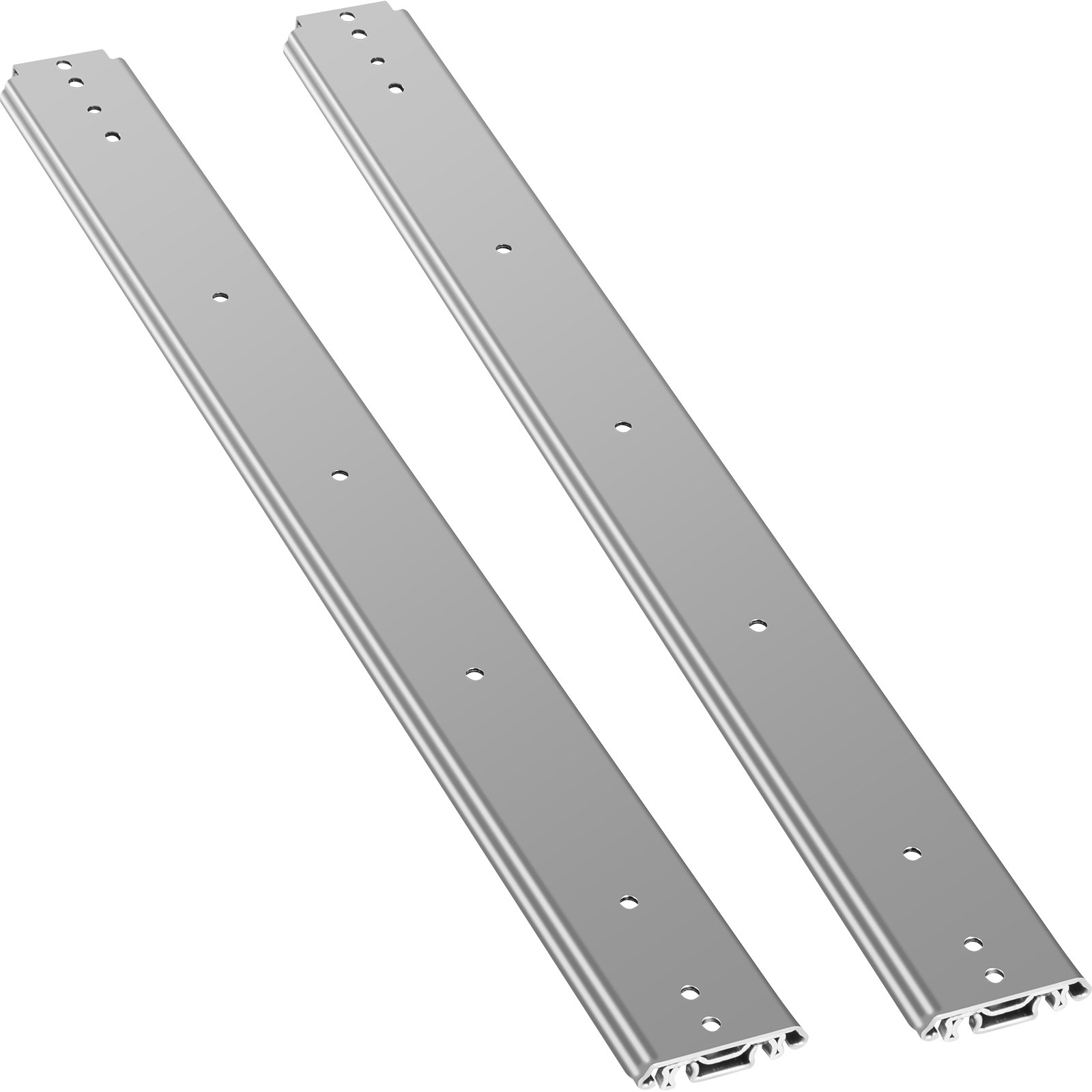

two VEVOR drawer slides with mounting screws on a white background.
Package Content
  • 2 x Drawer Slides
  • 12 x M6 Screws
  • 12 x M6 Screw Nuts
VEVOR drawer slides for full extension, 500lbs bearing, quiet work, smooth slide.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR drawer slides with mounting screws on a white background.
Full Extension Slide Drawers
The cold-rolled steel drawer slides are capable of high hardness with excellent stability and durability. In addition, you will be benefited from the ultra-secure, well-suited, and low-noise device with a detailed guide and handy screws. The universal places include cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.
  • Three-Section Slides
  • Steel & 500 lbs Bearing
  • Smooth & Quite to Slide
  • Choose the Right Size
three-section tool cart with blue drawers and VEVOR drawer slides.
3-Fold Slide Drawers
Firstly, the drawers pull out the middle channels; the outer channel continues, and the inner channel lasts. The three-section slide drawers designs are for smooth slides.
VEVOR drawer slides with tools in an organized drawer, highlighting cold-rolled steel features.
Cold Rolled Steel
Made from high-grade cold-rolled steel that is zinc plated can effectively keep the drawer glides and slides scratch-proof, abrasion-proof, and away from corrosion and rust.
VEVOR drawer slides with steel ball-bearing action and nylon buffer for smooth, quiet use.
Low Noise Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. In addition, the embedded steel balls make the smooth sliding and quiet.
VEVOR drawer slides sizing guide highlighting drawer and mini cabinet depths.
Fit for Size
Slide length can be equal to drawer depth, and the minimized cabinet depth can be drawer length plus 4 mm. Please note that the side-mounted slide rails on both sides should be parallel.
side-mounted drawer slide installation steps with VEVOR drawer slides.
Easy & Quick Assemble
It would be better to tighten the bolt between the side and the drawer from outside to inside. Then, the drawer and cabinet from inside to outside.
VEVOR drawer slides used in warehouse containers, industrial drawers, commercial equipment, and retrofitted vehicles.
Wide Application
The wood center mount drawer slides are suitable for the following places, such as industrial drawers, modified car drawers, office cabinets, tool rooms, etc.
two VEVOR drawer slides with mounting screws on a white background.
Package Content
  • 2 x Drawer Slides
  • 12 x M6 Screws
  • 12 x M6 Screw Nuts
VEVOR drawer slides measurements: 34 in/86.4 cm length, 1.2 in/3 cm height.
Specifications
  • Model: VV-CTDG-500B WS 34YC
  • Color: Sliver
  • Material: Cold Rolled Steel
  • Finish: Zinc Plated
  • Load Capacity: 500 lbs/ 225 kg
  • Fully Pull-Out Length: 68"/ 172.72 cm
  • Fold Product Size: 34 x 3 x 0.75"/ 86.36 x 7.6 x 1.9 cm
  • Inner Size: 34 x 1.2"/ 86.36 x 3 cm (L x W)
  • Middle Size: 34 x 2.1"/ 86.36 x 5.4 cm (L x W)
  • Outer Size: 34 x 3"/ 86.36 x 7.6 cm (L x W)

Heavy-Duty Drawer Slides for High Load Applications

Whether you need to store heavy machinery or build custom storage solutions, these slides can support it all. They help manage heavy loads smoothly and securely without any compromises. Their robustness ensures they stand the test of time in demanding environments.


Smooth Full Extension Movement for Easy Access

This feature is essential for those who want to maximize their drawer space, making every inch accessible. The full extension is ideal for applications where full drawer access is critical, such as RV storage compartments or custom tool drawers. This ease of access proves a testament to the thoughtful engineering behind these drawer slides.


Sturdy and Reliable: Perfect for Multiple Applications

Whether you're building sliding shelves for tools, custom van modules, or even cabinetry for kitchen use, these drawer slides are up to the task. The material and construction remain reliable even when subjected to continuous use. Their ability to hold substantial weight without deflection or wobble also adds to their reliability. This makes them ideal for applications that demand both durability and precision. Their versatility and reliability make them a valuable addition to any project.


Ideal for Custom Projects like RV Storage and Home DIY

These drawer slides are perfect for custom projects, such as RV storage and DIY home solutions. Their strong construction makes them ideal for creating custom pull-out drawers and storage compartments in RVs, enhancing storage capacity and accessibility. Home DIY enthusiasts can use these slides to build custom shelves, drawers, or even unique sliding wall features. They support creativity and innovation by providing a reliable base for these custom projects. These slides provide the support and stability needed when designing something unique and customized.


Supports Heavy Loads without Wobble or Deflection

The key selling point of these drawer slides is their ability to support heavy loads without any wobble or deflection. This is important for applications involving heavy tools, machinery, or substantial storage items. The slides maintain their shape and integrity under extreme weights, ensuring smooth operation. This stability is provided by the quality materials and engineering that go into each pair of slides. You can trust these slides to perform consistently under challenging conditions, guaranteeing the safety and security of the stored items.


Quick Installation with Full Pull-Out Feature

The combination of easy installation and full pull-out capability makes these heavy-duty drawer slides more practical. Each set has some hardware, although additional hardware may be required for wood installations. These full pull-out features ensure complete access to the drawer's contents, which is essential for functionality in various settings. This feature is highly valuable in tight spaces like workshops, vans, or motor homes. The seamless integration of a simple setup and full pull-out capability enhances functionality and appeal, making even complex projects more feasible and achievable.


See More

Specification

Model
VV-CTDG-500B WS 34YC
Color
Sliver
Material
Cold Rolled Steel
Finish
Zinc Plated
Load Capacity
500 lbs/ 225 kg
Fully Pull-Out Length
68"/ 172.72 cm
Fold Product Size
34 x 3 x 0.75"/ 86.36 x 7.6 x 1.9 cm
Inner Size
34 x 1.2"/ 86.36 x 3 cm (L x W)
Middle Size
34 x 2.1"/ 86.36 x 5.4 cm (L x W)
Outer Size
34 x 3"/ 86.36 x 7.6 cm (L x W)
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
4 Review(s)
Clear filters
Mike Mike
Diy runners
Needed a set of drawer runners to support a sliding shelf holding a 30kg saw. These runners are heavy duty and cope with the load no problem. Long term they will be liberally covered in sawdust so it remains to be seen how that affects them but to be fair that's outside the scope of their design. Happy to recommend them and I would buy Vevor runners again if I needed them.
Matt Knight Matt Knight
Very impressed, sturdy and smooth.
I was using a large firepit bbq in an outbuilding and it was getting too smoky to bear. I built a platform so that I could slide it out and push back in when done. The problem was it’s a firepit uk outdoor kitchen which weighs circa 110kg without any wood stacked on it. I reckon it’s near 150kg as I have it loaded up. These were easy to install with 8mm coach bolts and screws and even on maximum extension the deflection is minimal. Time will tell if the bearings hold up, hopefully they will as this has given me a great solution to my problem. I’ve uploaded a video to Amazon showing how easy/smooth it now is to push my 150kg bbq back into place.
Lee Johnson Lee Johnson
42” drawer sliders
Really good quality. Excellent delivery
cortney miller cortney miller
Heavy duty!!
Well these say they can hold 500lbs. I honestly believe they can! I used them to hold my new aquarium I installed into my kitchen bar. It slides out so I can change the filter,etc.. Total weight on these is approx 375lbs. And they slide like a hot knife through butter!! Highly recommend!!
