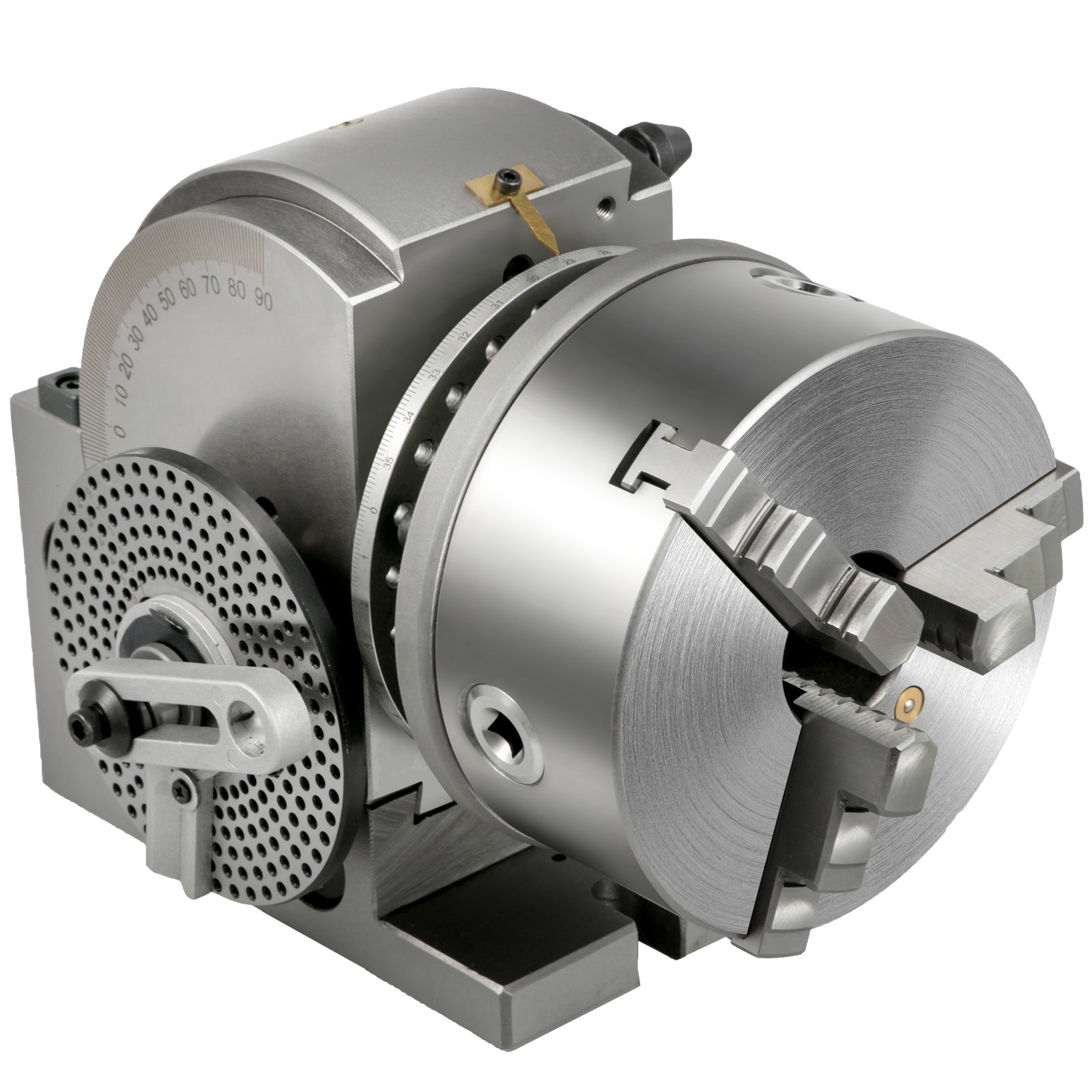

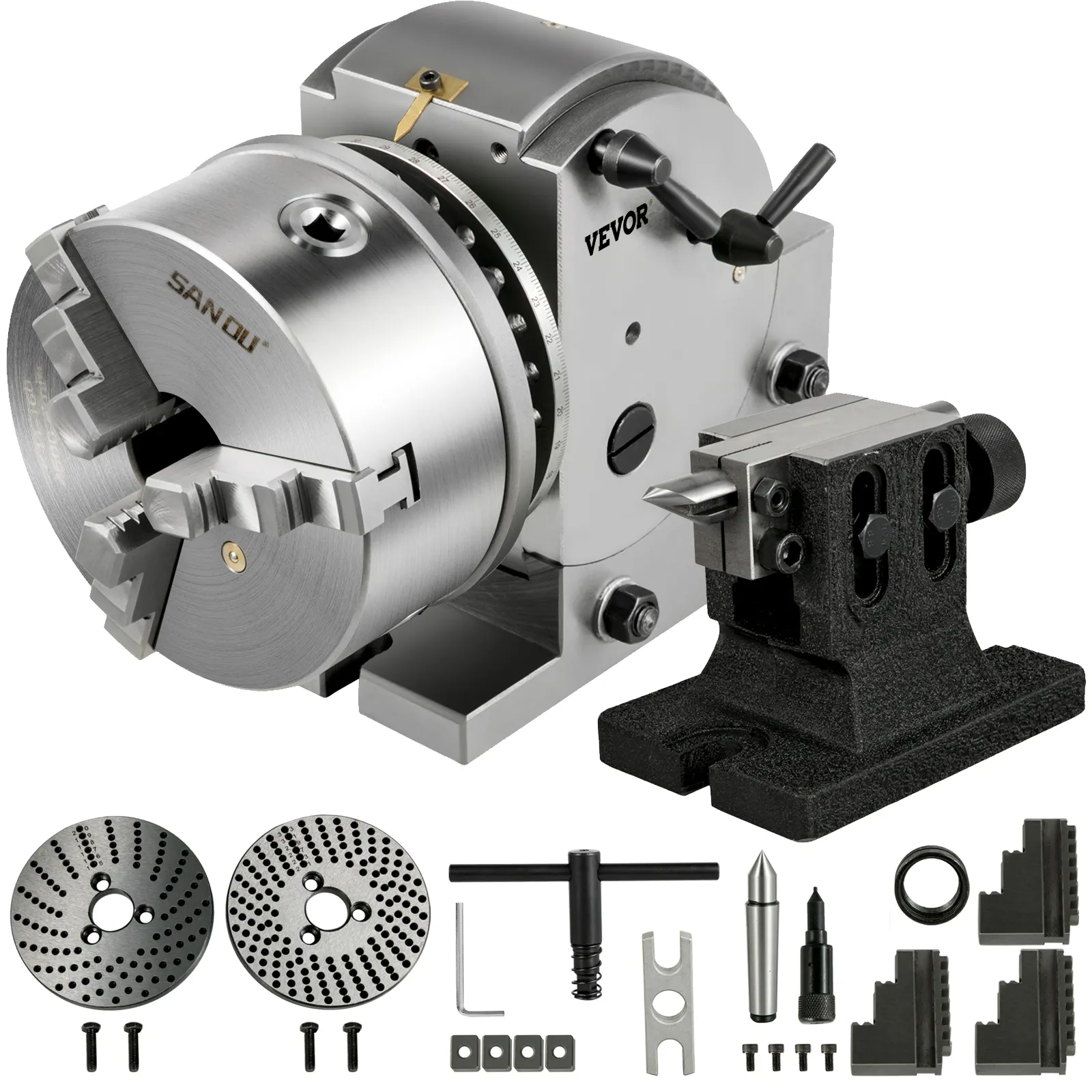

VEVOR dividing head with chuck, base, and assorted accessories. VEVOR dividing head with 3-jaw chuck for equal parts dividing, drilling, cutting, boring. VEVOR dividing head with ht200 cast iron body, high stability, and very little friction. VEVOR dividing head adjustable positions with 90°, 45°, and 0° angles and calibration. high precision indexing plate with VEVOR dividing head, three-jaw chuck, and clear scale. VEVOR dividing head for milling machine with rapid indexing and positioning plate. VEVOR dividing head, dimensions and specifications detailed with labeled parts.
FDTBS-1LYC0000001V0

VEVOR Dividing Head 6"/160MM Dividing Head for Milling Machine 6-1/2"/168MM Universal Dividing Head 5"/128MM Indexing Head Milling 1:40 Dividing Head Milling for Milling Grinding Drilling

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive £5.00 off for your first three orders on the App.
Download Now
Exclusive £5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • Adjustable Angle: The semi-universal dividing head features a 6" 3-jaw chuck, Spindle Speed: 2500 RPM. The headstock is adjustable from the horizontal position to 90 degrees upward. Swing: 6-1/2" / 168 mm, Center Height: 5" / 128 mm. Free 3 more jaws for 6" chuck.
  • Solid Construction: This indexing head is made of HT 200 to be a long life. A rigid frame provides high accuracy with little backlash for a smooth rotation. The reduction ratio is 1:40.
  • Precise & Accurate: Dividing head milling machine with laser engraving scales. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.
  • MT3 Tailstock Adjustable: Huge live center for heavy-duty workpieces. Ball-bearing precision; turns smoothly. The model of the tailstock is MT3. One extra dead center is included.
  • Rich Dividing Head Set: 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and specific other numbers.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Dividing Head 6"/160MM Dividing Head for Milling Machine 6-1/2"/168MM Universal Dividing Head 5"/128MM Indexing Head Milling 1:40 Dividing Head Milling for Milling Grinding Drilling

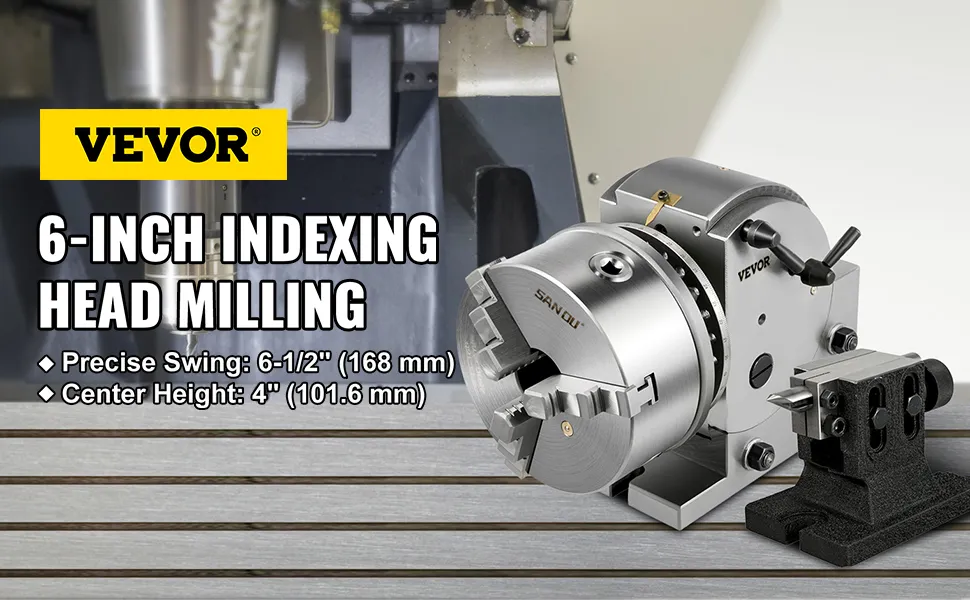

VEVOR dividing head for 6-inch indexing head milling, precise swing 6-1/2", center height 4".
VEVOR dividing head with accessories and attachments for precision machining.
6" / 160 mm Dividing Head for Milling Machine
MT3 Headstock Taper & Complete Set & Simple Operation
Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing. Complete the gear, face, flute processing, and no need accessories, the same construction as universal type. With rotary indexer, the 24 quick-dividing holes can complete BS-2A 2,3,4,6,8,12,24 division indexing. Attache 3 dividing plates and the dividing head indirect dividing in any division indexing 2-50.51-380.
  • Adjustable Angle
  • Solid Construction
  • Clear & Accurate
  • MT3 Tailstock Adjustable
  • Rich Dividing Head Set
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

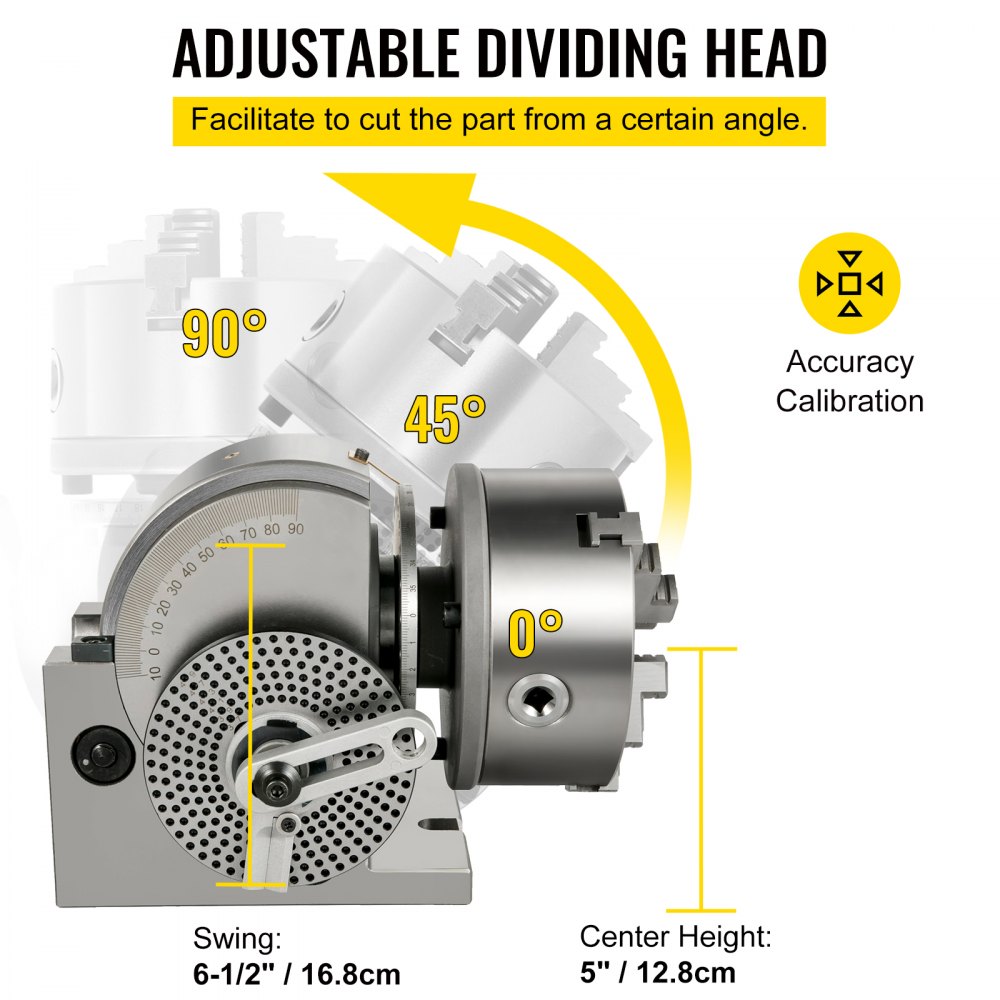

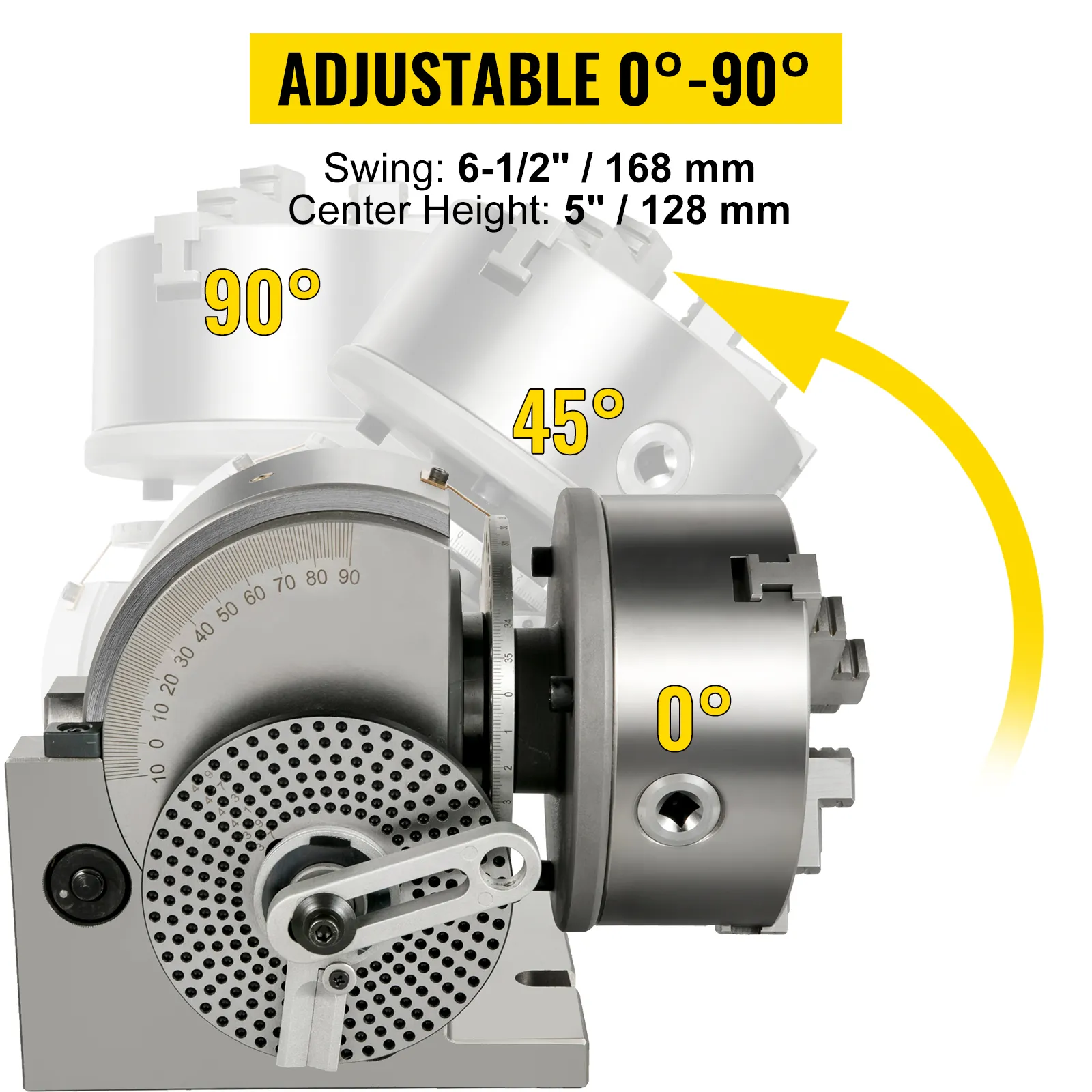

adjustable VEVOR dividing head 0°-90°, swing 6.5", center height 5".
Adjustable 0°-90°
Vertical & horizontal milling machine with headstock chuck for the lathe. Swing: 6-1/2" / 168 mm, Center Height: 5" / 128 mm.

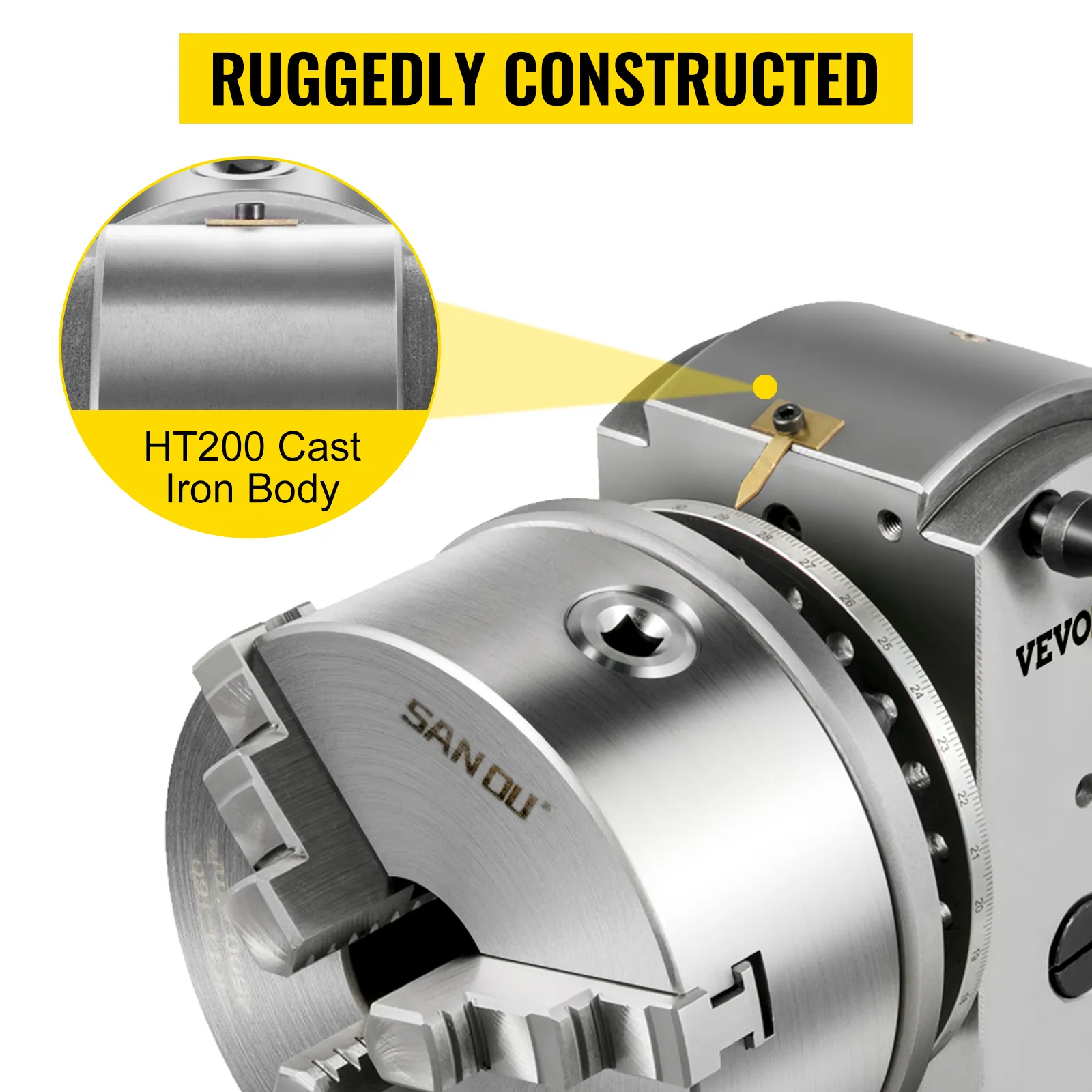

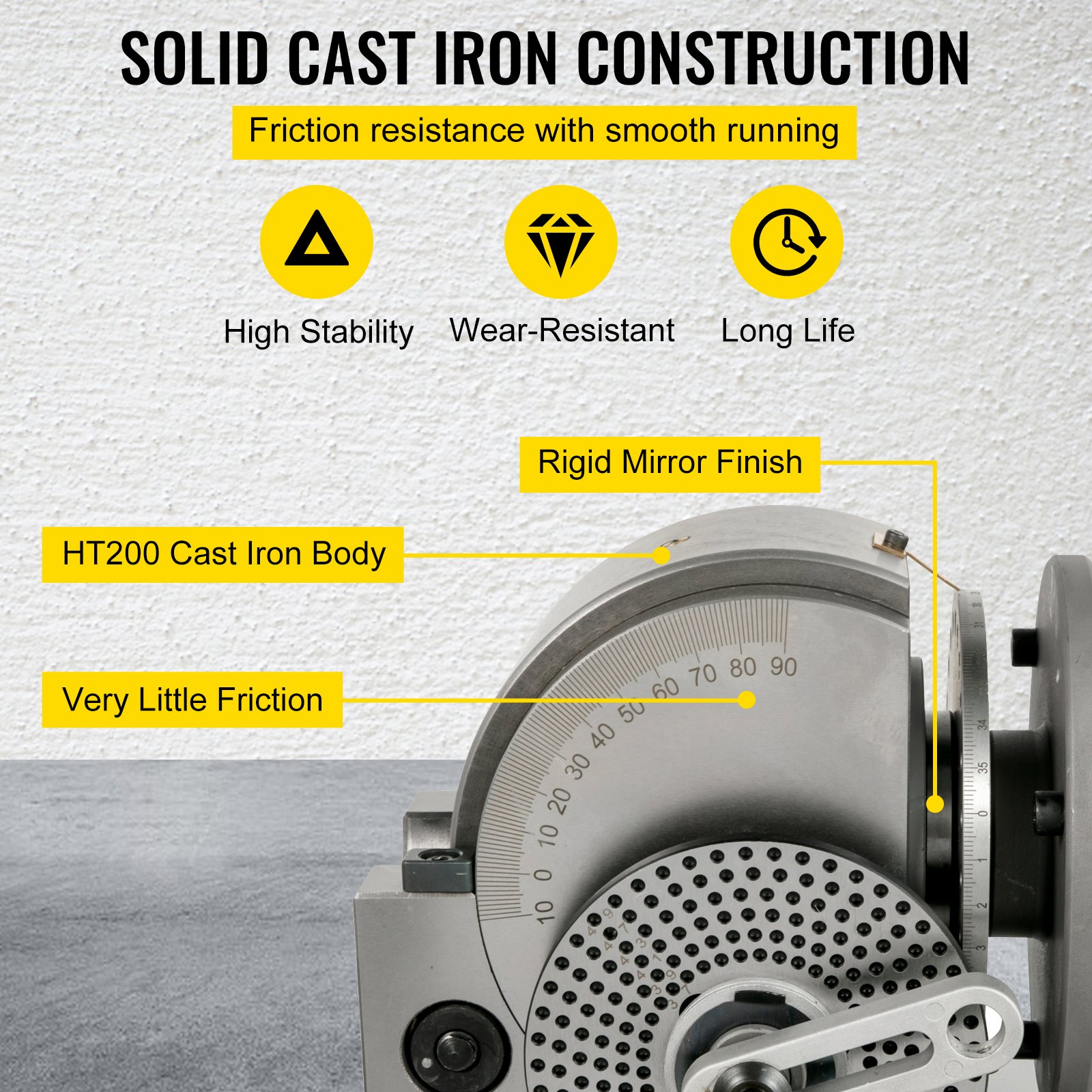

VEVOR dividing head with san ou chuck and ht200 cast iron body, ruggedly constructed.
Ruggedly Constructed
Our universal dividing head features ruggedly constructed hardened and ground worm gear. The reduction ratio is 1:40.

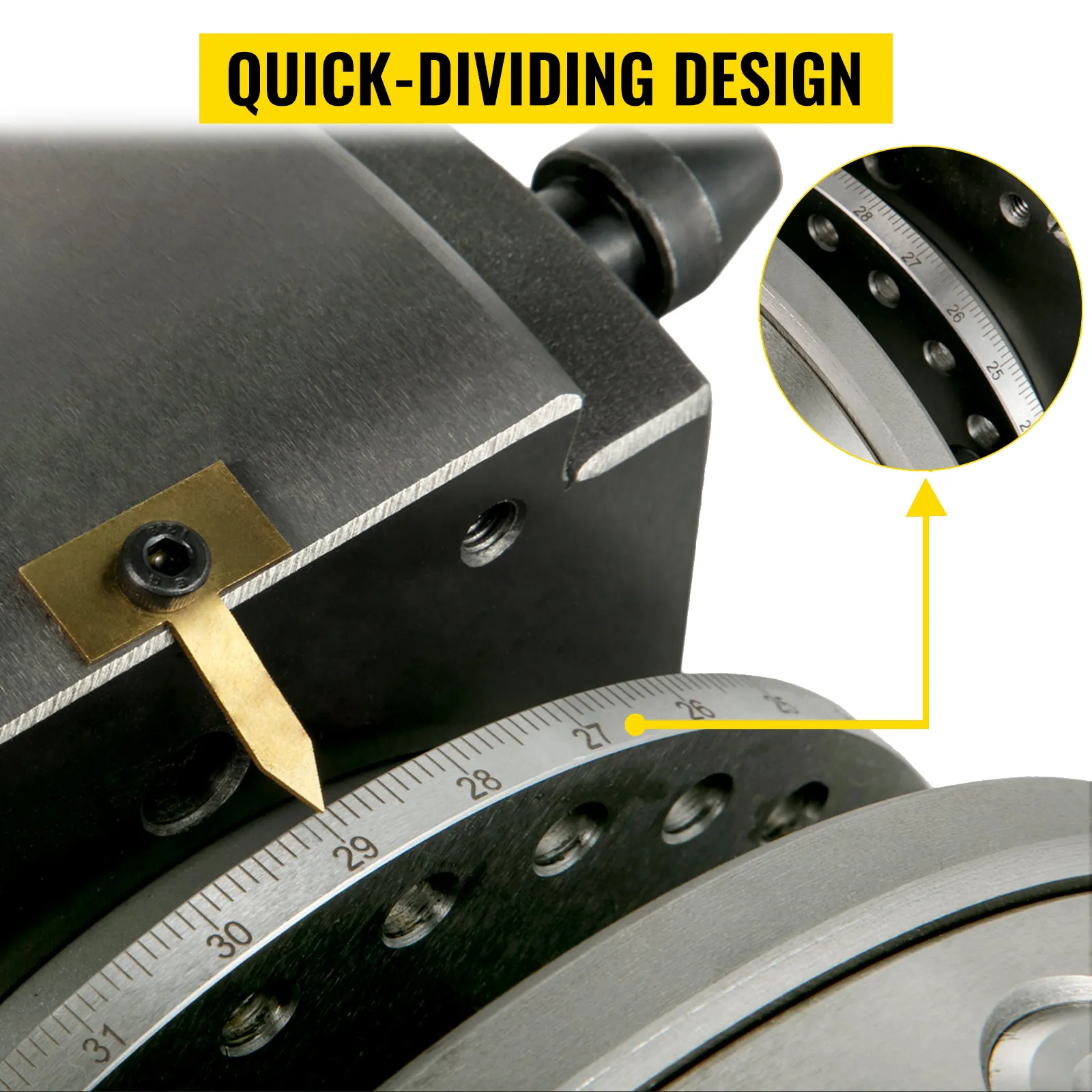

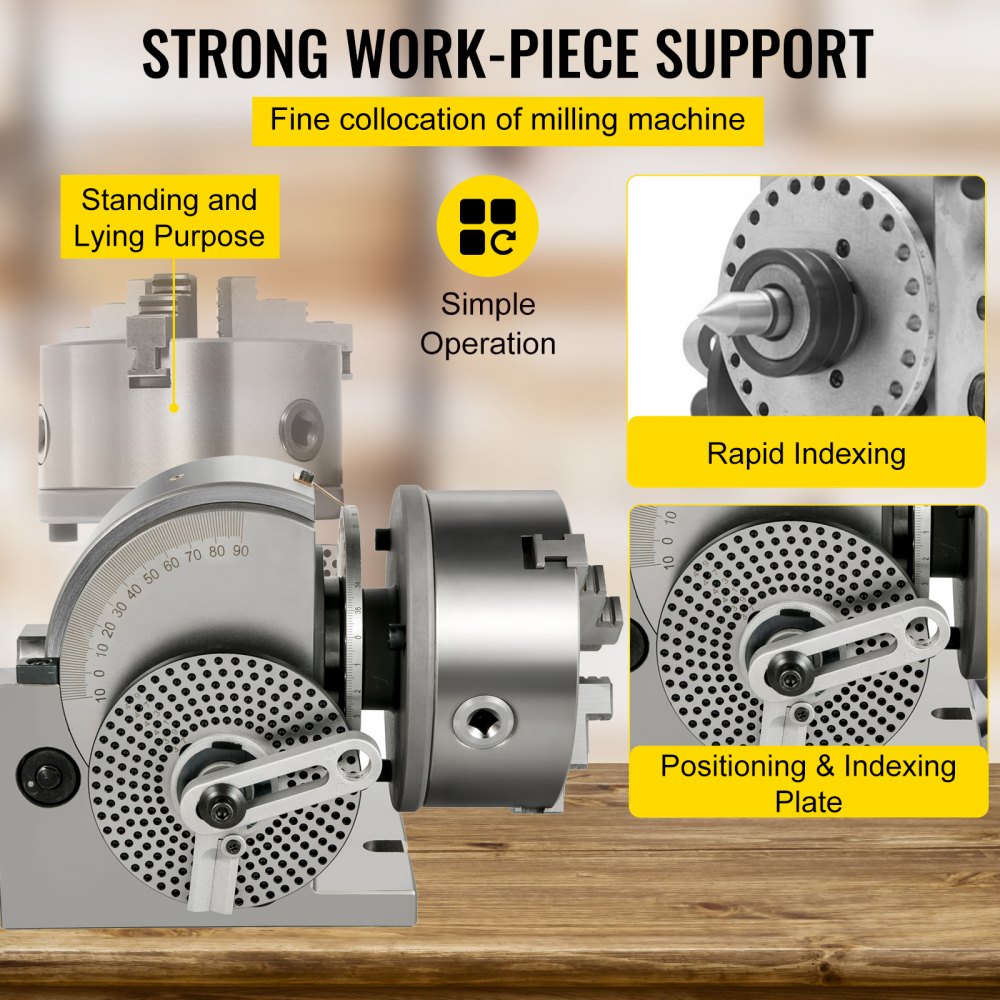

VEVOR dividing head with quick-dividing design highlighting precision scale.
Quick-dividing Design
Designed with a rotary table and indexing chuck for convenient operation, the 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing.

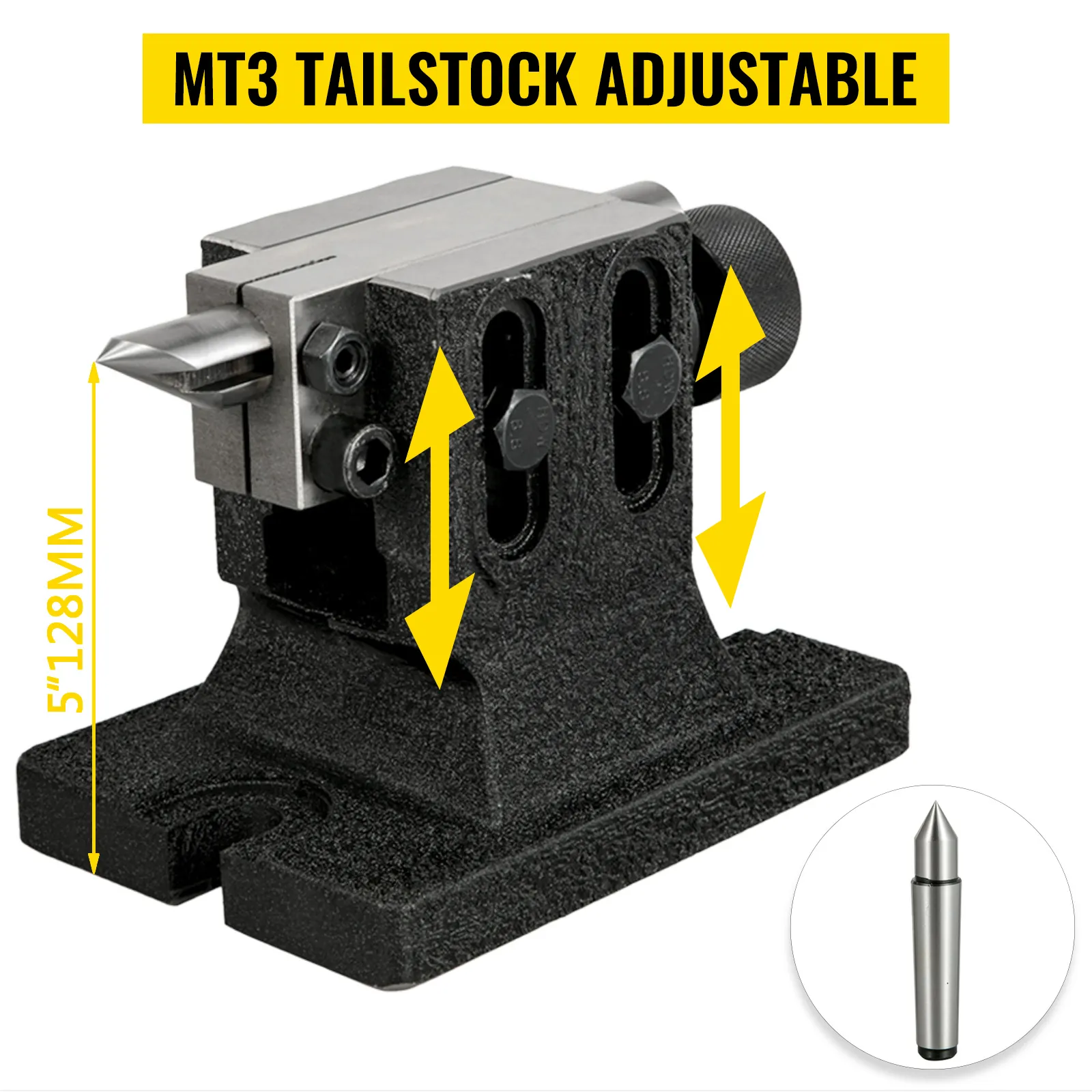

mt3 tailstock adjustable for VEVOR dividing head, height 5" or 128mm shown.
MT3 Tailstock Adjustable
The ball-bearing of this indexing head is of high precision and smooth turning. An extra dead center is provided for rapid use.

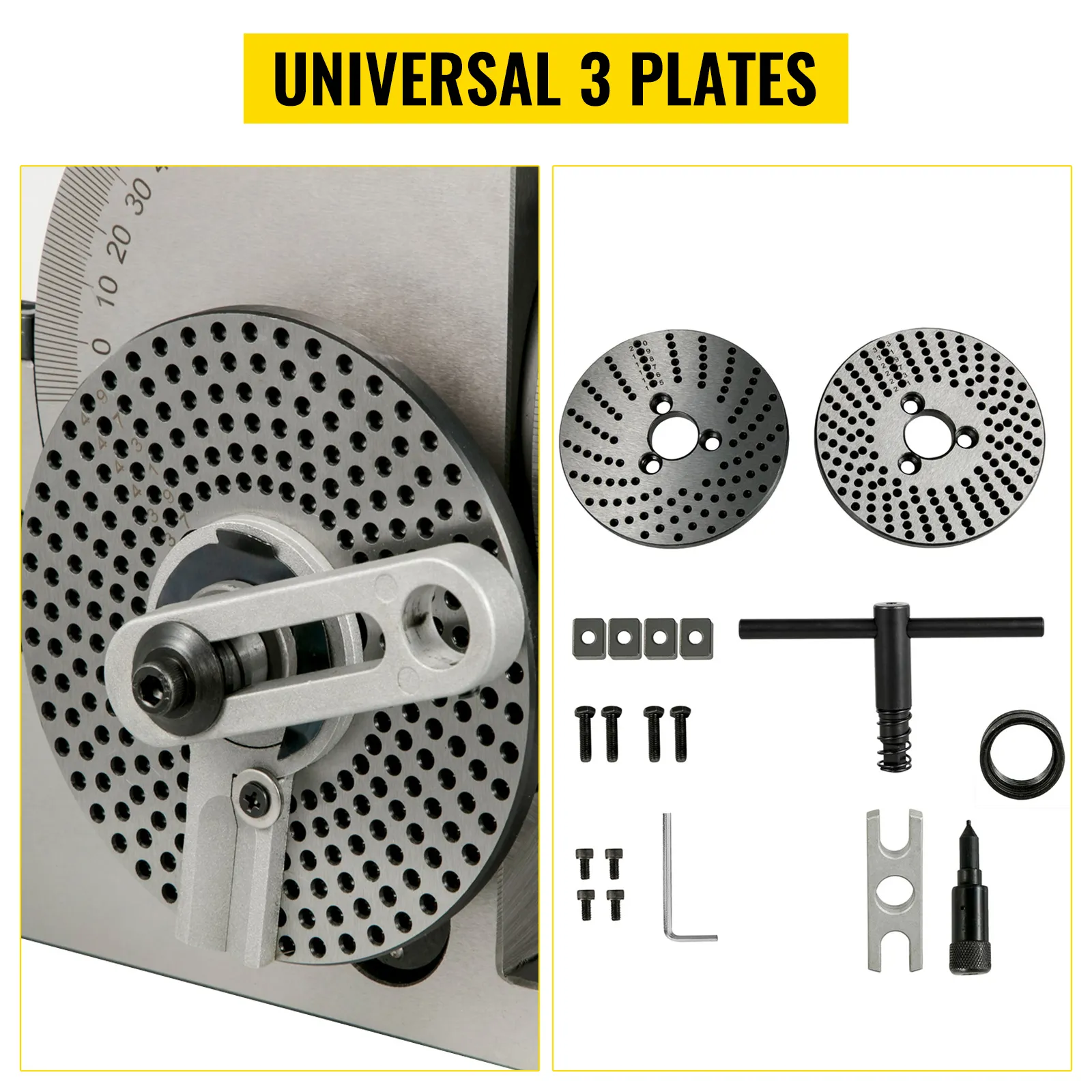

VEVOR dividing head with three plates and accessories displayed against a white background.
Universal 3 Plates
Our rotary indexer comes with 3 dividing plates of different sizes. The tool has easy indexing of divisions from 2 to 50, with most numbers up to 380.

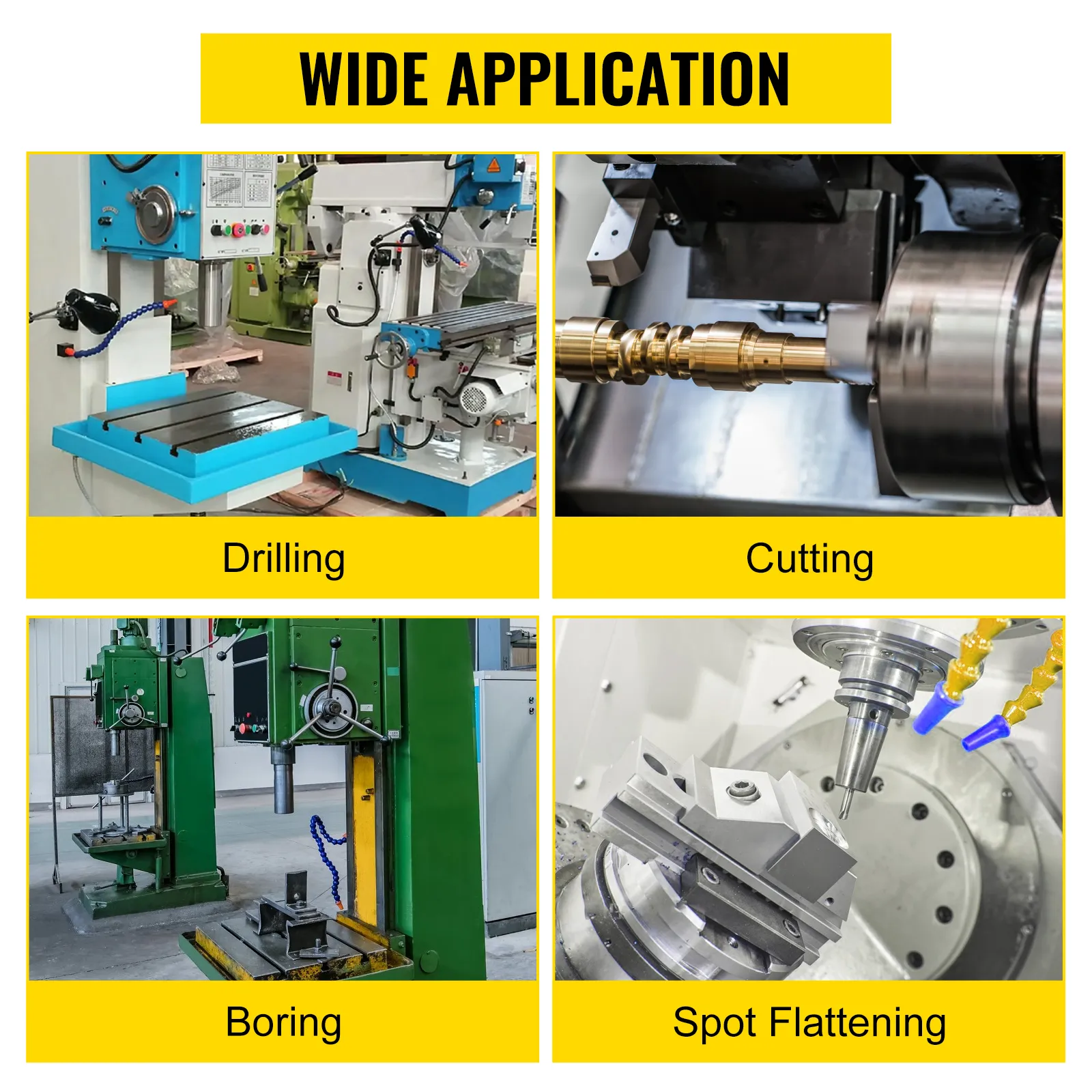

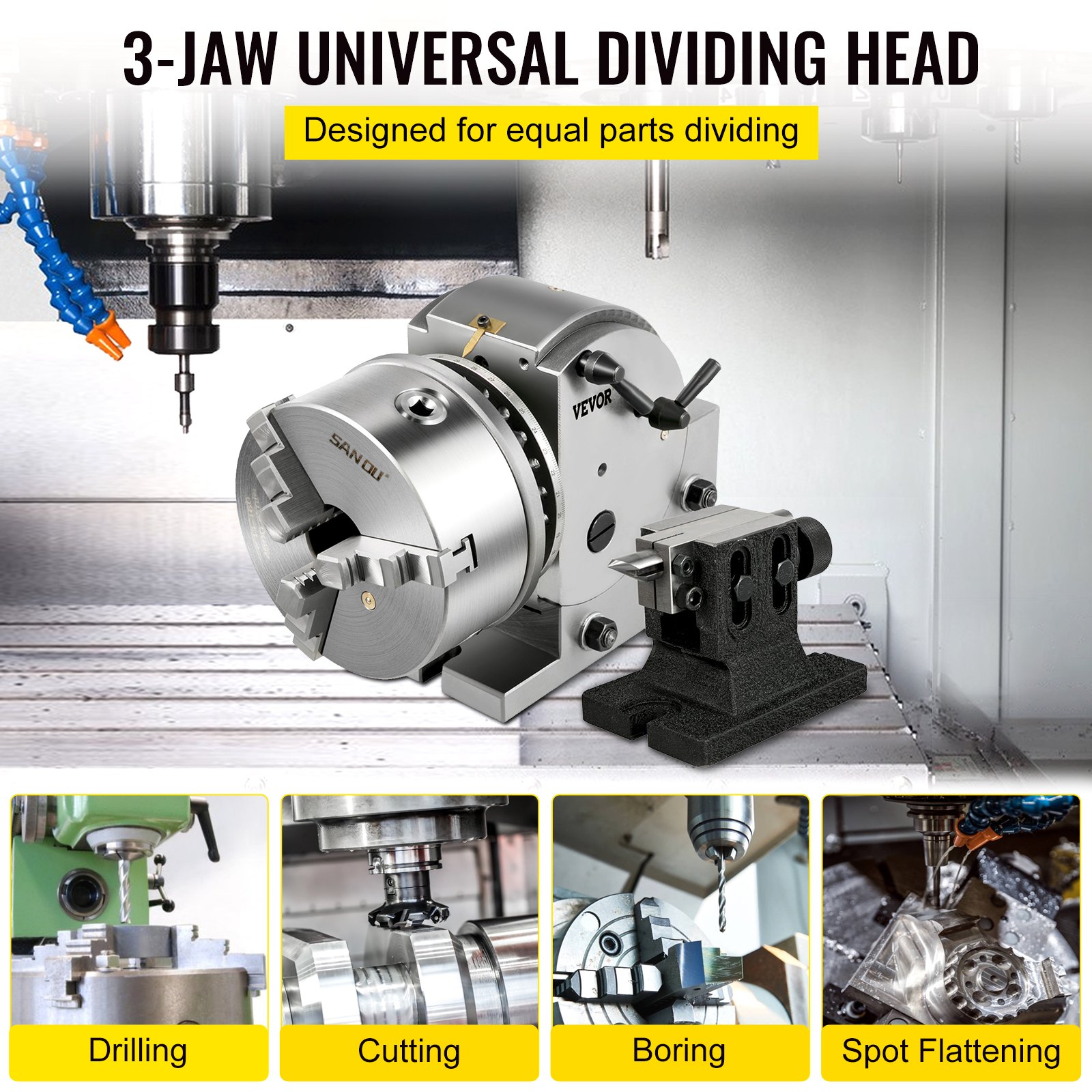

wide application of VEVOR dividing head for drilling, cutting, boring, and spot flattening.
Wide Application
The rotary indexer is ideal for various uses in milling, grinding, and drilling work.

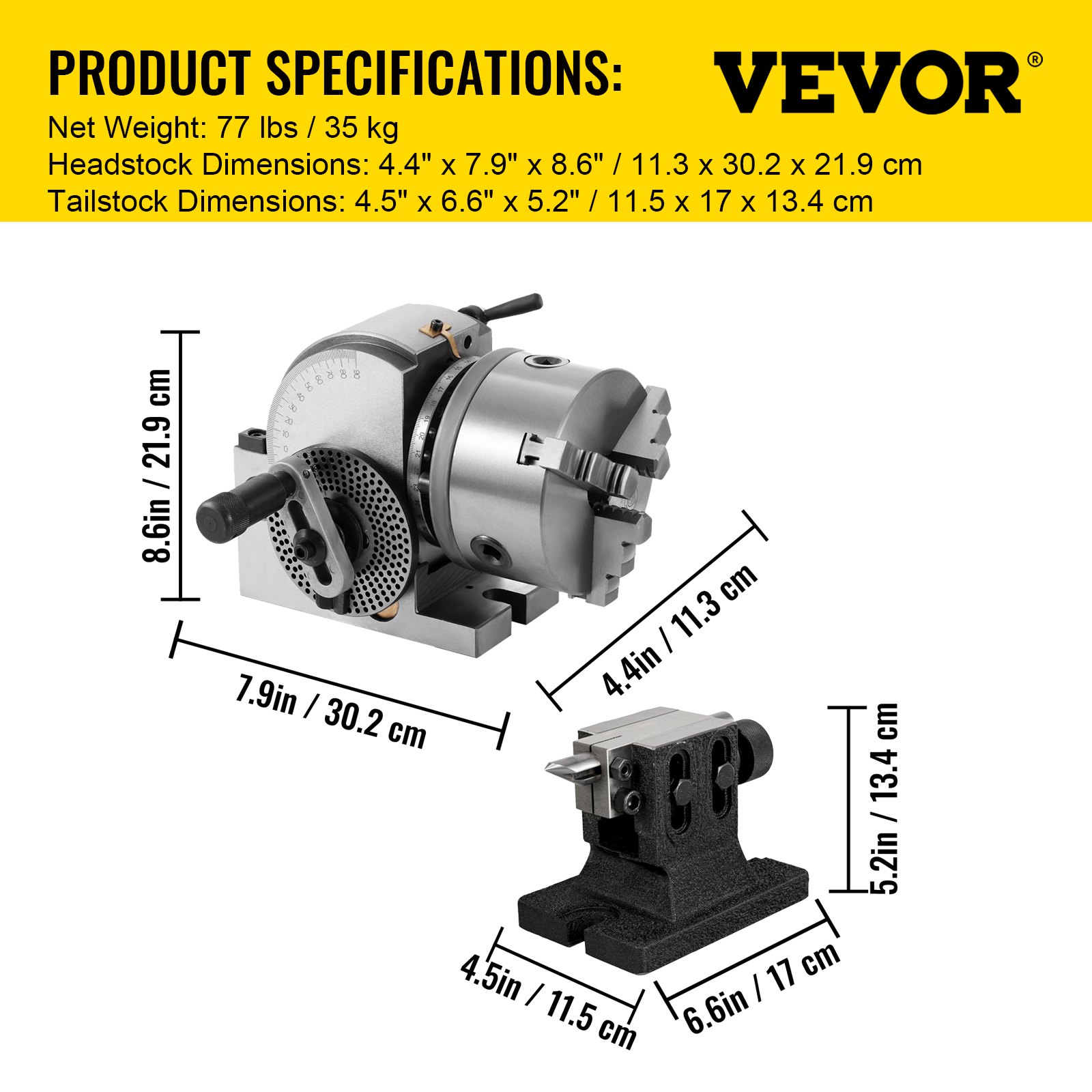

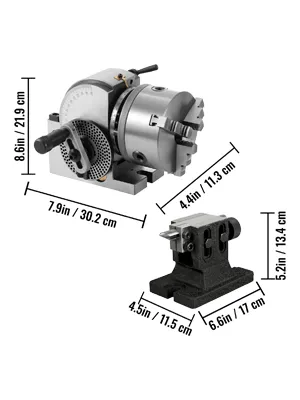

VEVOR dividing head with 3-jaw chuck and measurement diagrams
Specifications
  • Chuck Diameter: 6" / 16 cm
  • Spindle Speed: 2500 RPM
  • Swing: 6-1/2" / 16.8 cm
  • Center Height: 5" / 12.8 cm
  • Reduction Ratio: 1:40
  • Tailstock: MT3
  • Net Weight: 77 lbs / 35 kg
  • Headstock Dimensions: 4.4" x 7.9" x 11.8" / 11.3 x 30.2 x 21.9 cm
  • Tailstock Dimensions: 4.5" x 6.6" x 5.2" / 11.5 x 17 x 13.4 cm

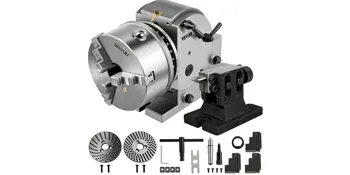

VEVOR dividing head with chuck and accessories, including indexing plates and tailstock.
Package Content
  • 1 x 6" Dividing Head
  • 2 x Dividing Plates
  • 3 x 6" Chuck Jaws
  • 1 x Dead Center
  • 1 x Tailstock
  • 1 x Set of Related Accessories
VEVOR dividing head for 6-inch indexing head milling, precise swing 6-1/2", center height 4".
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR dividing head with accessories and attachments for precision machining.
6" / 160 mm Dividing Head for Milling Machine
MT3 Headstock Taper & Complete Set & Simple Operation
Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing. Complete the gear, face, flute processing, and no need accessories, the same construction as universal type. With rotary indexer, the 24 quick-dividing holes can complete BS-2A 2,3,4,6,8,12,24 division indexing. Attache 3 dividing plates and the dividing head indirect dividing in any division indexing 2-50.51-380.
  • Adjustable Angle
  • Solid Construction
  • Clear & Accurate
  • MT3 Tailstock Adjustable
  • Rich Dividing Head Set
adjustable VEVOR dividing head 0°-90°, swing 6.5", center height 5".
Adjustable 0°-90°
Vertical & horizontal milling machine with headstock chuck for the lathe. Swing: 6-1/2" / 168 mm, Center Height: 5" / 128 mm.
VEVOR dividing head with san ou chuck and ht200 cast iron body, ruggedly constructed.
Ruggedly Constructed
Our universal dividing head features ruggedly constructed hardened and ground worm gear. The reduction ratio is 1:40.
VEVOR dividing head with quick-dividing design highlighting precision scale.
Quick-dividing Design
Designed with a rotary table and indexing chuck for convenient operation, the 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing.
mt3 tailstock adjustable for VEVOR dividing head, height 5" or 128mm shown.
MT3 Tailstock Adjustable
The ball-bearing of this indexing head is of high precision and smooth turning. An extra dead center is provided for rapid use.
VEVOR dividing head with three plates and accessories displayed against a white background.
Universal 3 Plates
Our rotary indexer comes with 3 dividing plates of different sizes. The tool has easy indexing of divisions from 2 to 50, with most numbers up to 380.
wide application of VEVOR dividing head for drilling, cutting, boring, and spot flattening.
Wide Application
The rotary indexer is ideal for various uses in milling, grinding, and drilling work.
VEVOR dividing head with chuck and accessories, including indexing plates and tailstock.
Package Content
  • 1 x 6" Dividing Head
  • 2 x Dividing Plates
  • 3 x 6" Chuck Jaws
  • 1 x Dead Center
  • 1 x Tailstock
  • 1 x Set of Related Accessories
VEVOR dividing head with 3-jaw chuck and measurement diagrams
Specifications
  • Chuck Diameter: 6" / 16 cm
  • Spindle Speed: 2500 RPM
  • Swing: 6-1/2" / 16.8 cm
  • Center Height: 5" / 12.8 cm
  • Reduction Ratio: 1:40
  • Tailstock: MT3
  • Net Weight: 77 lbs / 35 kg
  • Headstock Dimensions: 4.4" x 7.9" x 11.8" / 11.3 x 30.2 x 21.9 cm
  • Tailstock Dimensions: 4.5" x 6.6" x 5.2" / 11.5 x 17 x 13.4 cm

Dividing Head Offers High Precision and Quality for Complex Milling Tasks

The VEVOR dividing head offers high precision and quality. It is ideal for complex milling tasks. This tool ensures accurate and repeatable results. The head turns smoothly without binding. It boasts a 6-inch chuck, a spindle speed of 2500 RPM, a swing of 6 inches, and a center height of 5 inches. The reduction ratio is 1:1. Our dividing head is made to handle demanding tasks, suitable for hobbyists and professionals. This dividing head will meet your needs for precision and quality in everything you need. The VEVOR smooth operation makes it a valuable addition to any milling setup.


Universal Milling Set Enhances Versatility with a Range of Applications

What is the best part of the VEVOR Universal Milling Set? The set includes a 6-inch 3-jaw chuck and dividing plates. It can be used for a variety of tasks. It is suitable for milling, grinding, and drilling. Different machines can fit into the setup. This makes it easy to switch between tasks. You can perform different operations with minimal adjustments. That improves productivity and efficiency. Our versatile set is ideal for any workshop. For both DIY projects and professional use, the miller set provides flexibility and convenience for all your tasks!


Robust Construction Ensures Durability and Long-term Use

The VEVOR dividing head features strong construction. It is made from high-quality materials. While the body remains unhardened, the jaws and internal gears undergo hardening. This ensures durability and long-term use. How does this tool handle heavy-duty tasks without compromising performance? At around 77 lbs, the head is substantial. This improves stability during operation. It also ensures the tool maintains its reliability over time. This dividing head is built to last and withstand frequent use. It is a reliable tool for all your milling needs. You can trust its durability for years to come.


Easy Setup and Minimal Adjustment Needed for Immediate Use

The setup process is quick and hassle-free. This saves you time and effort. The minimal adjustment needed means you can focus on your tasks. The VEVOR dividing head is easy to set up for both beginners and experts. It is a convenient tool that simplifies your workflow.


Excellent Value for Money with Included Accessories and High-Quality Performance

The VEVOR dividing head offers excellent value for money. It includes a variety of accessories. The package includes a 6-inch 3-jaw chuck, a tailstock, and dividing plates. The performance is high-quality and reliable. The price point is very competitive. You receive significant value for your investment. This tool is durable and produces accurate results. These included accessories enhance its functionality. We can perform various tasks with ease. It is an affordable tool that meets high standards. You can obtain a high-quality separating head at a reasonable price. It is an efficient investment for any workshop.


Smooth and Precise Operation with Minimal Backlash

The VEVOR dividing head provides a smooth and precise operation. It has minimal backlash. This ensures accurate results every time. The head turns smoothly without any binding. The action is consistent and reliable. The minimal backlash enhances precision. This is important for complex milling tasks. Our tool is simple to operate and provides reliable performance. Smooth operation makes it a pleasure to use. You can achieve high accuracy with minimal effort. Precision operation is one of the key features of this dividing head. The precise operating feature of our tool guarantees the completion of your tasks with precision and efficiency.


Comprehensive Accessories Including 6-Inch Chuck and Tailstock for Versatile Use

The VEVOR dividing head comes with comprehensive accessories. It includes a 6-inch chuck and heavy tailstock. These accessories enhance the tool's versatility. The chuck fits various machines, including older lathes, and the tailstock adds stability during operations. All these accessories make the dividing head more functional. You can perform various tasks with ease. Comprehensive accessories make it suitable for different applications and perfect for DIY projects and professional tasks. This versatile addition is an indispensable tool in any workshop. It is an excellent tool that provides convenience and flexibility for all your milling needs.


See More

Specification

Chuck Diameter
6" / 16 cm
Spindle Speed
2500 RPM
Swing
6-1/2" / 16.8 cm
Center Height
5" / 12.8 cm
Reduction Ratio
1
Tailstock
MT3
Net Weight
77 lbs / 35 kg
Headstock Dimensions
4.4" x 7.9" x 11.8" / 11.3 x 30.2 x 21.9 cm
Tailstock Dimensions
4.5" x 6.6" x 5.2" / 11.5 x 17 x 13.4 cm
Manual
Download Link
Questions and Answers
1 Questions
WHAT IS THE BIGGEST DIAMETER IT CAN TAKE
Front claw: 55mm. Counter claw: 145mm.
By vevor

Customer Reviews

Ratings by Features

  • 4.9
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
19 Review(s)
Clear filters
David David
Mr
It seems to be very high quality nice and smooth in operation and not accurately detect accuracy that will fulfil my requirements. Very pleased with my purchase.
simon farron simon farron
Arrived ahead of delivery day
Plenty of ancillaries.
Jimbo Jimbo
All Good
Great seller! Fast response, accurate description. A great product at a very good price, delivered quickly. Pleasure doing business with.
chrisb chrisb
mr
initially purchased for one particular job, stright out of the box fitted with a holding fixture 40 hours plus of milling later no problems it stood up to the job better than expected. used for a few smaller jobs since, got the thumb up from me
Amazon Customer Amazon Customer
Works really well I would buy again with no worries
Instructions were poor got some good tables on line for free brown and sharp seems to use the same gear ratio so just used there tables used it to put hex on round bar so far
Timothy B. Rhyne Timothy B. Rhyne
Headstock Taper is not #7 B&S
This is a very nice dividing head for the money. Pretty well finished and smooth operating, very little lash in the gearing.If you were thinking to use an ER32 chuck in the headstock taper note that the taper is #2 Morse not #7B&S as stated in the specifications. That is really good news given that the ER32 chuck adapter for #2 Morse is much cheaper than the #7 B&S. They are also available with 10mm drawbar threads so you can eliminate the chance of slipping in the taper.I checked the run-out specifications and found the following: Radial run-out of the spindle nose spec 0.0006" Actual <0.0002" Radial run-out of spindle taper nose spec 0.0008" Actual was about 0.001" Radial run-out of spindle taper hole 4" distant 0.0014" Actual was 0.0025" Radial run-out of test bar with 3-jaw chuck 0.0031" Actual was 0.003"So the specs were pretty close and my measurements might not be perfect. The run-out with the 3-jaw chuck was due the the chuck back-plate (spindle nose locating diameter had <0.0002 TIR). The locating diameter for the chuck had a run-out of 0.0025". That could be corrected by taking a few thousandths off the locating diameter, center the chuck and use the mounting screws to lock it in.
Michael Brown Michael Brown
Great value for the price!
Great value for the price. The chuck ran out about .004” when it received it. When a slight modification, it can now be indicated in.I’m happy with the accuracy and workmanship. Now let’s see how it holds up. Great for a garage shop.
Manual Miller Manual Miller
A good solid dividing head
I looked at second hand dividing heads on ebay for a long time, but they were well worn. In the end I decided on a new unit and wasn't disappointed. Not so certain how long the rapid indexing location pin will last up, but it is easy to replace if it wears. It is a very solid head and suitable for any machine shop, let alone a home engineering workshop. Buy with confidence.
John John
Rotary table
Was abit unsure at first as I had never heard of you but after doing some research on the Internet and reading the reviews, I placed my order. it came today and I have to say what a fast service you have given and the product is exactly what was pictured and described. It looks good and is solid, haven't tried it yet but can not see why it wouldn't perform like it says. Thanks
Michael Denner Michael Denner
150mm rotary table
Very well made and good value for money professional item.
