8l Single Solenoid Double Acting Hydraulic Pump Remote Crane Power Unit Pro
Rated 3.5/5 based on 11 customer reviews

8l Single Solenoid Double Acting Hydraulic Pump Remote Crane Power Unit Pro

Available: Out of Stock
Product SKU: CZYYBZZ004237SZY1V0
£139.99
Successful pre-order.Thanks for contacting us!


Features & Details


  • [UPGRADE HYDRAULIC POWER UNIT]- The upgrade electric hydraulic power unit has distinctive features among any other hydraulic power unit. It has a powerful hydraulic pump and equipped with an 8L plastic reservoir, which is mounted horizontally in the site.
  • [DOUBLE ACTING & FAST START]- The dump trailer hydraulic pump is made of stainless steel and is built for durable usage, with a double acting hydraulic pump that works up and down. You can have a fast start every time and a long using period. Rated Speed: 2850R/Min.
  • [EXCELLENT OIL OUTPUT]- This hydraulic dump trailer hydraulic pump with an 8L plastic reservoir with standard duty 24V DC motor. Execution: Horizontal, Max flow 5 L/min. It can work excellent, not crack or leak even in a harsh environment. The fluid choice determined by the operating environment or temperature.
  • [FULLY EQUIPMENT]- Dump hydraulic power unit has a 4m remote-controlled pendant manipulating in a long distance. It also consists of a high-pressure gear pump, DC motor, various function valves, oil tank, etc. It is able to drive hydraulic punching machines and pressing systems.
  • [VARIOUS APPLICATION]- Hydraulic power unit is widely used as the power resource for lifting and pushing devices. Also used in places where extending a hydraulic cylinder is needed, scissor lift, dump trailer, dump trucks, RV's, boat lifts, lift gates, tow trucks, wreckers, car haulers, agriculture equipment.


    Note: All of our hydraulic pumps are equipped with M18*1.5 interface and extra SAE6 (9/16") interface.

             The 24V DC Double Acting power pack will require a high capacity battery and a suitable in-line fuse for normal operation.



Sturdy & Durable


This 8L Hydraulic Pump Unit, made with high-quality stainless steel, has distinctive features in the application. More wearable and durable, it is specifically designed to not crack & leak under harsh conditions.



Double Acting Pump


The dump trailer hydraulic unit has a double acting pump, this electric hydraulic pump works excellent in pumping the oil to the vehicle. With pressure safety valve to avoid overpressure damage or extremely pressured.



Quick Oil Output


8L cylindrical plastic reservoir with standard duty 1.6kw 24V DC electric motor c/w relay and plastic motor cover. Horizontal mount. Max flow 5 L/min. The fluid choice determined by the operating environment or temperature. Capable of quick oil output.



Safe & Safe Start


Constructed with high-quality oil suck pipes, which needed to be cleaned often, our pump work in a low-noise condition. Max Pressure: 200 bar. Its high-quality starter ensures a life long service time and a fast-starting for each time.


Full-Set Equipment


Equipped with a 4-meter remote control in long-distance use. With other parts like a hydraulic pump, DC motor, multi-purpose integrated block, various function valves, and plastic oil tank. It has been fully tested in its function.



Wide Application


It is widely used in workplaces where double acting hydraulic pump is needed, like steel construction, boiler making, construction works of fuel tanks and reactors, and factories including mines, smelteries, machine manufacturers and fitter factories.

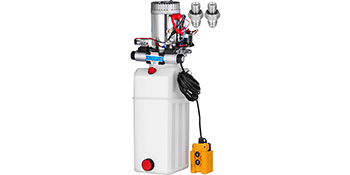

24V DC Single Solenoid Double Acting Hydraulic Power Unit With 8L Plastic Reservoir

This power pack package to operate a double acting cylinder on a variety of applications, there is 2 Button detachable pendant on a 4-meter lead and it is suitable for all double acting applications. The power pack complete with suction strainer, return oil conveyor and filler breather, relief valve set at 160 bar but adjustable from 40-200 bar as standard. The motor of this item is designed for intermittent use which is defined as a sequence of identical cycles of 10-minute duration.

  • Upgrade Hydraulic Power Unit
  • Double Acting & Fast Start
  • Excellent Oil Output
  • Fully Equipment
Package Content:

Specification

  • 24V DC power pack 1.6kw
  • 2.1cc/rev gear pump
  • 4.5 Litre or 8.0 Litre reservoir c/w drain plug
  • Max pressure 200 bar
  • Max flow 5 L/min
  • Port size 3/8" BSP
  • 2 Button detachable pendant on a 4-meter lead
  • Suitable for all double acting applications
Package Content
  • 1 x 24V DC Double Acting Hydraulic Power Pack
  • 1 x Manual


Features & Details


  • [UPGRADE HYDRAULIC POWER UNIT]- The upgrade electric hydraulic power unit has distinctive features among any other hydraulic power unit. It has a powerful hydraulic pump and equipped with an 8L plastic reservoir, which is mounted horizontally in the site.
  • [DOUBLE ACTING & FAST START]- The dump trailer hydraulic pump is made of stainless steel and is built for durable usage, with a double acting hydraulic pump that works up and down. You can have a fast start every time and a long using period. Rated Speed: 2850R/Min.
  • [EXCELLENT OIL OUTPUT]- This hydraulic dump trailer hydraulic pump with an 8L plastic reservoir with standard duty 24V DC motor. Execution: Horizontal, Max flow 5 L/min. It can work excellent, not crack or leak even in a harsh environment. The fluid choice determined by the operating environment or temperature.
  • [FULLY EQUIPMENT]- Dump hydraulic power unit has a 4m remote-controlled pendant manipulating in a long distance. It also consists of a high-pressure gear pump, DC motor, various function valves, oil tank, etc. It is able to drive hydraulic punching machines and pressing systems.
  • [VARIOUS APPLICATION]- Hydraulic power unit is widely used as the power resource for lifting and pushing devices. Also used in places where extending a hydraulic cylinder is needed, scissor lift, dump trailer, dump trucks, RV's, boat lifts, lift gates, tow trucks, wreckers, car haulers, agriculture equipment.


    Note: All of our hydraulic pumps are equipped with M18*1.5 interface and extra SAE6 (9/16") interface.

             The 24V DC Double Acting power pack will require a high capacity battery and a suitable in-line fuse for normal operation.



Sturdy & Durable


This 8L Hydraulic Pump Unit, made with high-quality stainless steel, has distinctive features in the application. More wearable and durable, it is specifically designed to not crack & leak under harsh conditions.



Double Acting Pump


The dump trailer hydraulic unit has a double acting pump, this electric hydraulic pump works excellent in pumping the oil to the vehicle. With pressure safety valve to avoid overpressure damage or extremely pressured.



Quick Oil Output


8L cylindrical plastic reservoir with standard duty 1.6kw 24V DC electric motor c/w relay and plastic motor cover. Horizontal mount. Max flow 5 L/min. The fluid choice determined by the operating environment or temperature. Capable of quick oil output.



Safe & Safe Start


Constructed with high-quality oil suck pipes, which needed to be cleaned often, our pump work in a low-noise condition. Max Pressure: 200 bar. Its high-quality starter ensures a life long service time and a fast-starting for each time.


Full-Set Equipment


Equipped with a 4-meter remote control in long-distance use. With other parts like a hydraulic pump, DC motor, multi-purpose integrated block, various function valves, and plastic oil tank. It has been fully tested in its function.



Wide Application


It is widely used in workplaces where double acting hydraulic pump is needed, like steel construction, boiler making, construction works of fuel tanks and reactors, and factories including mines, smelteries, machine manufacturers and fitter factories.

24V DC Single Solenoid Double Acting Hydraulic Power Unit With 8L Plastic Reservoir

This power pack package to operate a double acting cylinder on a variety of applications, there is 2 Button detachable pendant on a 4-meter lead and it is suitable for all double acting applications. The power pack complete with suction strainer, return oil conveyor and filler breather, relief valve set at 160 bar but adjustable from 40-200 bar as standard. The motor of this item is designed for intermittent use which is defined as a sequence of identical cycles of 10-minute duration.

  • Upgrade Hydraulic Power Unit
  • Double Acting & Fast Start
  • Excellent Oil Output
  • Fully Equipment
Package Content:

Specification

  • 24V DC power pack 1.6kw
  • 2.1cc/rev gear pump
  • 4.5 Litre or 8.0 Litre reservoir c/w drain plug
  • Max pressure 200 bar
  • Max flow 5 L/min
  • Port size 3/8" BSP
  • 2 Button detachable pendant on a 4-meter lead
  • Suitable for all double acting applications
Package Content
  • 1 x 24V DC Double Acting Hydraulic Power Pack
  • 1 x Manual
