3 Axis Cnc Router Kit 1610 Engraver T8 Screw Ttl Injection Molding Material
Rated 3.5/5 based on 11 customer reviews

3 Axis Cnc Router Kit 1610 Engraver T8 Screw Ttl Injection Molding Material

Available: In Stock
Product SKU: DKJ3Z1610DKJJCK01V2
£106.99
Lowest Price Guaranteed
Found a cheaper option ?

This VEVOR product has the lowest price on all online sales platforms. If you find the same product at a lower price on other websites (Amazon or eBay), don't hesitate to get in touch with our customer service staff, and we will provide you with that lower price.

Submitted successfully. Thank you for contacting us
CNC 1610 DIY Engraving Machine
This CNC engraving machine is an excellent affordable self-learning engraving tool that allows you to try your DIY ideas at a low price and without the risk of damaging expensive equipment.
  • Premium Quality
  • Ease Of Use
  • Convenient Control
  • High Performance
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Durable Material
With the external dimensions of 260x240x220mm, frames are made of 2020 aluminum profiles,and the fixed parts are made of black injection molding material, which is of good appearance, high precision and durability.
3 Refined Axis
Equipped with 3 axis, able to realize plane engraving, with effective working travel of 160(X)x100(Y)x40(Z)mm. The driving units consist of T8 stainless steel screw rods, whose lead distance is 5mm, and the double copper nuts can eliminate the difference.

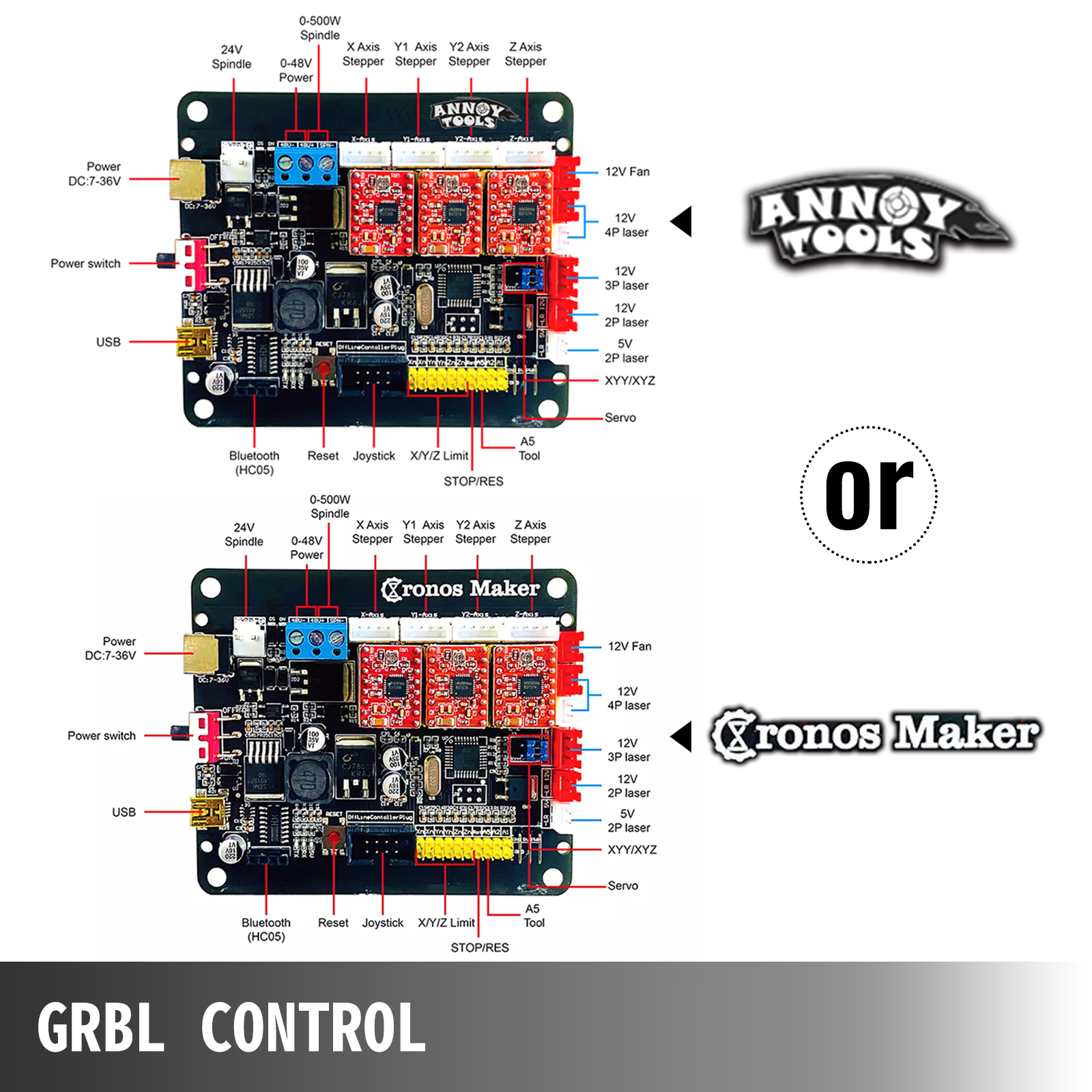

GRBL Control Board
The GRBL control board can be connected to a computer via a USB interface, featuring dual Y-axis, four-axis drive and full functionality. Laser is able to output 2P/3P, and support PWM, TTL functions, which can achieve greater practicality. These two kinds of control panels are delivered at random, but does not affect the performance.

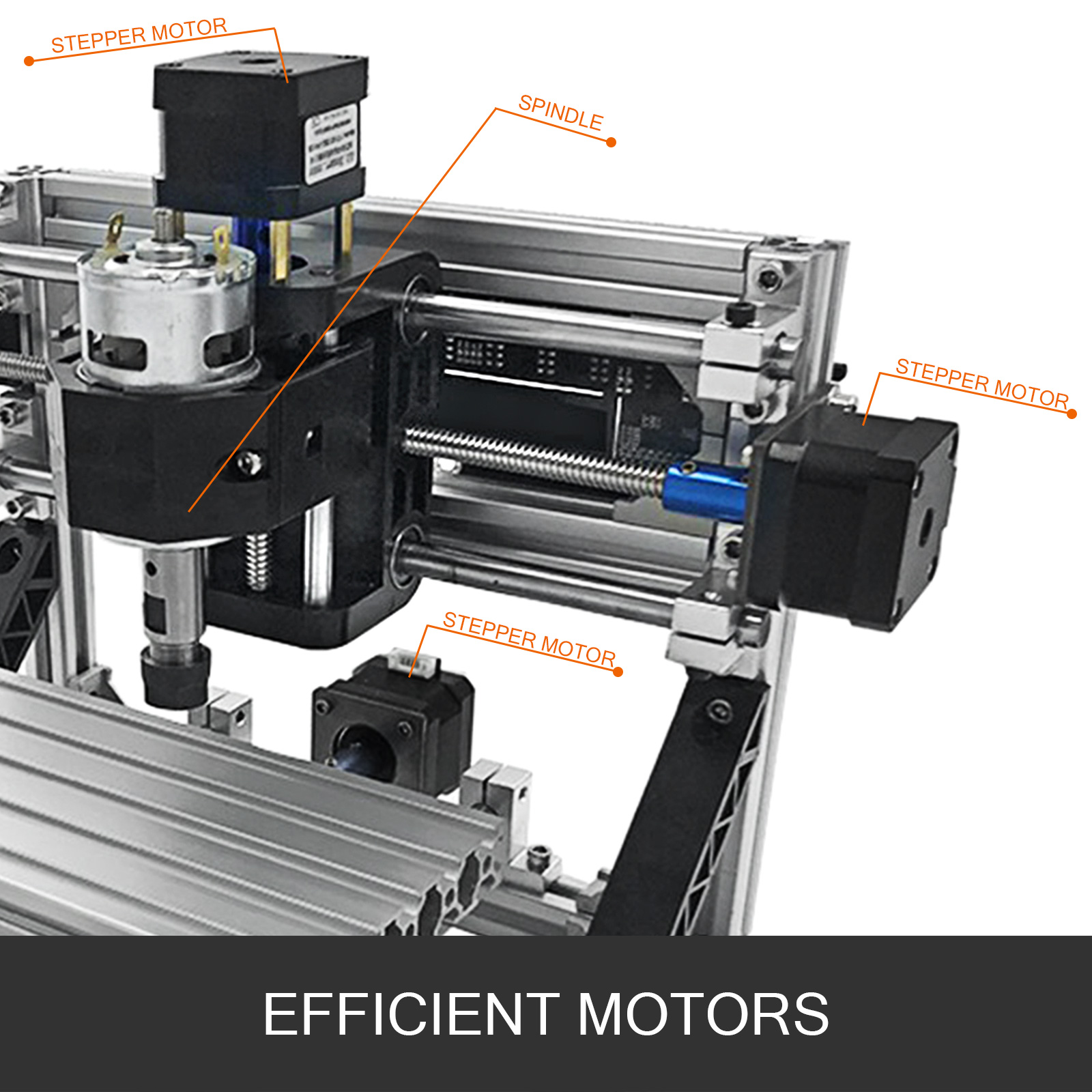

Efficient Motors
Equipped with three 42 stepper motor on each of three axis for easy movement. The 775 (12-36V)24V spindle motor on Z axis is able to reach the speed of 10000r/min.

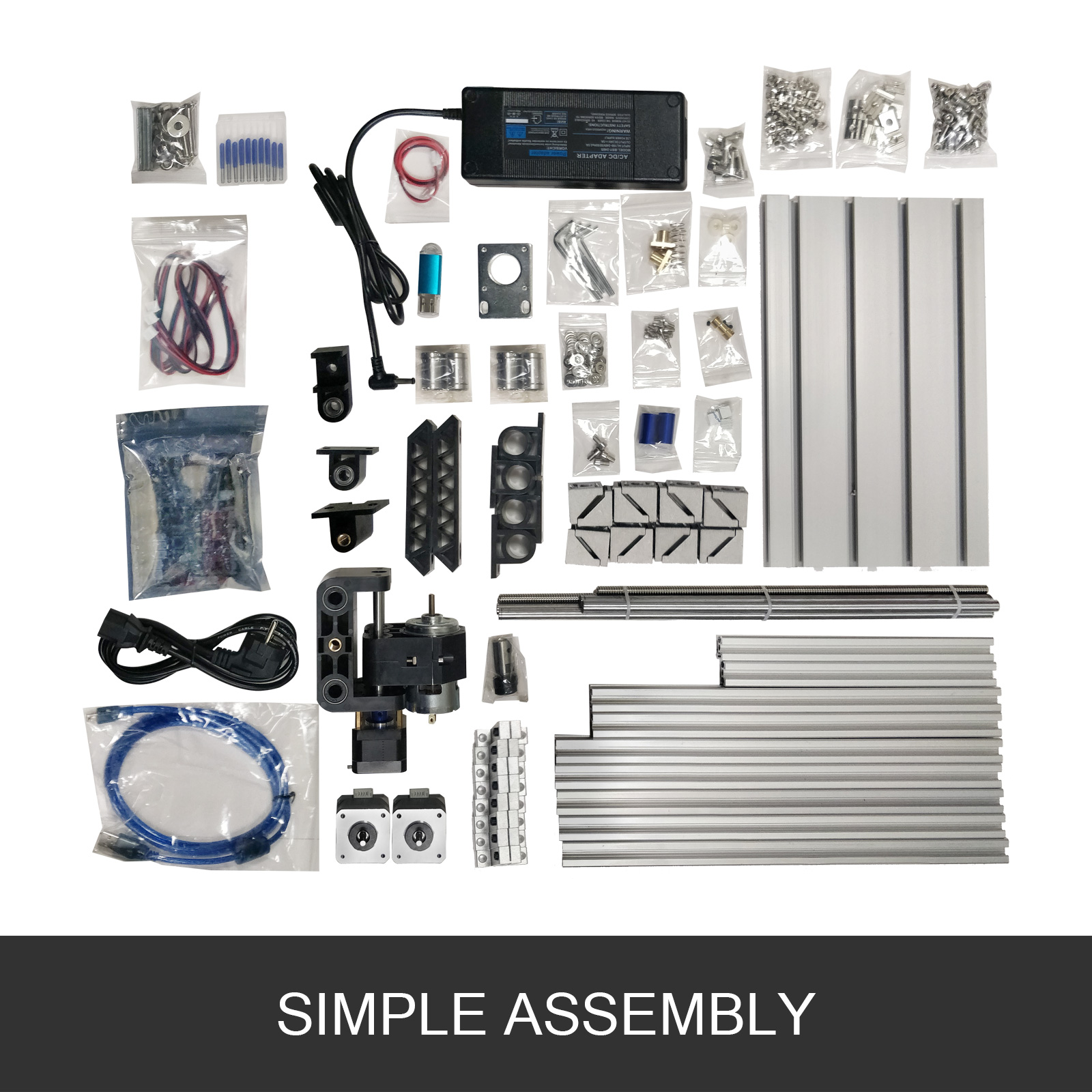

Simple Assembly
The engraving machine comes with detailed user manual and assembly instructions. Simply hand assembled according to the installation instructions, then you can enjoy the delight of using engraving machine.
Wide Application
This CNC engraving machine is capable of engraving all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Specifications
  • Effective Working Travel: 160(X)x100(Y)x40(Z)mm (6.3"*3.9"*1.6")
  • Shape Dimension: 260*240*220mm (10.2"*9.4"*8.7")
  • Materials: 2020 Aluminum Profile & Injection Molding Material
  • Driving Units: T8 Stainless Steel Screws
  • Spindle Speed: 10000 rpm/min
  • Input Power: DC 24V
  • PositionaI Accuracy: 0.08-0.1mm (0.003"-0.004")
  • Gross Weight: 13.6 lb (6.17 kg)
Package Content
  • 1 x CNC 1610 Router Kit
  • 1 x Spindle
  • 1 x Power Supply
  • 1 x Cable
  • 2 x Graver
  • 1 x Table Lamp
  • 1 x U-Disk (English manual & software are INCLUDED)
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
CNC 1610 DIY Engraving Machine
This CNC engraving machine is an excellent affordable self-learning engraving tool that allows you to try your DIY ideas at a low price and without the risk of damaging expensive equipment.
  • Premium Quality
  • Ease Of Use
  • Convenient Control
  • High Performance
  • Durable Material
    With the external dimensions of 260x240x220mm, frames are made of 2020 aluminum profiles,and the fixed parts are made of black injection molding material, which is of good appearance, high precision and durability.
    3 Refined Axis
    Equipped with 3 axis, able to realize plane engraving, with effective working travel of 160(X)x100(Y)x40(Z)mm. The driving units consist of T8 stainless steel screw rods, whose lead distance is 5mm, and the double copper nuts can eliminate the difference.
    GRBL Control Board
    The GRBL control board can be connected to a computer via a USB interface, featuring dual Y-axis, four-axis drive and full functionality. Laser is able to output 2P/3P, and support PWM, TTL functions, which can achieve greater practicality. These two kinds of control panels are delivered at random, but does not affect the performance.
    Efficient Motors
    Equipped with three 42 stepper motor on each of three axis for easy movement. The 775 (12-36V)24V spindle motor on Z axis is able to reach the speed of 10000r/min.
    Simple Assembly
    The engraving machine comes with detailed user manual and assembly instructions. Simply hand assembled according to the installation instructions, then you can enjoy the delight of using engraving machine.
    Wide Application
    This CNC engraving machine is capable of engraving all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
    Package Content
    • 1 x CNC 1610 Router Kit
    • 1 x Spindle
    • 1 x Power Supply
    • 1 x Cable
    • 2 x Graver
    • 1 x Table Lamp
    • 1 x U-Disk (English manual & software are INCLUDED)
    Specifications
  • Effective Working Travel: 160(X)x100(Y)x40(Z)mm (6.3"*3.9"*1.6")
  • Shape Dimension: 260*240*220mm (10.2"*9.4"*8.7")
  • Materials: 2020 Aluminum Profile & Injection Molding Material
  • Driving Units: T8 Stainless Steel Screws
  • Spindle Speed: 10000 rpm/min
  • Input Power: DC 24V
  • PositionaI Accuracy: 0.08-0.1mm (0.003"-0.004")
  • Gross Weight: 13.6 lb (6.17 kg)
  • CNC 1610 DIY Engraving Machine This CNC engraving machine is an excellent affordable self-learning engraving tool that allows you to try your DIY ideas at a low price and without the risk of damaging expensive equipment.
    • Premium Quality
    • Ease Of Use
    • Convenient Control
    • High Performance
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    Durable Material With the external dimensions of 260x240x220mm, frames are made of 2020 aluminum profiles,and the fixed parts are made of black injection molding material, which is of good appearance, high precision and durability. 3 Refined Axis Equipped with 3 axis, able to realize plane engraving, with effective working travel of 160(X)x100(Y)x40(Z)mm. The driving units consist of T8 stainless steel screw rods, whose lead distance is 5mm, and the double copper nuts can eliminate the difference. GRBL Control Board The GRBL control board can be connected to a computer via a USB interface, featuring dual Y-axis, four-axis drive and full functionality. Laser is able to output 2P/3P, and support PWM, TTL functions, which can achieve greater practicality. These two kinds of control panels are delivered at random, but does not affect the performance. Efficient Motors Equipped with three 42 stepper motor on each of three axis for easy movement. The 775 (12-36V)24V spindle motor on Z axis is able to reach the speed of 10000r/min. Simple Assembly The engraving machine comes with detailed user manual and assembly instructions. Simply hand assembled according to the installation instructions, then you can enjoy the delight of using engraving machine. Wide Application This CNC engraving machine is capable of engraving all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials. Specifications
    • Effective Working Travel: 160(X)x100(Y)x40(Z)mm (6.3"*3.9"*1.6")
    • Shape Dimension: 260*240*220mm (10.2"*9.4"*8.7")
    • Materials: 2020 Aluminum Profile & Injection Molding Material
    • Driving Units: T8 Stainless Steel Screws
    • Spindle Speed: 10000 rpm/min
    • Input Power: DC 24V
    • PositionaI Accuracy: 0.08-0.1mm (0.003"-0.004")
    • Gross Weight: 13.6 lb (6.17 kg)
    Package Content
    • 1 x CNC 1610 Router Kit
    • 1 x Spindle
    • 1 x Power Supply
    • 1 x Cable
    • 2 x Graver
    • 1 x Table Lamp
    • 1 x U-Disk (English manual & software are INCLUDED)
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    CNC 1610 DIY Engraving Machine This CNC engraving machine is an excellent affordable self-learning engraving tool that allows you to try your DIY ideas at a low price and without the risk of damaging expensive equipment.
  • Premium Quality
  • Ease Of Use
  • Convenient Control
  • High Performance
  • Durable Material With the external dimensions of 260x240x220mm, frames are made of 2020 aluminum profiles,and the fixed parts are made of black injection molding material, which is of good appearance, high precision and durability. 3 Refined Axis Equipped with 3 axis, able to realize plane engraving, with effective working travel of 160(X)x100(Y)x40(Z)mm. The driving units consist of T8 stainless steel screw rods, whose lead distance is 5mm, and the double copper nuts can eliminate the difference. GRBL Control Board The GRBL control board can be connected to a computer via a USB interface, featuring dual Y-axis, four-axis drive and full functionality. Laser is able to output 2P/3P, and support PWM, TTL functions, which can achieve greater practicality. These two kinds of control panels are delivered at random, but does not affect the performance. Efficient Motors Equipped with three 42 stepper motor on each of three axis for easy movement. The 775 (12-36V)24V spindle motor on Z axis is able to reach the speed of 10000r/min. Simple Assembly The engraving machine comes with detailed user manual and assembly instructions. Simply hand assembled according to the installation instructions, then you can enjoy the delight of using engraving machine. Wide Application This CNC engraving machine is capable of engraving all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials. Package Content
    • 1 x CNC 1610 Router Kit
    • 1 x Spindle
    • 1 x Power Supply
    • 1 x Cable
    • 2 x Graver
    • 1 x Table Lamp
    • 1 x U-Disk (English manual & software are INCLUDED)
    Specifications
  • Effective Working Travel: 160(X)x100(Y)x40(Z)mm (6.3"*3.9"*1.6")
  • Shape Dimension: 260*240*220mm (10.2"*9.4"*8.7")
  • Materials: 2020 Aluminum Profile & Injection Molding Material
  • Driving Units: T8 Stainless Steel Screws
  • Spindle Speed: 10000 rpm/min
  • Input Power: DC 24V
  • PositionaI Accuracy: 0.08-0.1mm (0.003"-0.004")
  • Gross Weight: 13.6 lb (6.17 kg)
  •
