3 Axis Cnc Router 3020 Engraver Engraving Milling Machine Woodworking Cutting
Rated 3.5/5 based on 11 customer reviews

3 Axis Cnc Router 3020 Engraver Engraving Milling Machine Woodworking Cutting

Available: In Stock
Product SKU: DKJ3Z3020DKJ00001V2
£339.99
Lowest Price Guaranteed
Found a cheaper option ?

This VEVOR product has the lowest price on all online sales platforms. If you find the same product at a lower price on other websites (Amazon or eBay), don't hesitate to get in touch with our customer service staff, and we will provide you with that lower price.

Submitted successfully. Thank you for contacting us

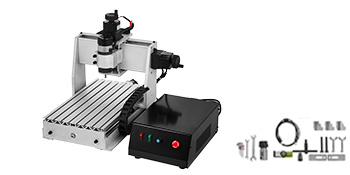

3 Axis CNC 3020 Engraving Milling Machine
The CNC 3020 router with 3 axis is suitable for Industry, technology research, advertising design, arts creation, student project and etc. The engraving process is visible as controlled by computer. It is a desktop CNC machine, designed for processing standard level of engraving, suitable for both production and amateur use.
  • Well-Designed Axis
  • High Efficiency
  • Precise Control
  • Superior Working Area
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
3 Refined Axis
Equipped with 3 axis, able to realize plane engraving, whose effective working travel is 200(X)x300(Y)x55(Z)mm.
Elaborate Controller
The engraving milling machine comes with a controller with built-in well-made transformer, which provides stable power for the control unit for long time continuous use, featuring one-to-one interface design and emergency stop button for high safety.
Exquisite Motors
Equipped with a 57 two-phase stepper motor(2A) on each of the three axis for easy movement, which are reliably connected by external couplings for high torque transfer. And the knobs with small handles on stepper motors can realize positioning adjustment. The 300W spindle motor on Z axis is able to reach the speeds of 8000 rpm/min(stepless speed regulation).
USB Port
Equipped with a USB flash drive, which can be directly connected to the computer instead of optical disc drive. Instruction manual, operating software Mach3 installation package and other related data are included.
Aluminium Worktable
Made of 6061 aluminium alloy and 6063 industrial aluminum. Aluminum backing plate and dust-proof plate are effective in preventing chips from splashing onto the screw and the optical axis, for long-term use and easy cleaning. The large worktable (240x425x15mm) provides higher enforce-ability for engraving.
Widespread Use
This engraving milling machine can be widely used in the engraving of soft materials such as plastic, wood, acrylic, PVC, PCB, etc. It is a perfect tool designed for processing advertising signs, artwork, crafts, models, etc.
Specifications
  • Power: 300W
  • Effective Working Travel:200(X)*300(Y)*55(Z)mm (7.9"*11.8"*2.2")
  • Shape Dimension:500*390*390mm (19.7"*15.4"*15.4")
  • Max.Workpiece Dimension:240*425mm≤65mm (9.4"*16.7"≤2.6")
  • Frame Materials:6061 Aluminum Alloy + 6063 Industrial Aluminum
  • Driving Units X/Y/Z Axis:1202 Trapezoidal Screws
  • Spindle Speed: 0 ~ 8000rpm/Min (Stepless Speed Regulation)
  • Repeat Accuracy: ≤0.05mm (0.002")
  • Carving Speed:0-1000mm/Min (Different Materials Differ)
  • Machine Weight:21.5kg (47.4 lbs)
Package Content
  • 1 x 3 Axis CNC 3020 Engraving Milling Machine
  • 1 x USB Cable
  • 1 x USB Disk
  • 1 x A Set Of Installation Tools
  • 1 x Cutting Tool
  • 1 x Z Axis Automatic Setting Tool
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
3 Axis CNC 3020 Engraving Milling Machine
The CNC 3020 router with 3 axis is suitable for Industry, technology research, advertising design, arts creation, student project and etc. The engraving process is visible as controlled by computer. It is a desktop CNC machine, designed for processing standard level of engraving, suitable for both production and amateur use.
  • Well-Designed Axis
  • High Efficiency
  • Precise Control
  • Superior Working Area
  • 3 Refined Axis
    Equipped with 3 axis, able to realize plane engraving, whose effective working travel is 200(X)x300(Y)x55(Z)mm.
    Elaborate Controller
    The engraving milling machine comes with a controller with built-in well-made transformer, which provides stable power for the control unit for long time continuous use, featuring one-to-one interface design and emergency stop button for high safety.
    Exquisite Motors
    Equipped with a 57 two-phase stepper motor(2A) on each of the three axis for easy movement, which are reliably connected by external couplings for high torque transfer. And the knobs with small handles on stepper motors can realize positioning adjustment. The 300W spindle motor on Z axis is able to reach the speeds of 8000 rpm/min(stepless speed regulation).
    USB Port
    Equipped with a USB flash drive, which can be directly connected to the computer instead of optical disc drive. Instruction manual, operating software Mach3 installation package and other related data are included.
    Aluminium Worktable
    Made of 6061 aluminium alloy and 6063 industrial aluminum. Aluminum backing plate and dust-proof plate are effective in preventing chips from splashing onto the screw and the optical axis, for long-term use and easy cleaning. The large worktable (240x425x15mm) provides higher enforce-ability for engraving.
    Widespread Use
    This engraving milling machine can be widely used in the engraving of soft materials such as plastic, wood, acrylic, PVC, PCB, etc. It is a perfect tool designed for processing advertising signs, artwork, crafts, models, etc.
    Package Content
    • 1 x 3 Axis CNC 3020 Engraving Milling Machine
    • 1 x USB Cable
    • 1 x USB Disk
    • 1 x A Set Of Installation Tools
    • 1 x Cutting Tool
    • 1 x Z Axis Automatic Setting Tool
    Specifications
  • Power: 300W
  • Effective Working Travel:200(X)*300(Y)*55(Z)mm (7.9"*11.8"*2.2")
  • Shape Dimension:500*390*390mm (19.7"*15.4"*15.4")
  • Max.Workpiece Dimension:240*425mm≤65mm (9.4"*16.7"≤2.6")
  • Frame Materials:6061 Aluminum Alloy + 6063 Industrial Aluminum
  • Driving Units X/Y/Z Axis:1202 Trapezoidal Screws
  • Spindle Speed: 0 ~ 8000rpm/Min (Stepless Speed Regulation)
  • Repeat Accuracy: ≤0.05mm (0.002")
  • Carving Speed:0-1000mm/Min (Different Materials Differ)
  • Machine Weight:21.5kg (47.4 lbs)
  • 3 Axis CNC 3020 Engraving Milling Machine The CNC 3020 router with 3 axis is suitable for Industry, technology research, advertising design, arts creation, student project and etc. The engraving process is visible as controlled by computer. It is a desktop CNC machine, designed for processing standard level of engraving, suitable for both production and amateur use.
    • Well-Designed Axis
    • High Efficiency
    • Precise Control
    • Superior Working Area
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Returns
    • 24/7 Attentive Service
    3 Refined Axis Equipped with 3 axis, able to realize plane engraving, whose effective working travel is 200(X)x300(Y)x55(Z)mm. Elaborate Controller The engraving milling machine comes with a controller with built-in well-made transformer, which provides stable power for the control unit for long time continuous use, featuring one-to-one interface design and emergency stop button for high safety. Exquisite Motors Equipped with a 57 two-phase stepper motor(2A) on each of the three axis for easy movement, which are reliably connected by external couplings for high torque transfer. And the knobs with small handles on stepper motors can realize positioning adjustment. The 300W spindle motor on Z axis is able to reach the speeds of 8000 rpm/min(stepless speed regulation). USB Port Equipped with a USB flash drive, which can be directly connected to the computer instead of optical disc drive. Instruction manual, operating software Mach3 installation package and other related data are included. Aluminium Worktable Made of 6061 aluminium alloy and 6063 industrial aluminum. Aluminum backing plate and dust-proof plate are effective in preventing chips from splashing onto the screw and the optical axis, for long-term use and easy cleaning. The large worktable (240x425x15mm) provides higher enforce-ability for engraving. Widespread Use This engraving milling machine can be widely used in the engraving of soft materials such as plastic, wood, acrylic, PVC, PCB, etc. It is a perfect tool designed for processing advertising signs, artwork, crafts, models, etc. Specifications
    • Power: 300W
    • Effective Working Travel:200(X)*300(Y)*55(Z)mm (7.9"*11.8"*2.2")
    • Shape Dimension:500*390*390mm (19.7"*15.4"*15.4")
    • Max.Workpiece Dimension:240*425mm≤65mm (9.4"*16.7"≤2.6")
    • Frame Materials:6061 Aluminum Alloy + 6063 Industrial Aluminum
    • Driving Units X/Y/Z Axis:1202 Trapezoidal Screws
    • Spindle Speed: 0 ~ 8000rpm/Min (Stepless Speed Regulation)
    • Repeat Accuracy: ≤0.05mm (0.002")
    • Carving Speed:0-1000mm/Min (Different Materials Differ)
    • Machine Weight:21.5kg (47.4 lbs)
    Package Content
    • 1 x 3 Axis CNC 3020 Engraving Milling Machine
    • 1 x USB Cable
    • 1 x USB Disk
    • 1 x A Set Of Installation Tools
    • 1 x Cutting Tool
    • 1 x Z Axis Automatic Setting Tool
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Returns
    • 24/7 Attentive Service
    3 Axis CNC 3020 Engraving Milling Machine The CNC 3020 router with 3 axis is suitable for Industry, technology research, advertising design, arts creation, student project and etc. The engraving process is visible as controlled by computer. It is a desktop CNC machine, designed for processing standard level of engraving, suitable for both production and amateur use.
  • Well-Designed Axis
  • High Efficiency
  • Precise Control
  • Superior Working Area
  • 3 Refined Axis Equipped with 3 axis, able to realize plane engraving, whose effective working travel is 200(X)x300(Y)x55(Z)mm. Elaborate Controller The engraving milling machine comes with a controller with built-in well-made transformer, which provides stable power for the control unit for long time continuous use, featuring one-to-one interface design and emergency stop button for high safety. Exquisite Motors Equipped with a 57 two-phase stepper motor(2A) on each of the three axis for easy movement, which are reliably connected by external couplings for high torque transfer. And the knobs with small handles on stepper motors can realize positioning adjustment. The 300W spindle motor on Z axis is able to reach the speeds of 8000 rpm/min(stepless speed regulation). USB Port Equipped with a USB flash drive, which can be directly connected to the computer instead of optical disc drive. Instruction manual, operating software Mach3 installation package and other related data are included. Aluminium Worktable Made of 6061 aluminium alloy and 6063 industrial aluminum. Aluminum backing plate and dust-proof plate are effective in preventing chips from splashing onto the screw and the optical axis, for long-term use and easy cleaning. The large worktable (240x425x15mm) provides higher enforce-ability for engraving. Widespread Use This engraving milling machine can be widely used in the engraving of soft materials such as plastic, wood, acrylic, PVC, PCB, etc. It is a perfect tool designed for processing advertising signs, artwork, crafts, models, etc. Package Content
    • 1 x 3 Axis CNC 3020 Engraving Milling Machine
    • 1 x USB Cable
    • 1 x USB Disk
    • 1 x A Set Of Installation Tools
    • 1 x Cutting Tool
    • 1 x Z Axis Automatic Setting Tool
    Specifications
  • Power: 300W
  • Effective Working Travel:200(X)*300(Y)*55(Z)mm (7.9"*11.8"*2.2")
  • Shape Dimension:500*390*390mm (19.7"*15.4"*15.4")
  • Max.Workpiece Dimension:240*425mm≤65mm (9.4"*16.7"≤2.6")
  • Frame Materials:6061 Aluminum Alloy + 6063 Industrial Aluminum
  • Driving Units X/Y/Z Axis:1202 Trapezoidal Screws
  • Spindle Speed: 0 ~ 8000rpm/Min (Stepless Speed Regulation)
  • Repeat Accuracy: ≤0.05mm (0.002")
  • Carving Speed:0-1000mm/Min (Different Materials Differ)
  • Machine Weight:21.5kg (47.4 lbs)
  •
